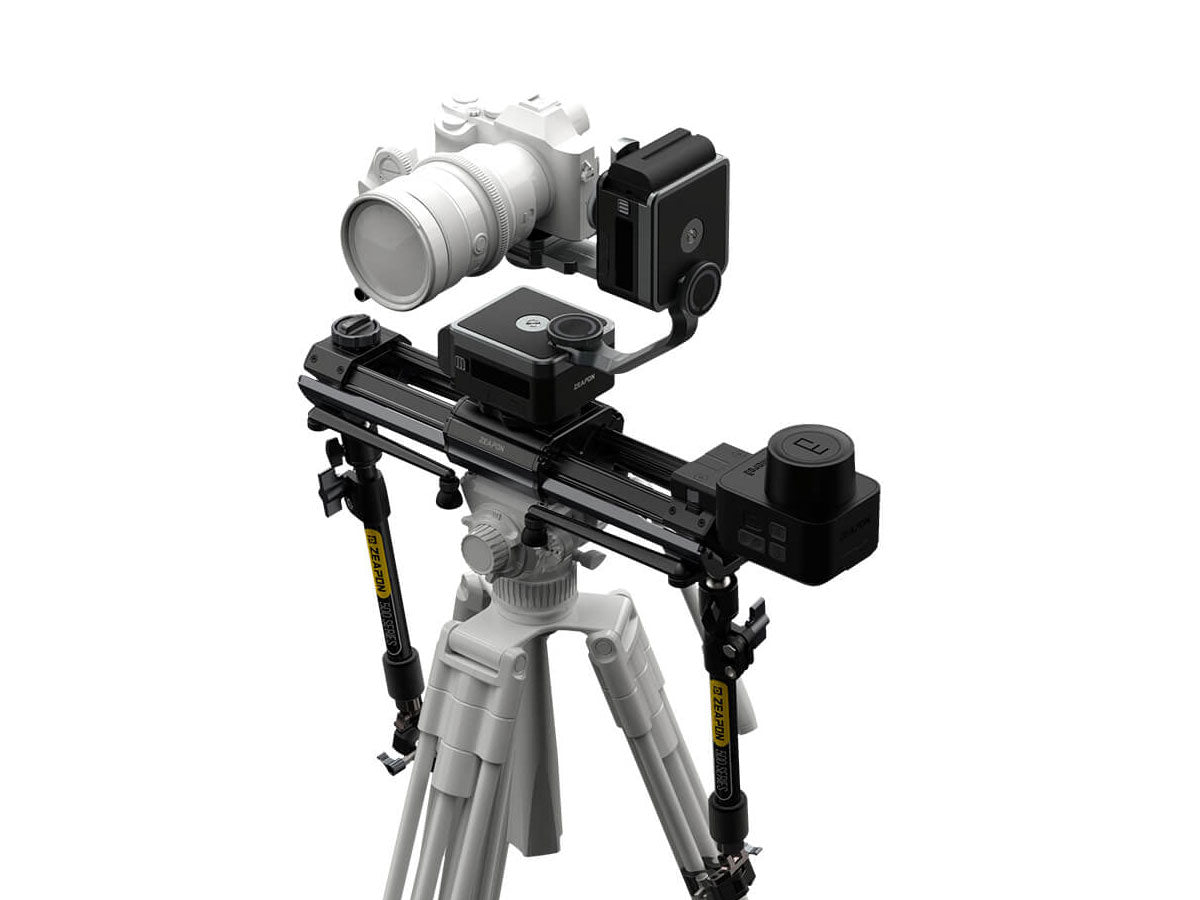

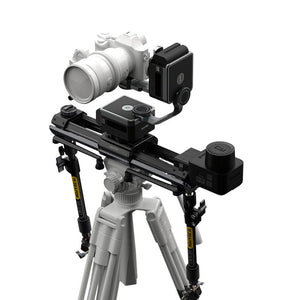

Zeapon Micro3 E500 PONS PT Kit
Zeapon Micro3 E500 PONS PT Kit
SKU:
ZEA-TZ-10
Regular price
£925.00 GBP ex VAT
£1,110.00 GBP inc VAT
£1,110.00 GBP inc VAT
Regular price
ex VAT
Sale price
£925.00 GBP ex VAT
£1,110.00 GBP inc VAT
Unit price
per
£1,110.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
- What's Included
Hellaflush Design, 4 KG Payload
Inspired by the design of Hellaflush car modification, Micro3 uses a new 45-degree angled track design. It disperse weight to both vertical and horizontal direction, resulting in a stable platform with amazing 4 kg payload limit in any direction and the horizontal load is up to 12 kg.
Vacuum Adjustable Damping
The Fluid Damping technology of the Zeapon Micro Series allows videographers to create extremely smooth and consistent camera movements. With the Micro3, we introduce the latest “Vacuum Adjustable Damping”technology. The vacuum structure combined with special damping grease not only provides a solid damping smoothness, but also allows stepless adjustment of the slider movement resistance. The damping setting can be adjusted between 1 and 5. The higher the number, the higher the resistance. The videographer can choose the setting that is most suitable to his usage and shooting style. The Adjustable Damping technology also solves the problem of high resistance caused by extreme low temperature.

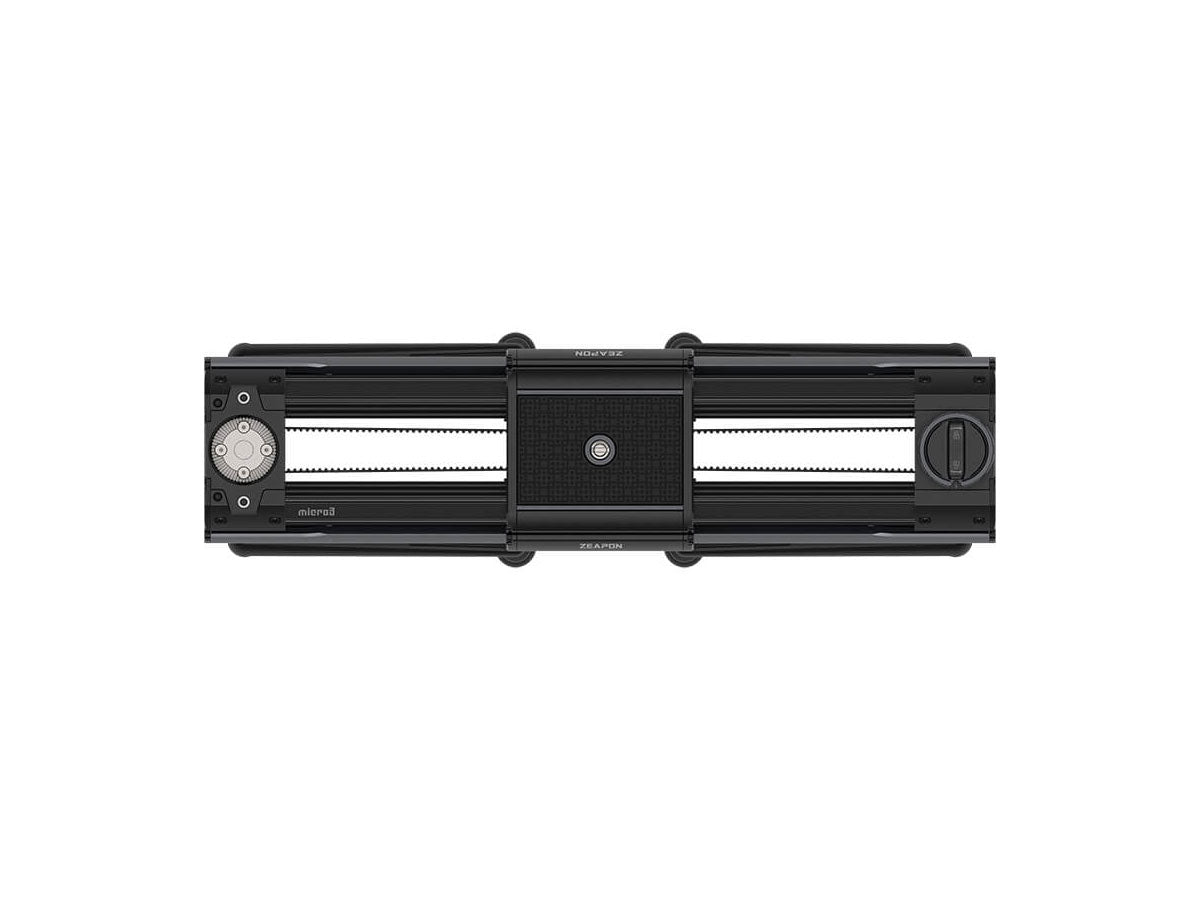

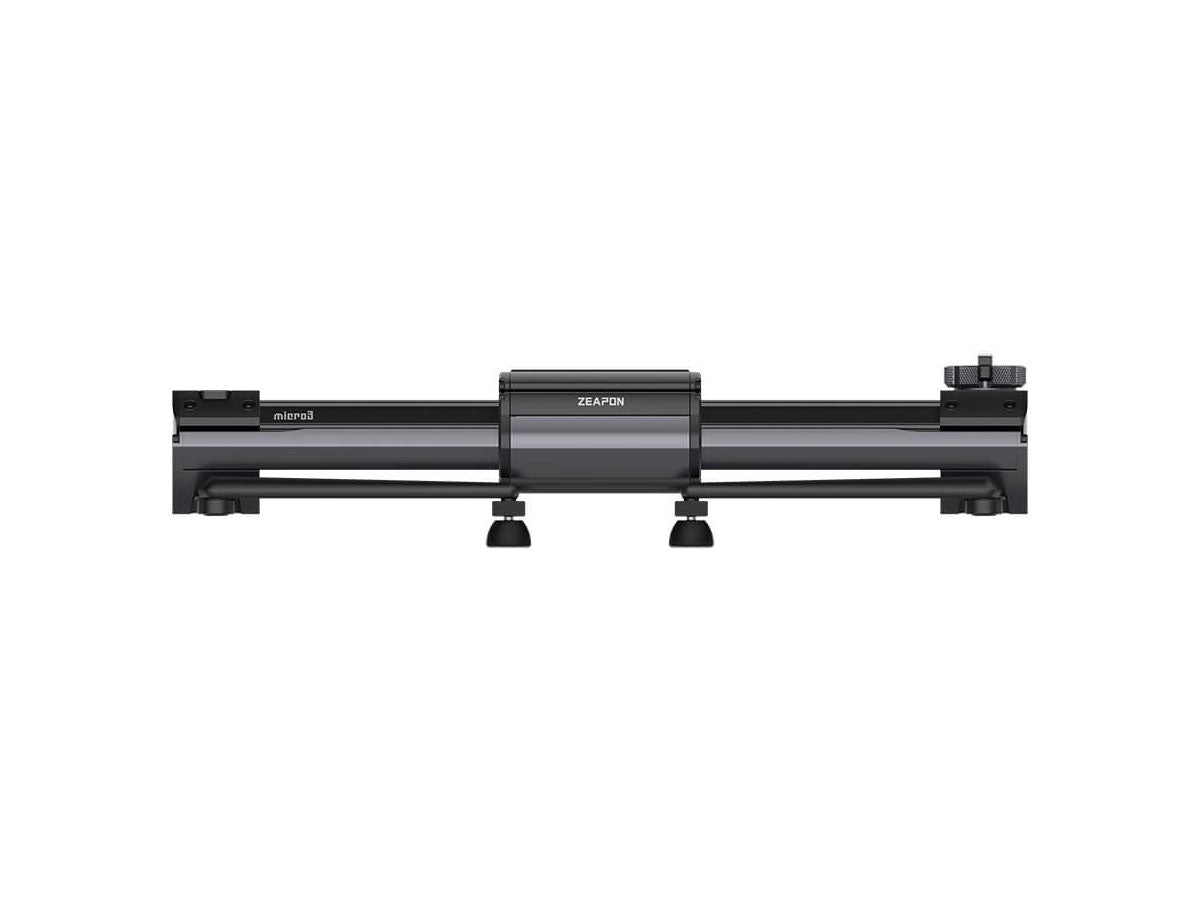

Triple Support System
The Zeapon Micro3 has a brand new triple support system. The stress point of the tripod support rods has been shifted from the center of the slider to the support components at both ends where standard 1/4" and 3/8" screw ports are added as well, The new design not only brings greater stability when running on flat surfaces, it also allows you to maximise your creativity! You can have the Zeapon Micro3 mounted upside down or you can mount the Micro3 on a car easily. The entire Micro3 Series sliders come with tripod support rods, no need to purchase them separately. Micro3 1000 series doubled the amount of load bearing wheels from two sets to four sets and you do not need to do any height adjustment. Combining it with the Hellaflush angled design, the height of the slider won’t change even when the slider travels to the extreme end position.
All-Round Belt
The Zeapon Micro3 comes with many improvements and upgrade that addressed every single area. The belt lock uses a large-diameter mechanical knob, no need to worry about damaging the belt or triggering it by accident. As the belt could be loosen slight after long period of time, the belt now has a new elasticated design. Furthermore, the metal joints at both ends are eliminated permanently, thus in addition to the official accessories, users can purchase standard belts and install by themselves, economical and user friendly.
Nesting Screw With Hidden Design
ZEAPON's unique nesting screw is compatible with both 1/4 and 3/8 inch standard. When you don't need to use the screw, or when you want to put the device into a camera bag when packing up, you just need to press the screw and rotate it slightly, then the screw can be fully hidden to avoid scratching other devices and camera bags.
Large Mounting Base
The mounting base of Micro3 is approximately three times the size of the previous generation, it significantly increased the contact surface and allows your camera to be installed more securely and improves the stability.
Stainless Load Bearing Parts
The load bearing rails and wheels of Micro3 are both made with stainless steel, robust and wear-resistant, can withstand any damage from moisture and sand in extreme environments.
Powerful Weapon of Macro Photography
The extremely smooth of the Micro3 will fearlessly amplify the probe lens against jitter. Double distance slide can hide itself extremely well, so that the equipment is not easy to out of camera wear.
Intelligently Selected Orbit, Waypoint Surrounding
For the horizontal surrounding shooting or the multi-point orbit changing shooting, you just need to select each orbit point and adjust the camera to the target direction in the mobile intelligent APP - ZEAPON Lab. After startup, ZEAPON Lab can automatically calculate the spatial running posture to complete a variety of complex waypoint surrounding shooting.
50 kg Horizontal Load
The high-power silent step motor used by the PONS motorised pan head allows the horizontal load up to 50 kg, while achieving the ultra silence of 39 dB, which helps users spend less time processing the audio noise reduction. In both the heading operation and the pitching operation, PONS can operate steadily without being leveled.
Flexible Upgrading for Users with Different Budgets
The growth of a photographer is also a process of self-improvement and overcoming difficulties, which can never be done in one step. With a modular product philosophy, ZEAPON does not sell pan heads bundled with its rail slider.

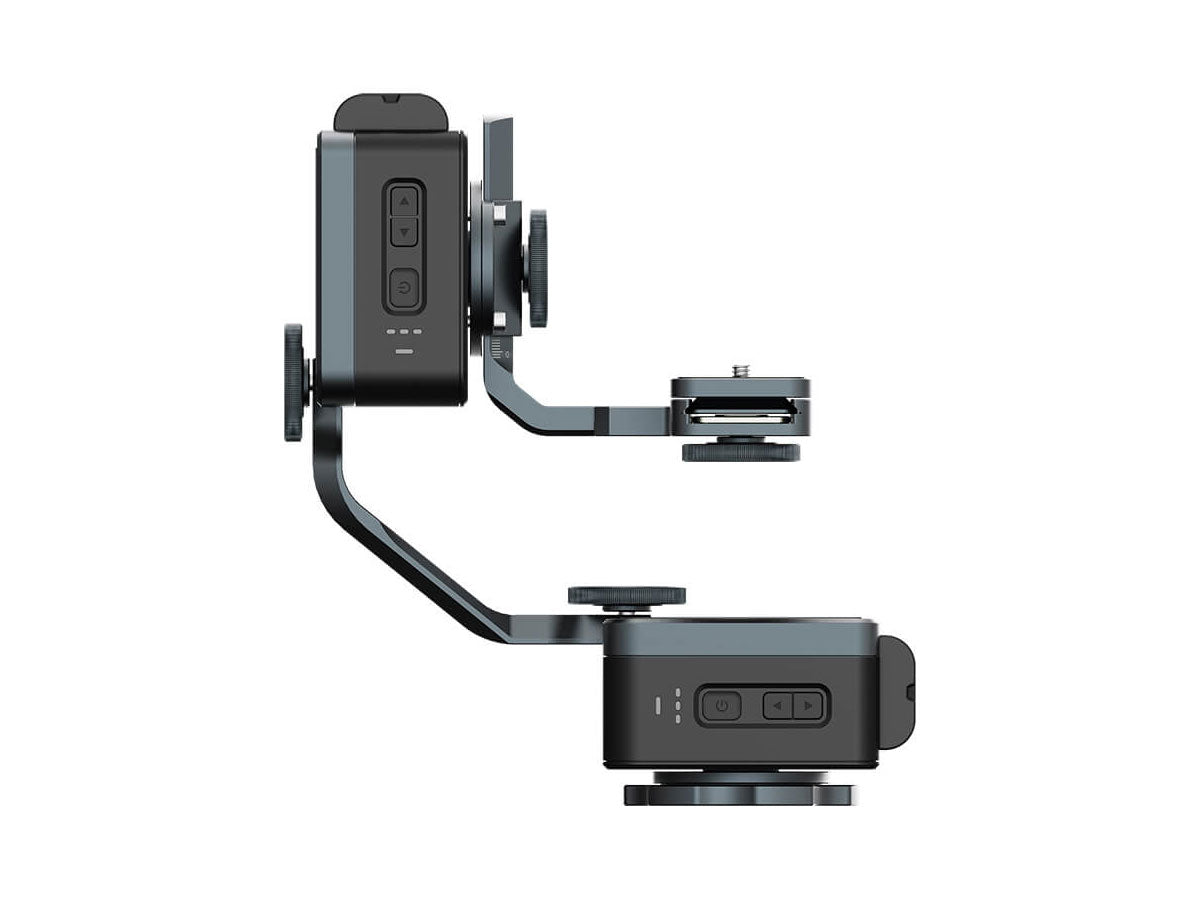

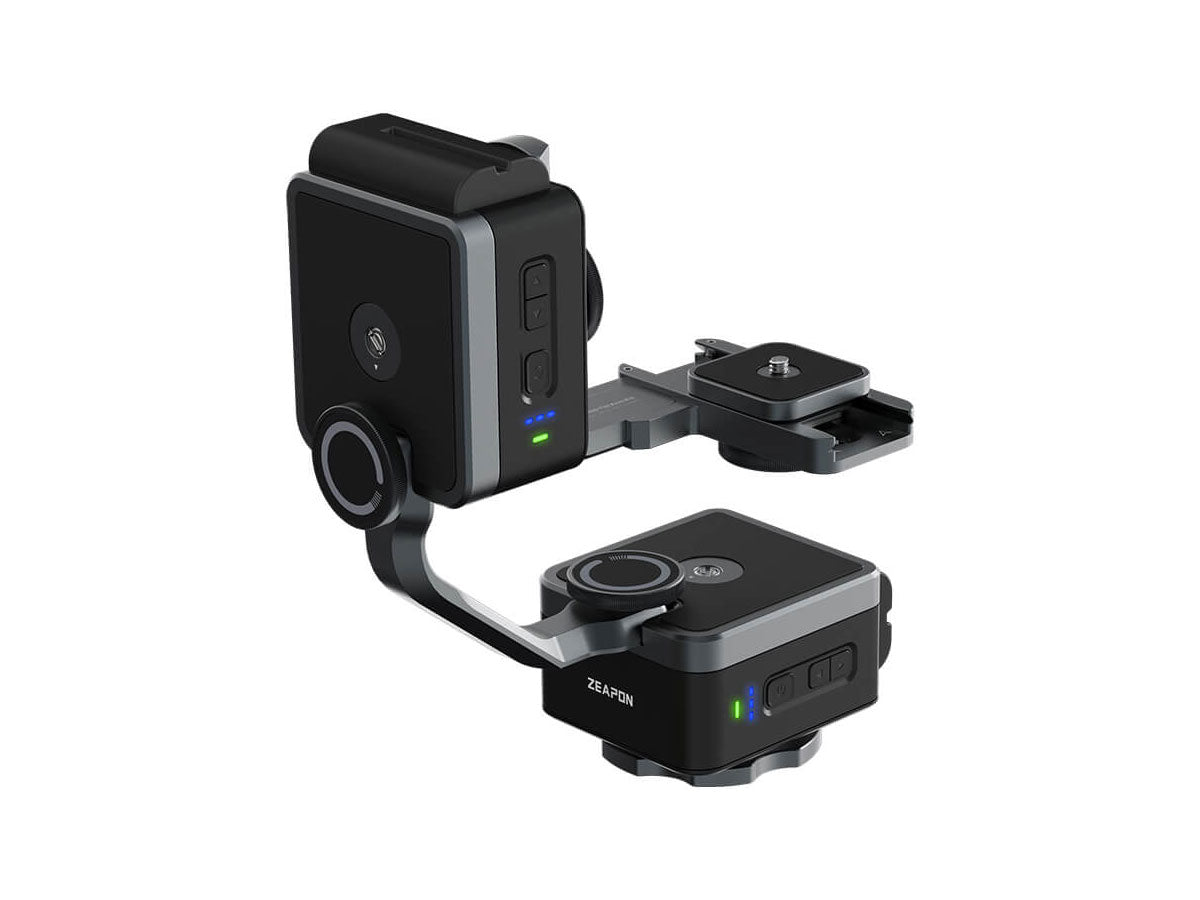

Besides, two motorised pan heads can be combined into a PONS PT Head through the tilt arm kit. The device combination is flexible, and the maintenance and upgrading are available for users with different budgets.
Besides, two motorised pan heads can be combined into a PONS PT Head through the tilt arm kit. The device combination is flexible, and the maintenance and upgrading are available for users with different budgets.
360 Degree Panoramic Shooting
To unlock the 360 degree panoramic shooting, you just need to input the sensor size and focal length of the camera in the mobile APP - ZEAPON Lab, and then the software can automatically calculate the number of shots taken in the horizontal direction.
After you click the start button, the camera can start taking 360 degree panoramic photos.
After you click the start button, the camera can start taking 360 degree panoramic photos.
Fully Hidden 1/4 & 3/8 Screw Cap
ZEAPON's original fully hidden port is compatible with 1/4 & 3/8 standard screw caps. Moreover, when you don't need to use the screw, or when you want to put the device into the camera bag at the end of the work, you just need to press the screw cap and rotate it slightly, then the screw cap can be fully fixed in the pan head to avoid scratching other devices and camera bags.
Besides, when the screw cap is fully hidden, you can turn the pan head upside down, and now use it as an electric turntable.
Besides, when the screw cap is fully hidden, you can turn the pan head upside down, and now use it as an electric turntable.
Physical Buttons that can Fix the Point and Adjust the Speed
The pan head has its own physical buttons, which can be used to adjust the rotational speed of the pan head without connecting the APP, and realize the fixed point of the orbit, circulation and other operations, making you finish the setting faster.
Multiple Accessories Supported Later to Extend Your Multi-Purpose Use
We have reserved the space of multiple expansions in the structure of the PONS Pan Head, which can support a wide range of intelligent motorised accessories to be launched by ZEAPON, such as rotary table, dolly, and rocker arm.
| E500 | ||
| Maximum Payload: | Horizontal: | 12.0kg |
| Vertical: | 4.5kg | |
| Travel Distance: | 590mm | |
| Slider Length: | 478mm | |
| Weight: | 3000g | |
| PD-E1 | ||
| Materials: | Aerial Aluminum Alloy + PC | |
| Connection: | Wireless Connection | |
| Input: | 5V 2A | |
| Battery Voltage: | DC 7.2V~8.4V | |
| Compatible Battery: | F550/F750/F970 | |
| Weight: | 2140 g | |
- 2x PONS Motorised Pan Head
- 1x Hexagon Wrench
- 1x PONS Manual
- 1x PONS PT Manual
- 1x PONS Tilt Arm Kit Installation Guide
- 1x PONS Tilt Arm Kit
- 1x Hexagon Wrench
- 1x Micro 3 E500 slider
- 1x E500 slider bag
- 2x E500 tripod support rods
- 1x H2.5 wrench
- 1x E500 backup belt
- 1x Slider manual
- 1x Slider warranty card

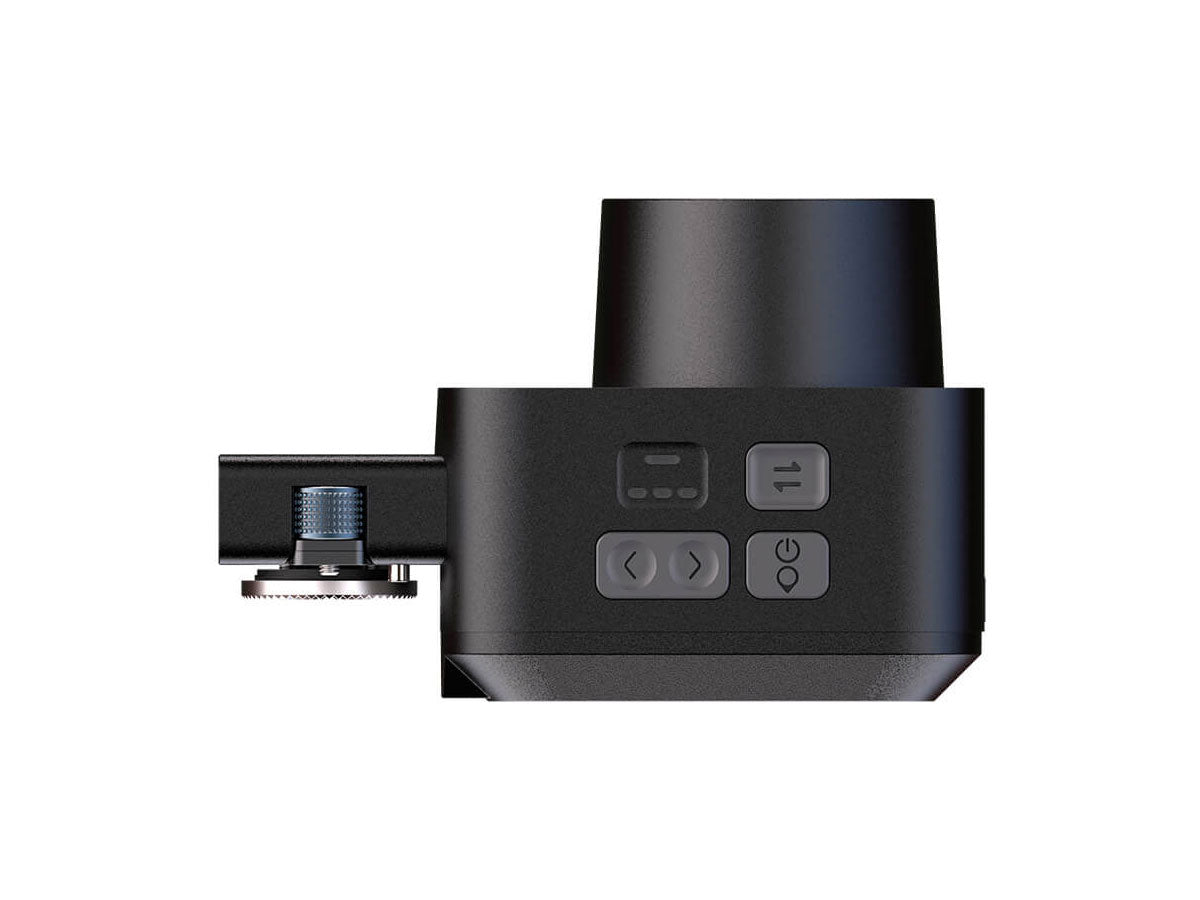

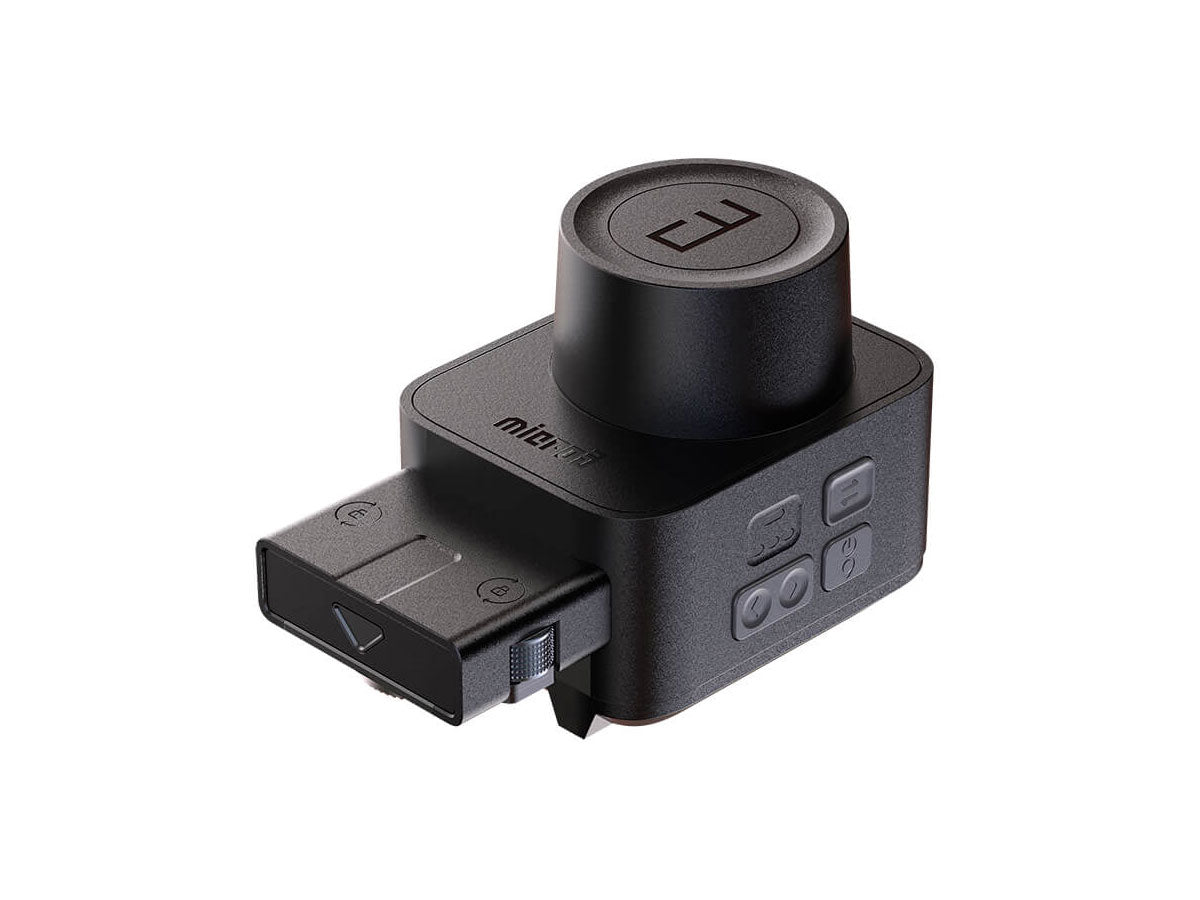

- 1x Micro3 slider motor
- 1x Slider motor bag
- 1x Slider motor manual
- 1x Slider motor warranty card
