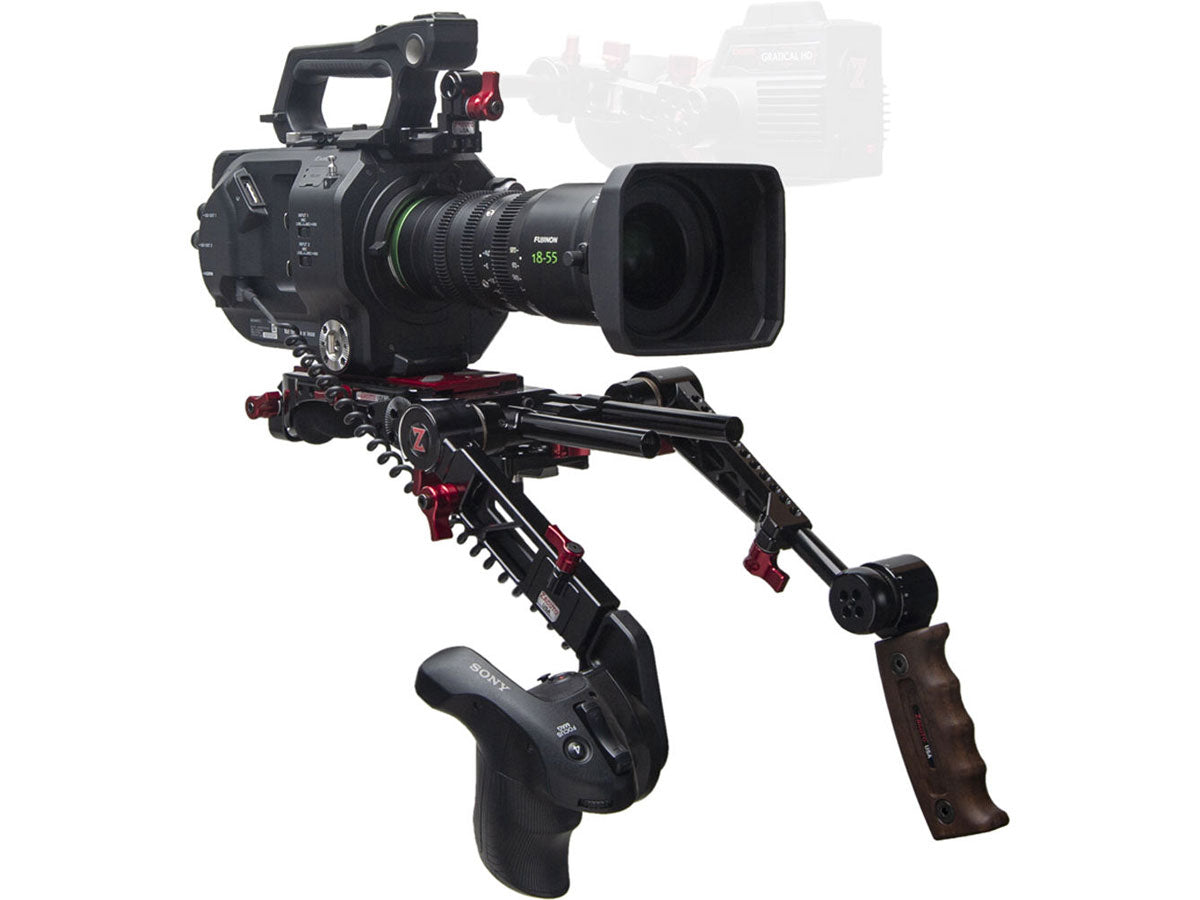

Zacuto Sony FX9 Recoil With Dual Trigger Grips

Zacuto Sony FX9 Recoil With Dual Trigger Grips

SKU: Z-SX9-PDG
Regular price £1,523.70 GBP ex VAT
£1,828.44 GBP inc VAT
Regular price ex VAT Sale price £1,523.70 GBP ex VAT
£1,828.44 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

***Please note: Sony FX9 is not included***

The Sony FX9 Recoil with Dual Trigger Grips is a shoulder rig designed specifically for the Sony FX9 camera.This is a Next Generation Recoil rig designed for optimal balance and comfort when shoulder mounted or on a tripod. With lenses and cameras being similar weights, the balance point is where the lens meets the camera body. In a shoulder mount rig, the balance point needs to be directly over your shoulder which puts the camera behind you. The Recoil rig adjusts for that balance point and relocates focus, monitoring and camera controls forward, creating a lighter, shorter and properly balanced rig.

The Sony FX9 Recoil Pro shoulder-mounted rig includes our VCT Pro baseplate, the FX9 Dual Trigger Grip, a LANC extension cable, and our Axis Mini for Sony FX9.

Includes:

VCT Pro – this baseplate has a sliding top plate for quickly removing the camera from the rig or fast lens changes, a built-in, curved shoulder pad, a v-wedge tripod connector (with ¼” 20 and 3/8" 16 screw option). It has removable and extendable 6.5” iris rods and rows of ¼” 20 screw holes along the sides for accessories. It has quick release 15mm rod parts in the rear. The recessed rod mount offers maximum accessory capable space under your camera lens.

FX9 Dual Trigger Grips- It allows for single-handed 360° rotation with the simple press of a trigger. Flip it down for a low, rock-solid handgrip. Raise it up for more of an Aaton style position. Or quickly flip it all the way up to set your camera flat on the ground or for storing in a case.

Axis Mini for Sony FX9- Attaches to the included Sony FS7/FX9 Top Plate to mount either a rosette mounted EVF like the Gratical HD or the Sony LCD monitor itself. Adjustable positioning for shoulder mounted shooting or tripod shooting.

  • Designed specifically for the Sony FX9
  • Adjustable, allowing single-handed 360° rotation
Zacuto VCT Pro Baseplate
Support Type Shoulder Support
Grip Type None
Camera Compatibility Universal
Rod Standard 15 mm LWS / 60 mm Spacing
Included Rods 2 x 6.5" / 16.5 cm 15 mm Rod
Accessory Mounting Side: 3 x 1/4"-20 Thread
Camera Mounting Quick Release Plate with 1/4"-20 Screw, 3/8"-16 Screw
Tripod Mounting 1/4"-20 Thread, 3/8"-16 Thread, VCT-14
Rod Ports 2 x 15 mm Rod Port
Rosettes Side: 1 x ARRI Rosette w/ M6 Thread
Dimensions 14.25 x 4.25 x 2" / 36.2 x 10.8 x 5 cm (with Rods)
Weight 2.1 lb / 0.96 kg
Package Weight 2.85 lb
Box Dimensions (LxWxH) 11.7 x 10.4 x 7.8"
Zacuto Sony FX9 Dual Trigger Grips
Item Type Dual Handgrips
Rotation Yes
Built-In Controls Remote Trigger
Attachment Method Attaches via Rod Ports
Rod Standard 15 mm LWS / 60 mm Spacing
Rod Ports 2 x 15 mm Rod Port
Accessory Mounting None
Shoe Mounting None
Rosettes Yes
Rail Mounting None
Materials Aluminum, Wood
Package Weight 2.085 lb
Box Dimensions (LxWxH) 10.4 x 9.5 x 2.4"
Zacuto LANC Extension Cable (13.8")
Connectors 2.5 mm (male), 2.5 mm (female)
Cable Length 13.8" / 35 cm
Package Weight 0.055 lb
Box Dimensions (LxWxH) 6.05 x 4.1 x 0.45"

  • Zacuto VCT Pro Baseplate
  • Zacuto Sony FX9 Dual Trigger Grips
  • Zacuto Axis Mini for Sony FX9
  • Zacuto LANC Extension Cable (13.8")
