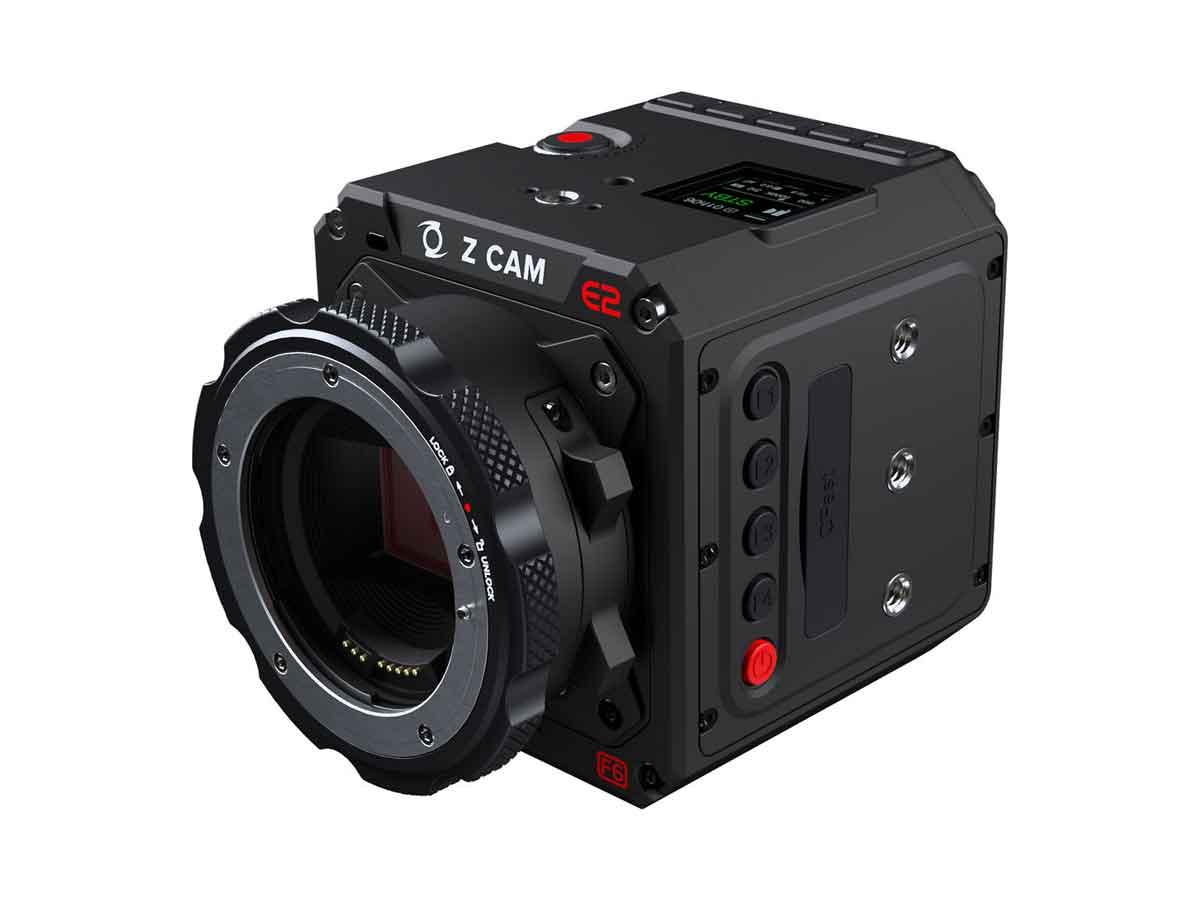

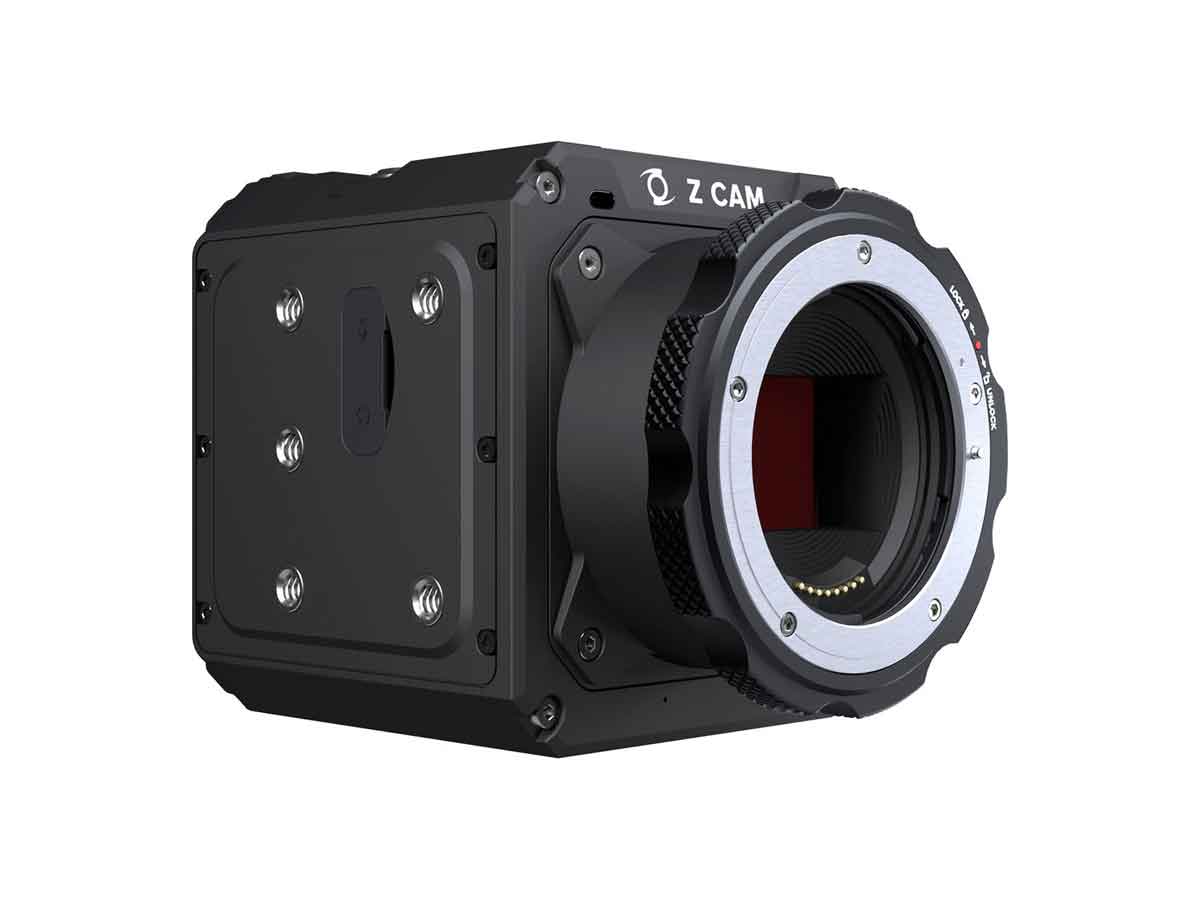

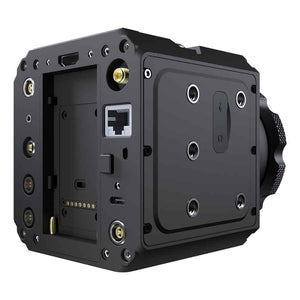

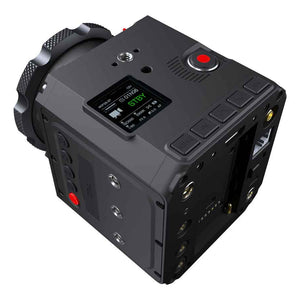

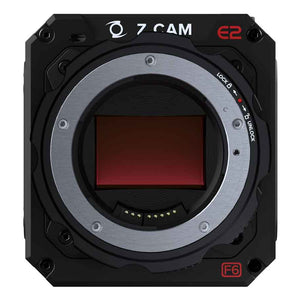

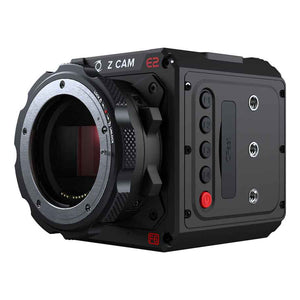

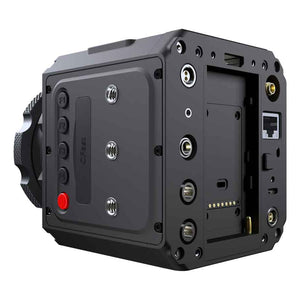

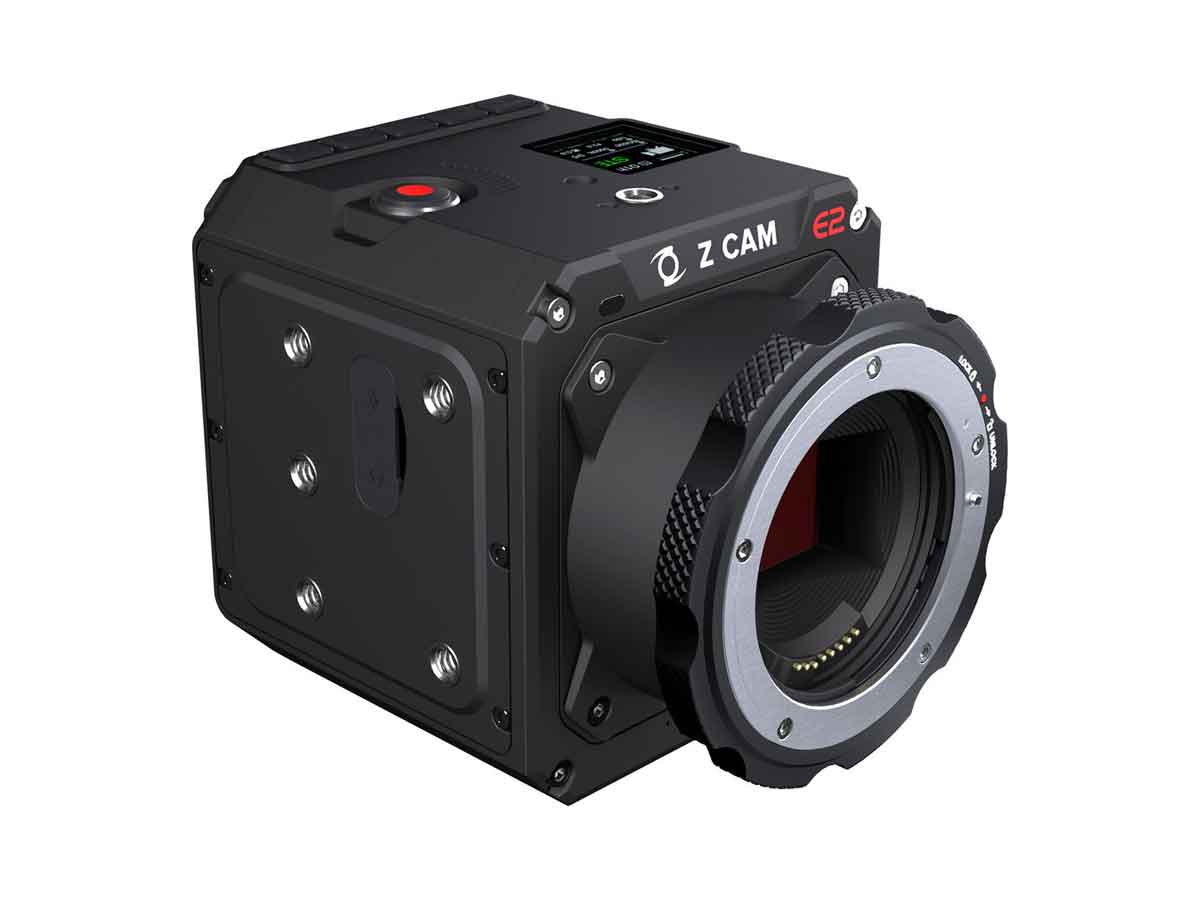

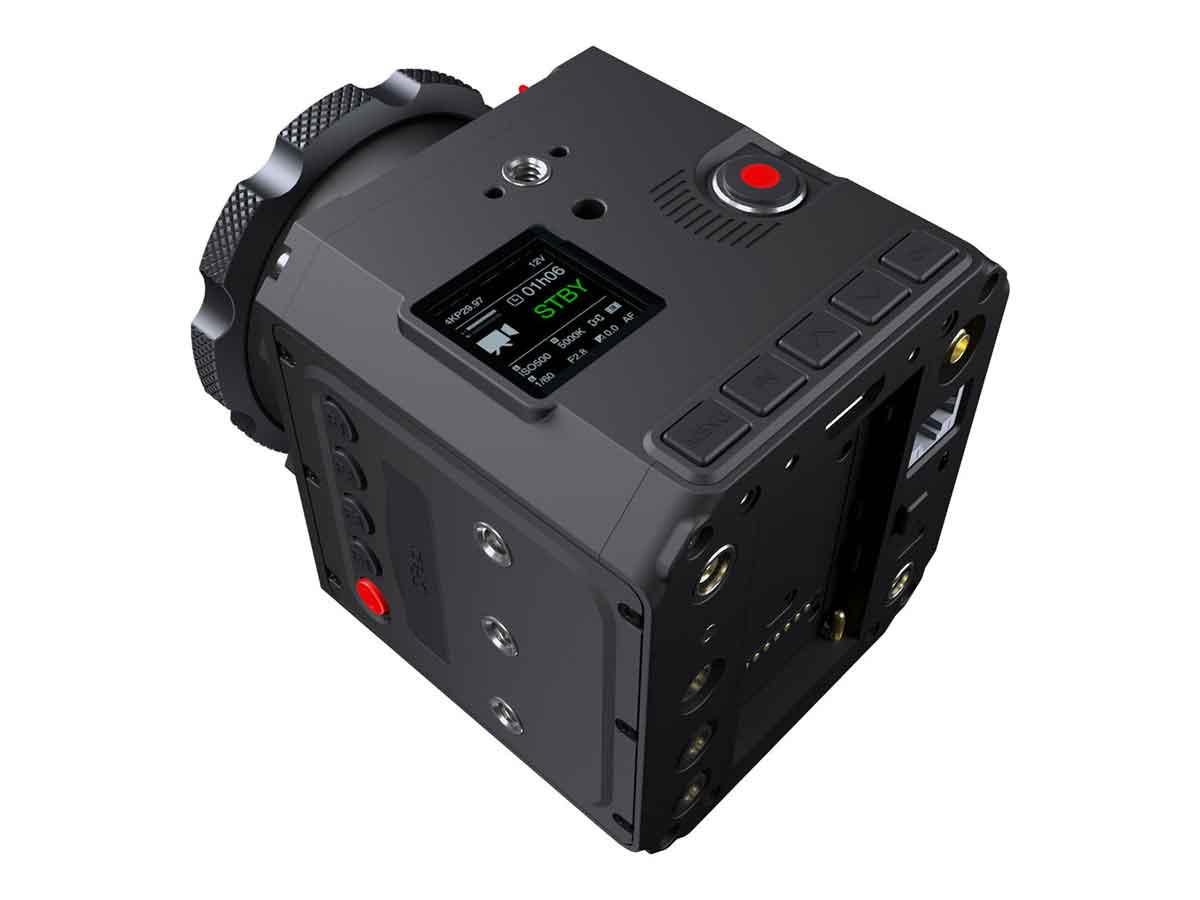

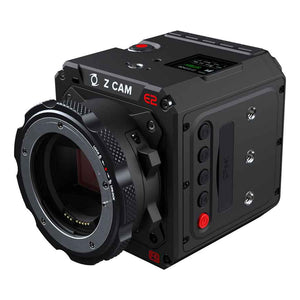

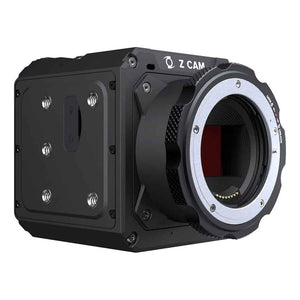

Z Cam E2 6K Full Frame Camera - EF
Z Cam E2 6K Full Frame Camera - EF
£2,879.04 GBP inc VAT
£2,879.04 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Shoot professional high-definition cinema footage with the Z CAM E2-F6 Full-Frame 6K Cinema Camera with a Canon EF lens mount. The camera features a full-frame sensor with 10-bit 4:2:2 color support and nominal 15 stops of dynamic range, supports timecode, shoots up to 6K at up to 60 fps, and records data up to 300 Mb/s onto CFast 2.0 media.
Supported recording formats include ZRAW format, MOV and MP4 using H.265 for 10-bit recording, while H.264 supports 8-bit recording, and firmware 0.88 allows the camera to record in the ZRAW format. Its HDMI 2.0 port supports 4K60, 10-bit 4:2:2 video output. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only) through its 3.5mm stereo jack or via a separately available XLR connector using its 5-pin LEMO port.
The E2-F6 can be controlled via serial ports, a 2.5mm LANC connector, a USB Type-C port, Ethernet port, or by the Z Camera iOS app to control the camera via Wi-Fi and to view a live image preview and to configure settings. The camera can record time-lapse, slow motion, and can even live stream via its Gigabit Ethernet port. You can also control it locally by the buttons along the side of the camera.
The E2-F6 can be powered by a separately available battery using the built-in L-series battery mount, or you can power the camera using a separately available power adapter using its 2-pin LEMO port. The camera also features a 12 VDC 2-pin LEMO power output to provide power to separately available accessories.
Firmware 0.88
Firmware 0.88 enables ZRAW recording to the camera.
6K Capture and Recording
- Unburdened by a recording time limit, you can record 6K at up to 60 fps for up to the limit of your recording media's capacity
- CMOS sensor with 14 stops of dynamic range
- The camera supports ZRAW, REC. 709, Z-Log2, FLAT, and HLG
- H.265 (10-bit color) internal recording on CFast 2.0 cards
- 4K60, 10-bit 4:2:2 video output through HDMI 2.0 is supported
- Full metal housing for efficient heat dissipation
Interfaces and Expandability
- USB 3.0 Type-C for camera control and data transformation only
- Two serial ports for camera control
- Ethernet port for live view, control, and file transfer to browser or a computer running Z CAM software
- LANC port for remote control including power on/off
iOS App
Z Camera is a mobile application for camera live preview and control through 5G or 802.11n Wi-Fi. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on camera live preview.
Camera Settings
- White balance: Auto, preset, manual (2300 to 7500K)
- Focus modes: MF, AF, CAF
- Image: Brightness, contrast, saturation, sharpness
- LUT: REC. 709, Z-Log2, FLAT, HLG
- Timecode: Current time, manual input
Camera Body
- Made from aluminum for strength and heat dissipation
- 2-pin LEMO 12 VDC power output
- Powers from included 2-pin LEMO 12 VDC adapter or optional L-series batteries
- Record up to 6K60 Video
- ZRAW Recording
- 15 Stops of Dynamic Range
- Full-Frame CMOS Sensor
| CAMERA | |
| Sensor Type: | Full Frame CMOS Sensor |
| Sensor Size: | 37.09 x 24.75 mm |
| Effective Pixels: | 26M |
| Dynamic Range: | 15 Stops |
| Lens Mount: | EF mount (with optional M, MFT, PL and LPL mount accessory) |
| Microphone: | Built-in Stereo Microphone |
| RECORDING | |
| Resolution & Max Frame Rate: | 6064x4040 @30fps max (Open Gate) 6064x3196 @48fps max (6K DCI) 6064x2560 @60fps max (6K 2.4:1) 5760x3240 @48fps max (6K UHD) 5376x4032 @30fps max (5K 4:3) 4848x4040 @30fps max (5K 6:5) 4096x2160 @72fps max (4K DCI) * 4096x1728 @120fps max (4K 2.4:1) 3840x2160 @72fps max (4K UHD) * 1920x1080 @120fps max (FHD) *supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as 6K DCI resolution mode |
| Video Encoder: | ZRAW* / H.265 main 10 profile / H.264 high profile** *up to 4K @30fps |
| Bit Rate: | 300 Mbps max for H.265 & H.264 / 1.2 Gbps for ZRAW |
| Colour Bit Depth: | 12-Bit ProRes RAW / 12-bit ZRAW / 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264) |
| Audio Format: | 16-bit 48 kHz |
| Audio Encoder: | AAC / PCM (for MOV only) |
| File Format: | MOV / MP4 |
| Record Mode: | Video / Time Lapse Video |
| SETTINGS | |
| ISO: | Auto, Manual (400 ~ 125000), Dual Native ISO: 400 / 2500 |
| Shutter: | Shutter Speed: Auto, Manual (1”~ 1/8000”) or Shutter Angle: Auto, Manual (1° ~ 360°) |
| White Balance: | Auto, Preset, Manual (2300K ~ 7500K) |
| Focus Mode: | MF / AF / CAF |
| Image: | Brightness / Contrast / Saturation / Sharpness |
| Image Config: | Rec.709 / Z-Log2 / FLAT / HLG |
| Audio: | Audio In / Out Level |
| Time Code: | Current Time / Manual Input |
| STORAGE | |
| Media: | CFAST 2.0 |
| File System: | exFAT |
| CONNECTIVITY | |
| HDMI: | HDMI 2.0 Type A (video output up to C4K @ 60fps, 10-bit 4:2:2) |
| USB: | USB 3.0 Type C for camera control & data transfer only |
| COM: | 2 x Serial Port |
| Remote Control: | 2.5 mm jack socket (Sony LANC compatible) |
| Audio In: | 3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector) |
| Audio Out: | 3.5 mm stereo jack socket |
| Wi-Fi: | 5G, 802.11n with external antenna port |
| Ethernet: | Gigabit Ethernet port for control, setting & live streaming |
| POWER | |
| Battery: | Sony NP-F series compatible, 6.8V ~ 8.4V (Battery not included) |
| Power Input: | DC 6.8V ~ 16.8V (2-pin LEMO socket), with LEMO connector |
| Power Output: | DC 12V (2-pin LEMO socket) |
| PHYSICAL | |
| Material: | Aluminum Alloy |
| Weight: | 1090g (EF mount) / 1160g (PL mount) |
| Dimensions: | 91.20mm x 99.25mm x 122.25mm (EF mount) 91.20mm x 99.25mm x 133.35mm (PL mount) |
| ENVIRONMENT | |
| Storage Temperature: | -20°C ~ 60°C |
| Operation Temperature: | 0°C ~ 40°C |
- Z CAM E2-F6 Full-Frame 6K Cinema Camera (EF Mount)
- LEMO Power Cable
- AC/DC Power Adapter
- Lens Mount Cap
- Limited 1-Year Warranty
