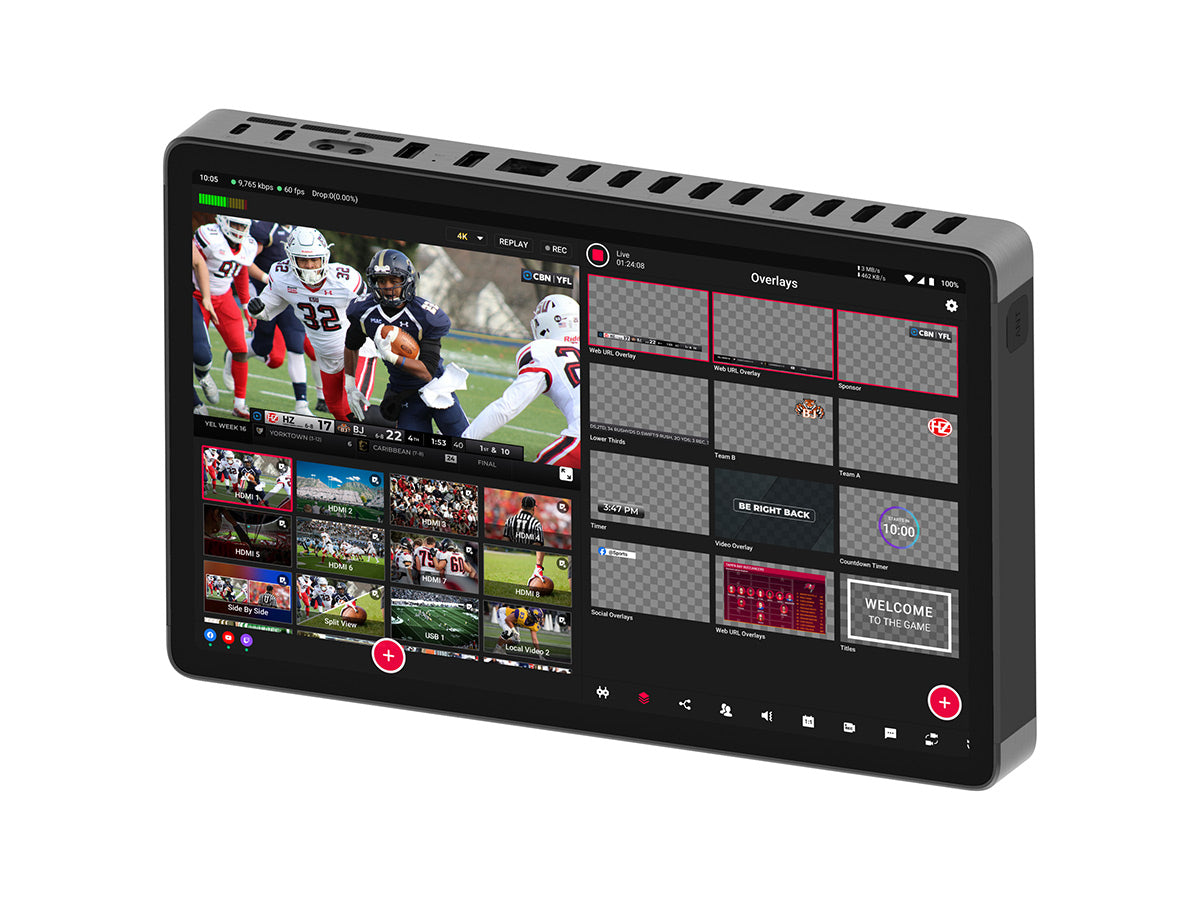

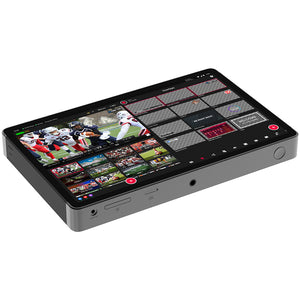

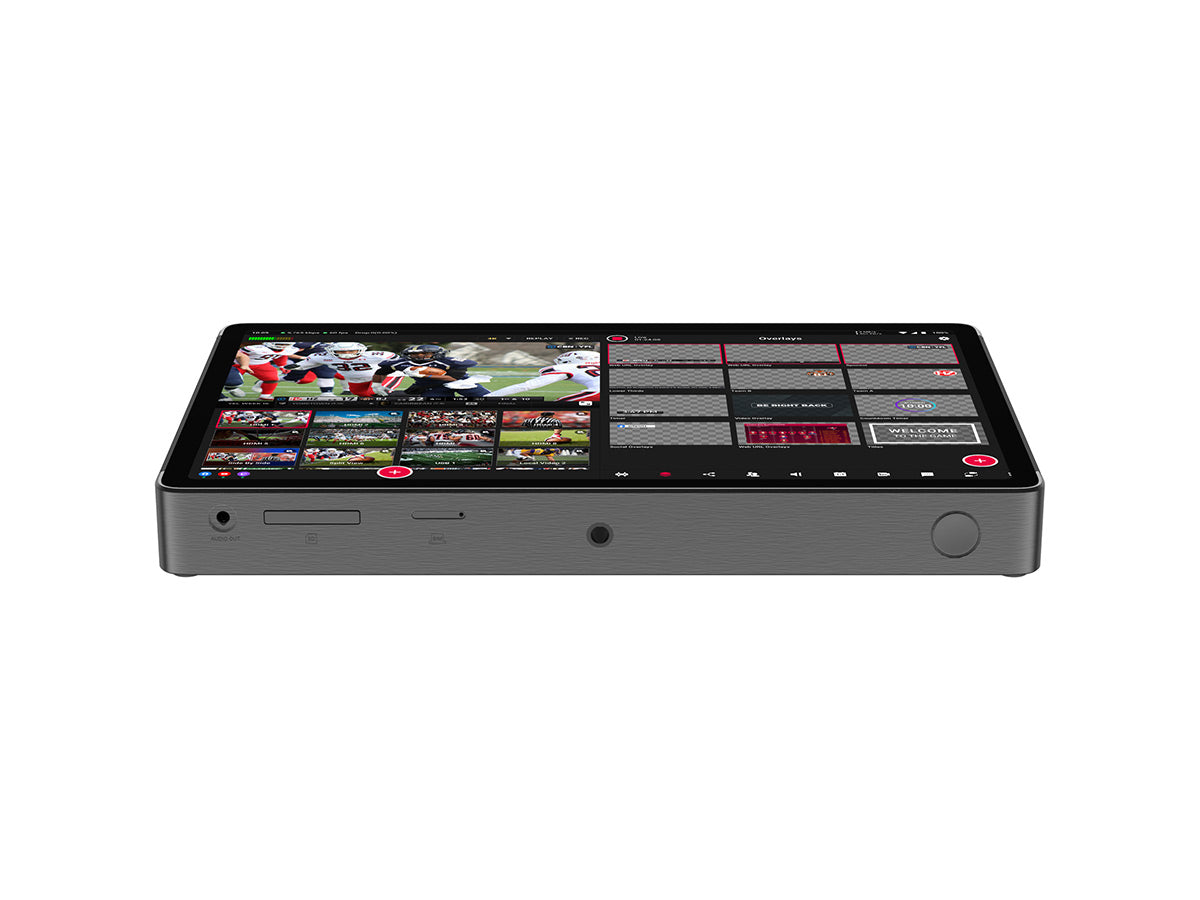

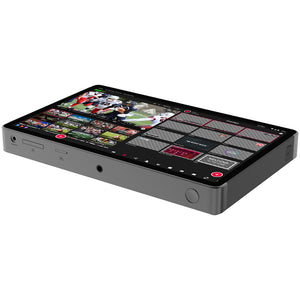

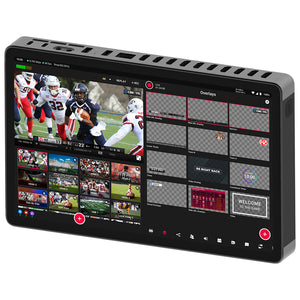

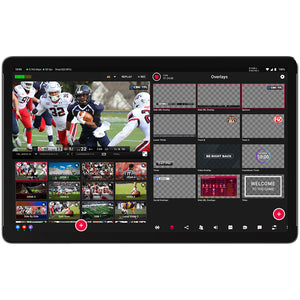

YoloLiv YoloBox Extreme

YoloLiv YoloBox Extreme

SKU: YLIV-YOLOBOXEXTREME
£1,734.00 GBP ex VAT
£2,080.80 GBP inc VAT
ex VAT £1,734.00 GBP ex VAT
£2,080.80 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
Perfect for On-Location & One-Man Crew
No Computer Required. Set up in Minutes.
  • All-In-One - Encoder, switcher, recorder, monitor, in One
  • Android System - Users can benefit from regular updates while enjoying an intuitive and familiar interface that enhances usability.
  • Minimum Setup - No computer/desk workstation/professional crew required
  • Portability & Mobility - Compact size, fit into your backpack, live On the Go.
  • Battery-Powered - 10 Hour Battery Life + Built-In 4G LTE, WiFi, Ethernet
  • Touchscreen Control - Production at your fingertip, great ease to operate

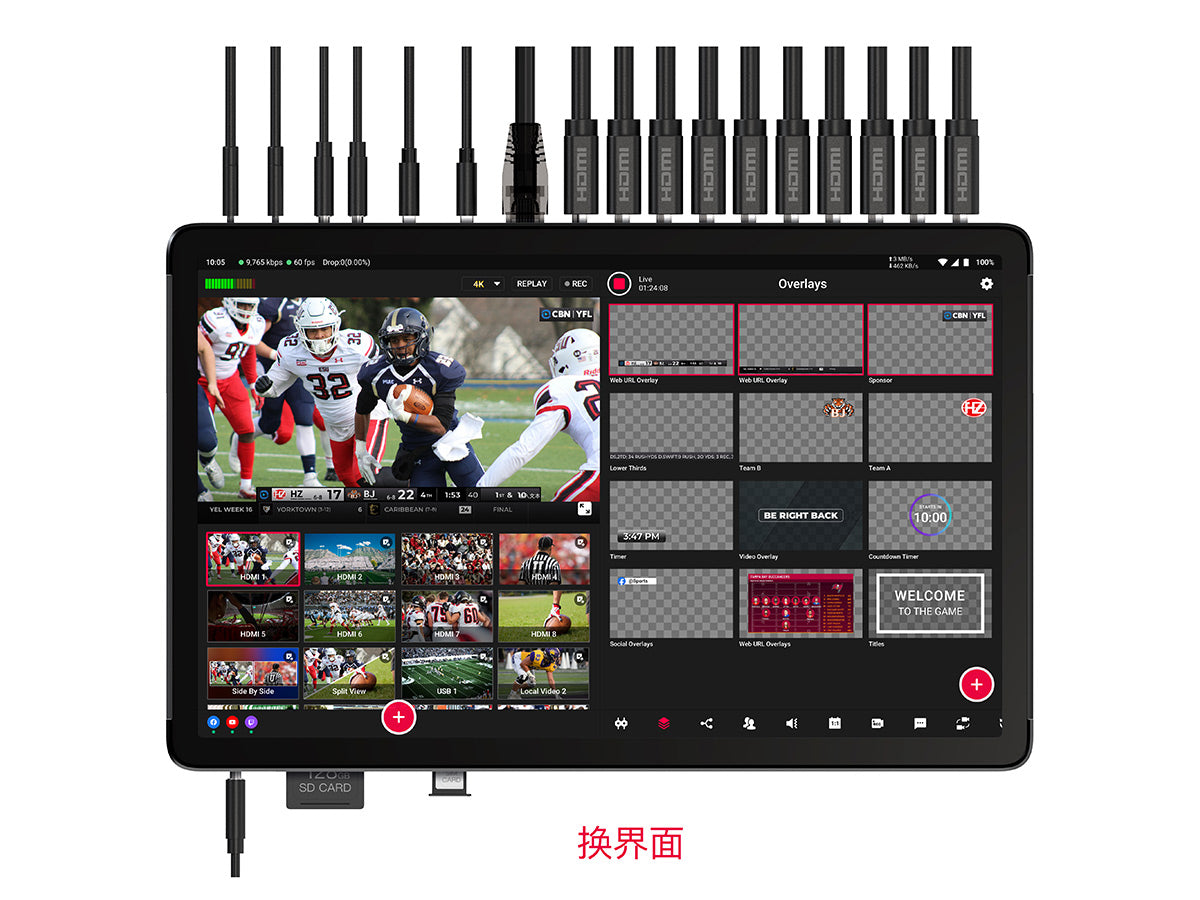

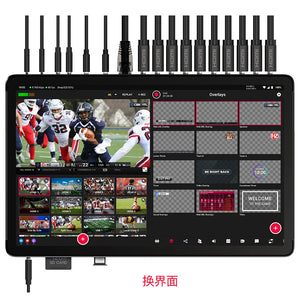

8 HDMI Input - More is Better
Seamlessly Connect Cameras, Laptops, Media Players, and More, Offering Unmatched Flexibility for Any Scenario.
Future-Proof Your Setup Without Worrying About Running Out of Ports.

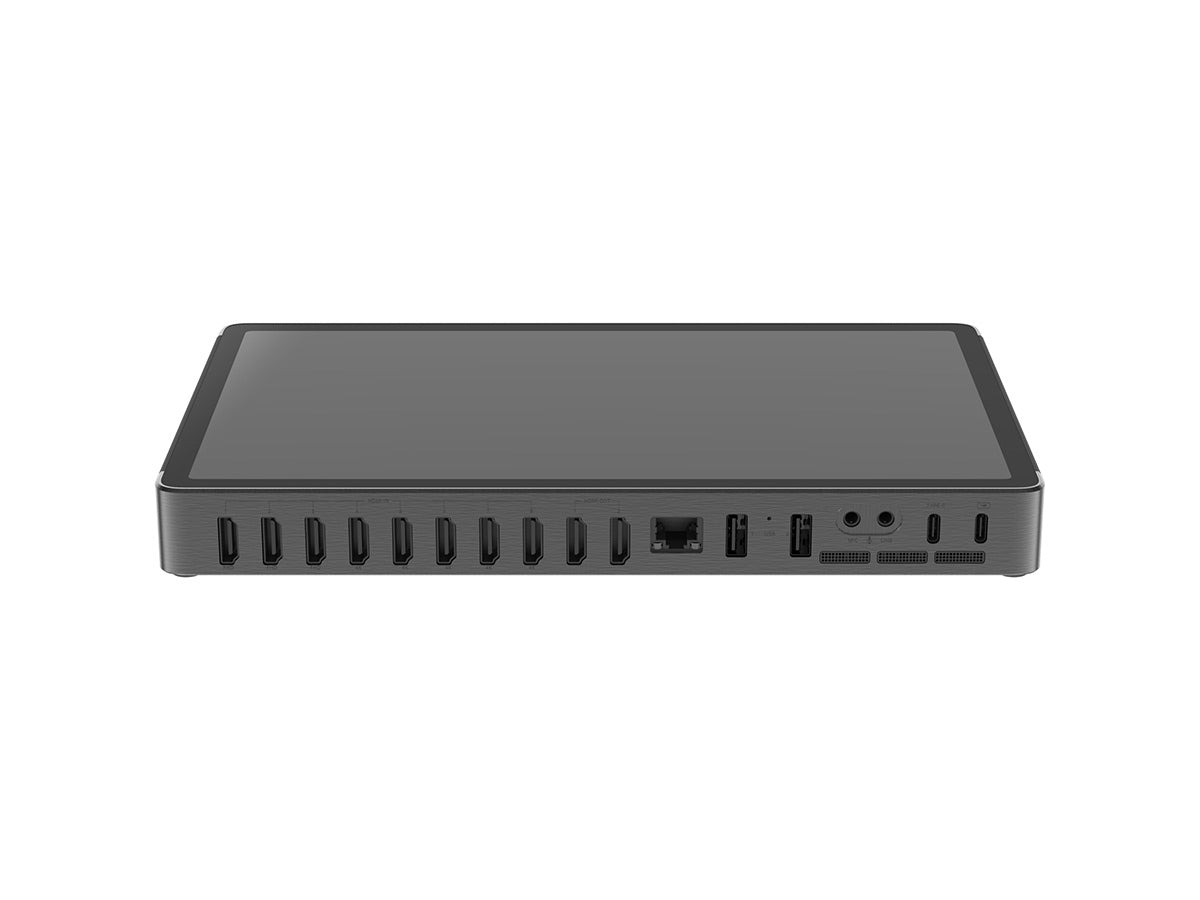

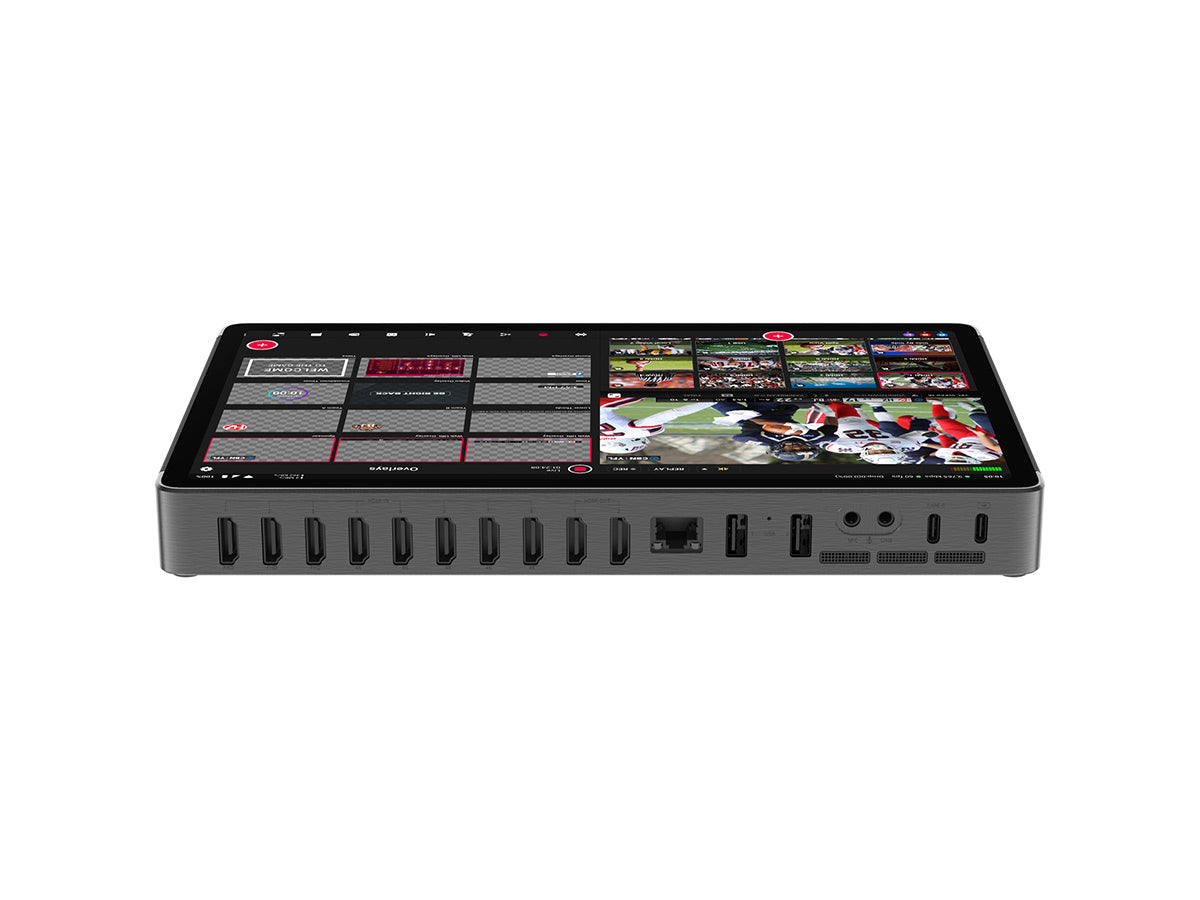

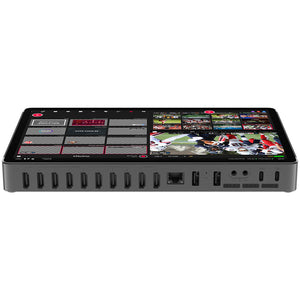

  • HDMI Inputs (1-8): Up to 4*4K60 with Built-in Scaler
  • HDMI Outputs (1-2): Assignable Program/Multiview Out in 4K
  • Ethernet Connection: Wired Stable internet connection
  • USB Type-A 3.0 (1-2): For Webcams; Hard drives; USB dongles.
  • Mic In (3.5mm): Mono, connect to wired microphone
  • Line In (3.5mm): Stereo, connect to external audio mixer
  • USB Type-C: A fully functional interface supports input
  • USB Type-C: Only for Charging
  • Audio Out (3.5mm): Connect to headphones for monitoring
  • SD Card Holder: Save files; Load videos & graphics.
  • Nano-SIM Card Holder: Insert SIM card for 4G network
  • Standard ¼‘’mounting hole: Mount with other cameras & tripods
  • Power Button: Turn on & off, Sleep Mode
Dual Assignable HDMI Outputs
Allowing You to Output Different Video Feeds( Preview, Multiview or Program) Simultaneously.
Bigger than ever | Brighter than ever | Smoother than ever
  • More Space to Explore - The all-new 11.2-inch OLED screen brings a larger, more immersive display, redefining how you see and interact with content.
  • Shine in Any Light - With a peak brightness of up to 800-1,000 nits, every detail remains vivid and clear, even under direct sunlight.
  • Effortlessly Responsive - Enjoy ultra-fast touch feedback for a silky-smooth experience, making every interaction seamless and intuitive.

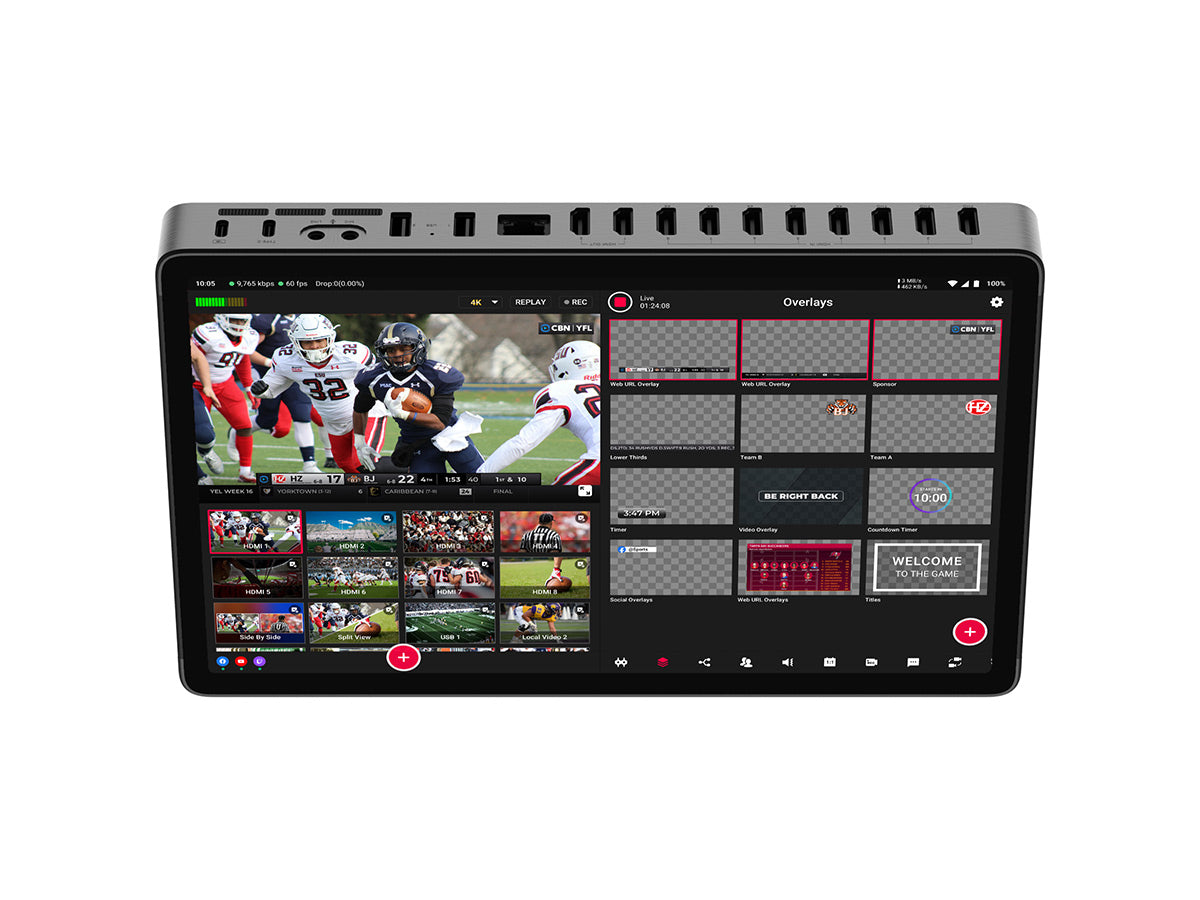

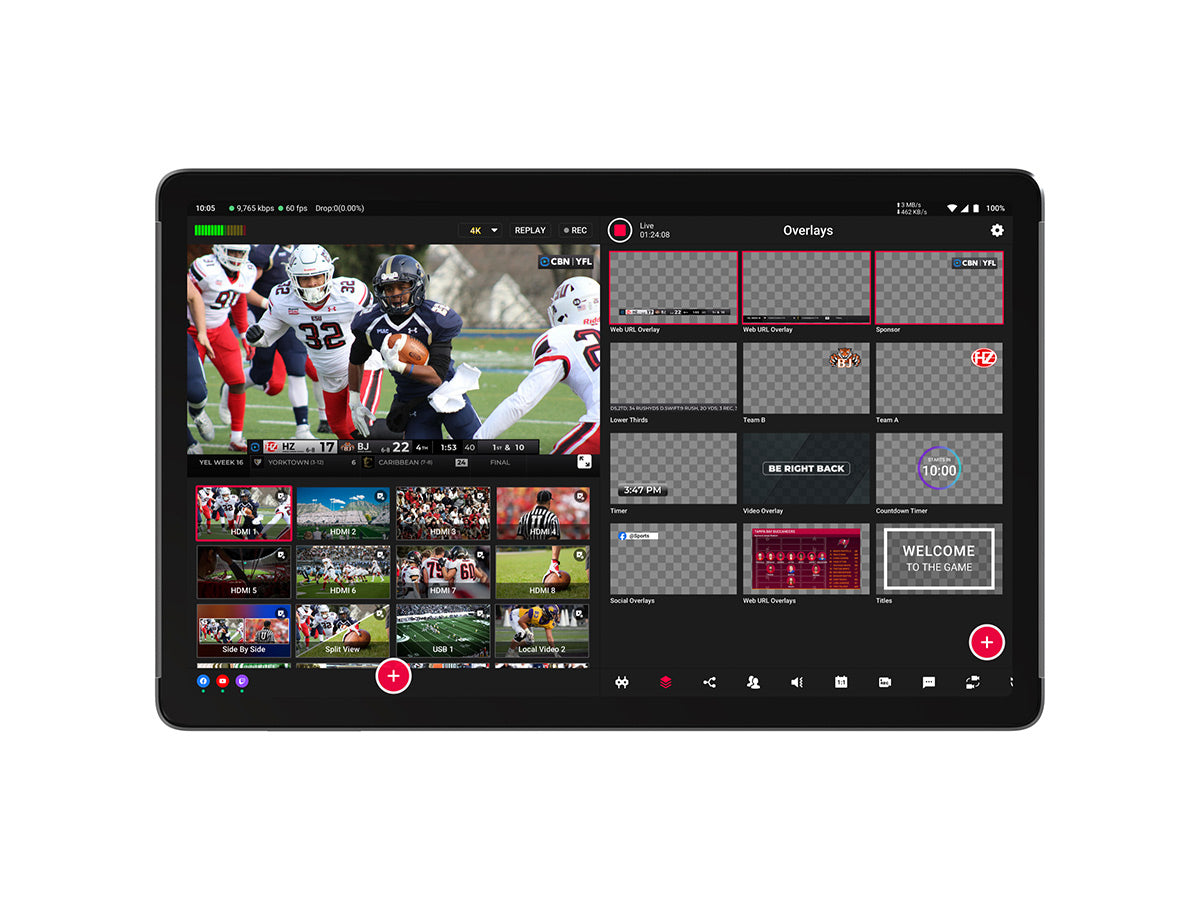

Configure directly & Intuitively from YoloBox
The benchmark for performance, ease of use.
  • Live Switch - Easily switch between multiple video sources or fully customized scenes with a touch.
  • Audio Mixing - Built-in audio mixer with easy setup. Individual level control of multiple audio sources.
  • ISO Recording - Capture all the video inputs as well as the program video and save them separately.
  • Graphic Overlays - Add logos, lower thirds, titles, countdown timer and more to look professional.
  • MultiViews - Customize live stream layout with built-in multiviews and level up production with ease.
  • Scoreboard - YoloBox’s built-in scoreboards allow you to keep the score in real-time, display game progress, add game/team logos, and more.
  • MultiCam Replay - Create highlight clips with preset video duration, intros, outro and more with a few clicks.
  • Inviting Guests - Create a real-time conversation with remote guests from a web browser on mobile devices.
  • PTZ Control - With PTZ control, you can preset up to 5 camera positions. This allows you to quickly switch between different angles and views.
  • Crop Video - Video cropping serves various needs such as margin removal, game capture resizing, conferencing zooming, and close-up view creation.
  • Chroma Key - Seamlessly add a different background of a design or a different location for your live productions with the magic of chroma key in a few taps.
  • AutoSwitch - Seamless Transition between pre-set camera angles with defined order and duration. Frees you from manual camera control to focus on the video.
Advanced Features as Standard
  • Free MultiStreaming
  • Customized MultiView Out
  • 4K Streaming
  • App/Web Control Control
  • Inviting Guests
  • Web URL Overlay
  • Video Follow Audio
  • Custom Layouts(Scene Building)
Audio Investment Evolved
  • Assignable AFV - Each audio channel automatically switches as the video changes, ensuring perfect synchronization.
  • Mix Minus - Easily solo monitor a specific audio channel or mute it entirely, giving you full control.
  • Audio Delay - For any sync issues between audio and video, simply adjust the timing to ensure synchronization.
  • 8 Input Encoder, switcher, recorder, monitor, in One
  • ISO Recording - Up to 4*4K30 or 6*1080P60
  • Real 4K Streaming
  • 8 HDMI Inputs - Up to 4*4K60 with Built-in Scaler
  • 2 HDMI Outputs - Assignable Program/Multiview Out in 4K
  • Up to 8 NDI Inputs - Connect Wirelessly or via Ethernet
  • OLED - 11.2 Inch,2.5K Resolution, 120hz Fresh Rate
  • QualComm 8Gen2 - Outsized Performance
  • MultiCam Instant Replay - 6 Cam at 1080P60 or 4 Cam at 4K30
  • External Antenna - Up to 90m Wireless Range & Connectivity
  • Up to 10-Hour Battery Life
  • Next-Level I/O Versatility
  • Next Level Production Flexibility
Input Power:
9V / 12V / 15V⎓3A
Power Consumption:
45W
Power Supply:
USB Type-C
USB Rated Output:
USB-A:5V/1A
Battery Capacity:
10000mAh
Dimensions:
264*167*29mm
Power Consumption:
＜45W
Monitor Screen Size:
11.2inch 2K OLED; Resolution: 2560x153;
Brightness: 450nits ( ≈ LCD 800-1000nits);
Frequency: Fre =120Hz; Contrast ratio (1500:1);
Viewing Angle (full viewing Angle); NTSC 108%
Local Video Inputs:
HDMI USB-A
Video Over Ethernet:
RTMP/RTMPS/SRT/NDI/RTSP
Video Input Connectors:
HDMI, USB-A, RJ-45, USB Type-C
Video Input Aspect Ratios:
16:9, 4:3, 1:1
Video Input Deinterlacing:
No
Live Broadcast Video Input Resolution:
480p/720p/1080p(up to 60fps)/4Kp60
Video Encoded Format:
H.264 H.265
Video Processing Bitrate Control:
CQ, VBR, CBR
Hardware-Accelerated Video Encoding:
Optional
Video Output Signal Types:
FLV-RTMP, HDMI, UVC
Video Output Connectors:
HDMI OUT, USB-C
Video Output Streaming Protocols:
RTMP, RTMPS, MJPEG, SRT
Live Broadcast Video Output Resolution:
480p/720p/1080p(Up to 60fps)/4Kp60
Analog Audio Input Connectors:
Line In; Mic In; 3.5mm
Digital Audio Outputs:
USB; HDMI; RTMP (From internet);
Local video (From SD card)
Digital Audio Input Connectors:
USB-A, HDMI, USB-C
Audio Input Mute:
Yes
Audio Input Format:
32KHZ/44.1KHZ/48KHZ :16bit
Audio Encoded Format:
(AAC)44.1K/48KHZ 2Ch 16bit
Analog Audio Output:
3.5mm Headphone Jack
Digital Audio Outputs:
HDMI Audio (Embedded); USB Audio (Embedded)
Record Formats:
MP4
Wi-Fi:
2.4G/ 5G (Support WiFi6/WiFi7)
USB Communication Standard:
USB 2.0 and USB 3.0
Ethernet Data Rate:
10/100/1000m, Half/full Duplex With Autodetect
SIM Card Size:
Nano-SIM Card
4G Network:
4G Network Countries & Frequency Band For
Users: [Variant for North Americao (US/Canada/Mexico)]
B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
Notes: Mexico B4 For Non-US/Canada/Mexico
Users: (EU：Variant for EMEA/India/Korea/Taiwan/South
Asia/Latin/America/Australia/New Zealand)
Users:B1//B3/B7/(B8) Notes：Thailand B1/B3

Please note that the certification of Yolobox Extreme is in line with the mainstream open 4G band requirements of operators in this country or region. For details, please refer to the approval report of this country or region.
SD Card Format:
FAT32(Under 128G); NTFS; EX-FAT
Operating Temperature:
0℃-40℃
Operating Humidity:
15%-85%; No Condensation
Country of Origin:
Made in China
