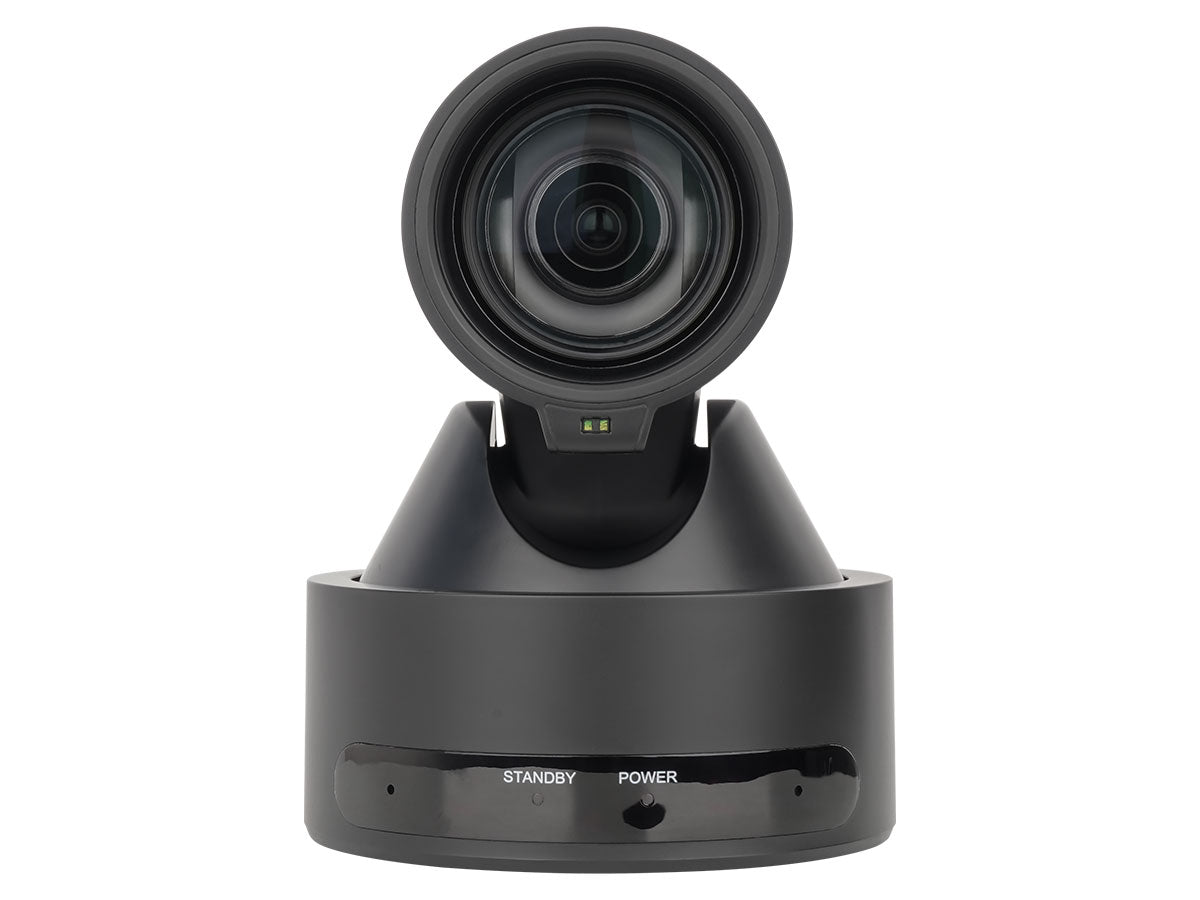

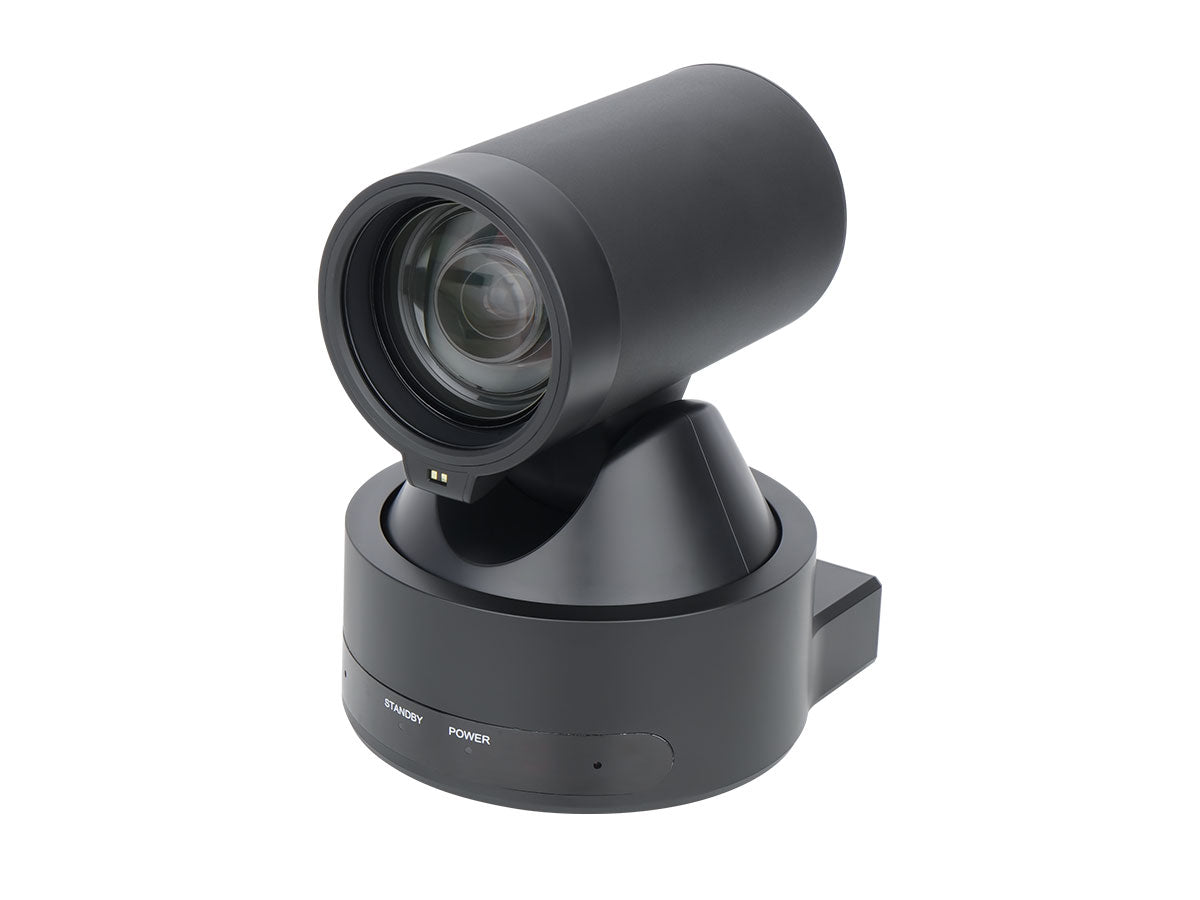

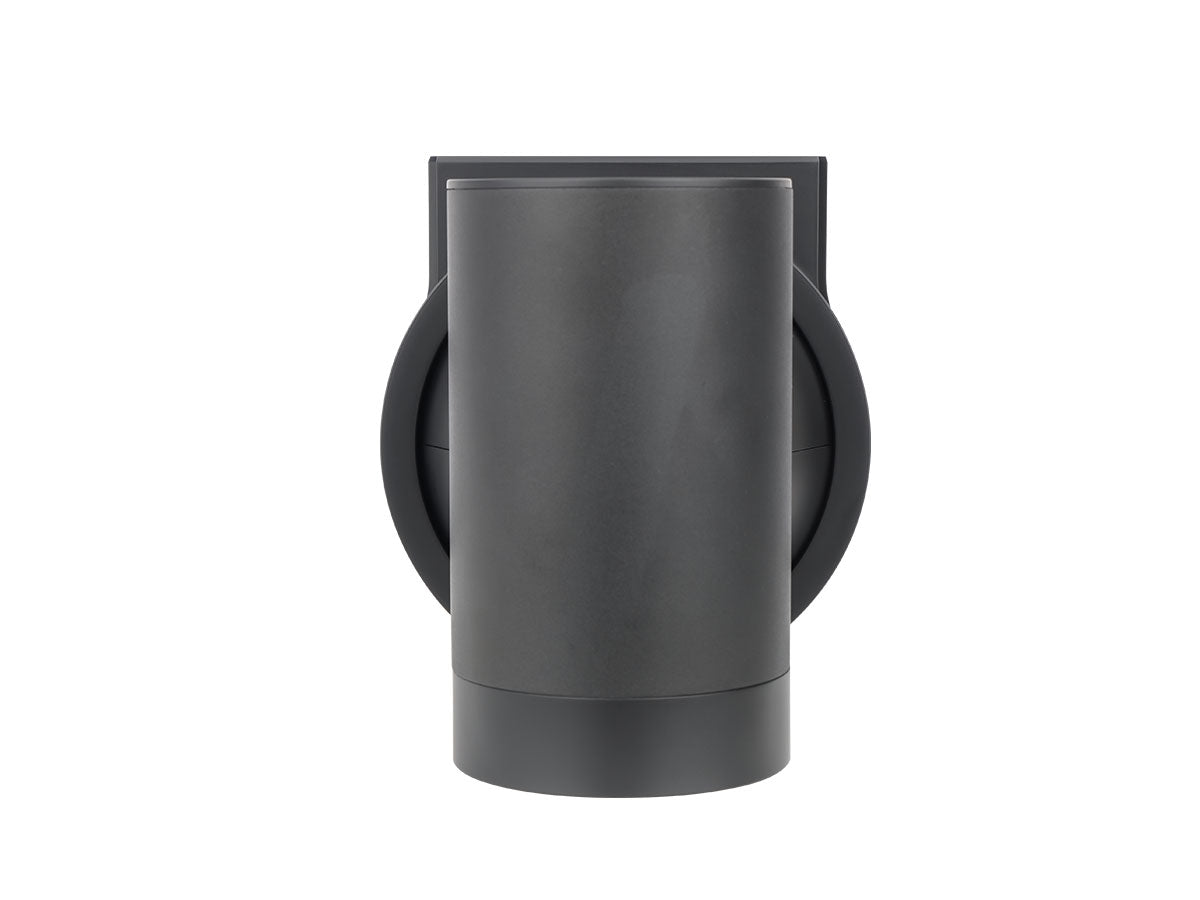

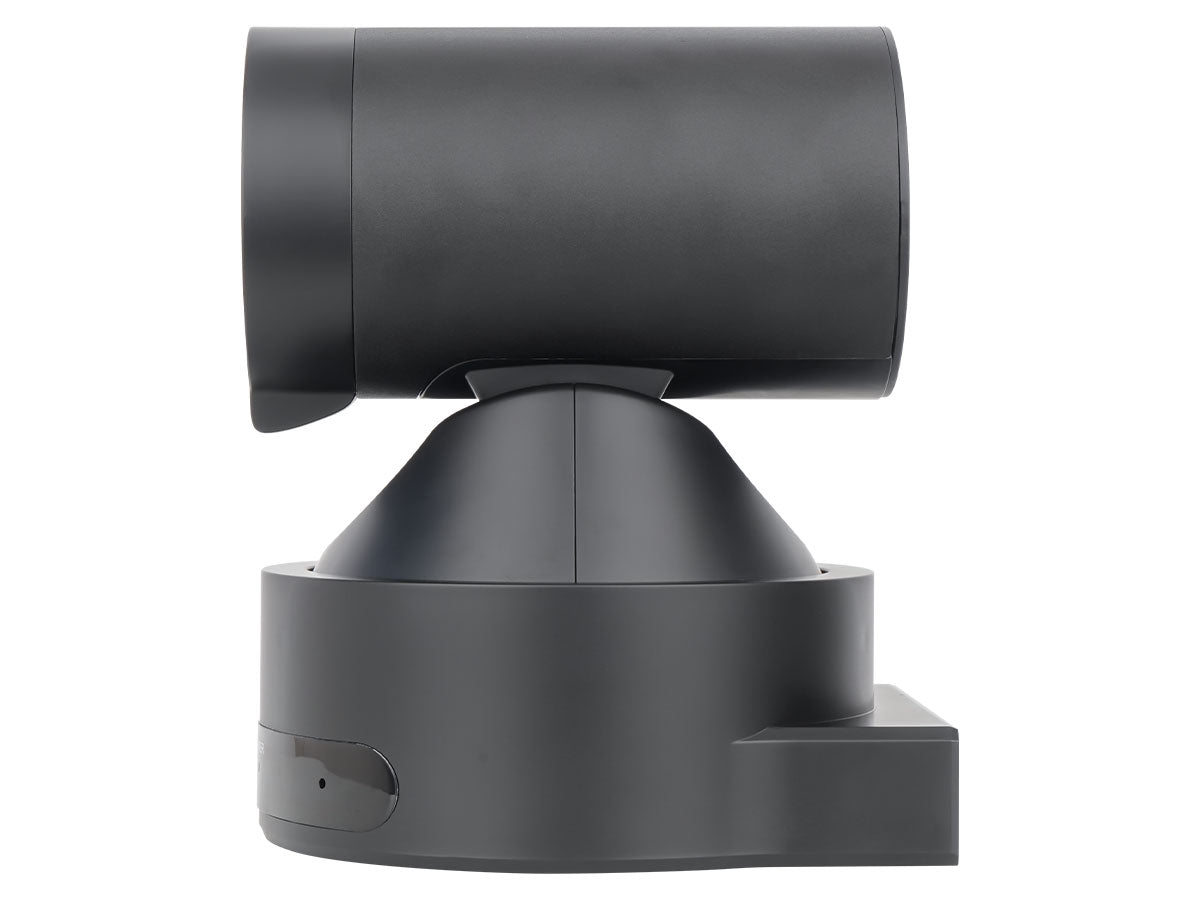

YoloLiv VertiCam

YoloLiv VertiCam

SKU: YLIV-VERTICAM
Regular price £549.00 GBP ex VAT
£658.80 GBP inc VAT
Regular price ex VAT Sale price £549.00 GBP ex VAT
£658.80 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
Vertical Video Has Taken Over
Huge brands are all jumping aboard the vertical video train. Consumers consider brands that advertise with vertical video ‘more innovative’. If you aren’t posting a video vertically, you’re falling behind.
Seize the Biggest Trends In Video Marketing
  • 75% Of the contents are consumed vertically
  • 2.5 Times more likely to skip a video that is not vertical
  • 2.5 Times higher in terms of engagement
Switch Easily With Multiple Preset Positions
Store and recall 255 specific pan/tilt/zoom positions quickly with your cameras.
Remote Control
Support a wide rotation range of ±170° horizontally and of 30°~+90° vertically.
Control the camera remotely for free angle rotation through the RS232 serial port.
Perfect for a one-man show. No additional crew needed.
TOF Instantaneous Auto Focus
Focus instantly and precisely.
72.5° Wide-angle Lens With 12x Optical Zoom
Perfectly fit for panorama and close-up.
Professional Colour Mode, HD Image Quality
  • 4:2:2 10-bit PRO colour mode
  • 1/2.8-inch HD CMOS sensor
  • 2.07 million effective pixels
  • 1920x1080 images
  • Camera Noise Reduction
  • Backlight Compensation
  • Stunning low-light performance
  • Vertical PTZ Camera For Vertical Content Creation & Live Streaming
  • Switch Easily With Multiple Preset Positions
  • 72.5° Wide-angle Lens With 12x Optical Zoom
  • Professional Colour Mode, HD Image Quality
CAMERA
Video System: 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50
Sensor: 1/2.8-inch, CMOS, Effective Pixel: 2.07M
Scanning Mode: Progressive
Lens: 12x, f=3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom: 16x
Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation: Support
Digital Noise Reduction: 2D&3D Digital Noise Reduction
SNR: ≥55dB
Horizontal FOV: 72.5° ~ 6.9°
Vertical FOV: 44.8° ~ 3.9°
Pan Angle: ±170°
Tilt Angle: -25° ~ +30°
Pan Speed: 1.61° ~ 75.56°/s
Tilt Speed: 0.44° ~ 15°/s
Image Flip: Support
Image Freeze: Support
Preset Position: 255
Preset Accuracy: 0.1°
Mic Pick-Up Distance: 6m

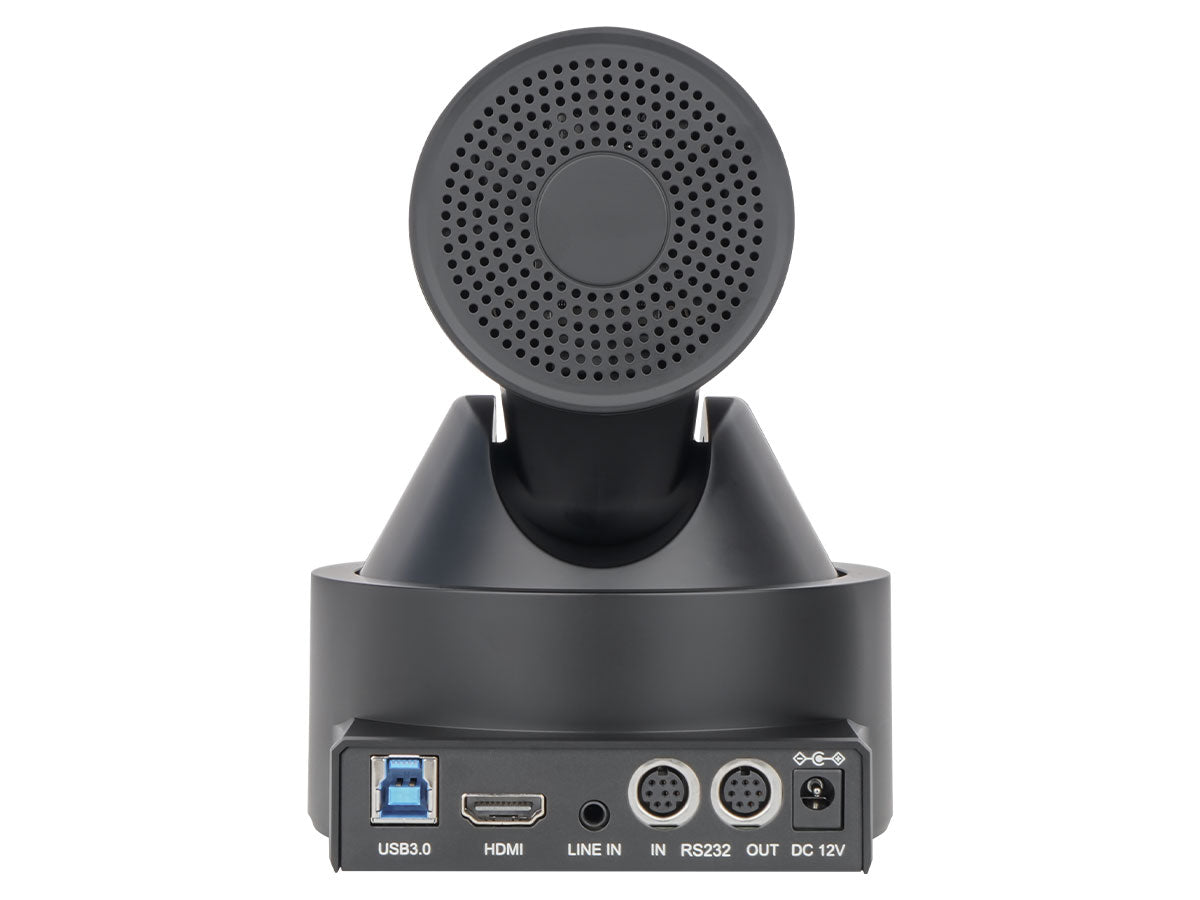

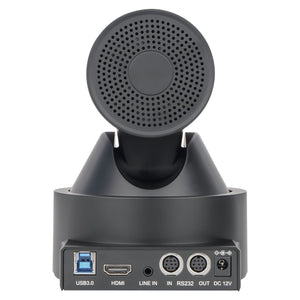

PORTS
Ports: USB3.0 Interface
HDMI Interface
LINE IN Interface
RS232 IN Interface
RS232 OUT Interface
DC 12V Interface
USB FEATURES
Operate System: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Colour System / Compression: MJPG/YUY2
Video Format: YUY2 (ISOC): 1080P@60fps (max.)
MJPEG: 1080P@60fps (max.)
USB Audio: Support
USB Video Communication Protocol: UVC 1.1
UVC PTZ: Support
INTERFACES
USB Interface: 1 x USB3.0: Type-B
HDMI Interface: 1 x HDMI 1.4b
Audio Interface: 1 x LINE IN, 3.5mm
Communication Interface: 1 x RS232 IN: 8pin min DIN; Max. Distance: 30m; Protocol: VISCA/Pelco-D/Pelco-P
1 x RS232 OUT: 8pin min DIN; Max. Distance: 30m; Protocol: VISCA
Power Jack: JEITA type (DC IN 12V)
GENERAL SPECIFICATIONS
Input Voltage: DC 12V
Input Current: 1.5A (max.)
Operating Temperature: -10°C ~ 40°C
Storage Temperature: -40°C ~ 60°C
Power Consumption: 12W (max.)
Dimensions: 128mm x 118mm x 157.9mm
Weight: 1.0Kg
