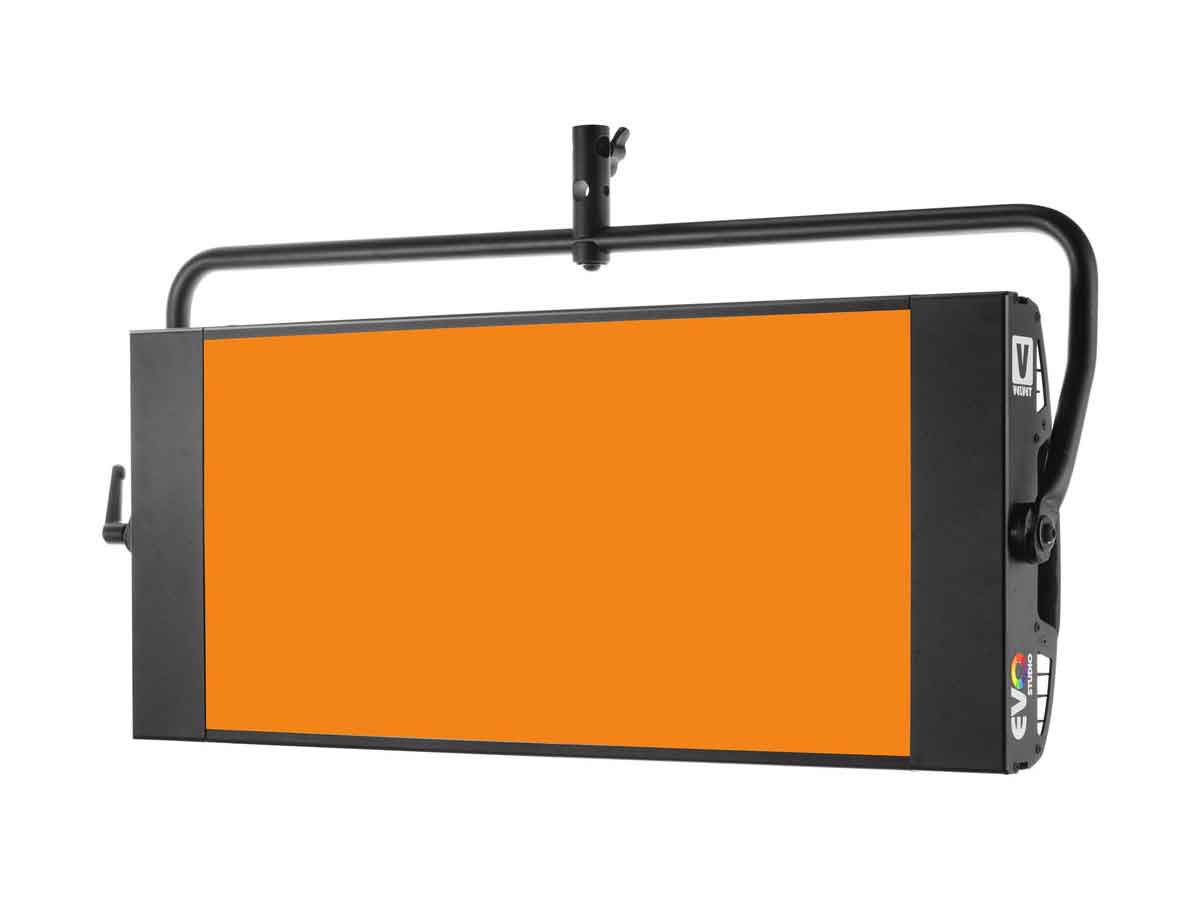

Featuring rugged aluminum construction and an expansive degree of color control, the Velvet Evo 2 Studio LED Panel is a 29.6 x 12.5 x 5" fixture with a wide adjustable color range of 2500 to 10,000K that earns the light a CRI/TLCI rating of 95, indicating advanced accuracy in color rendering. But that's only one aspect of control. The Evo 2 also has RGBW/CW color control that lets you select amongst 360 colors on the color wheel then customize them with Hue, Saturation, and base color temperature control to access literally millions of colors. The light intensity is variable too, from 0 to 100% steplessly and in fact, the Evo 2 offers Linear (default), Logarithmic, Exponential, S-Curve, and Incandescent dimming to handle different light levels. While you can make these adjustments locally on the fixture, you can also do it via DMX wired to a console or wireless LumenRadio CRMX. The light is also compatible with Wi-Fi, Art-Net, and the Velvet Goya App. You have a choice between standard 8-bit or 16-bit DMX control for smoother dimming and precise color adjustments. However you choose to control it the unit runs dead quiet, thanks to its passive cooling system - an important feature in sound-sensitive environments.
In addition to these expansive control features the Evo 2 has full Magenta/Green control as well as a Gel Mode with 146 colors that include CTO and CTB filters as well as creative effect gels. And speaking of effects, the light has Disco, Flame, Police, Pulse, Strobe, and Television effects, each of which can be customized by adjusting frequency, speed, and color. The 200W Evo runs on 90-265 VAC voltage for worldwide use.
Light Fixture
| Beam Angle | 115° |
| Color Temperature | 2500 to 10,000K |
| Color Accuracy Standard | CRI 95 TLCI 95 |
| Cooling System | Passive |
| Dimming | Yes, 0 to 100% (Continuous) |
| Housing Material | Aluminum |
| Photometrics | 650.3 fc / 7000 lux at 2.95' / 0.9 m 115° at 5620K: 92 fc / 989.9 lux at 10' / 3.05 m |
| Expected Lamp Life | 50000 Hours |
| Fixture Dimensions | Flood: 29.6 x 12.5 x 5.0" / 751.8 x 317.5 x 127.0 mm |
| Fixture Weight | 19.6 lb / 8.89 kg (Including Yoke) |
Connectors
| Battery Plate | None |
| DMX Connector | 5-Pin XLR |
Mounting
| Fixture Mount | None |
Yoke
| Yoke Material | Aluminum |
| Yoke Type | Yoke/Bracket |
Remote Operation
| Remote Control Type | DMX, Wi-Fi, Proprietary Wireless |
Power
| AC Input Power | 90 to 264 VAC, 50 / 60 Hz |
| Power Source | AC Adapter |
| Max Power Consumption | 200 W |
Physical
| IP Rating | IP51 |
