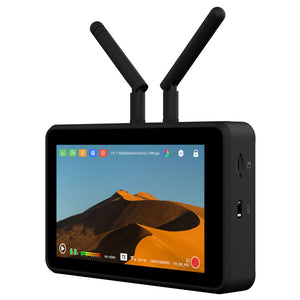

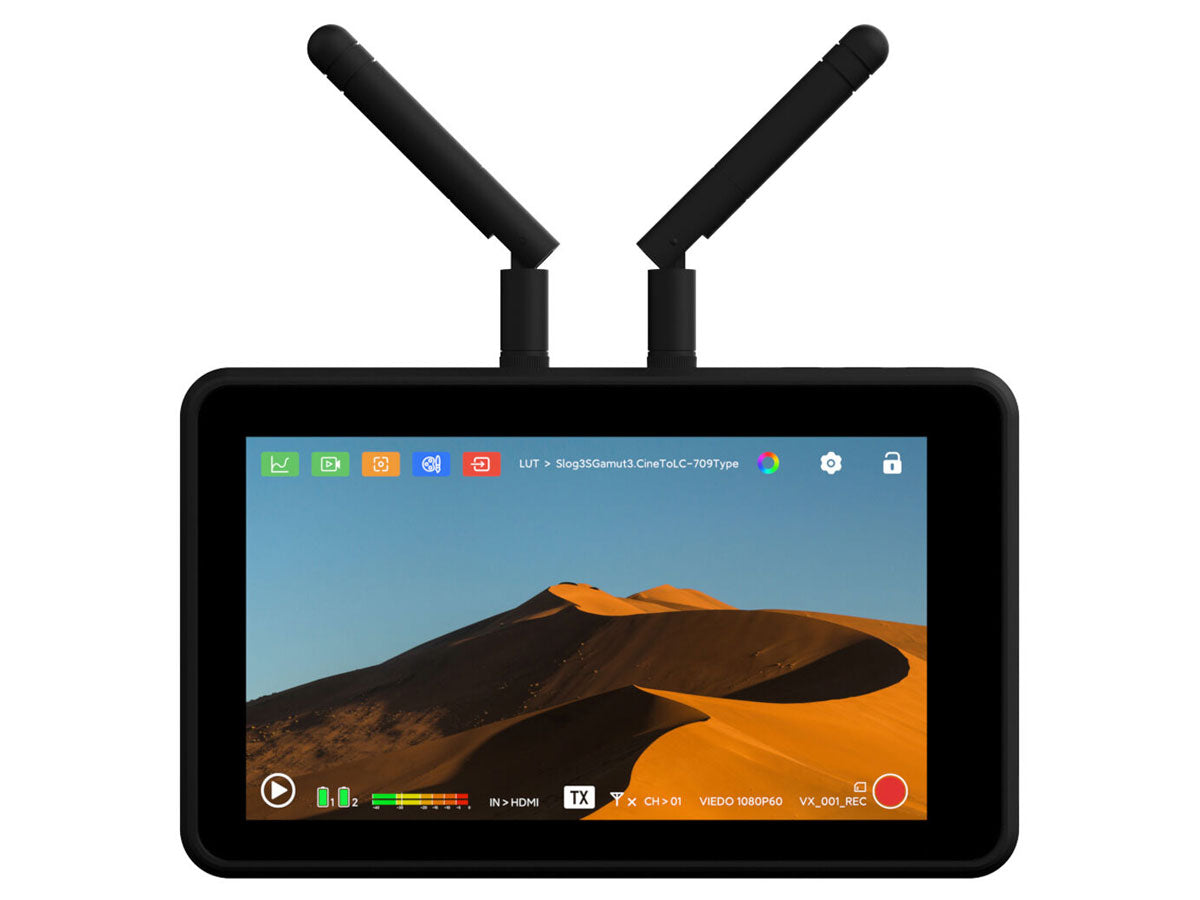

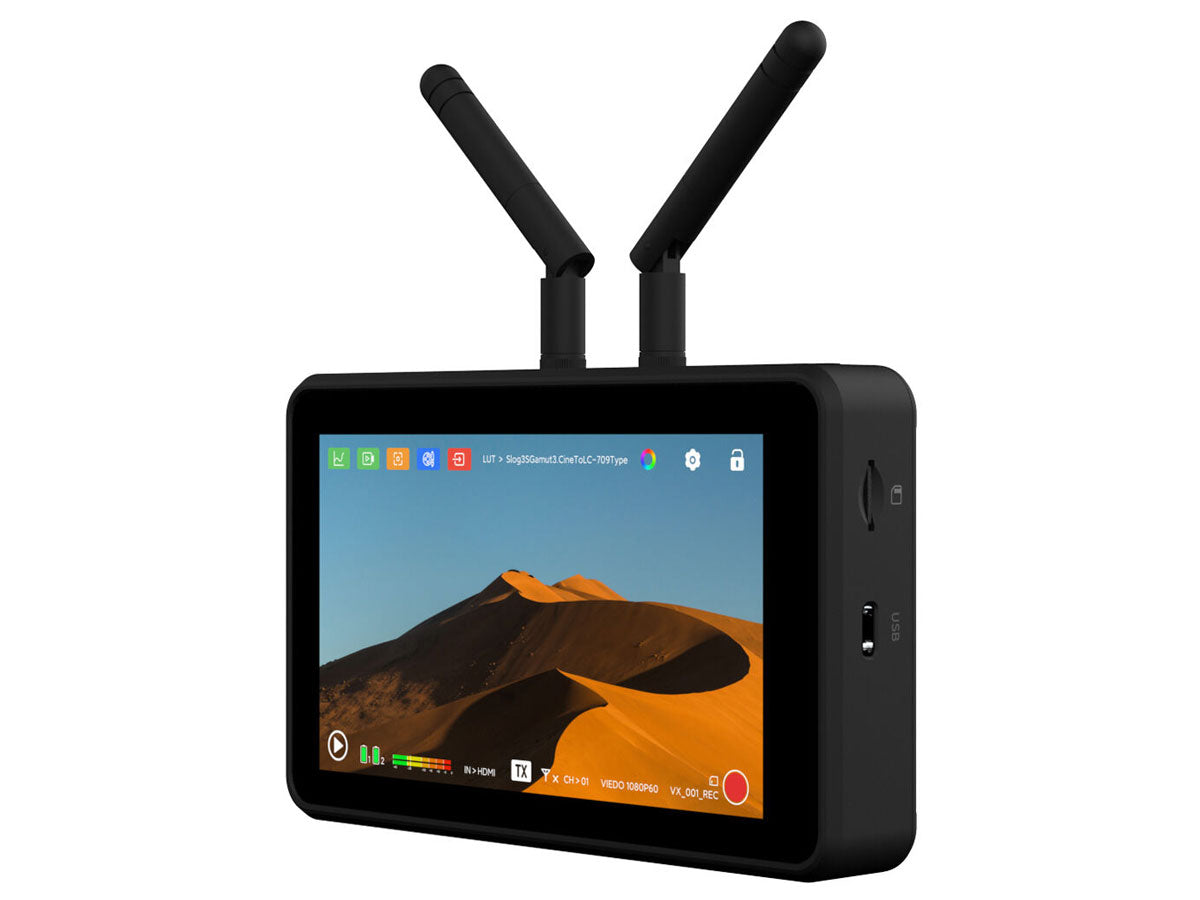

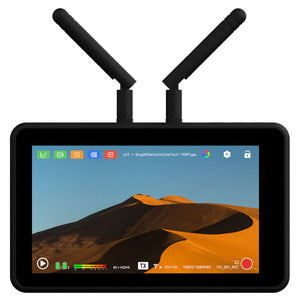

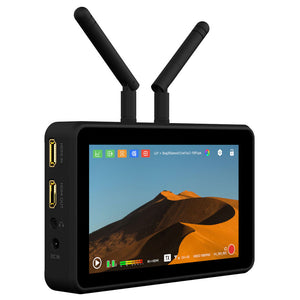

Vaxis ATOM A5 - RX/TX Wireless Monitor

Vaxis ATOM A5 - RX/TX Wireless Monitor

SKU: VAX-VA22-A5-TR01
£459.00 GBP ex VAT
£550.80 GBP inc VAT
ex VAT £459.00 GBP ex VAT
£550.80 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Specifications
  • What's Included
Highly Integration New Experience​
AllInOne Video Transmission System + Monitor Video Record + Playback Wireless Video Transmit + Receive
Superior Performance - 5.5" Standard Pixel, Super Retina Screen
Accurate Sharpening. No fear of bright sunlight ,clearly display picture details.
  • 1000Nits - Peak Brightness
  • 1200:1 - Contrast Ratio
  • 401 PPI - Sharp Display
  • RealTest Data - From Vaxis Lab
  • Video Transmission System & Monitor In One

Wireless Monitoring
Video transmission system and monitor unit as one.
150m Transmission Range
Extreme Distance. Remains stable for long distances,meets most usage scenarios.
Lower Latency Faster Follow Focus
80ms Delay. Almost insensitive time-lapse, easy to follow focus.

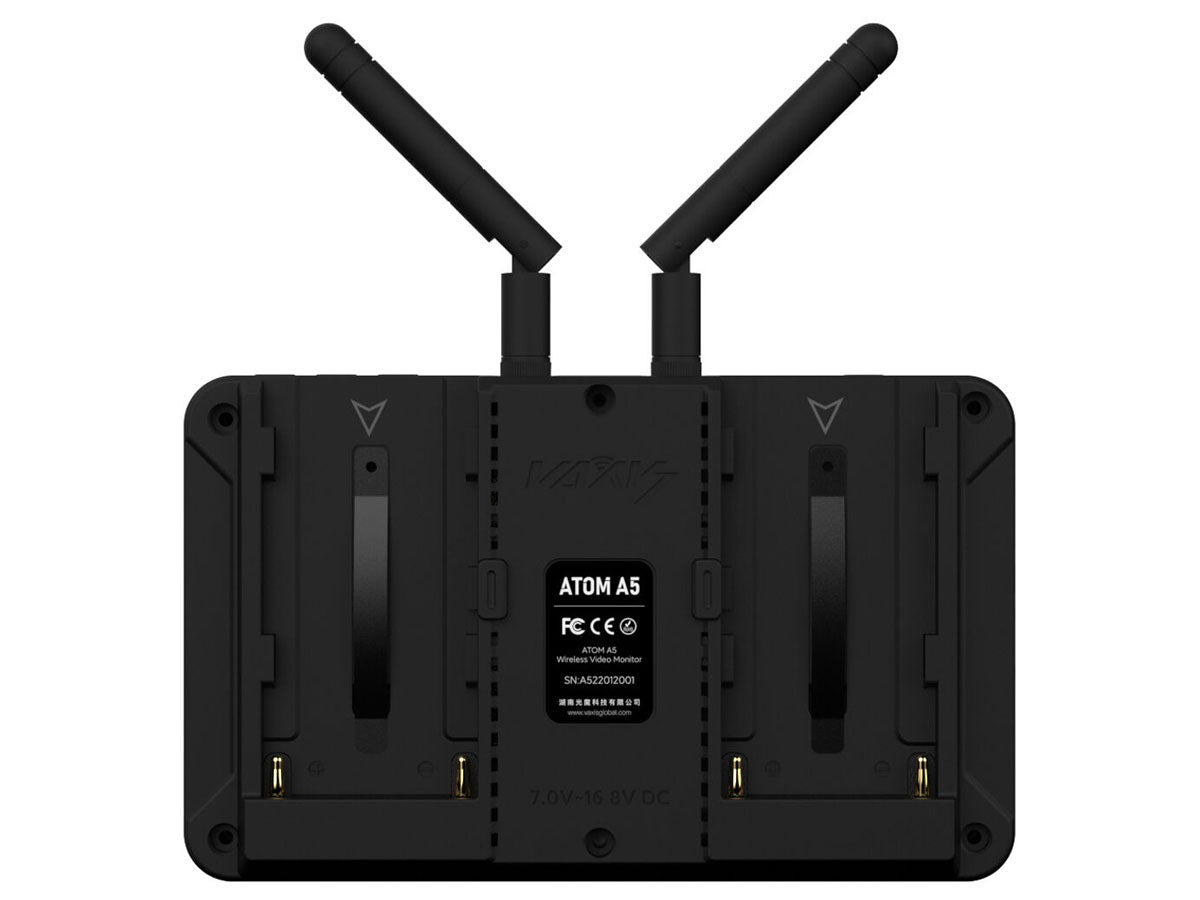

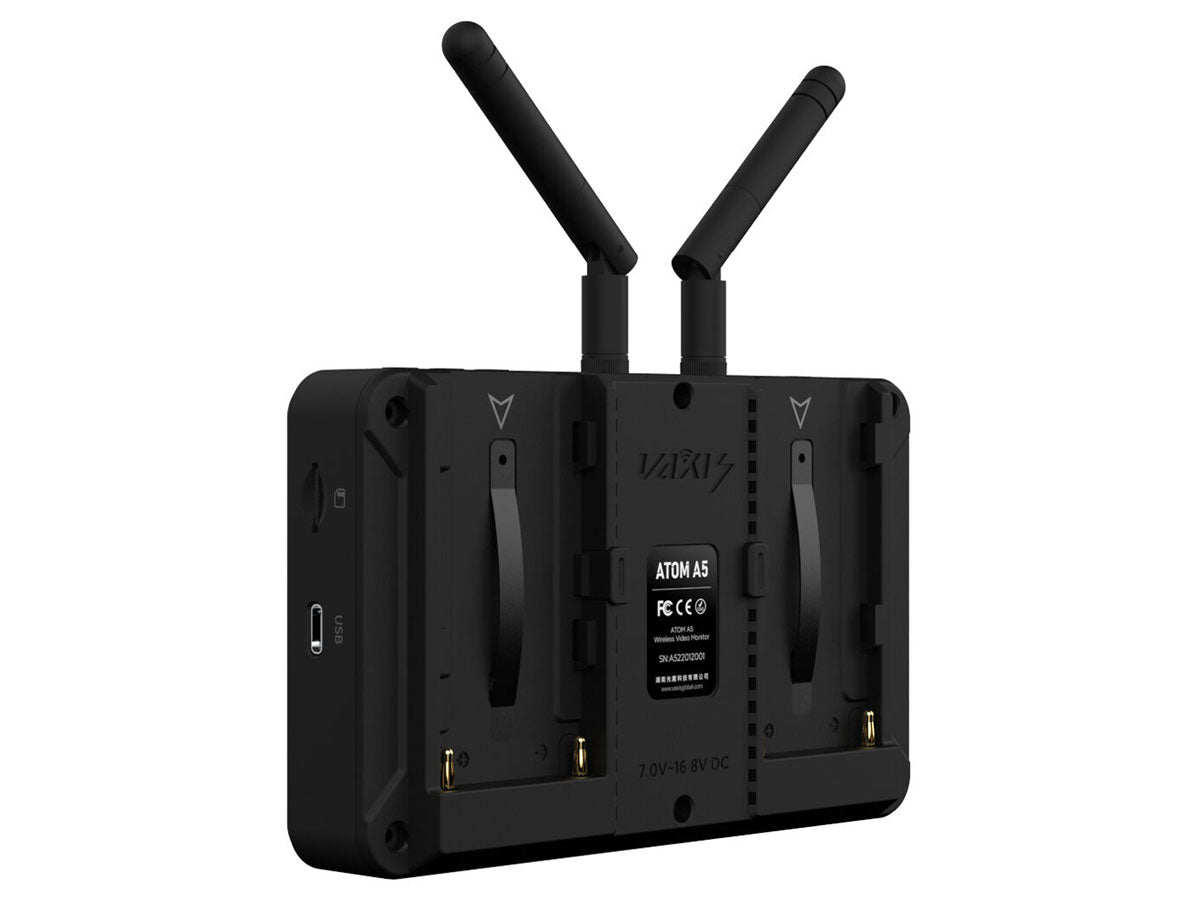

Dual NPF Battery Slots
Ultra-low Power Consumption - A single NPF- 550 battery (3500mAh) can last up to 4.5 hours of continuous use.

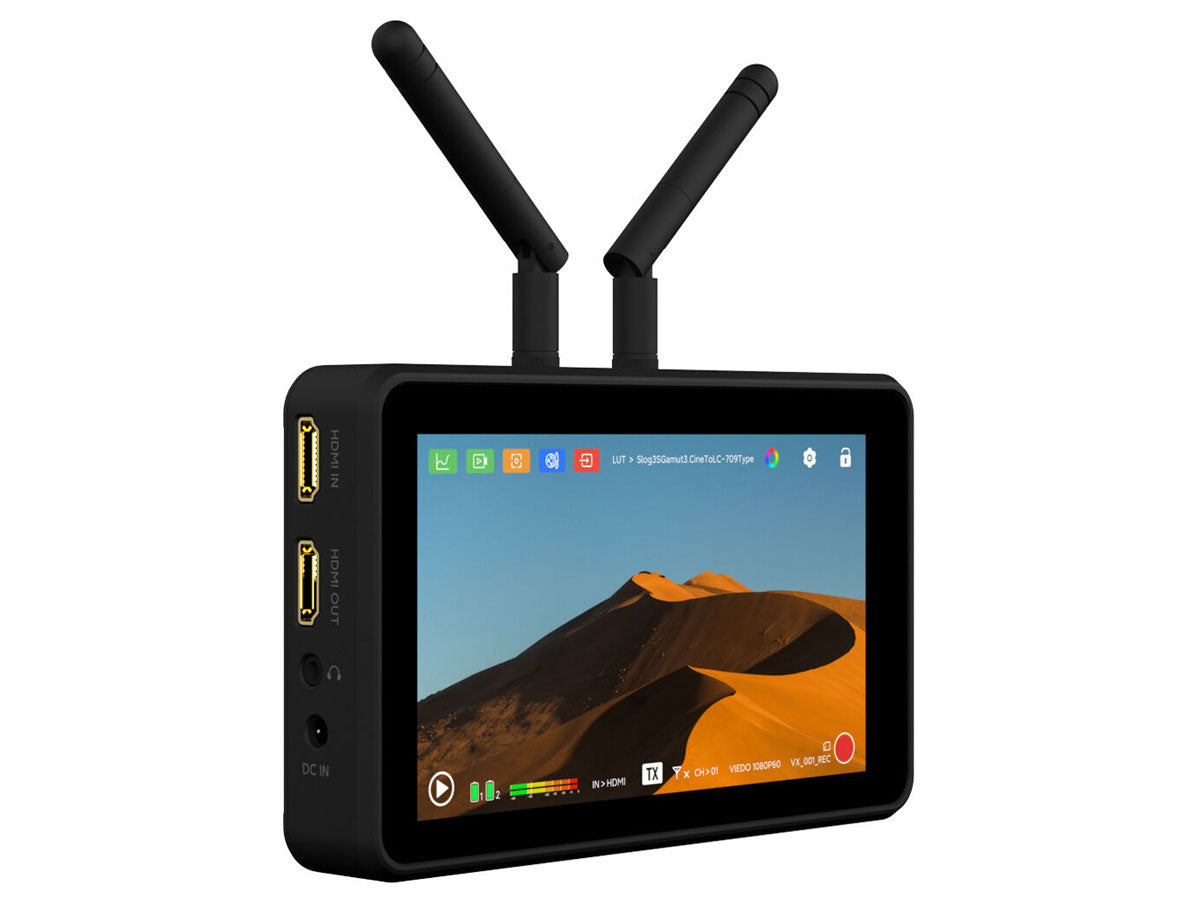

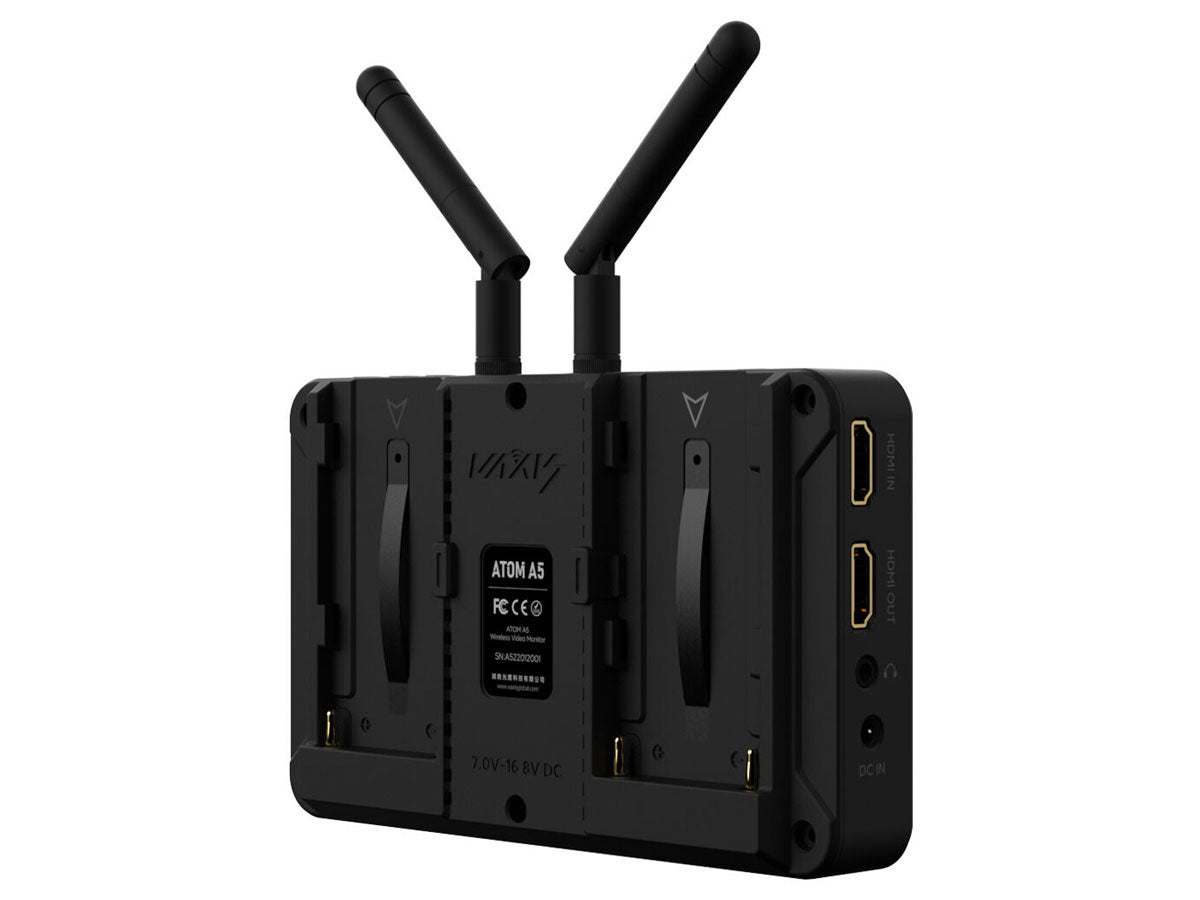

Multiple Ports
Dual HDMI Ports. Support HDMI loop out, it can be used as an on-camera monitor or as a receiver to loop out signal to broadcast monitor.
Lower Latency Faster Follow Focus
80ms Delay. Almost insensitive time-lapse, easy to follow focus.
Break The Chain
5.5" Screen Adaptation. Redesigned CINE os for 5.5" monitor screen, new interactive way, increase your creative passion.
New Menu
Graphical operation menu, better visual effects.
SCOPE
Accurate picture - restore the most realistic color and exposure.
3D-LUT
Customize 5 shortcuts - up to 50 LUTs can be stored in the monitor.
PEAKING
AFCA intelligent focus assist algorithm, sharp focusing.
ZOOM
Multi-touch, two-finger zoom.
TX/RX In One
Both TX and RX. The transmit and receive states can be switched according to your existing Atom series products.
Record & Playback
Record & Playback in one - The recorded MPG-4 files are stored in the TF Card, you can instantly playback and review the footage on set. Preserved files can also be edited directly as proxy files.
Synchronous Recording
Timecode Sync - No need to manually record. When the camera starts recordinlg, both the transmitter and receiver will start recording synchronously.
Follow Focus Kit / Mini Tripod & Handle / Wireless Lens Control / Quick Release Plate
Express install to form a follow focus kit.
Compatible For All Atom Series Products

Interface:

DC IN, DC OUT, DC IN, DC OUT, 3.5mm Audio Jack, Type- -C, 3.5mm-lR IN

Input Voltage:

NPF970/DC1 2V

Screen Size:

5.5 Inch Touch

Screen Resolution:

1920*1080 pixels

Screen Brightness:

1000cd/m

Contrast Ratio:

1200: 1

Input Video Format:

1920*1080P 60/59.94/50/30/29.97/25/24/23.98 1920*1 080160/59.94/50 1280*720P 60/59.94/50

Output Video Format:

1920*1080P60/50/30/25/24 1920*1080160/50 1280*720P60/50

Audio Format:

48KHz

Net Weight:

48g

Size:

151*92*30.5mm

DC Max Output Power:

8.5V/0.6A

Wireless Operating Frequency:

5.1G- -5.8G

Transmitting Frequency:

17dBm

Transmission Latency:

80ms, 120ms(under interference environments)

Receiving Sensitivity:

-80dBm
  • 1x Monitor
  • 2x Antenna
  • 1x Instruction Card
  • 1x HDMI Cable
  • 1x 32G TF Card
