Used Arri M-Series M40
Used Arri M-Series M40
SKU:
ARR-M40/U
Regular price
£4,000.00 GBP ex VAT
£4,800.00 GBP inc VAT
£4,800.00 GBP inc VAT
Regular price
ex VAT
Sale price
£4,000.00 GBP ex VAT
£4,800.00 GBP inc VAT
Unit price
per
£4,800.00 GBP inc VAT
Only 1 left in stock.
Couldn't load pickup availability
- Details
- Features
- Specifications
Used Arri M-Series M40 light with Power Gems 425CP 4kW/2.5kW ballast perfect for your photography or videography needs. It is AC-powered and has a voltage of 230V, making it a reliable power source.

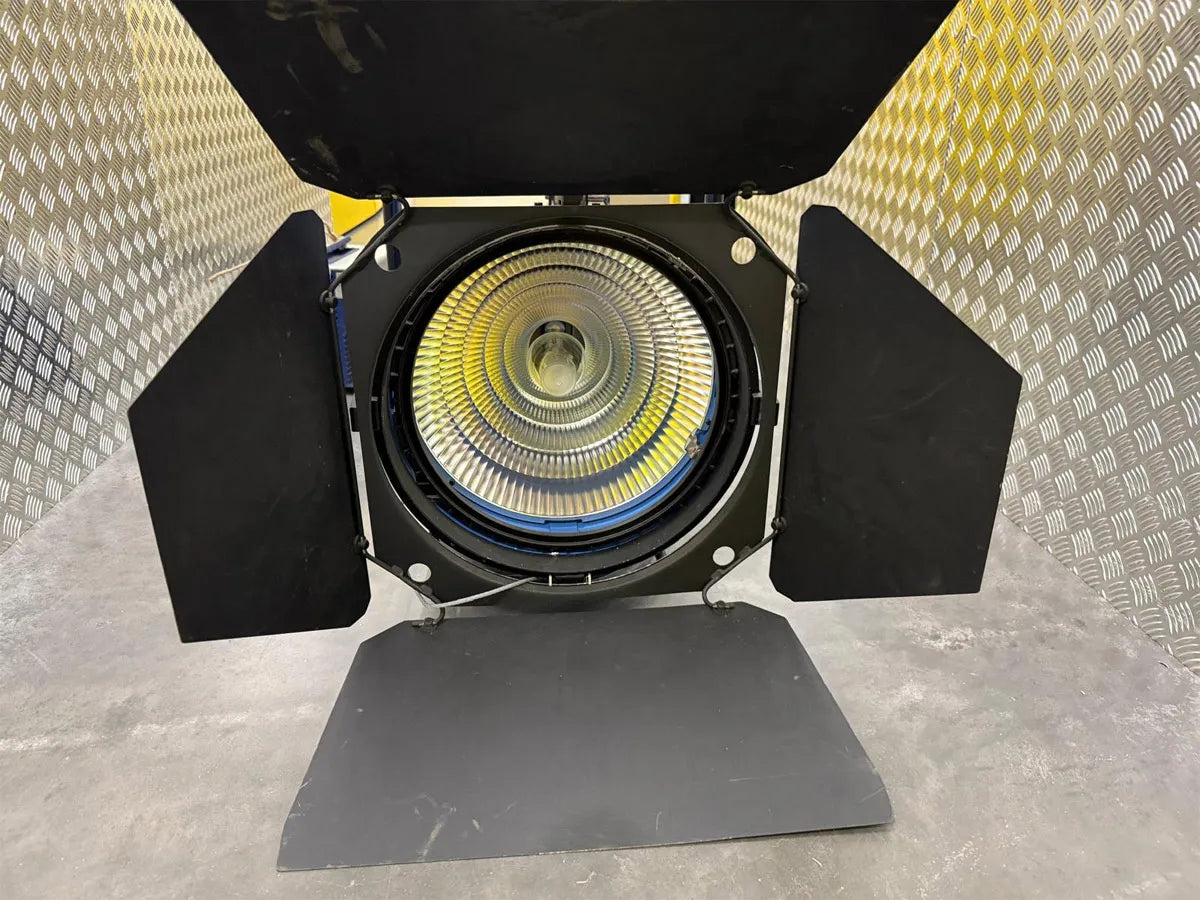

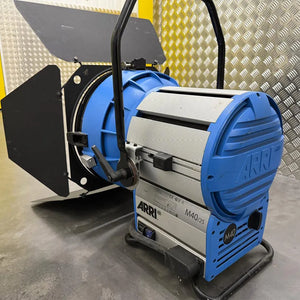

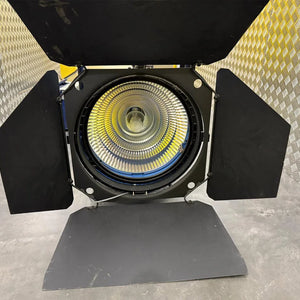

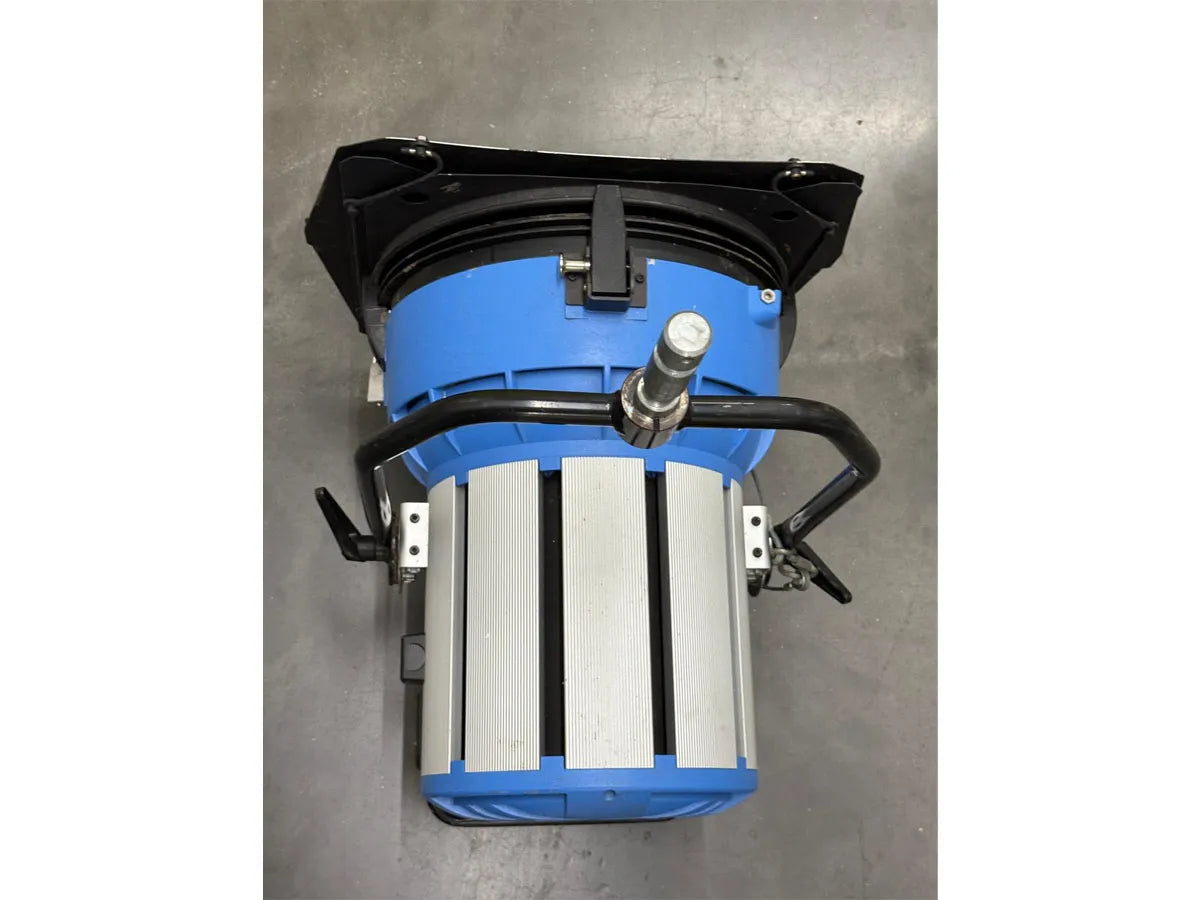

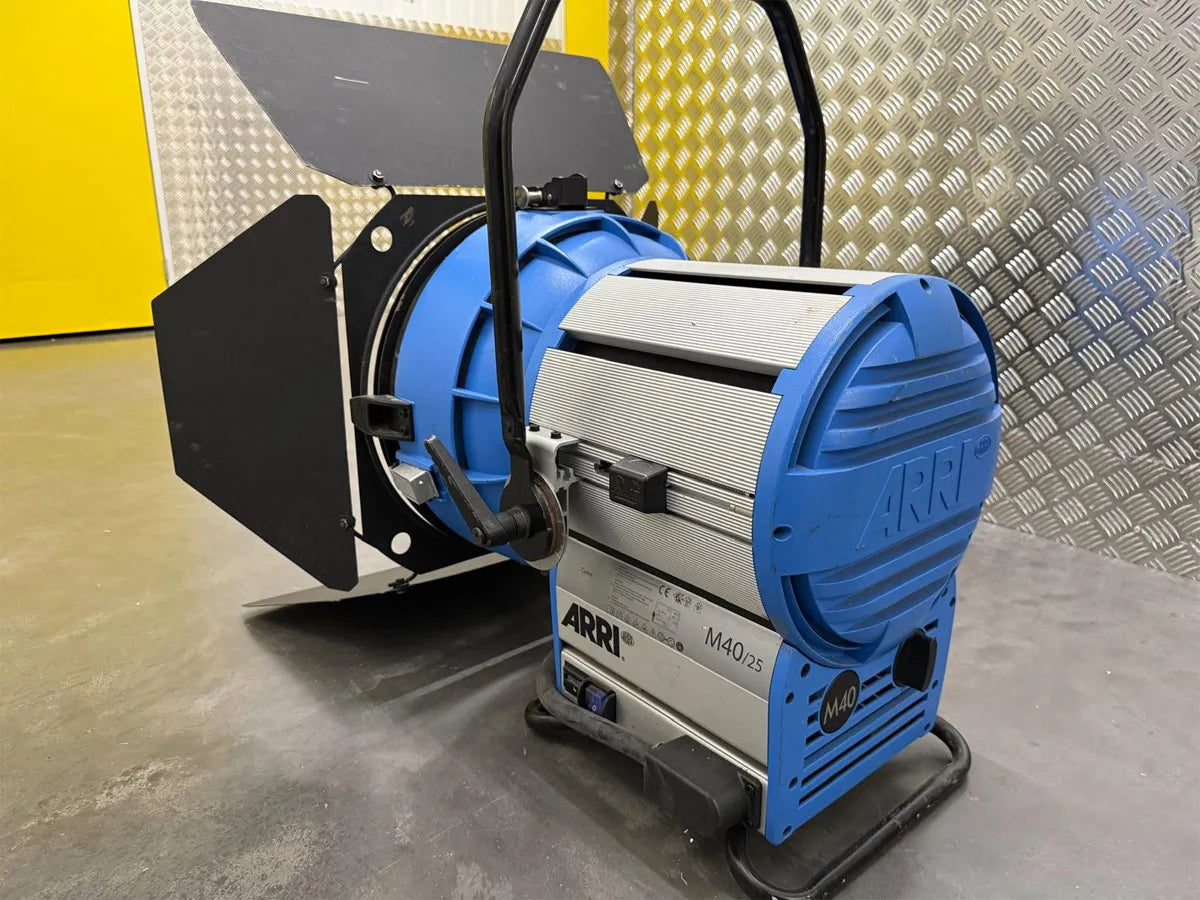

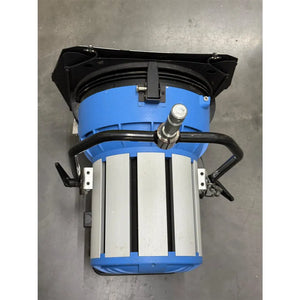

ARRI M-SERIES M40
A member of the ARRI M-Series, the M40 is a lens-less system that unifies the advantages of Fresnel and PAR fixtures.

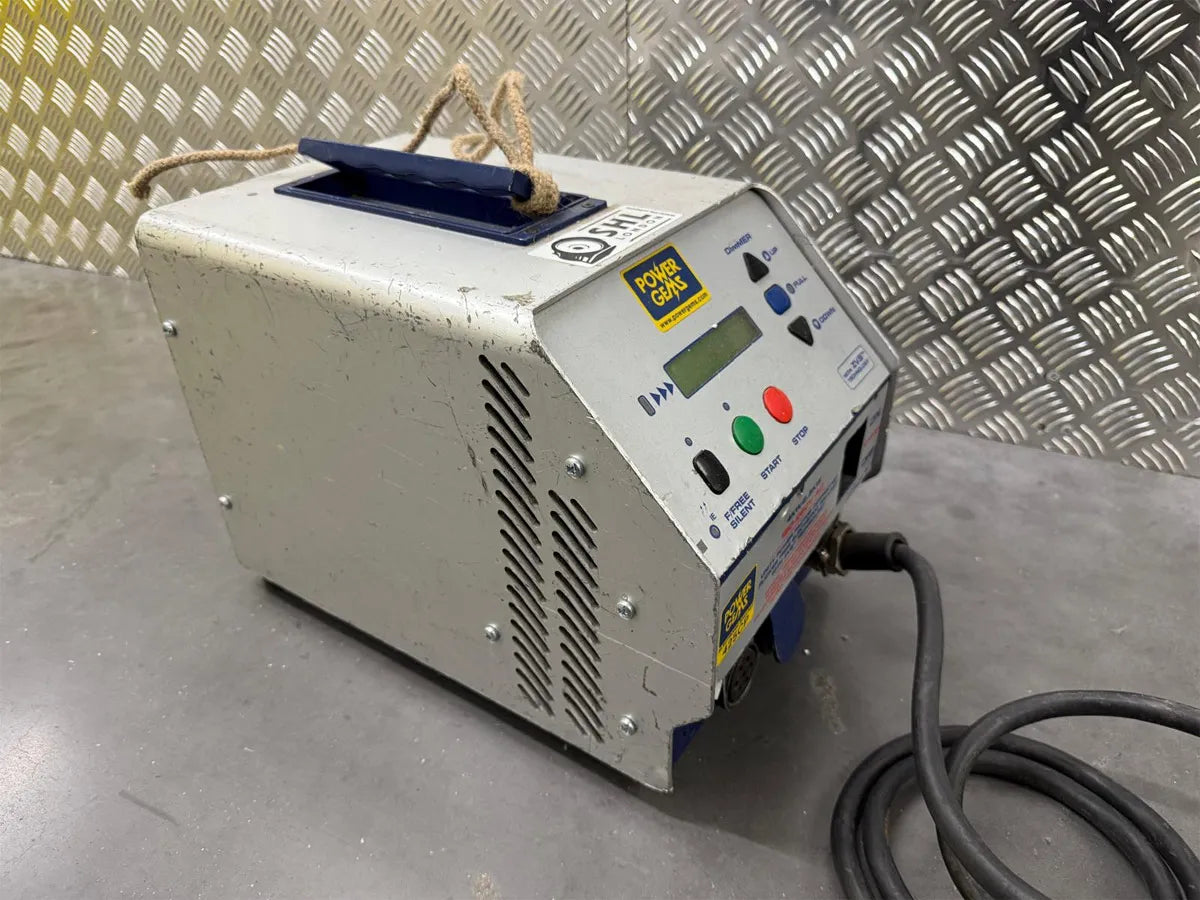

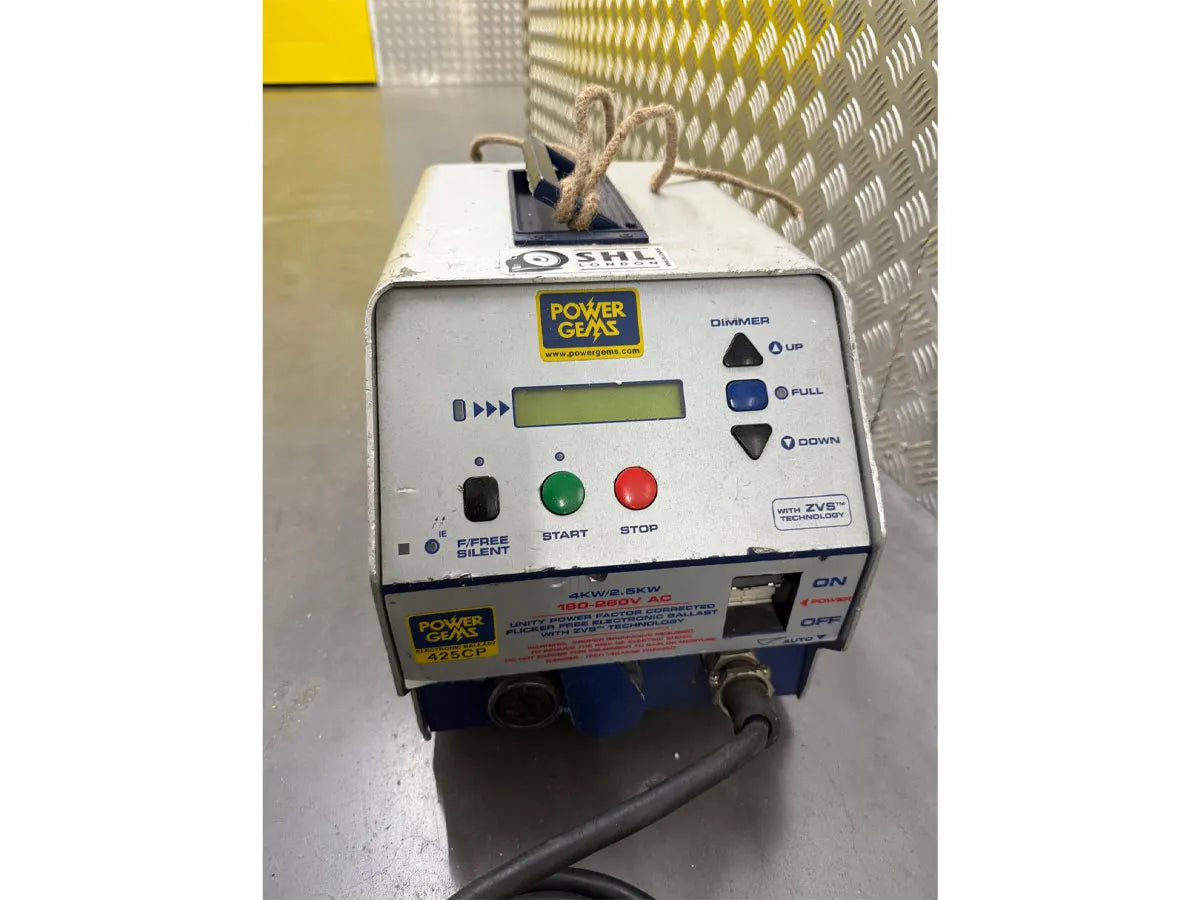

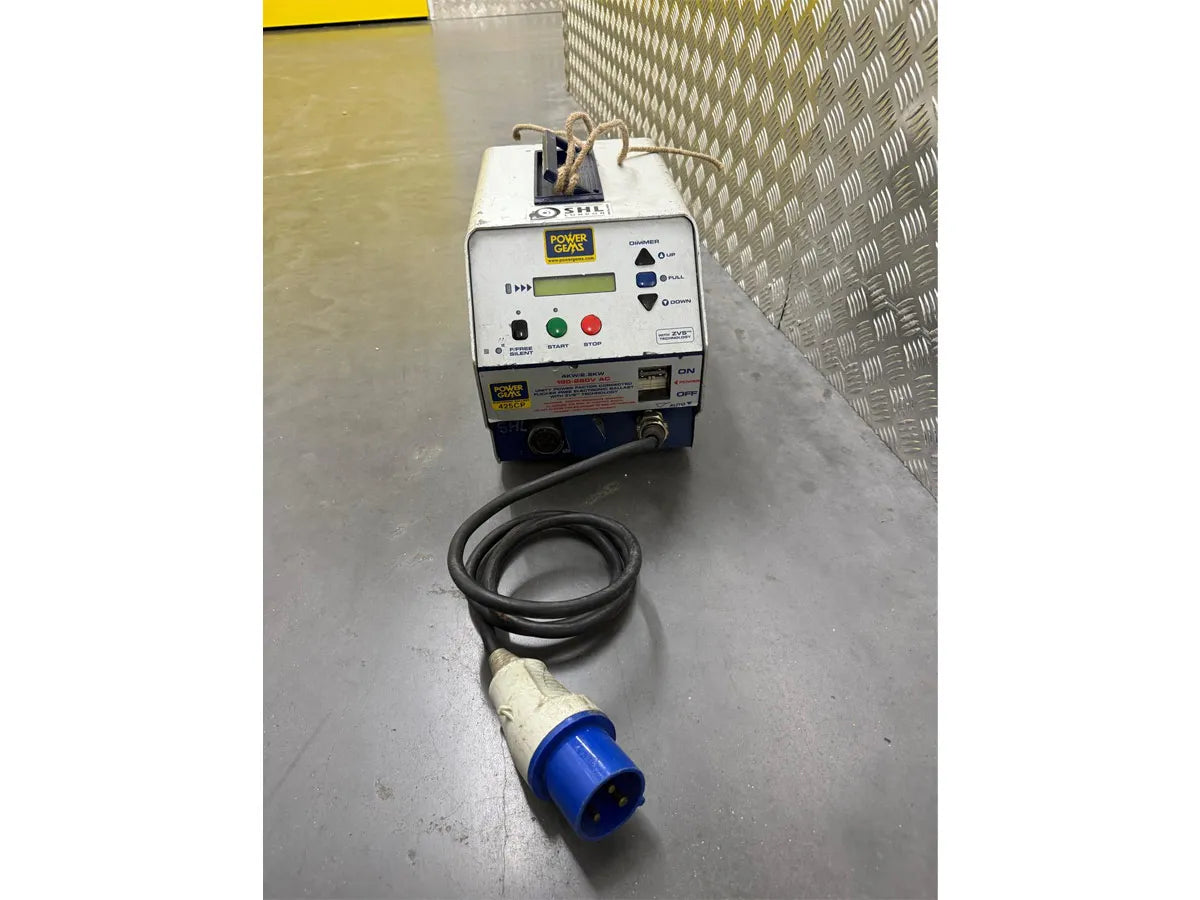

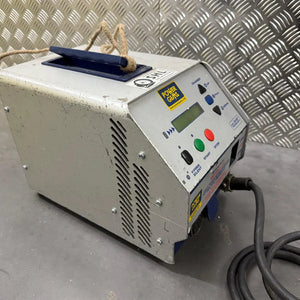

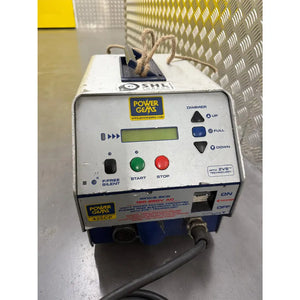

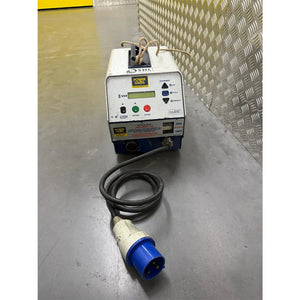

POWER GEMS 425CP BALLAST
A 4kW/2.5kW ballast for operation at 190 - 260V.
- Lens-less MAX Technology: Easy to use
- Around 30 % brighter than AS 40
- Compensation of Cable Losses (CCL)
- Steel yoke
- Two disk brakes with steel handles
- Cross-Cooling allows safe operation at extreme tilt angles
- Suitable for high frame rate images
- Weather resistant
| ARRI M-SERIES M40 | |
| Type of Lamphead: | Open Face |
| Reflector: | MAX Technology Facetted Reflector |
| Wattage: | 2,500 / 4,000 W |
| Lamp Base: | G38 |
| Lamp Type: | Metal Halide 2,500 W/SE Metal Halide 4,000 W/SE |
| UV Protection Glass Diameter: | 350 mm / 14.0" |
| Max. Operating Temperature: | ta= 45°C / 113°F |
| Max. Surface Temperature: | tc= max. 250°C / 482°F |
| Tolerable Inclination: | max. 90° upwards / max. 90° downwards |
| Safe Distances: | 5 m / 16.4 ft. to illuminated surface 1 m / 3.3 ft. around the luminaire |
| Protective Class: | I - Protective Earth |
| Protective Rate: | IP23 |
| Dimensions: | 724 x 505 x 524 mm / 28.5 x 19.9 x 20.6" (incl. flange) 660 x 595 x 665 mm / 26.0 x 23.4 x 26.6" (packed) |
| Weight: | approx. 20.0 kg / 43.97 lbs approx. 24.0 kg / 52.86 lbs (packed) |
| Accessories Diameter: | 400 mm (15.8") / 413 mm (16.3") |
| Mounting: | Spigot 28 mm / 1 1/8" (1.1") |
| Certification: | CE, CB, GS, cNRTLus |
| POWER GEMS 425CP | |
| Max. Lamp Power: | 4kW |
| Power Options: | 4kW/2.5kW |
| Low Noise Switch: | Yes |
| Input Voltage Range: | 95 - 260 |
| Input Circuit Breaker: | Yes |
| Auto Sense Voltage: | n/a |
| Input Apparent Power: | 4250 |
| Input Real Power: | 4250 |
| Amperage Draw 220/110V: | 19.3 @ 220V |
| Power Factor: | Unity |
| Dimming to 50% Power: | Yes |
| Running Light: | Yes |
| Power Cable: | Integral |
| Over Temperature Protection: | Yes |
| Line Over-Voltage Protection: | >260V |
| Line Under-Voltage Protection: | <190V |
| Luminaire Socket Options: | Yes |
| Diagnostic System: | Yes |
| Max. Ambient Temperature: | 45 |
| Dimensions: | 235 x 270 x 380cm / 9.25 x 10.6 x 15" |
| Weight: | 15.6kg / 34.3lbs |
