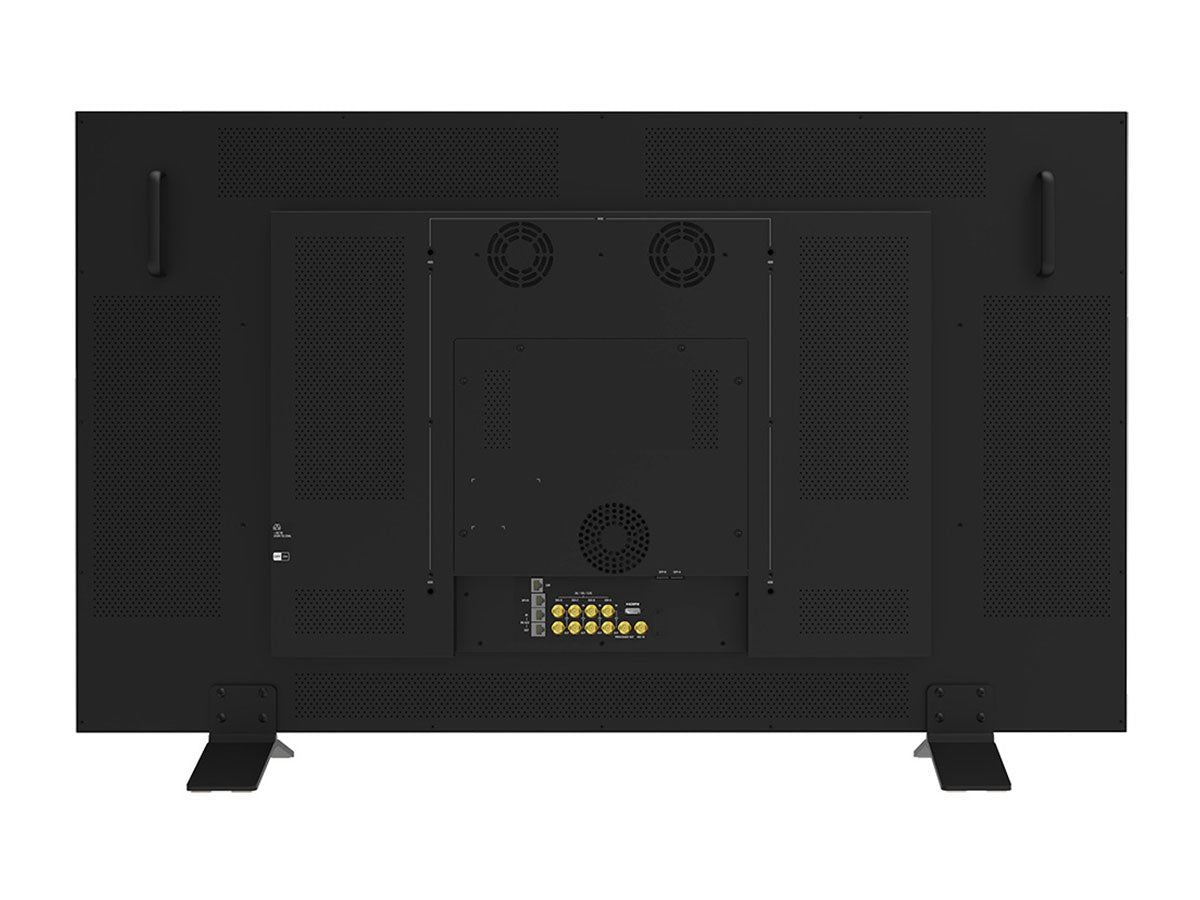

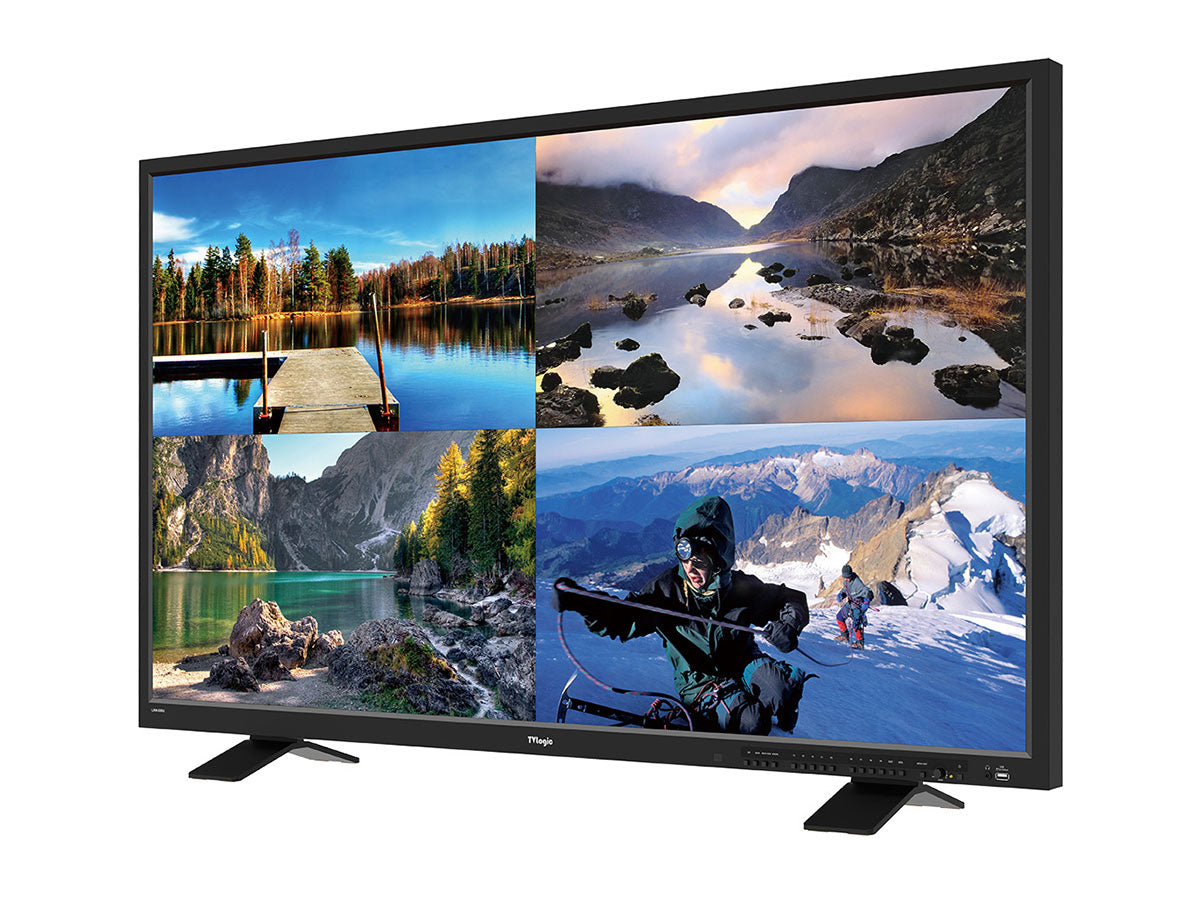

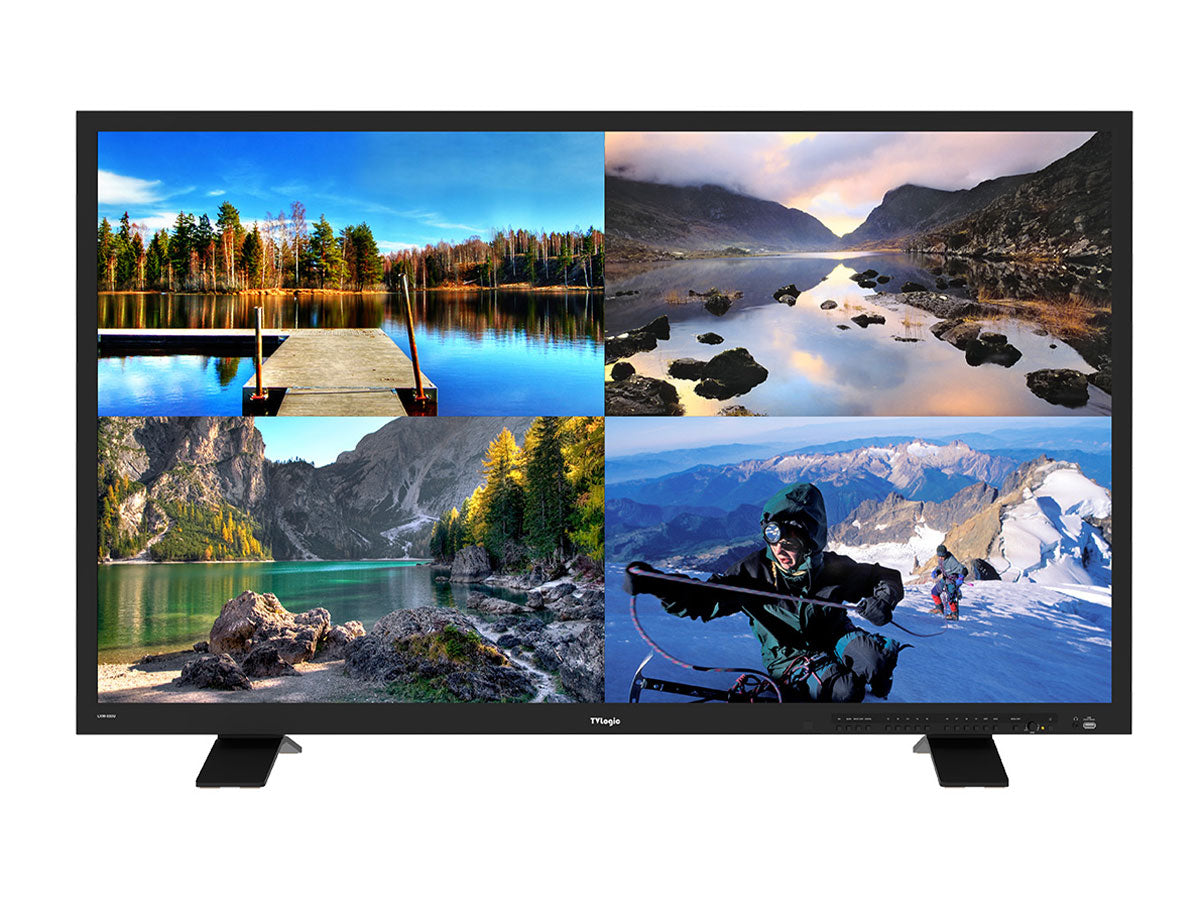

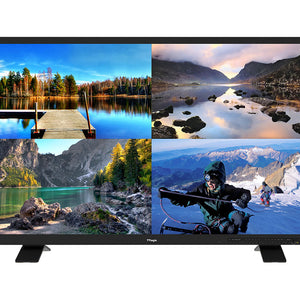

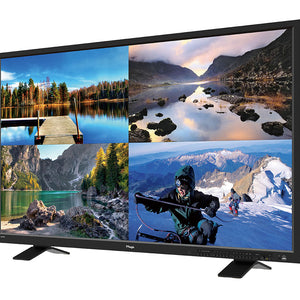

TVLogic LXM-550U 55" 4K/UHD HDR Emulation LCD Monitor
TVLogic LXM-550U 55" 4K/UHD HDR Emulation LCD Monitor
£9,302.05 GBP inc VAT
£9,302.05 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
The LXM series monitors are TVLogic's latest generation of 4K/UHD broadcast monitors incorporating innovative hardware and software solutions.
The LXM series incorporates 12G-SDI Input (x4), 12G-SDI Output (x4), Reference (External Sync) input, HDMI 2.0 Input, SFP Input (x2) & Processed Monitor Output.
These new 4K/UHD monitors feature wide viewing angle IPS panel, various HDR EOTFs, Wide colour gamut, 10-bit colour depth, and Accurate Colour Reproduction by 3D LUT support. Additionally, the LXM series monitors offer the high-performance functions such as HDR-SDR Comparison, 12G-SDI Quad-View and Dual-View display, custom 3D LUT import, SFP to SDI conversion output, Processed monitor output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and more. The LXM monitors are ideal for 4K live production, versatile monitoring in the studio and field location, edit suite and post-production.
- HDR EOTF (PQ, HLG)
- HDR vs SDR Comparison Display
- Custom 3D LUT Import by USB Flash Drive
- Quad-View, Picture-by-Picture Display
- Various Conversion Output
- Quad Link 12G Input to Single Link 12G or 3G Output
- Auto Detection of SDI Payload ID
- Waveform (YCbCr, RGB) / Vector Scope / Histogram
- Audio Level Meter / Phase Meter / Loudness(LKFS) Meter
- Image Capture & Overlay
- Closed Caption (CC-608, CC-708, OP47)
- Timecode Display
- Marker
- Focus Assist
- Blue/Mono Only
- H Flip, V Flip
- Scan / User Aspect
- Dynamic UMD / Tally
| LCD PANEL | ||
| Size: | 54.6" | |
| Resolution: | 3840 x 2160 (16:9) | |
| Pixel Pitch: | 0.315(H) x 0.315(V) mm | |
| Colour Depth: | 1.07B Colours (10 bit) | |
| Viewing Angle: | 178°(H) / 178°(V) | |
| Luminance of White: | 700cd/m2 | |
| Contrast Ratio: | 1100:1 | |
| Display Area: | 1209.6(H) x 680.4(V) mm | |
| INPUT | ||
| 4x BNC: | 12G/6G/3G/HD/SD-SDI A/B/C/D Channel Input | |
| 1x HDMI: | HDMI 2.0 Input | |
| 2x SFP: | SFP A/B Channel Input | |
| 1x BNC: | Reference Input | |
| OUTPUT | ||
| 4x BNC: | 12G/6G/3G/HD/SD-SDI A/B/C/D Channel Output | |
| 1x BNC: | Processed Output | |
| INPUT SIGNAL | ||
| 12G-SDI: | 12Gb/s | |
| 6G-SDI: | 6Gb/s | |
| 3G-SDI: | 2.970Gb/s | |
| HD-SDI: | 1.485Gb/s | |
| HDMI 2.0: | 480p/720p/1080p/2160p | |
| SDI INPUT SIGNAL FORMATS | ||
| SMPTE ST 2082: | 3840x2160 (60/50/30/25/24p) | |
| SMPTE ST 2081: | 3840x2160 (30/25/24p) | |
| SMPTE ST 2036-1: | 3840x2160 (23.98/24/25/29.97/30/50/59.94/60p) | |
| SMPTE-425M-A/B: | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) | |
| 1080i (60/59.94/50) | ||
| SMPTE-274M: | 1080i (60/59.94/50) | |
| 1080p (30/29.97/25/24/24sF/23.98/23.98sF) | ||
| SMPTE-296M: | 720p (60/59.94/50) | |
| SMPTE-260M | 1035i (60/59.94) | |
| SMPTE-125M: | 480i (59.94) | |
| ITU-R BT.656: | 576i (50) | |
| SMPTE ST 2048-2: | 2048x1080 (23.98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p) | |
| REMOTE CONTROL & UPDATE | ||
| 1x LAN: | RJ-45 Input (Ethernet), Firmware Update & Remote Control | |
| 1x REMOTE: | RJ-45 Input, GPI Control | |
| 2x RS-422: | RJ-45 Input & Output, Montor Control by TVLogic Protocol or TSL Protocol | |
| 1x USB: | USB A type, Firmware Update | |
| GENERAL | ||
| Audio Out: | Internal Speakers (Stereo 3W x 3W) / Analog Stereo (Phone Jack) | |
| Power: | AC100-240V (50-60Hz) | |
| Operating Temperature: | 0°C to 35°C (32°F to 95°F) | |
| Storage Temperature: | -20°C to 60°C (-4°F to 95°F) | |
| Dimensions: | Main Body: | 1262 x 746 x 81.4mm / 49.68 x 29.37 x 3.20" |
| With Stand: | 1262 x 794.5 x 245mm / 49.68 x 31.27 x 9.64" | |
| Shipping Box: | 1410 x 410 x 1050mm / 55.51 x 16.14 x 41.34" | |
| Weight: | TBD | |
