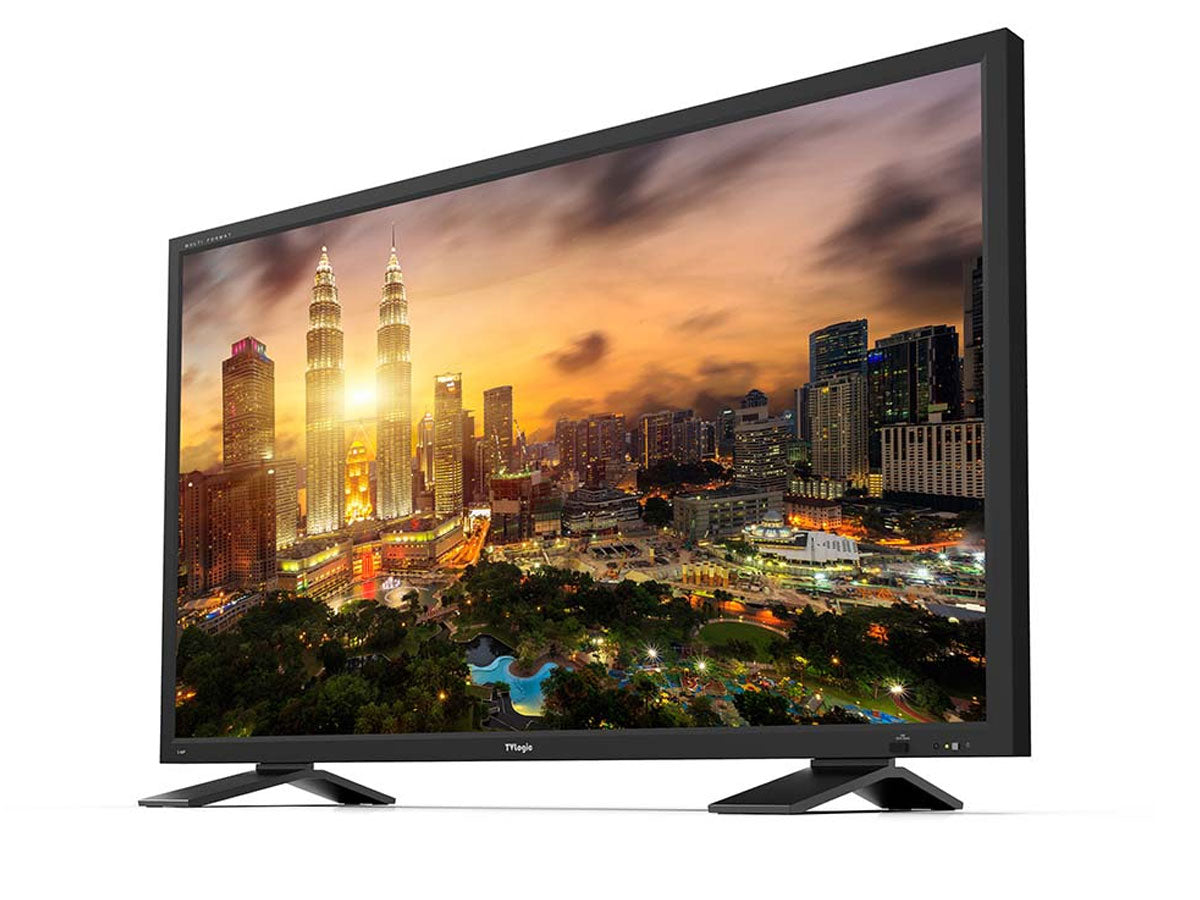

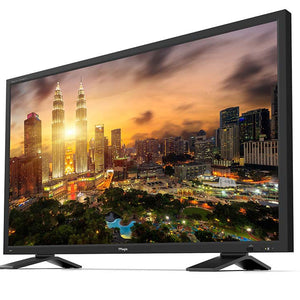

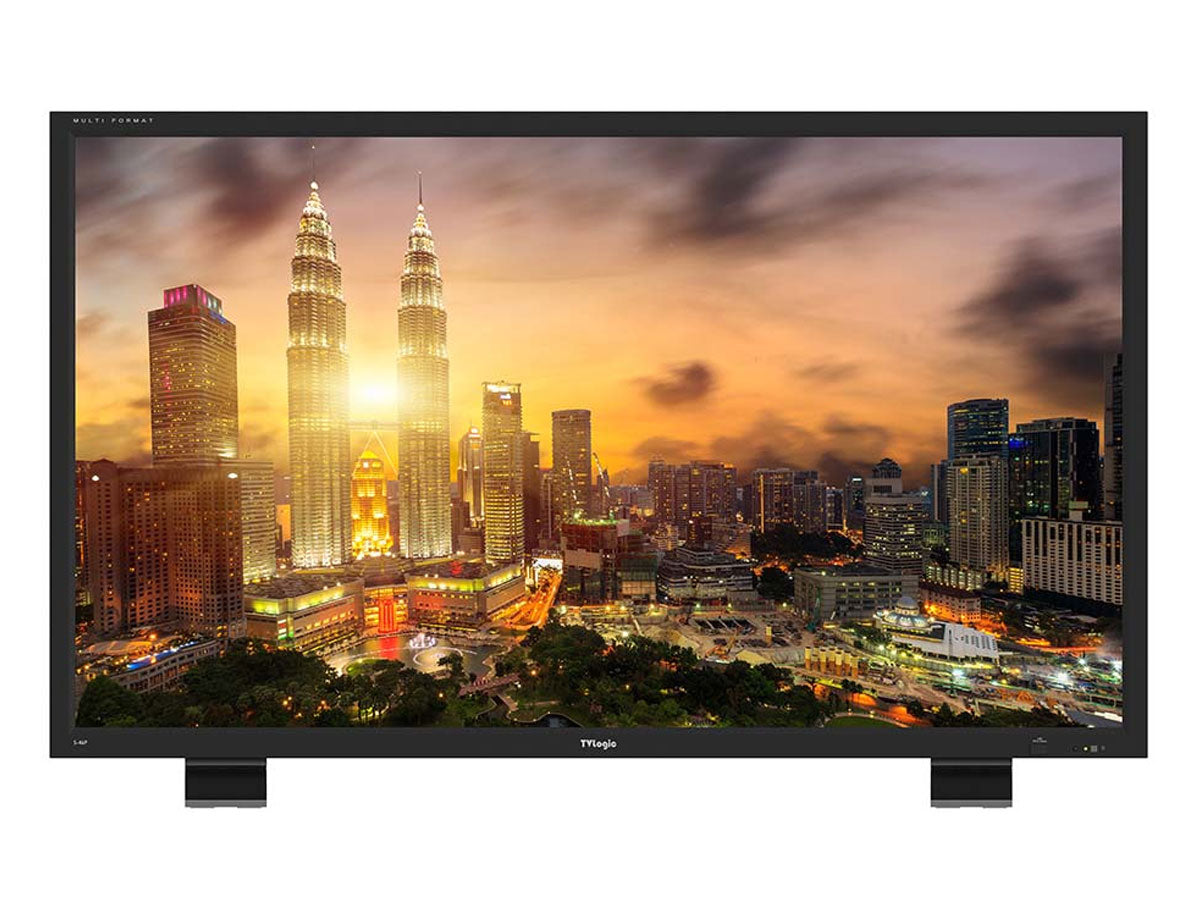

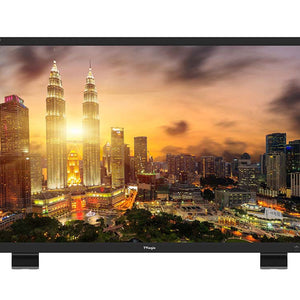

TV Logic S-46P 46" FHD Studio Wall Monitor

TV Logic S-46P 46" FHD Studio Wall Monitor

SKU: TVL-S-46P
£5,801.86 GBP ex VAT
£6,962.23 GBP inc VAT
ex VAT £5,801.86 GBP ex VAT
£6,962.23 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
46 inch FHD studio wall monitor with SFP module and ember+ protocol
46 inch full HD monitor which offers best picture quality and easy control for studio wall monitoring combined with SFP module and ember+ protocol. Equipped with 2x BNC input connectors for 3G-SDI, HDMI input and 2x SFP input. S-46P supports various video signals. It supports selectable output via internal routing, which can be used for various user enviroments.
HDR Emulation
A true HDR monitor must employ a special display panel with high dynamic range and a wide colour gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI colour gamut.
Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as 'HDR Emulation monitor' in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.
  • True HDR Monitor: HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
  • HDR Emulation Monitor: Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function

And in TVLogic monitors, HDR Emulation function includes the control parameters below;
  • Standard Colour Mode (HLG, PQ, PQ2)
  • Video Range
  • Display Luminance *
  • HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
  • PQ EETF (On / Off)
  • HLG System Gamma (Fixed 1.2 / Auto)
  • Colour Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
  • White Point (D65, D93, DCI)
  • Gamut Warning
  • Shadow Mode *** (LUM-318G only)
1:1 Pixel Mapping Modes for SD/HD
Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Audio Level Meter Display
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Custom 3D LUT Import
Allows you to load your making 3D-LUT files at NLE software like Davinci Resolve by USB flash memory and displays your LUT on VFM-055A or F-7H. Once you synchronize LUTs in the monitor, you will easily change them on production.
PBP(Picture by Picture)
Support displaying multiple inputs on the screen at the same time.
Time Code Display
Displays the Timecode information on the screen.
User Aspect
Adjusts the Width /Height display ratio.
Waveform/Vector Scope
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.Vector Scope: Displays the colour components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
  • 45 inch fullHD resolution (1920 x 1080)
  • HDR Emulation (PQ, HLG, SLog3)
  • Ember+ protocol (LAWO)
  • TSL 3.1/5.0 Support
  • Selectable output via internal routing
  • 2x SFP in/out
  • Auto-calibration
  • Fast mode
  • Various scan modes
  • Custom 3D-LUT import (via USB)
  • Closed caption (CC-608/708, CC-KOR)
  • Waveform/Vectorscope (High Resolution)
  • PBP (Picture by Picture)
  • Audio level meter
  • Time code display
  • UMD
  • User aspect
Display Spec
Size 46"
Resolution 1920 X 1080 (16:9)
Pixel Pitch 0.530mm
Colour Depth 1.07B
Viewing Angle 178°(H) / 178°(V)
Luminance 450cd/m2
Contrast Ratio 4,000:1
Display Area 1018.08(H) × 572.67(V) mm

Input

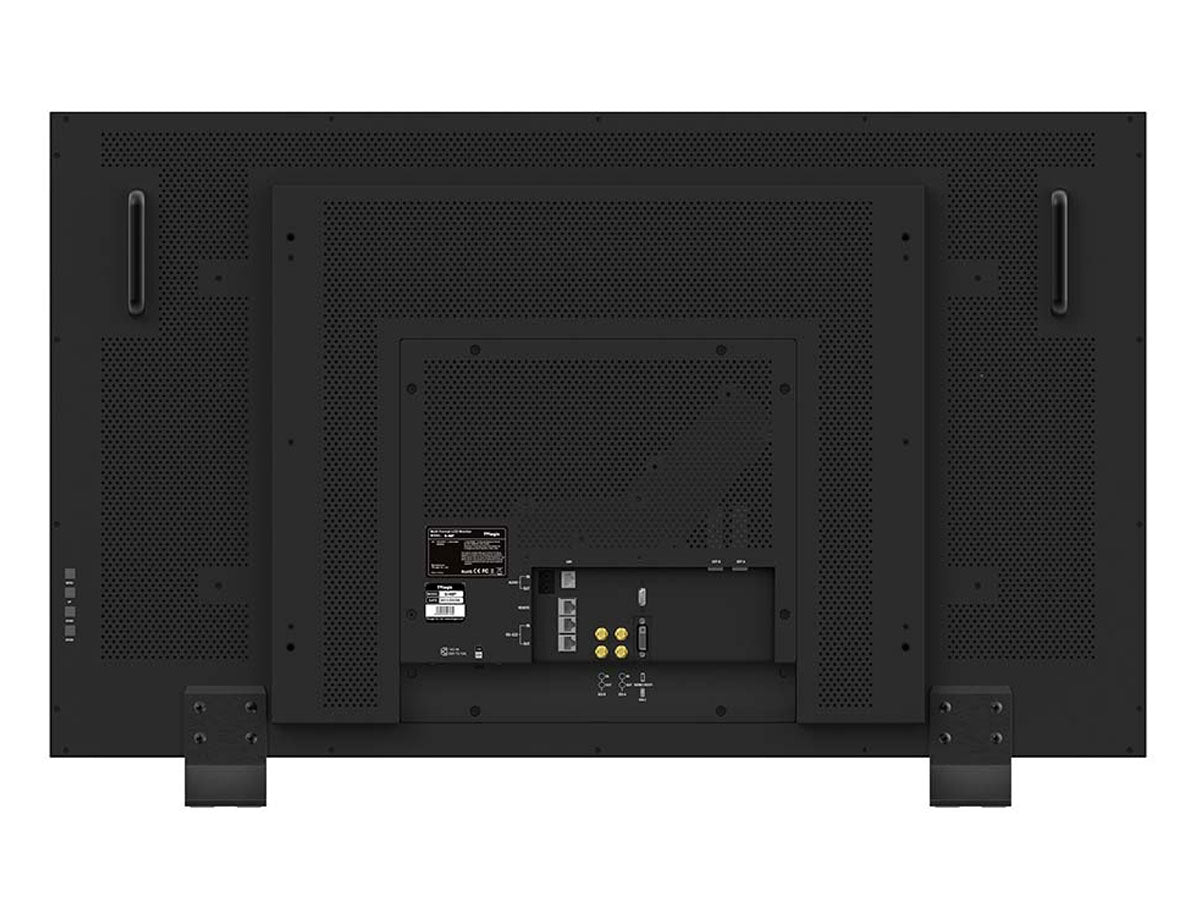

2 X BNC 3G-SDI A/B Channel Input
1 X HDMI HDMI Input
1 X DVI DVI Input
2 X SFP Module Optical Input/ Output(Combined, Option)

Output
2 X BNC 3G-SDI Output

Input Signal
3G SDI 2.970Gbps
HD SDI 1.485Gbps
SD SDI 270Mbps
HDMI 480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1600x1200
DVI Analog 640x480/720x400/800x600/1024x768/1600x1200/1920x1080
DVI DP 640x480/720x400/800x600/1024x768/1600x1200/1920x1080
DVI DH 1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50)

SDI Input Signal Formats
SMPTE 425M-A/B 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
SMPTE 372 Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF)
SMPTE 296 720p (60/59.94/50)
SMPTE 274 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE 260 1035i (60/59.94)
SMPTE 125 480i (59.94)
ITU-R BT.656 576i (50)
2K Format 2048 x 1080p (24/24sF/23.98/23.98sF)

Audio
Audio In Embedded Audio/Analog Stereo (Phone Jack)
Audio Out -

FPGA Functions 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector

Closed Caption CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR

Calibration TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions
REMOTE GPI (RJ45)
REMOTE TVLogic’s specification
USB Firmware update by USB memory stick
Ethernet Ethernet Control support

Dimensions
Main Body 1070.6 x 630.5 x 76.4 (mm) / 42.15 x 24.82 x 3.00 (inch)
With stand 1070.6 x 679.2 x 309.3 (mm) / 42.15 x 26.74 x 12.18 (inch)
Weight 26.8 KG / 59.08lbs
  • 1x 46 Inch FullHD Studio wall monitor
