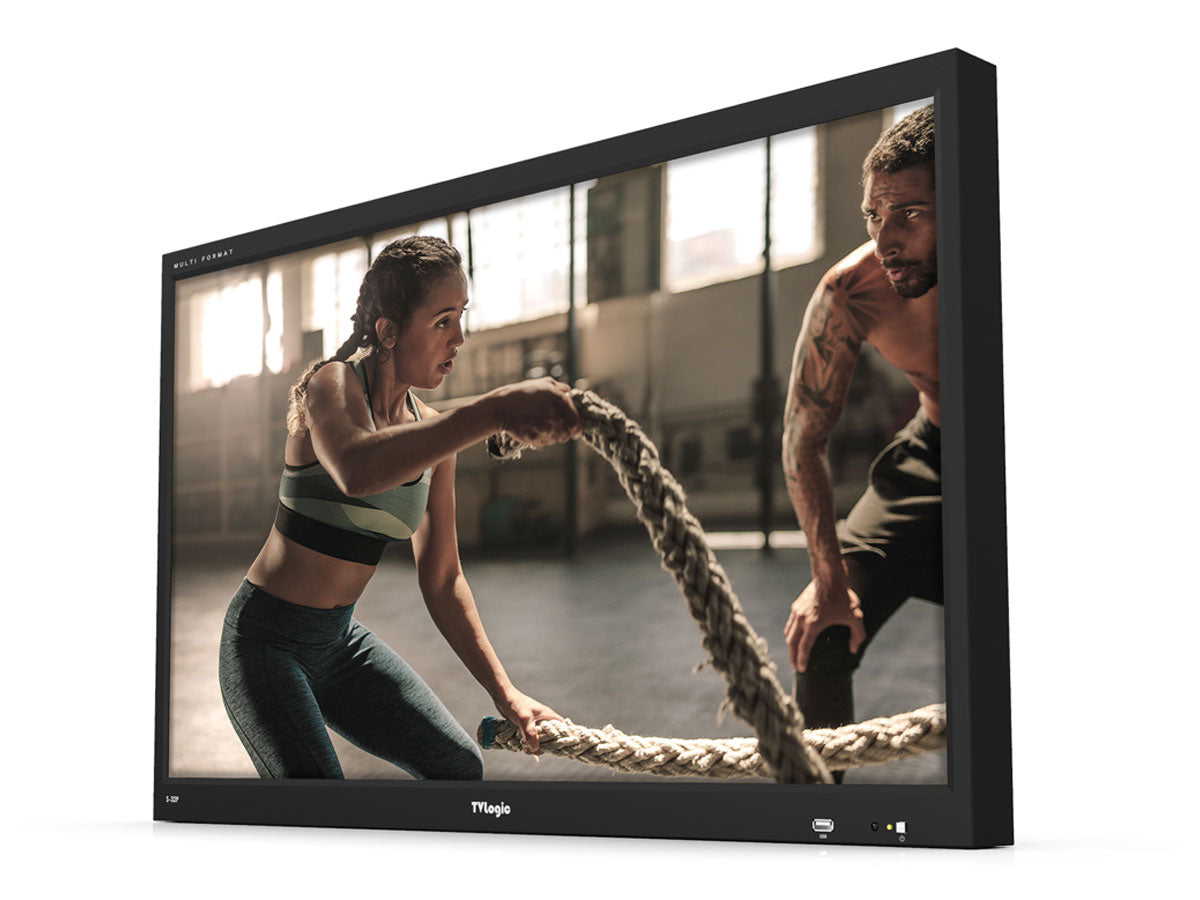

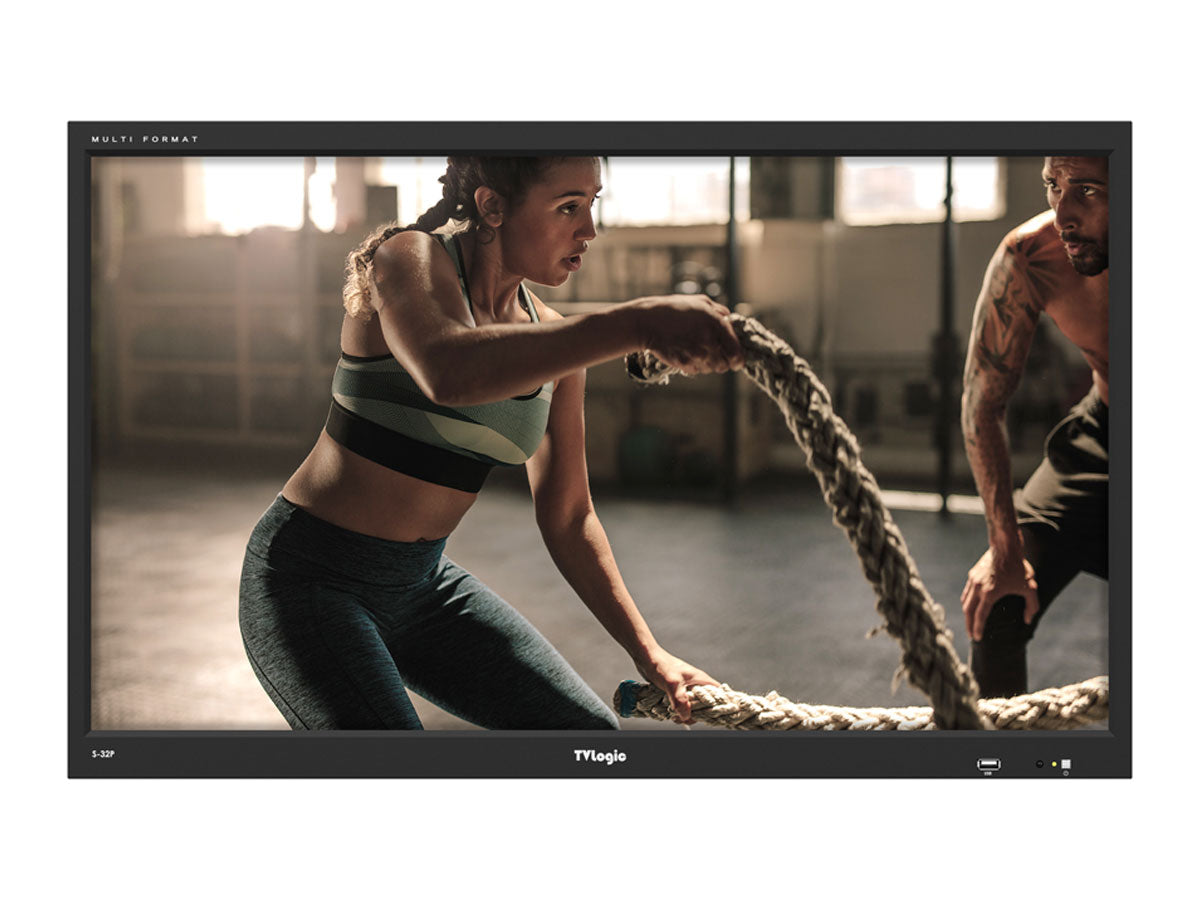

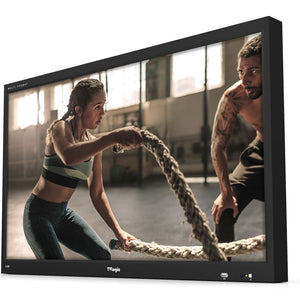

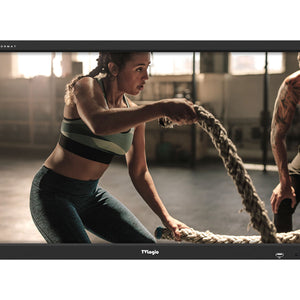

TV Logic S-32P 32" FHD Studio Wall Monitor

TV Logic S-32P 32" FHD Studio Wall Monitor

SKU: TVL-S-32P
£4,896.27 GBP ex VAT
£5,875.52 GBP inc VAT
ex VAT £4,896.27 GBP ex VAT
£5,875.52 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
The S-32P is Full HD Studio Wall monitor with high contrast ratio and wide viewing angle. It supports various video formats including 3G/HD-SDI, HDMI and DVI. The SFP interface can be supported for versatility. The S-series provides network control by Ember+ protocol and HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.
HDR Emulation
A true HDR monitor must employ a special display panel with high dynamic range and a wide colour gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI colour gamut.
1:1 Pixel Mapping Modes for SD/HD
Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Audio Level Meter Display
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Custom 3D LUT Import
Allows you to load your making 3D-LUT files at NLE software like Davinci Resolve by USB flash memory and displays your LUT on VFM-055A or F-7H. Once you synchronize LUTs in the monitor, you will easily change them on production.
Waveform/Vector Scope
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.Vector Scope: Displays the colour components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
  • PBP(Picture by Picture) - Support displaying multiple inputs on the screen at the same time.
  • Time Code Display - Displays the Timecode information on the screen.
  • User Aspect - Adjusts the Width /Height display ratio.
  • FHD 1920 x 1080 Native Resolution
  • HDR Emulation (PQ, HLG, S-Log3)
  • Ember+ Protocol (LAWO)
  • TSL 3.1/5.0 Support
  • Selectable Output via lnternal Routing
  • 2x SFP In/Out
  • Various Scan Mode, Custom 3D-LUT Import (via USB), Closed Caption (CC-608/708, CC-KOR)
  • Waveform, Vectorscope (High Resolution),  Audio Level Meter, UMD
Size 31.5"

Resolution 1920 X 1080 (16:09)

Pixel Pitch 0.530mm

Colour Depth 16.7M

Viewing Angle 178°(H) / 178°(V)

Luminance 400cd/m2

Contrast Ratio 1,200:1

Display Area 698(H) × 393(V) mm

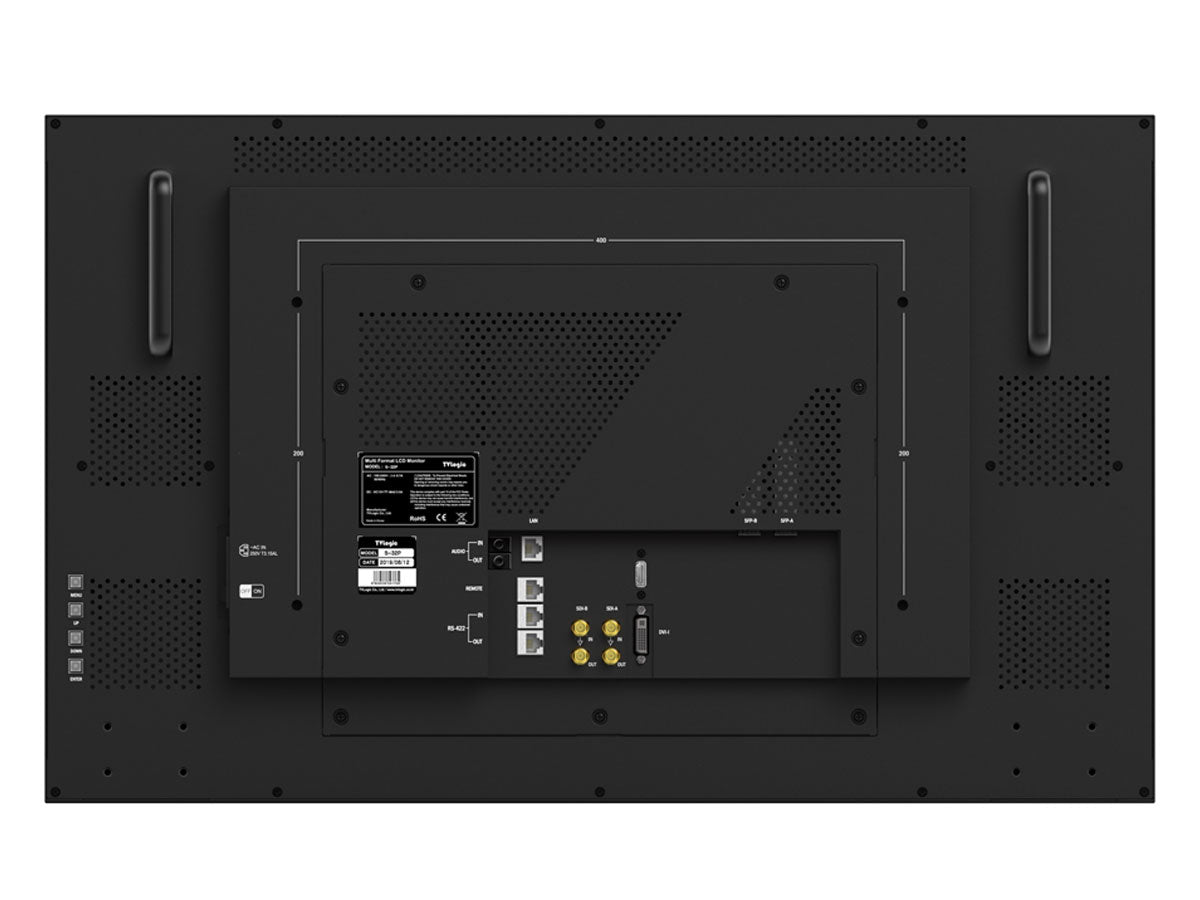

Inputs 2x BNC: 3G-SDI A/B Channel Input
  1x HDMI: HDMI Input
  1x DVI: DVI Input

Outputs 2x BNC:3G-SDI Output

Input Signal 3G SDI: 2.970Gbps
  HD SDI: 1.485Gbps
  SD SDI: 270Mbps
  HDMI: 480i/480p/576i/576p/720p/1080i/1080p/640x480/
  720x400/800x600/1024x768/1600x1200
  DVI Analog: 640x480/720x400/800x600/1024x768/1600x1200/1920x1080
  DVI DP: 640x480/720x400/800x600/1024x768/1600x1200/1920x1080
  DVI DH: 1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/
  480i(60)/480p(60)/576i(50)/576p(50)

SDI Input Signal Formats SMPTE 425M-A/B: 1080p
  (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) /1080i (60/59.94/50)
  SMPTE 372: Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI
  YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE 296: 720p (60/59.94/50)
  SMPTE 274: 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE 260: 1035i (60/59.94)
  SMPTE 125: 480i (59.94)
  ITU-R BT.656: 576i (50)
  2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF)

Audio In Embedded Audio/Analog Stereo (Phone Jack)

FPGA Functions 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display,
  Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono,
  Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector

Closed Caption CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR

Calibration TVLogic Colour Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions REMOTE: GPI (RJ45)
  REMOTE: TVLogic’s specification
  USB: Firmware update by USB memory stick
  Ethernet: Ethernet Control support
  • 1 x S-32P Monitor
  • 1 x Power Cable
  • 1 x Stand
