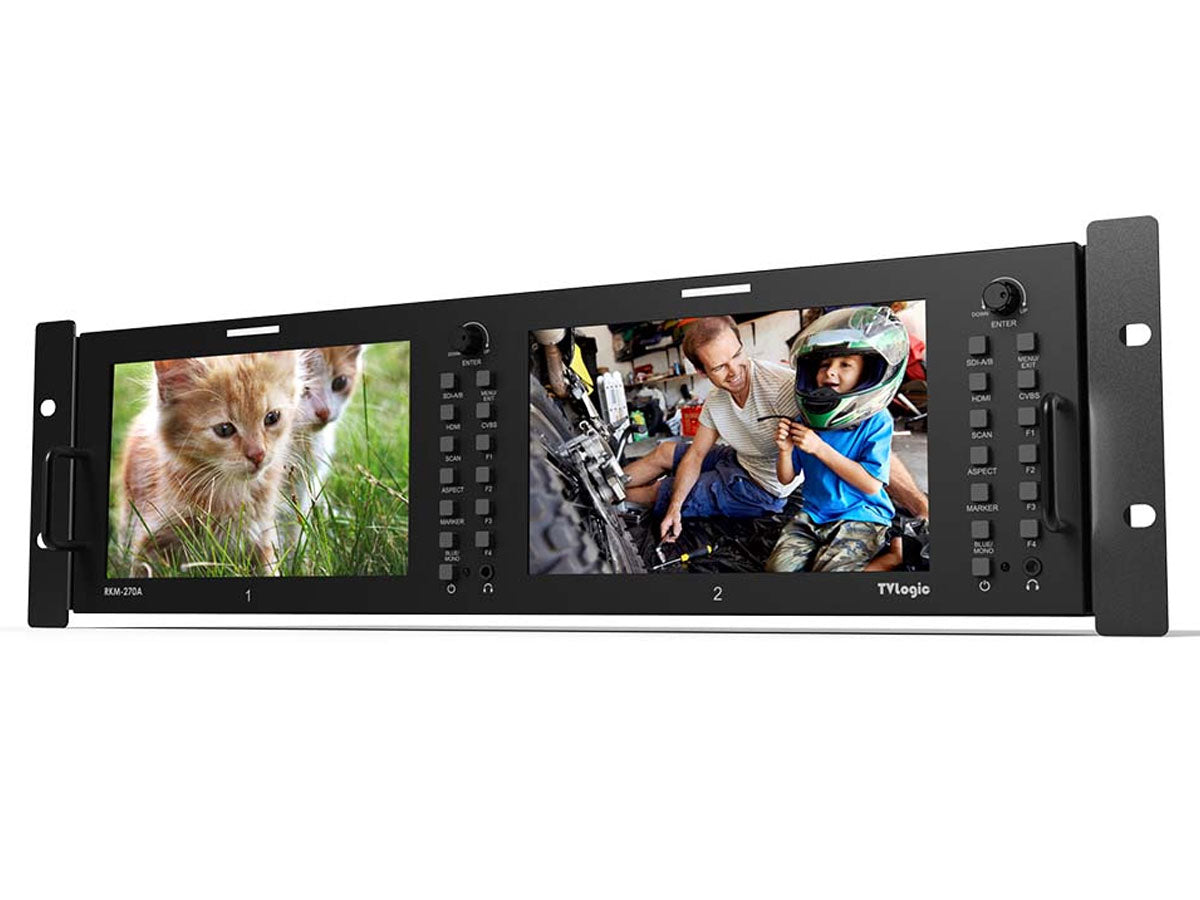

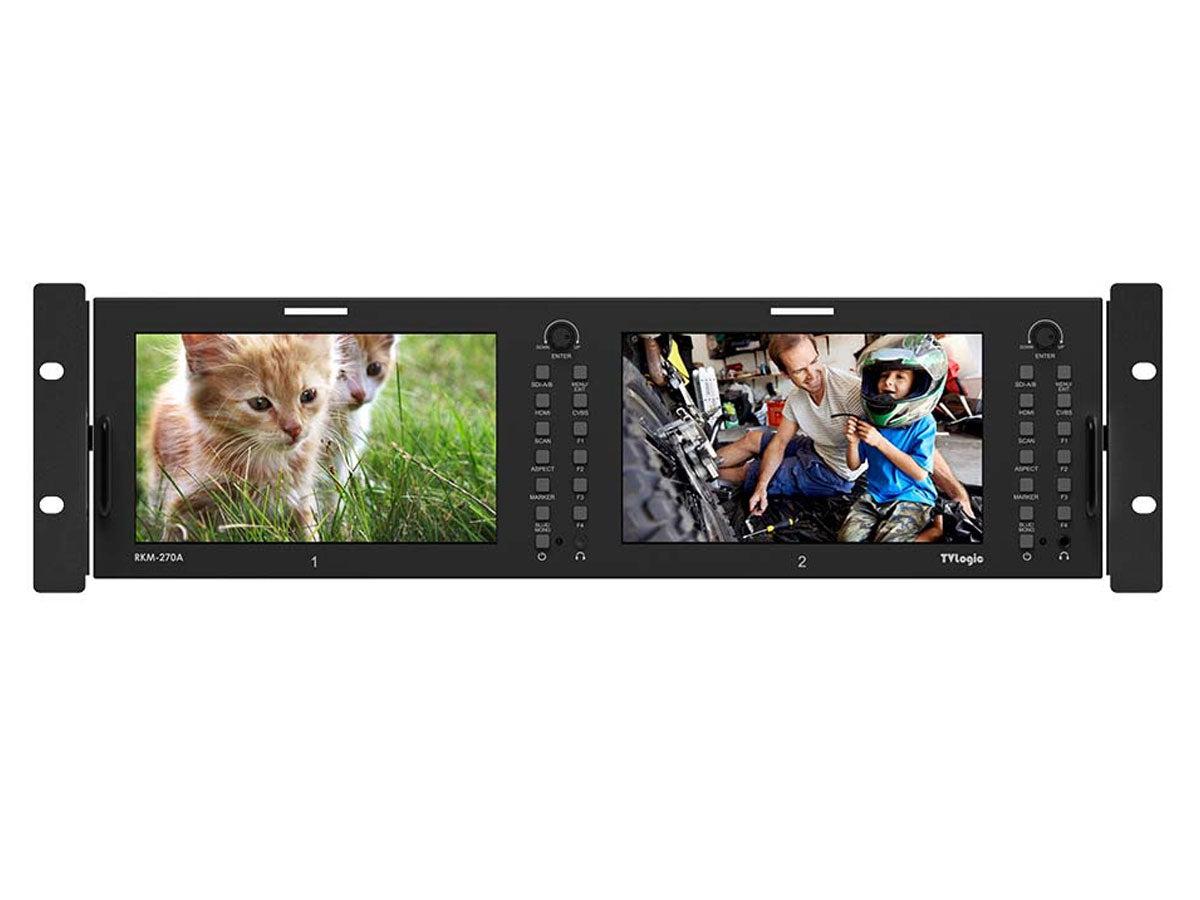

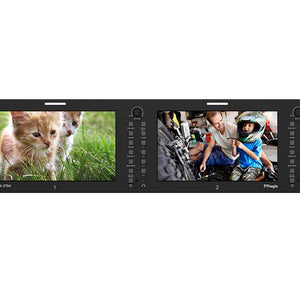

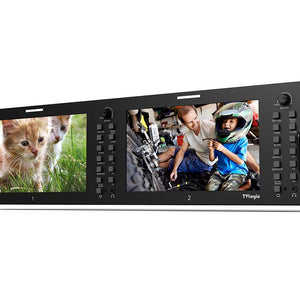

TV Logic RKM-270A Dual 7” LCD Rack Monitor

TV Logic RKM-270A Dual 7” LCD Rack Monitor

SKU: TVL-RKM-270A
£2,361.48 GBP ex VAT
£2,833.78 GBP inc VAT
ex VAT £2,361.48 GBP ex VAT
£2,833.78 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

With its SDI in/out and HDMI support, this 1024x600 monitor accetps HD inputs and its two 7" displays offer the same image quality as the LVM-074W. This 16:9 IPS LCD monitor also features a wide viewing angle. Product highlights include 1:1 pixel mapping modes for SD-HD, 3G SDI Level A/B, Audio Level Meter Display, Zoom, Waveform / Vectorscope plus much more.

  • 7” 1024 x 600 (16:9) Resolution
  • 1:1 Pixel Mapping Modes for SD/HD
  • 3G-SDI Level A/B
  • Audio Level Meter Display
  • Blue Only
  • Focus Assist
  • H/V Delay
  • Key lock
  • Luma(Y') Zone Check
  • Marker
  • Mono
  • Range Error
  • Time Code Display
  • UMD
  • CC-608 ANC
  • Various Scan modes
  • Waveform/Vectorscope
  • Zoom
  • User Aspect
  • CC-608 LINE 21
  • CC-708
DISPLAY
Size 7"
Resolution 1024 x 600 (16 : 9)
Pixel Pitch 0.15mm
Colour Depth 16.7M
Viewing Angle (Typ.) 170°(H) / 170°(V)
Luminance (Max.) 400cd/m2 (centre)
Contrast Ratio 800:1

INPUT (1 SCREEN)
1 x HDMI HDMI Input
2 x BNC SDI A/B Channel Input
1 x BNC CVBS

OUTPUT (1 SCREEN)
1 x BNC SDI Selected Channel Output

INPUT SIGNAL
Analogue CVBS
3G-SDI 2.970Gbps
HD-SDI 1.485Gbps
SD-SDI 270Mbps
HDMI 1080P(24/25/30/50/60) /1080i(50/60) / 720p(50/60) /480i(60) / 480p(60) / 576i(50) /576p(50)

SDI INPUT SIGNAL FORMATS
SMPTE-425M-A/B 1080i(60/59.94/50)
  1080p(23.98/24/25/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE-274M 1080i (60 / 59.94 / 50)
  1080P (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M 720p(60/59.94/50)
SMPTE-260M 1035i(60/59.94)
SMPTE-125M 480i(59.94)
ITU-R BT.656 576i(50)
2K Format -

PHYSICAL
Audio IN Embedded Audio / Analogue stereo (Phone Jack)
Audio OUT Analogue stereo (Phone Jack) / Internal Speaker (Mixed Mono)
Power DC 12/24V
Operating Temperature 0°C to 35°C (32°F to 95°F )
Storage Temperature -20°C to 60°C (-4°F to 140°F )
Dimensions 480.8 x 132 x 50.5 (mm) / 18.92 x 5.19 x 1.98 (inch)
Weight 4kg (8.81lb)
  • RKM-270A Monitor
  • Power Cord
  • Rack Mountable Kit
