TV Logic R-5T 3 x 5.5" Full HD Rackmount LCD Monitors
TV Logic R-5T 3 x 5.5" Full HD Rackmount LCD Monitors
SKU:
TVL-R-5T
Regular price
£3,856.36 GBP ex VAT
£4,627.63 GBP inc VAT
£4,627.63 GBP inc VAT
Regular price
ex VAT
Sale price
£3,856.36 GBP ex VAT
£4,627.63 GBP inc VAT
Unit price
per
£4,627.63 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

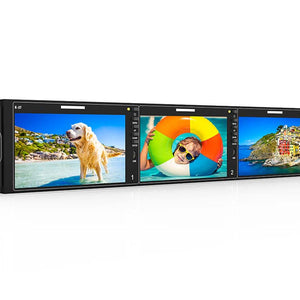

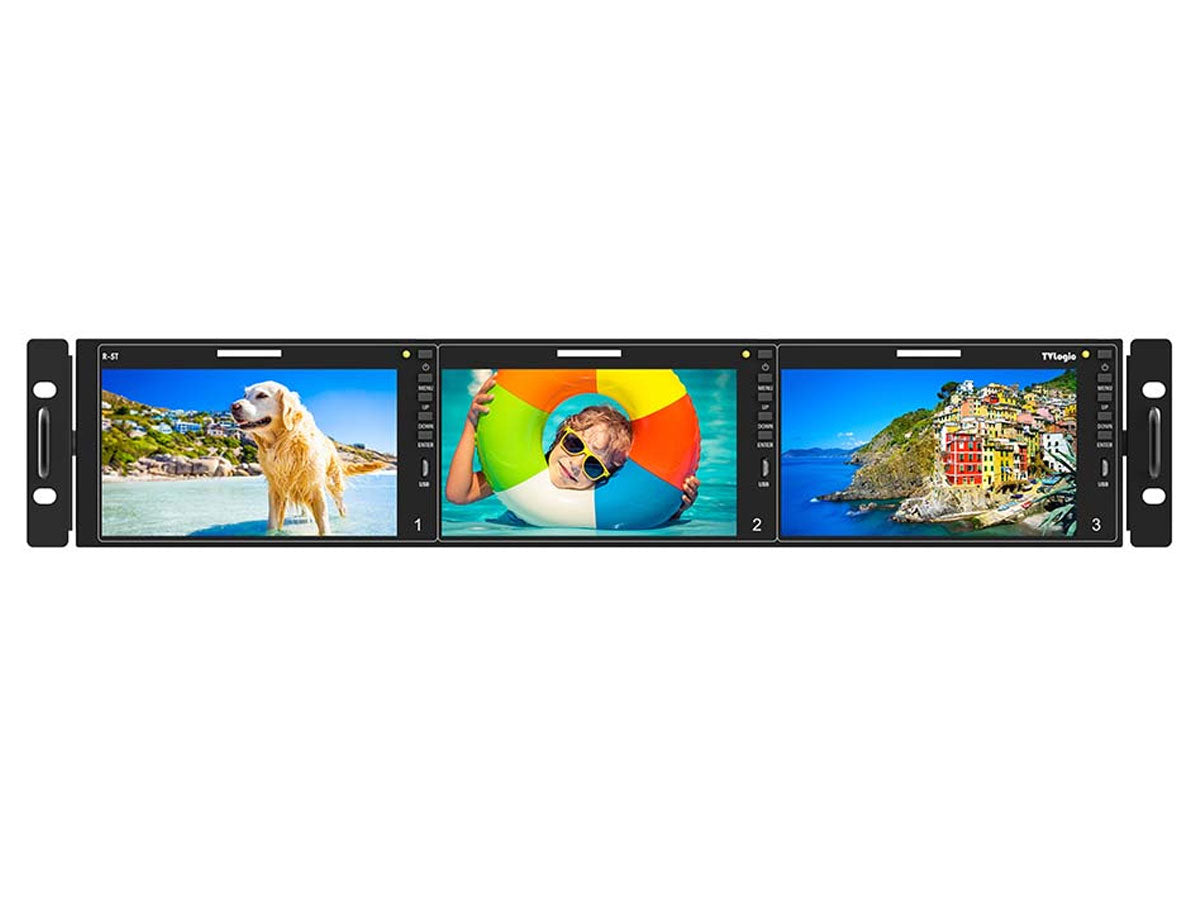

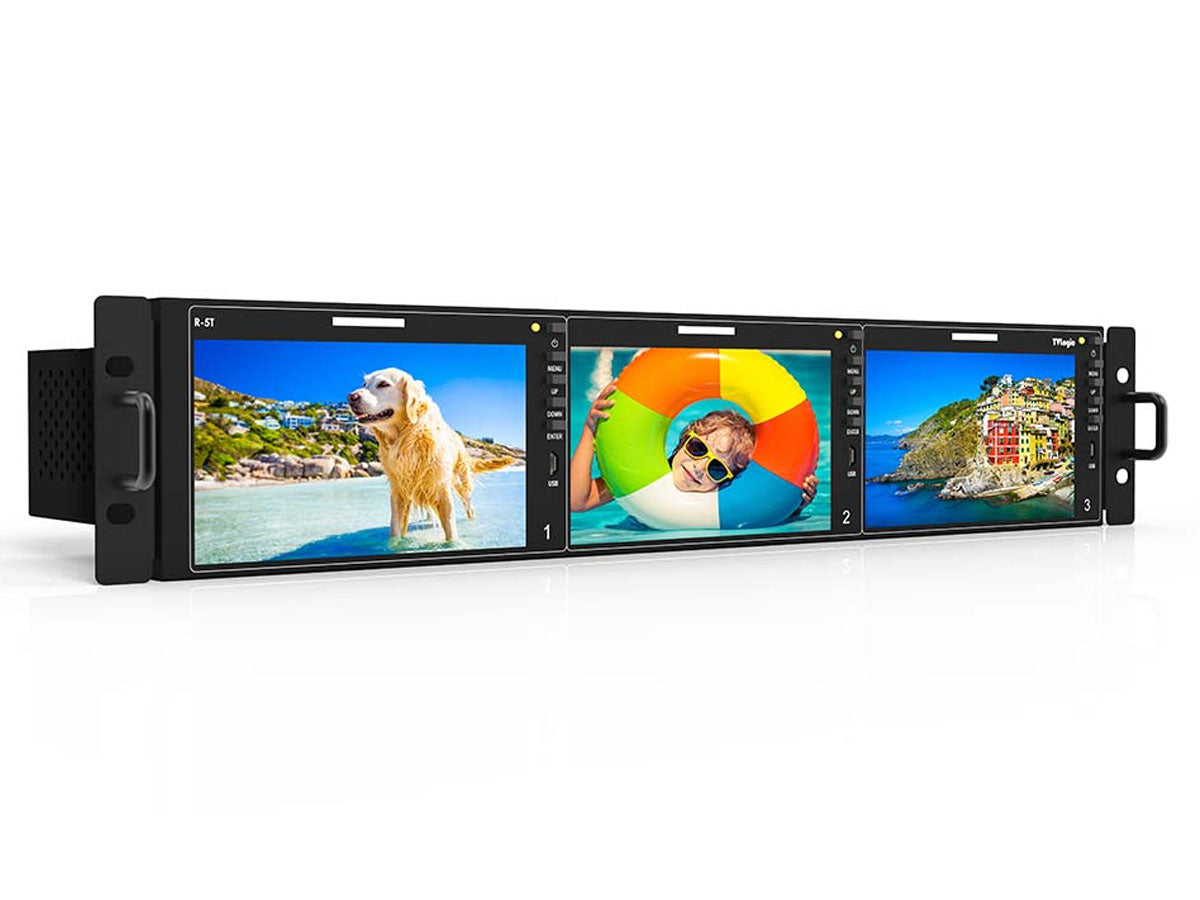

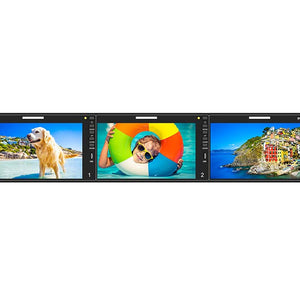

The R-5T is a brand-new rack monitor(3 x 5.5”) with advanced design and performance. It offers an outstanding picture quality with a Full HD resolution of 1920 x 1080 and high luminance up to 500cd/㎡. The R-5T supports the video formats up to 12G-SDI and HDMI 2.0 and the professional features such as Scan, Audio Level Meter, Time Code Display, Waveform/Vectorscope and UMD.
- 3x 5.5'' LCD FHD Screen
- 1920 x 1080 resolution (16:9)
- 12G / 6G / 3G-SDI Input/Output
- 1:1 Pixel Mapping Modes for SD/HD
- Waveform / Vectorscope
- Audio Level Meter
- H/V Delay
- Key Lock
- Luma (Y'') Zone Check
- Time Code Display
- UMD
- User Aspect
- Various Scan Modes
| Size | 5.5" |
| Resolution | 1920 X 1080 (16:9) |
| Pixel Pitch | 0.0213(W) x 0.0639(H) |
| Colour Depth | 16.7M |
| Viewing Angle | 160°(H) / 160°(V) |
| Luminance | 500cd/m2 |
| Contrast Ratio | 1,000:1 |
| Display Area | 122.7(H) × 69.0(V) mm |
| Dimensions | 480.2 x 87.5 x 118.7 mm |
| Weight | 2.86kg |

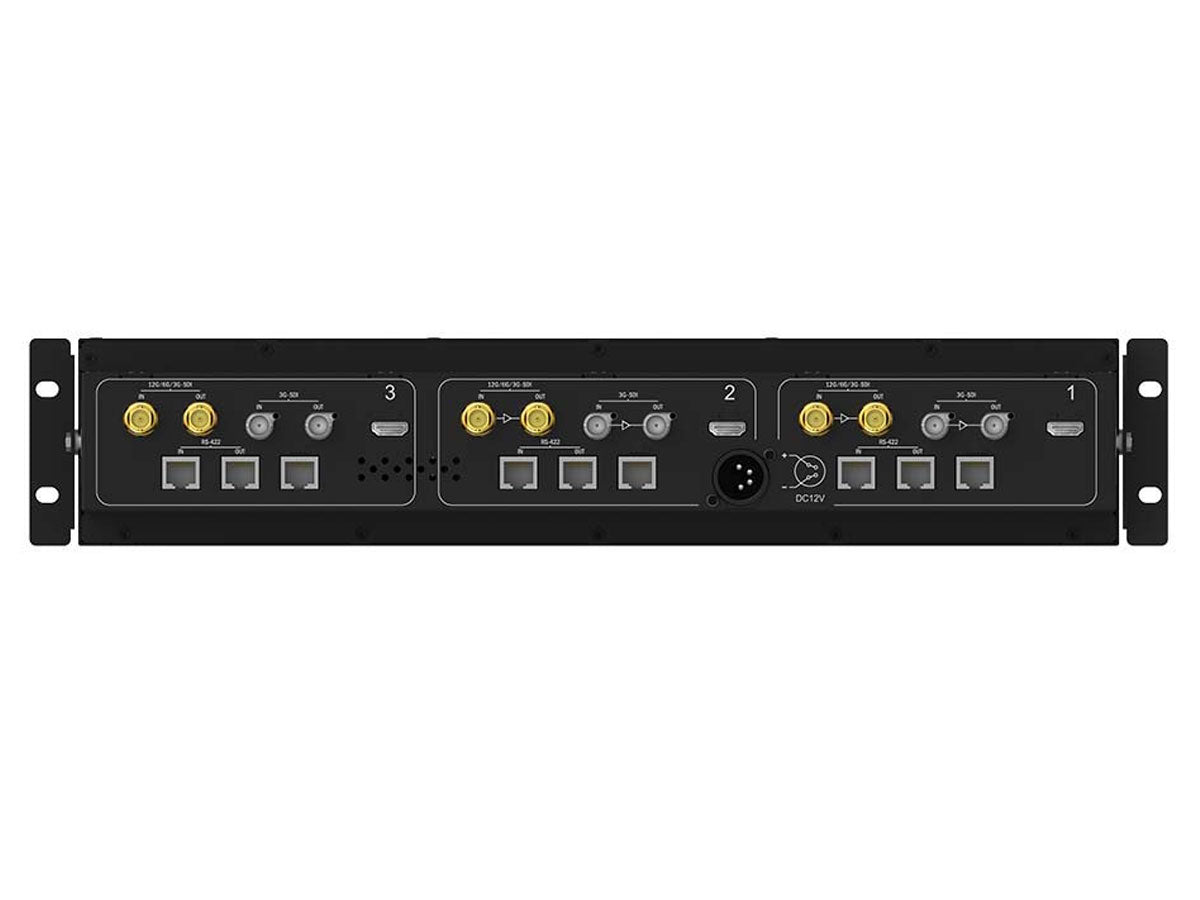

| Input | 2 X BNC - SDI Input(12G-SDI x 1 / 3G-SDI x 1), 1 X HDMI - HDMI Input |
| Output | 2 X BNC - 1 x 12G-SDI / 1 x 3G-/SDI OUTPUT |
| Audio Out | - |
| FPGA Functions | 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom |
| Calibration | TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
| Other Functions | REMOTE - GPI (RJ45), USB - Firmware update by USB memory stick, Ethernet - Ethernet Control support |
- 3x Video Monitors
- 1x Rack Mountable Kit
- 1x DC Power Adapter
