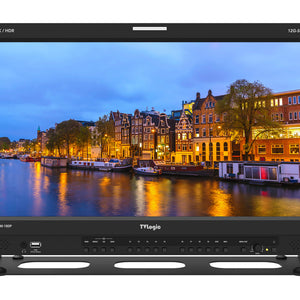

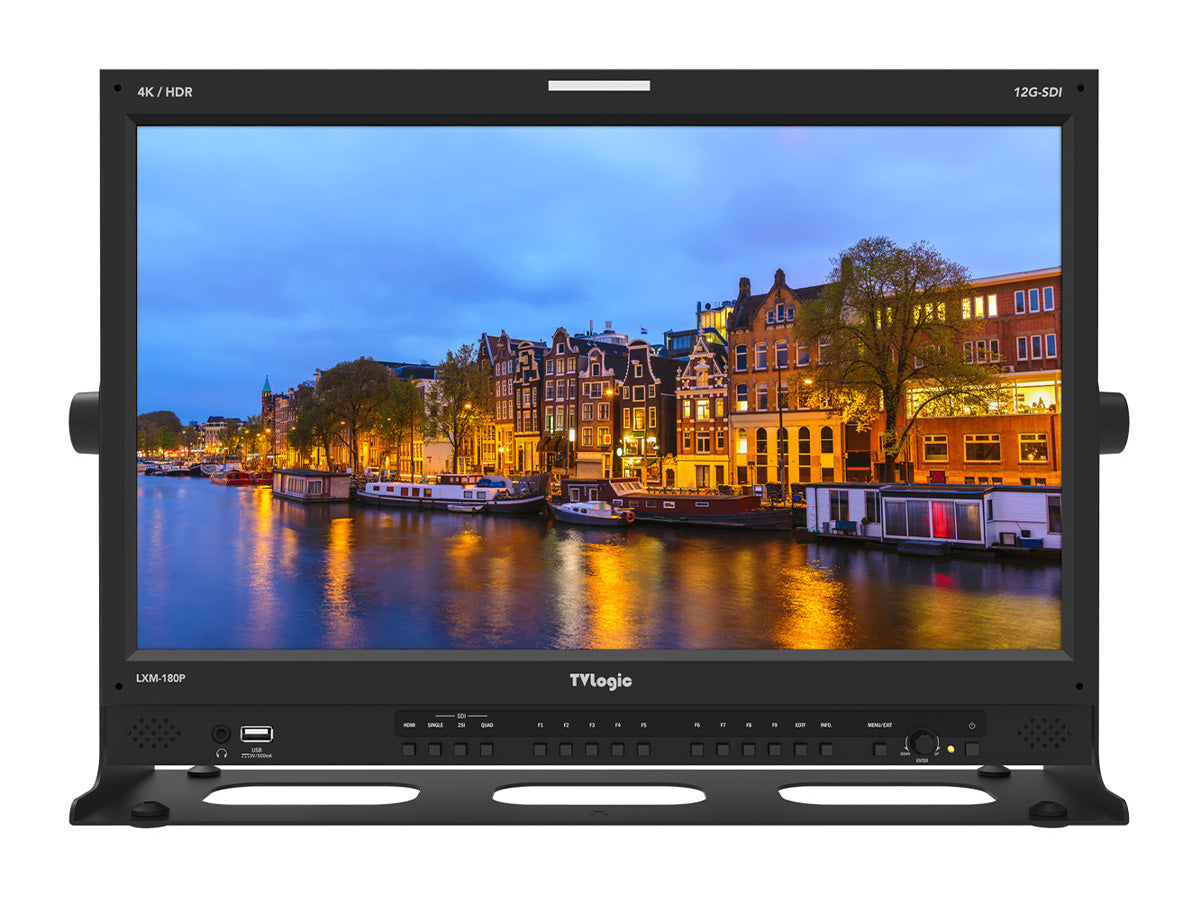

TV Logic LXM-180P Multi View Monitor

TV Logic LXM-180P Multi View Monitor

SKU: TVL-LXM-180P
£6,195.00 GBP ex VAT
£7,434.00 GBP inc VAT
ex VAT £6,195.00 GBP ex VAT
£7,434.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

The LXM series monitors are TVLogic's latest generation of 4K/UHD broadcast monitors incorporating innovative hardware and software solutions.

The LXM series incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0 Input, SFP Input(x2) & Processed Monitor Output.

These new 4K/UHD monitors feature wide viewing angle IPS panel, various HDR EOTFs, Wide color gamut, 10-bit color depth, and Accurate Color Reproduction by 3D LUT support. Additionally, the LXM series monitors offer the high-performance functions such as HDR-SDR Comparison, 12G-SDI Quad-View and Dual-View display, custom 3D LUT import, SFP to SDI conversion output, Processed monitor output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and more. The LXM monitors are ideal for 4K live production, versatile monitoring in the studio and field location, edit suite and post-production.

  • Peak Luminance 1000nits*
  • HDR (PQ, HLG)
  • HDR vs SDR Comparison Display
  • Wide Color Gamut (DCI-P3 Coverage up to 98%)
  • 1.073 Billion Colors**
  • Display Resolution 3840 x 2160**
  • Custom 3D LUT Import by USB Flash Drive
  • Built-in Camera LUTs
  • 4 x 12G-SDI Input and Loopout
  • 3G-SDI Quad-Link Input and Loopout
  • Reference Input
  • Dual SFP Input
  • HDMI 2.0 Input
  • Quad-View Display
  • Picture-by-Picture Display
  • Processed Monitor Output
  • Various Conversion Output
  • Quad Link 12G Input to Single Link 12G Output
  • Auto Detection of SDI Payload ID
  • Waveform (YCbCr, RGB)
  • Vector Scope
  • Histogram
  • Pixel Color Info Display
  • Closed Caption (CC-608, CC-708, OP47)
  • Fast Mode
  • 16Ch Audio Level Meter
  • Audio Phase Meter
  • Audio Loudness(LKFS) Meter
  • Image Capture & Overlay
  • Video Range
  • Blue/Mono Only
  • H/V Delay
  • H Flip, V Flip
  • Timecode Display
  • Marker
  • Luma(Y') Zone Setting
  • Focus Assist
  • Range Error
  • Scan
  • User Aspect
  • Dynamic UMD
  • Tally
  • Firmware Update by Ethernet
  • Remote Control via Ethernet, RS-422, GPI

* LXM-180P, LXM-240P, LXM-320P: 1000nits
** LXM-180U : 16.7M colors, 1920 x 1080

LCD PANEL
Size: 18.4"
Resolution: 3840 x 2160 (16:9)
Pixel Pitch: 0.035(H) x 0.106(V) mm
Colour Depth: 1.07b colours (10 bit)
Viewing Angle: 170°(H) / 170°(V)
Luminance of White: 1000cd/m2
Contrast Ratio: 1000:1
Display Area: 408.96(H) x 230.04(V) mm

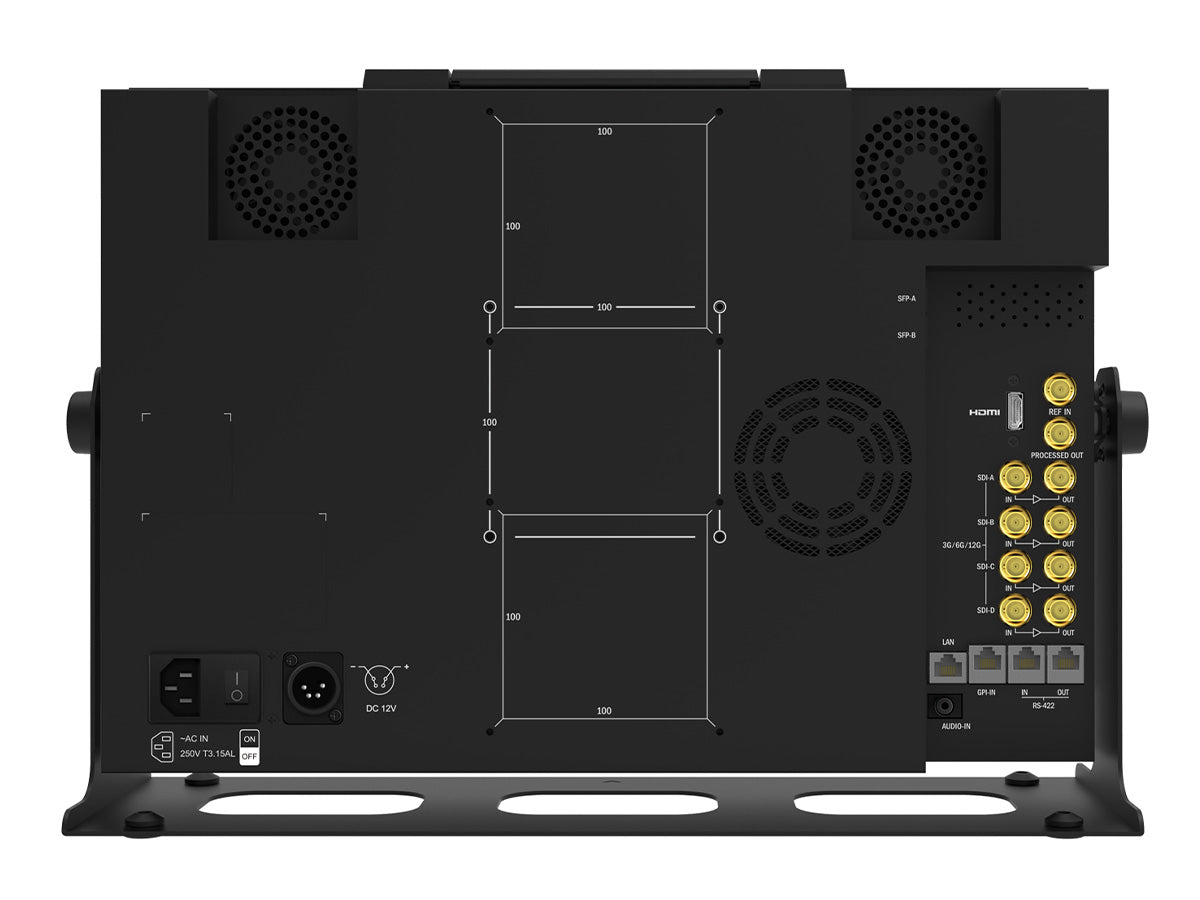

INPUT
4x BNC: 12G/6G/3G/HD/SD-SDI A/B/C/D Channel Output
1x HDMI: HDMI 2.0 Input
2x SFP: SFO A/B Channel Input
1x BNC: Reference Input
OUTPUT
4x BNC: 12G/6G/3G/HD/SD-SDI A/B/C/D Channel Output
1x BNC: Processed Output
INPUT SIGNAL
12G-SDI: 12Gb/s
6G-SDI: 6Gb/s
3G-SDI: 2.970Gb/s
HD-SDI: 1.485Gb/s
HDMI 2.0: 480p/720p/1080p/2160p
SDI INPUT SIGNAL FORMATS
SMPTE ST 2082: 3840 x 2160 (60/50/30/23/24p)
SMPTE ST 2081: 3840 x 2160 (30/25/24p)
SMPTE ST 2036-1: 3840 x 2160 (23.98/24/25/29.97/30/50/59.94/60p)
SMPTE-425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (50/59.94/50)
SMPTE-274M 1080i (50/59.94/50)
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M: 720p (60/59.94/50)
SMPTE-260M: 1035i (60/59.94)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
SMPTE ST 2048-2: 2048 x 1080 (23.98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p)
REMOTE CONTROL & UPDATE
1x LAN: RJ-45 Input (Ethernet), Firmware Update & Remote Control
1x REMOTE: RJ-45 Input, GPI Control
2x RS-422: RJ-45 Input & Output, Monitor Control by TVLogic Protocol or TSL Protocol
1x USB: USB A type, Firmware Update
GENERAL
Audio Out: Internal Speakers (Stereo 3W x 3W) / Analog Stereo (Phone Jack)
Power: AC100-240V (50-60Hz)
DC 12V/24V
Operating Temperature: 0°C to 35°C (32°F to 95°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Dimensions: Main Body: 442.5 x 309 x 91.8mm / 17.42 x 12.16 x 3.61"
With Stand: 489.3 x 332.8 x 137.5mm / 19.26 x 13.1 x 5.41"
Shipping Box: 550.460 x 300mm / 21.65 x 18.11 x 11.81"
Weight: 7.1kg / 15.65lbs
