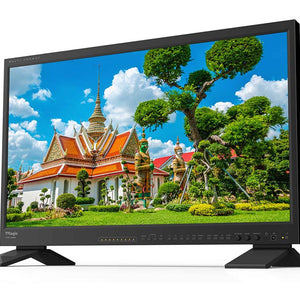

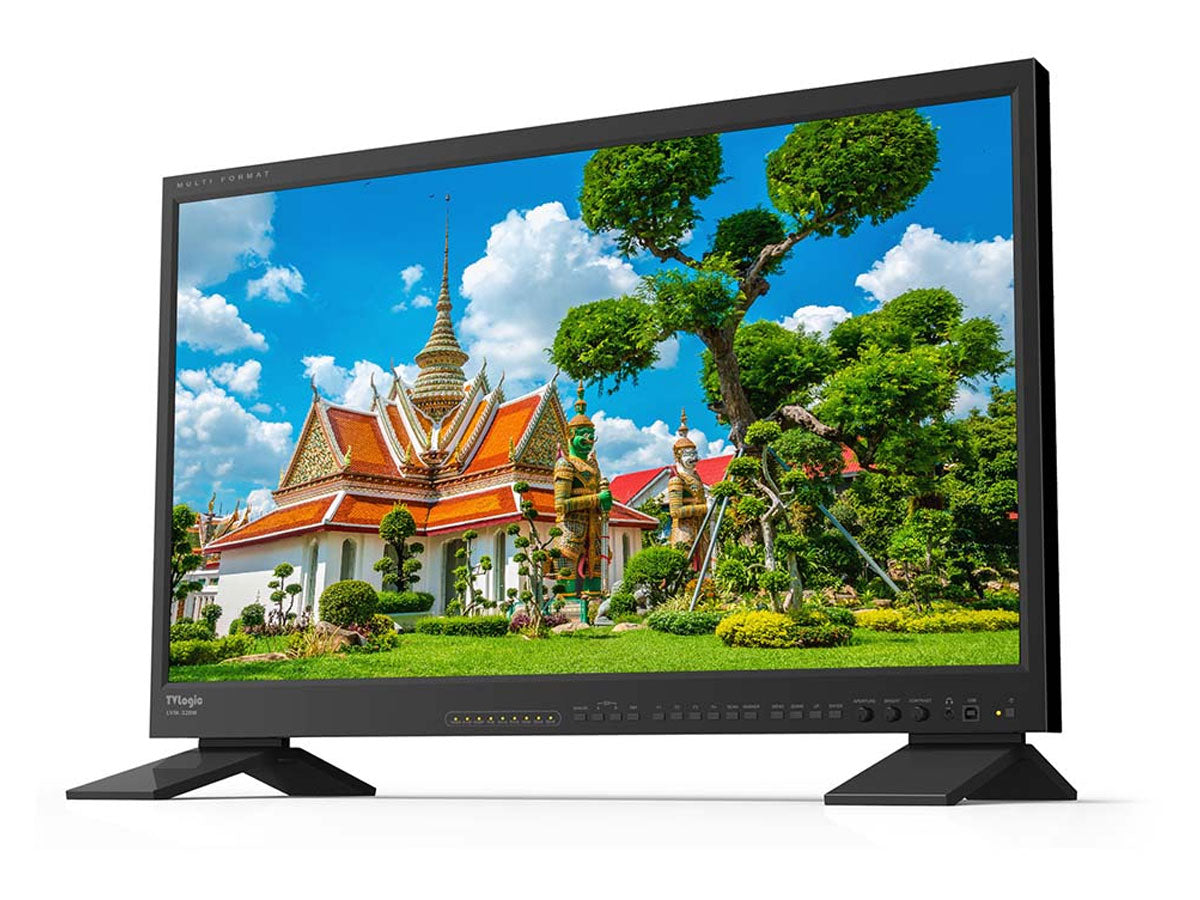

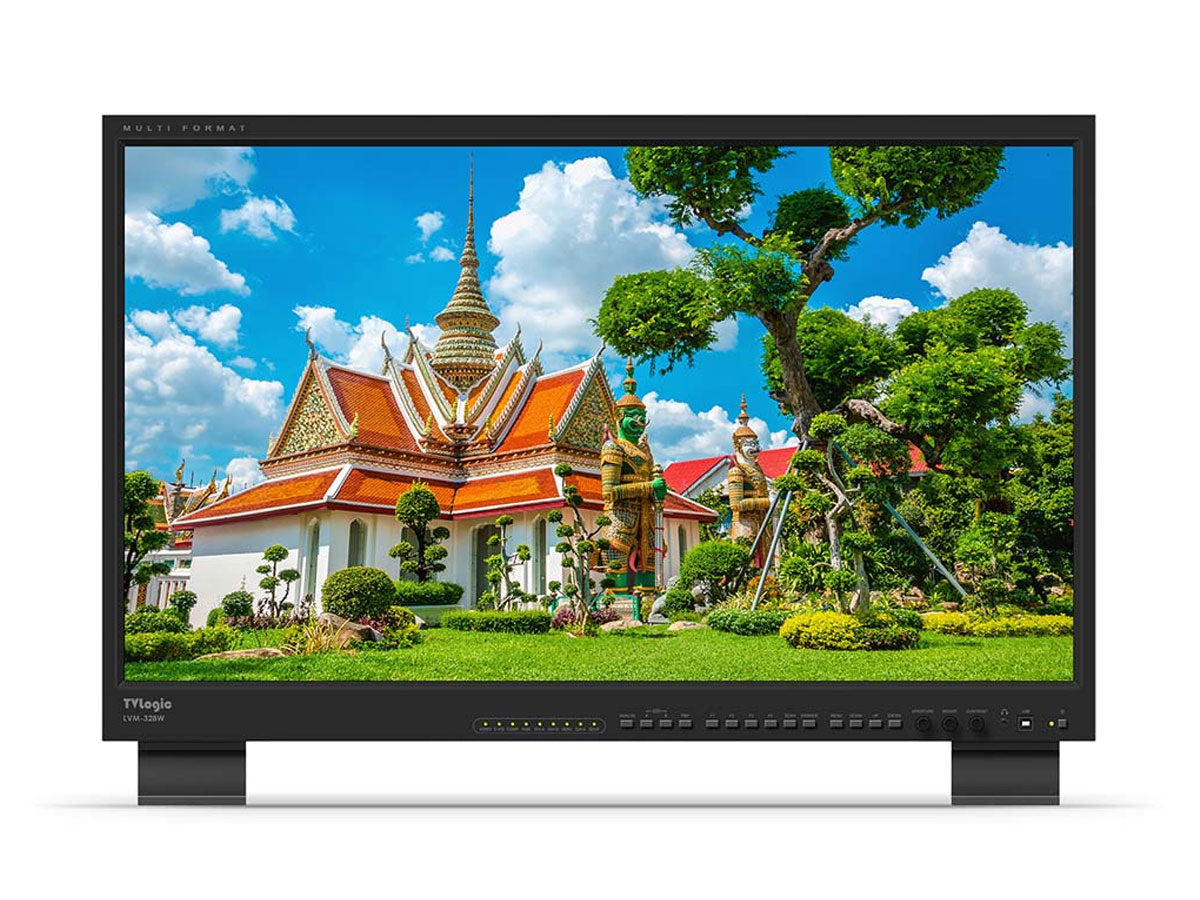

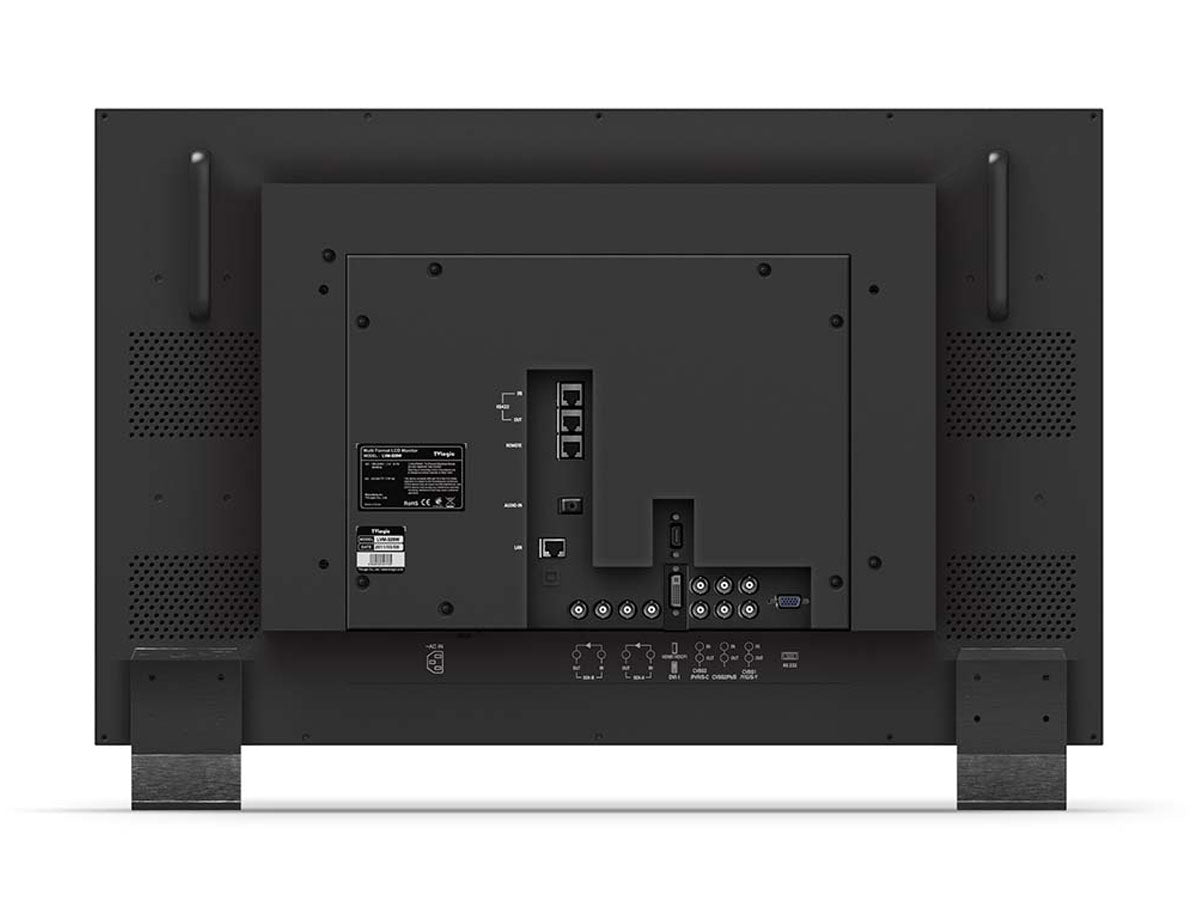

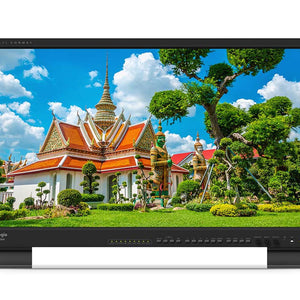

TV Logic LVM-328W 32" High Quality FHD LCD Monitor
TV Logic LVM-328W 32" High Quality FHD LCD Monitor
SKU:
TVL-LVM-328W
Regular price
£4,241.99 GBP ex VAT
£5,090.39 GBP inc VAT
£5,090.39 GBP inc VAT
Regular price
ex VAT
Sale price
£4,241.99 GBP ex VAT
£5,090.39 GBP inc VAT
Unit price
per
£5,090.39 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The LVM-328W is a 32-inch 1920x1080 resolution broadcast QC-grade monitor. A new white LED backlight unit improves power consumption, colour purity, and contrast ratio. The LVM-328W has a new, thinner bezel width to improve edge-to-edge viewing and features 12-bit video processing and a multiple image-measurement tools.
- 32” 1920 x 1080 Native HD Resolution
- 1:1 Pixel Mapping Modes for SD/HD/FHD
- Blue Only
- H/V Delay
- Key lock
- Marker
- Mono
- Range Error
- Time Code Display
- UMD
- User Aspect
- Waveform/Vectorscope
- CC-608 LINE 21/ANC, CC-708, CC-KOR
- OP42
- OP47
- TVLogic Colour Calibration Utility
| Size | 31.5" |
| Resolution | 1920 X 1080 (16 : 9) |
| Pixe Pitch | 0.364mm |
| Colour Depth | 16.7M |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 350cd/m2 |
| Contrast Ratio | 1200 : 1 |
| Display Area | 698(H) x 392(V) mm |
| Input | 3 X BNC Analog Input (Component) |
| 2 X BNC 3G-SDI A/B Channel Input | |
| 1 X HDMI HDMI Input | |
| 1 X DVI DVI Input | |
| Output: | 3 X BNC Analog Output (Component) |
| 4 X BNC 3G-SDI Output | |
| Audio: | |
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Stereo) |
| FPGA Functions | 1:1 Pixel Mapping Modes for SD/HD |
| Blue Only | |
| H/V Delay | |
| Key Lock | |
| Marker | |
| Mono | |
| Range Error | |
| Time Code Display | |
| UMD | |
| User Aspect | |
| Waveform/Vector | |
| Closed Caption | CC-608 ANC |
| CC-608 LINE 21 | |
| CC-708 | |
| CC-KOR | |
| OP42 | |
| OP47 | |
| Calibration | TVLogic Colour Calibration Utility |
| Other Functions | REMOTE GPI (RJ45) |
| REMOTE TVLogic’s specification | |
| USB Firmware update by USB cable | |
| Ethernet Ethernet Control support | |
| Conversion SDI-to-SDI, |
- 1x 32inch HD Monitor
