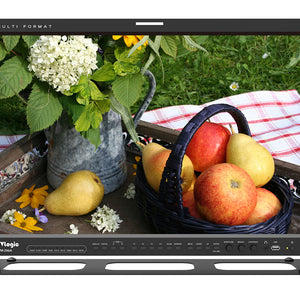

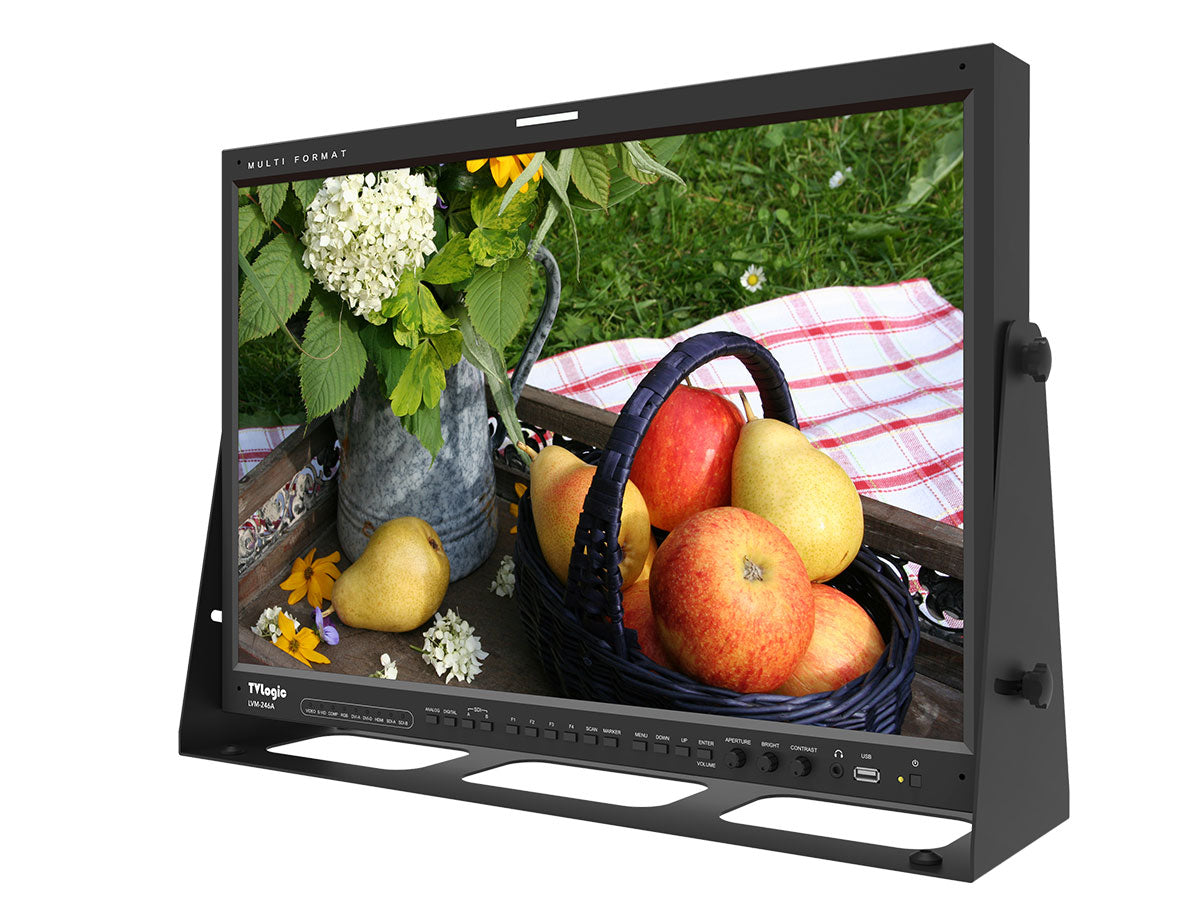

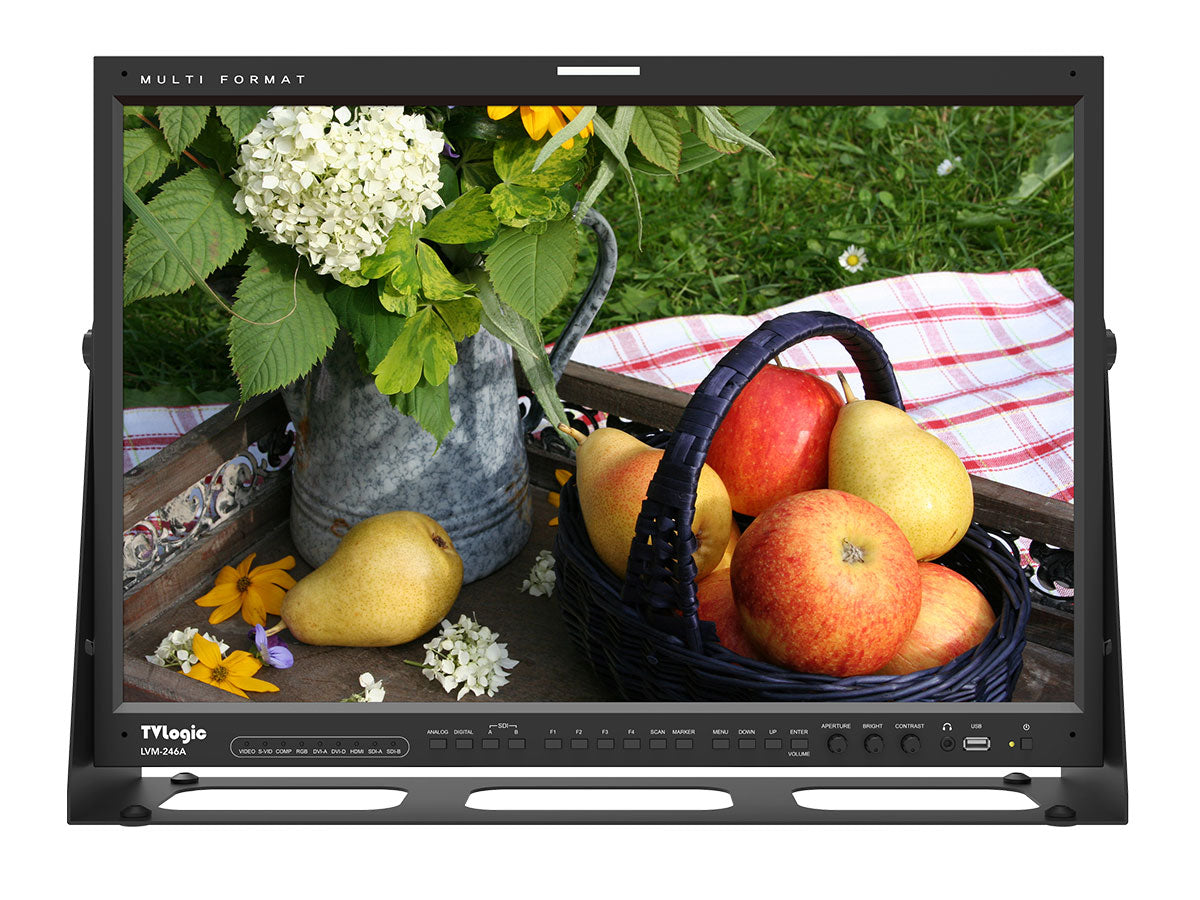

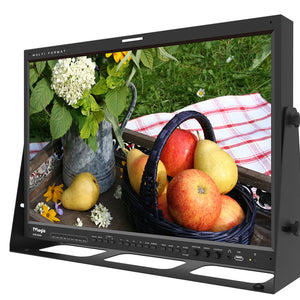

TV Logic LVM-246A 24" 3G-SDI Professional LCD Monitor

TV Logic LVM-246A 24" 3G-SDI Professional LCD Monitor

SKU: TVL-LVM-246A
£2,768.78 GBP ex VAT
£3,322.54 GBP inc VAT
ex VAT £2,768.78 GBP ex VAT
£3,322.54 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
24in 1920 x 1200 LCD Monitor, 600nit, 2X 3G/HD/SD-SDI inputs with one loop out, HDMI In, Component/Composite In/Out, 10-bit Video Processing, Waveform/Vector Scope, Closed Caption : CEA-608/708 (SDI), Focus Assist, Embedded Audio Level Meter (16ch)
  • 24in Full HD Resolution (1920 x 1200)
  • Waveform / Vectorscope
  • 16ch Audio Level Meter
  • Focus Assist
  • Marker
  • Timecode Display
  • Dynamic UMD
  • Blue/Mono Only
  • H/V Delay
  • Luma(Y’) Zone Check
  • Range Error
  • User Aspect
  • Various Scan Modes
  • Closed Caption (CC-608, CC-708)
  • Tally
Size 24in
Resolution 1920 x 1200 (16:10)
Pixel Pitch 0.27(H) x 0.27(V) mm
Colour Depth 16.7M Colours (True 8bit)
Viewing Angle 178°(H) / 178°(V)
Luminance of white 600nits
Contrast Ratio 1000:1
Display Area 518.4(H) x 324.0(V) mm

Input

2 x BNC SDI A/B Channel Input
1 x HDMI HDMI Input
3 x BNC Analog Video Input
1 x DVI-I DVI-IN

Output

1 x BNC SDI Channel (Active Through Out)
3 x BNC Analog Video Output

Input Signal

3G-SDI 2.970Gb/s
HD-SDI 1.485Gb/s
SD-SDI 270 Mb/s
HDMI 1080p(60)/1080i(60)/720p(60)/480p(60)/576p(50)
Analog Composite
DVI VESA/IBM Modes

SDI Input Signal Formats

SMPTE-425M-A/B 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF
  /29.97sF/25sF/24sF/23.98sF)
  1080i (60/59.94/50)
SMPTE-274M 1080i (60/59.94/50)
  1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M 720p (60/59.94/50)
SMPTE-260M 1035i (60/59.94)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)
Audio In Embedded Audio / Analog Stereo (Phone Jack)
Audio Out Internal Speaker (Mixed Mono)
  / Analog Stereo (Phone Jack)
Power DC 12~24V / AC100~240V(50~60Hz)
Power Consumption (Approx.) 115W

Dimensions

Main Body 552.5 x 389 x 95.9 (mm) / 21.75 x 15.31 x 3.77 (inch)
With Stand 586.1 x 416.8 x 150 (mm) / 23.07 x 16.4 x 5.9 (inch)
Weight 10.8kg / 23.8lbs
  • 1x Monitor
  • 1x  AC Power Cord
  • 1x Table Stand
