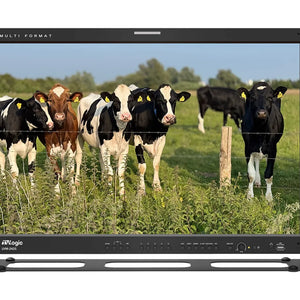

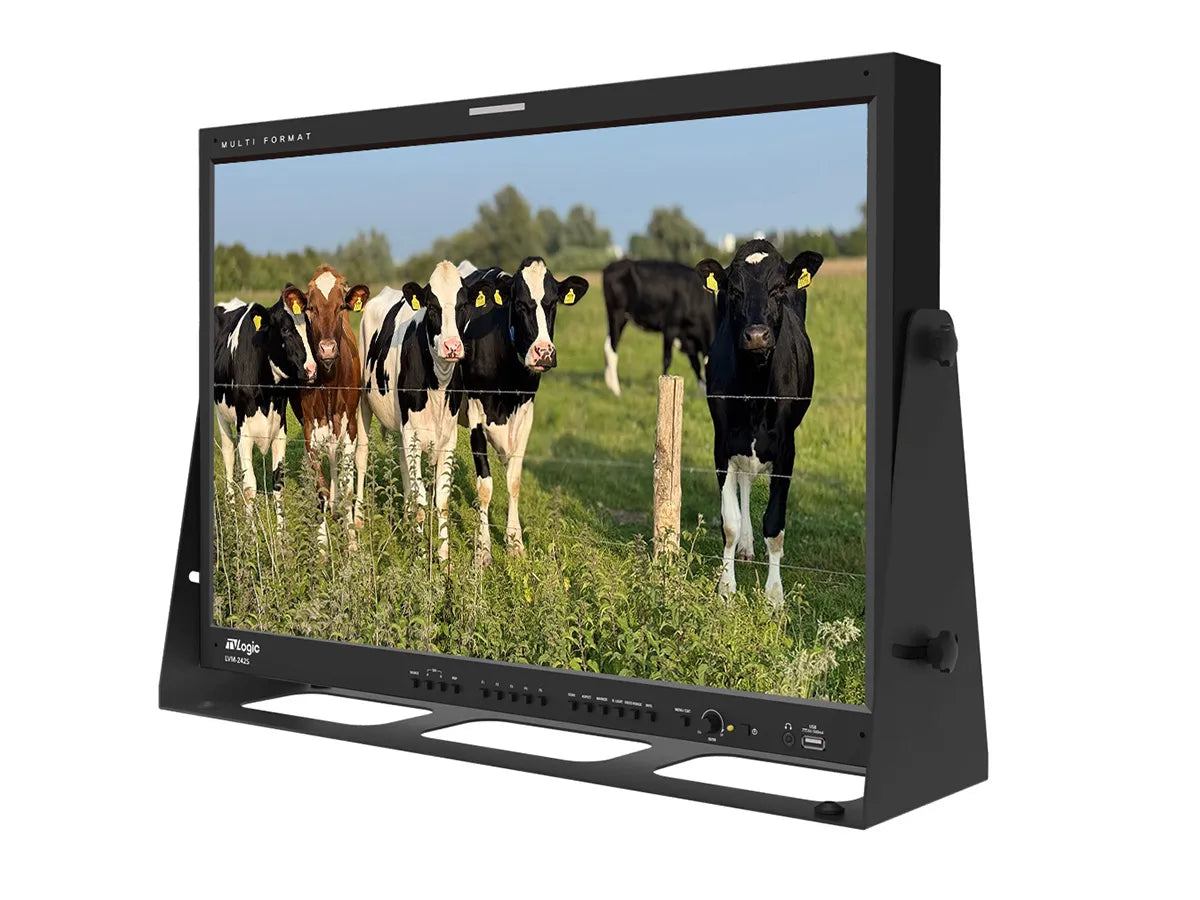

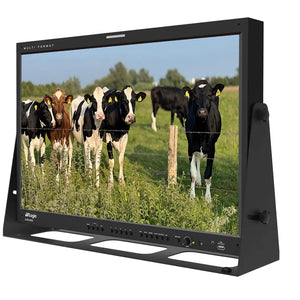

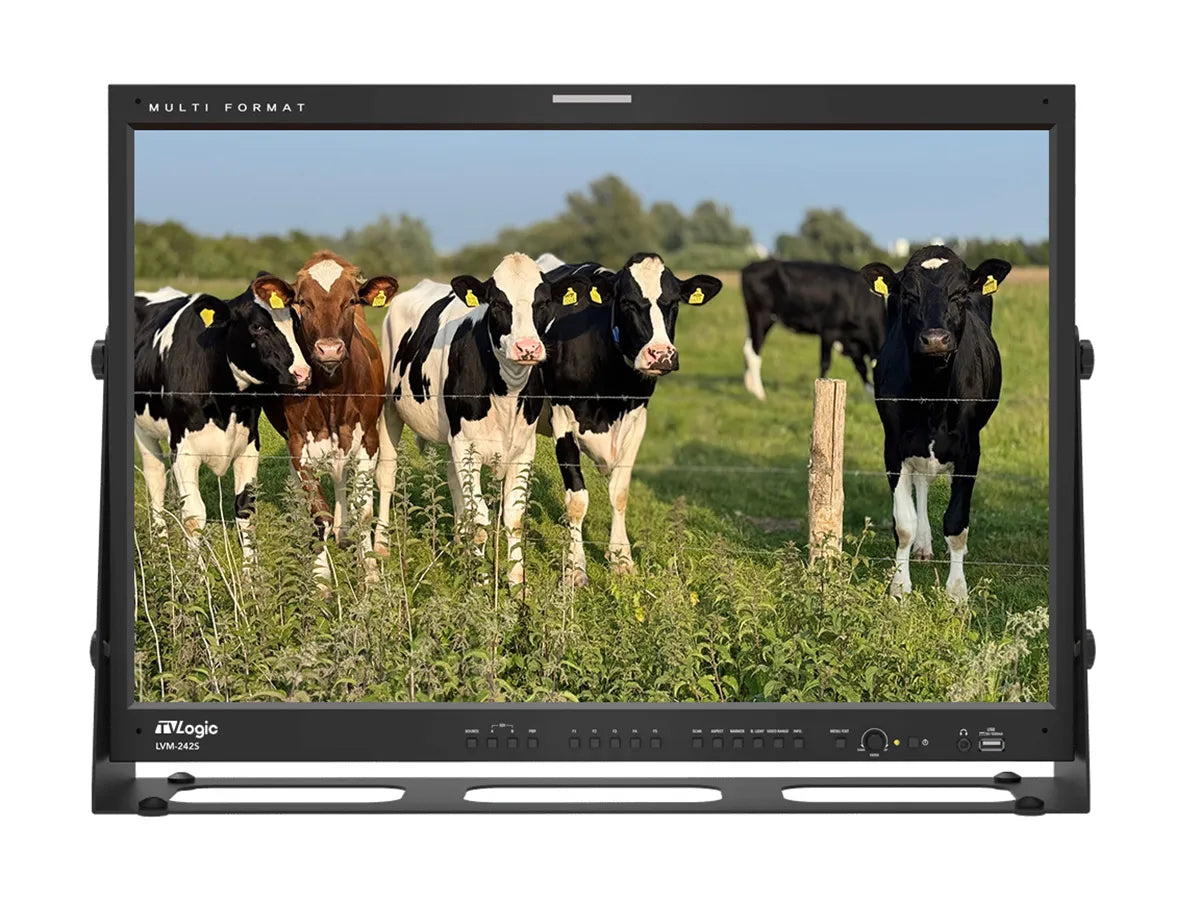

TV Logic LVM-242S 24" HDR Emulation LCD Monitor

TV Logic LVM-242S 24" HDR Emulation LCD Monitor

SKU: TVL-LVM-242S
£4,241.99 GBP ex VAT
£5,090.39 GBP inc VAT
ex VAT £4,241.99 GBP ex VAT
£5,090.39 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
24in 1920x1200 (true 10 bit) QC-Grade Super-IPS LCD Monitor, 2X 3G/HD/SD-SDI inputs and outputs, DVI-I In, HDMI In, Component/Composite In/Out, 12-bit Video Processing (superior scaling/deinterlacing), Picture by Picture, Built-in 3D LUT with Rec. 709, EBU
  • 24in Full HD Resolution (1920 x 1200)
  • 1.07B Colours (10 bit)
  • 98% Coverage of DCI-P3 Color Gamut
  • HDR Emulation (PQ, HLG, SLOG3)
  • PBP (Picture by Picture)
  • Custom 3D LUT Import by USB Flash Drive
  • Various Built-in Camera LUTs
  • 16ch Audio Level Meter
  • Ember + Protocol support
  • Fast Mode
  • Waveform / Vectorscope (Advanced)
  • Timecode Display
  • Dual Markers (Main & Sub)
  • Dynamic UMD
  • Focus Assist
  • User Aspect
  • Various Scan Modes
  • Closed Caption (CC-608/708, CC-KOR, OP47)
Size 24in
Resolution 1920 x 1200 (16:10)
Pixel Pitch 0.270 x 0.270 mm
Colour Depth 1.07B Colors
Luminance of white 400nits
Contrast Ratio 1800:1
Active Area 518.4(H) x 324.0(V) mm

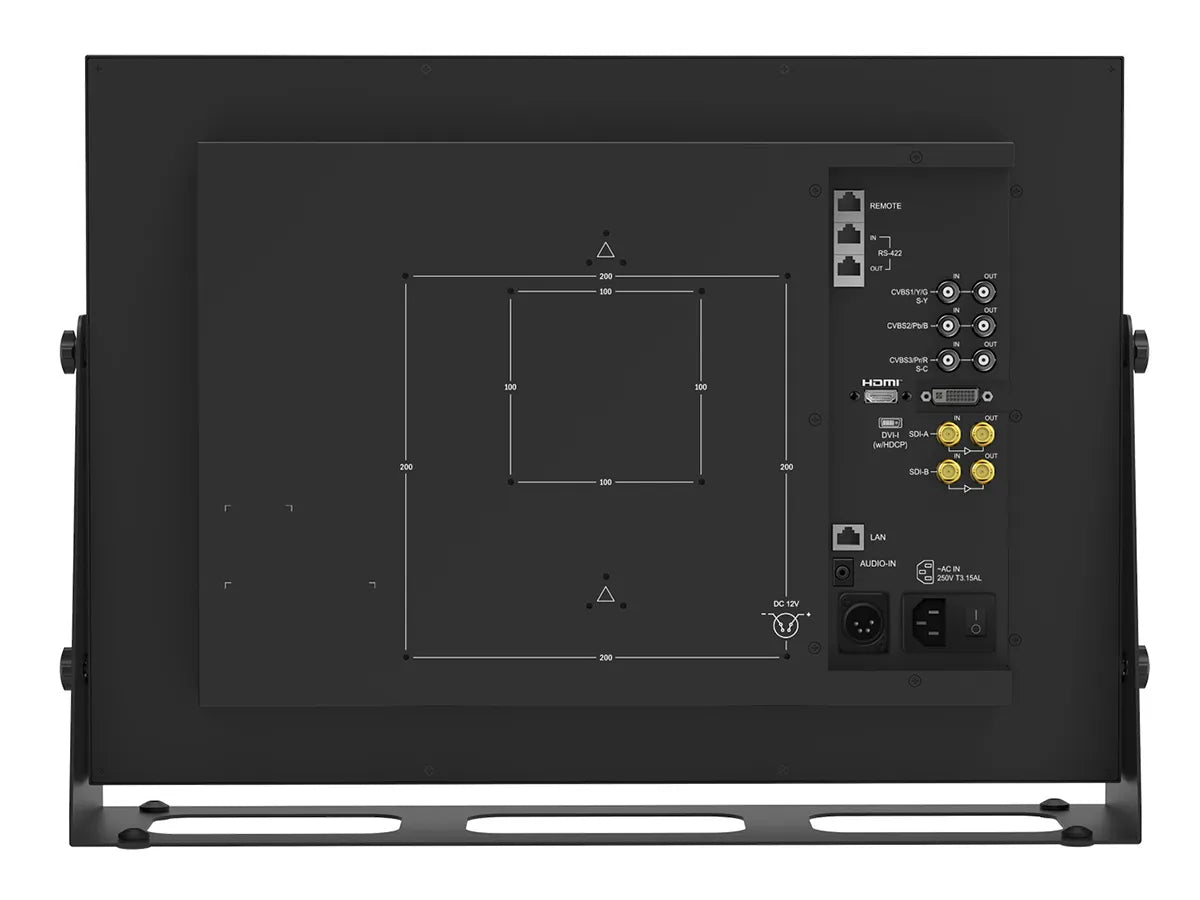

Input

2 x BNC SDI A/B Channel Input
1 x HDMI HDMI Input
3 x BNC Analog Input
1 x DVI-I DVI-I(RGB) IN

Output

2 x BNC SDI A/B Channel (Loop Through Out)
3 x BNC Analog Output

Input Signal

3G-SDI 2.970Gb/s
HD-SDI 1.485Gb/s
SD-SDI 270 Mb/s
Analog CVBS / Component / RGB
DVI-D (PC mode) 640x480/800x600/1024x768/1366x768
DVI-D (HDMI mode) 1080i(60) / 720i(60) / 480i(60) / 480p(50)
  HDMI 480i(60) / 480p(60) / 576i(50) / 576p

Analog Input Spec

CVBS 1.0Vpp (with Sync)
Component 1.0Vpp (Y with Sync), 0.7Vpp (Pb,Pr)
RGB 1.0Vpp (G With Sync), 0.7Vpp (B,R)

SDI Input Signal Formats

SMPTE-425M-A/B 1080p (60/59.94/50/30/29.97/25/24/23.98
  /30sF/29.97sF/25sF/24sF/23.98sF)
  1080i (60/59.94/50)
SMPTE-274M 1080i (60/59.94/50), 1080p (30/29.97/25
  /24/24sF/23.98/23.98sF)
SMPTE-296M 720p(60/59.94/50)
SMPTE-260M 1035i (60/59.94)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)
2K Format 2048 x 1080(23.98p/psf, 24p/psf)
Audio In Embedded Audio / Analog Stereo (Phone Jack)
Audio Out Analog Stereo (Phone Jack),
  Internal Speaker(Stereo)
Power DC 12~24V / AC100~240V(50~60Hz)
Power Consumption (Approx.) TBD

Dimensions

Main Body 552.5 x 389 x 98.5 (mm) / 21.75 x 15.31 x 3.87 (inch)
With Stand 586.13 x 416.8 x 150 (mm) / 23.07 x 16.4 x 5.9 (inch)
Weight 10.68kg / 23.54lbs
  • 1x Monitor
  • 1x AC Power Cord
  • 1x Table Stand
