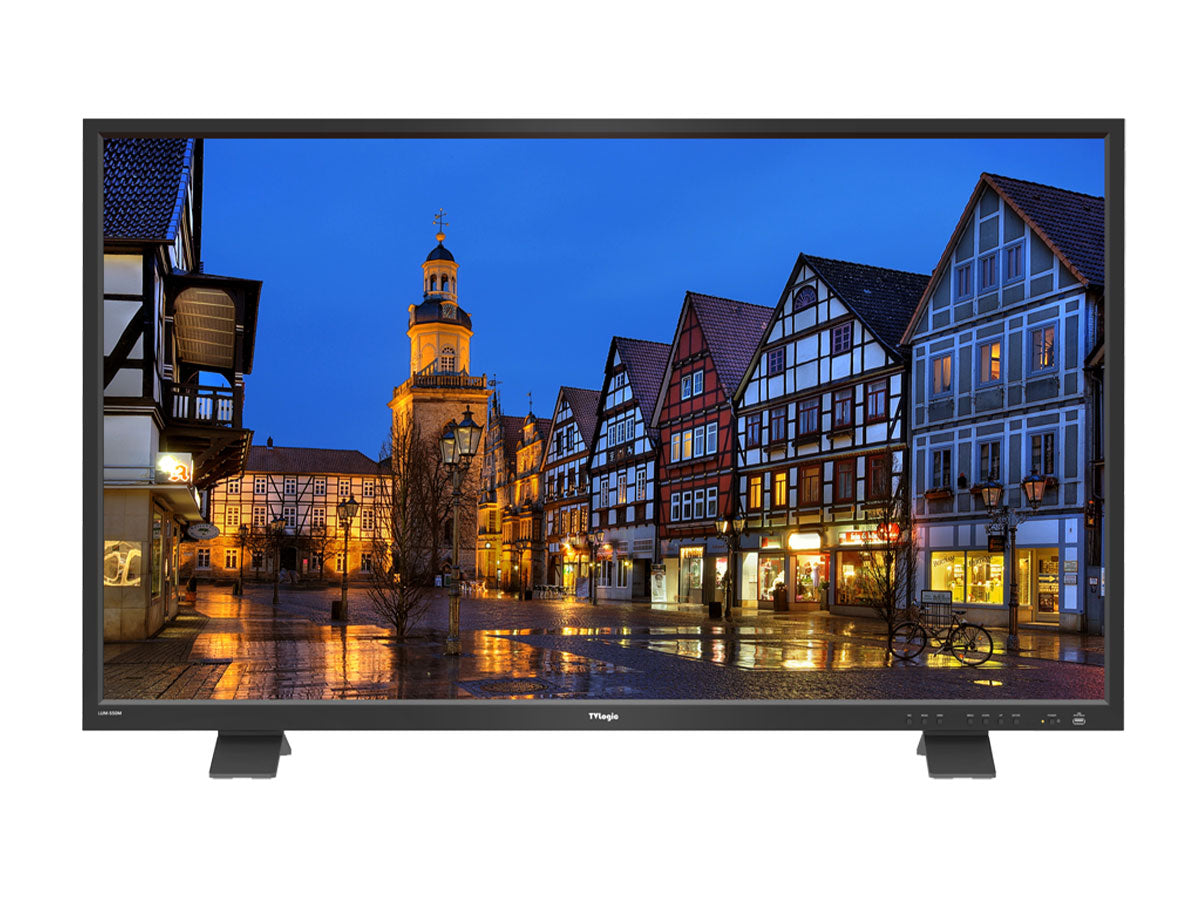

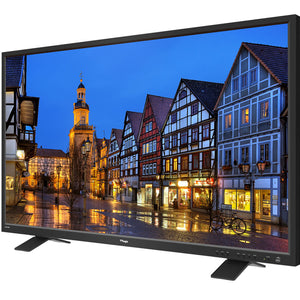

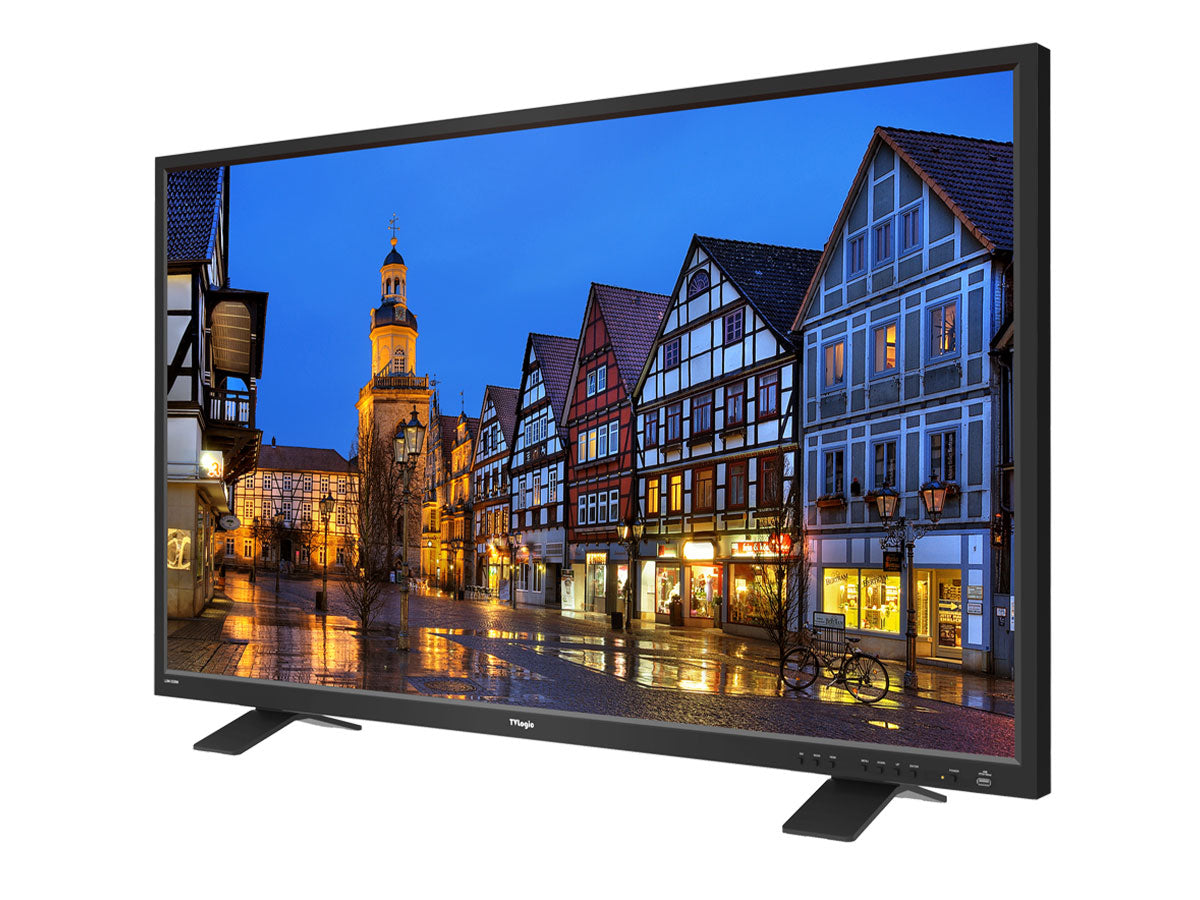

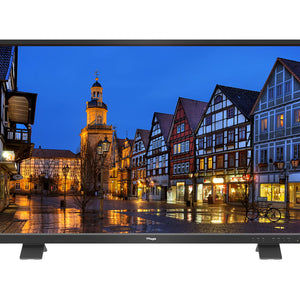

TV Logic LUM-550M3 55" 4K/UHD HDR Emulation Monitor
TV Logic LUM-550M3 55" 4K/UHD HDR Emulation Monitor
SKU:
TVL-LUM-550M3
Regular price
£5,801.86 GBP ex VAT
£6,962.23 GBP inc VAT
£6,962.23 GBP inc VAT
Regular price
ex VAT
Sale price
£5,801.86 GBP ex VAT
£6,962.23 GBP inc VAT
Unit price
per
£6,962.23 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The new LUM-550M3 has a true UHD 3840x2160 resolution and 10bit driver for showing various color gamuts. The LUM-550M3 supports 12G/6G/3G-SDI and HDMI for 4K signal.
- 54.6in True UHD Resolution (3840×2160)
- Max Luminance 700nits
- Waveform / Vectorscope
- Audio Level Meter
- Marker
- Timecode Display
- Closed Caption (CC-608, CC-708)
- HDR Emulation (PQ, HLG, S-Log3)
- 12G-SDI Single Link 4K/UHD
- 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
- IR Remote Control
- Ultra Slim Bezel
| DISPLAY | |
| Size: | 54.6" |
| Resolution: | 3840 x 2160 (16:9) |
| Pixel Pitch: | 0.315mm (H) x 0.315mm (V) |
| Colour Depth: | 1.07b colours |
| Viewing Angle: | 178° (H) / 178° (V) |
| Luminance of White: | 700nits |
| Contrast Ratio: | 1100:1 |
| Display Area: | 1209.6mm (H) x 680.4mm (V) |
| INPUT | |
| 4x BNC: | 12G/6G/3G/HD/SD-SDI Ch1/Ch2, 3G/HD/SD-SDI Ch3/Ch4 |
| 1x HDMI: | HDMI (2.0) Input |
| OUTPUT | |
| 4x BNC: | 12G/3G/HD/SD-SDI Output 1Ch By Pass Mode: SDI A/B Channel (Active Through Out) 12G Mode: 3840 x 2160 60p/59.94p/50p |
| INPUT SIGNAL | |
| 12G-SDI: | 12Gb/s |
| 6G-SDI: | 6Gb/s |
| 3G-SDI: | 2.970Gb/s |
| HD-SDI: | 1.485Gb/s |
| HDMI: | 720p/1080/2160p |
| SDI INPUT SIGNAL FORMATS | |
| SMPTE ST-2048-1: | 4096 x 2160 (50~60p) |
| SMPTE ST-2082-20 Mode1: | 3840 x 2160 60p/59.94p/50p (12G-SDI x 1Ch) |
| SMPTE ST-2081-10 Mode1: | 3840 x 2160 30p/29.97p/25p/24p/23.98p (6G-SDI x 1Ch) |
| SMPTE ST-425-5: | 3840 x 2160 60p/59.94p/50p (3G-SDI x 4Ch) |
| SMPTE ST-274: | 3840 x 2160 30p/29.97p/25p/24p/23.98p (HD-SDI x 4Ch) |
| SMPTE ST-425: | 1920 x 1080 60p/59.94p/50p (3G-SDI LEVEL A) |
| 1920 x 1080 60i/59.94i/50i/30p/29.97p/25p/24p/23.98p (3G-SDI LEVEL B) | |
| 1280 x 780 60p/59.94p/50p (3G-SDI LEVEL B) | |
| SMPTE-274M: | 1920 x 1080 60i/59.94i/50i/30p/29.97p/25p/24p/23.98p |
| SMPTE-296M: | 1280 x 720 60p/59.94p/50p |
| SMPTE-259M: | 720 x 487 59.94i, 720 x 576 50i |
| HDMI INPUT SIGNAL FORMATS | |
| V2.0: | 3840 x 2160 60p/59.94p/50p (RGBYCbCr 4::4:4 8bpp Mode) |
| V1.4: | 3840 x 2160 30p/29.97p/25p/24p/23.98p (RGB/YCbCr 4:4:4 8bpp Mode) |
| V1.2: | 1920 x 1080 60i/59.94i/50i/30p/29.97p/25p/24p/23.98p (RGB/YCbCr 4:4:4 8bpp Mode) 60p/59.94p/50p |
| 1280 x 720 60p/59.94p/50p (RGB/YCbCr 4:4:4 8bpp Mode) | |
| AUDIO | |
| Audio In: | SDI Embedded Audio (Group, Channel Selectable) |
| Audio Out: | Analog Stereo (3.5mm Phone Jack) |
| POWER | |
| Power: | AC100~240V (50~60Hz) |
| Power Consumption: | 150 Watts |
| PHYSICAL | |
| Dimensions: | 1262 x 746 x 81.4mm / 49.68 x 29.37 x 3.2" |
| Weight: | 35.8kg / 78.92lbs |
- 1x Monitor
- 1x AC Power Cable
- 1x IR Remote
- 1x Table Stand
