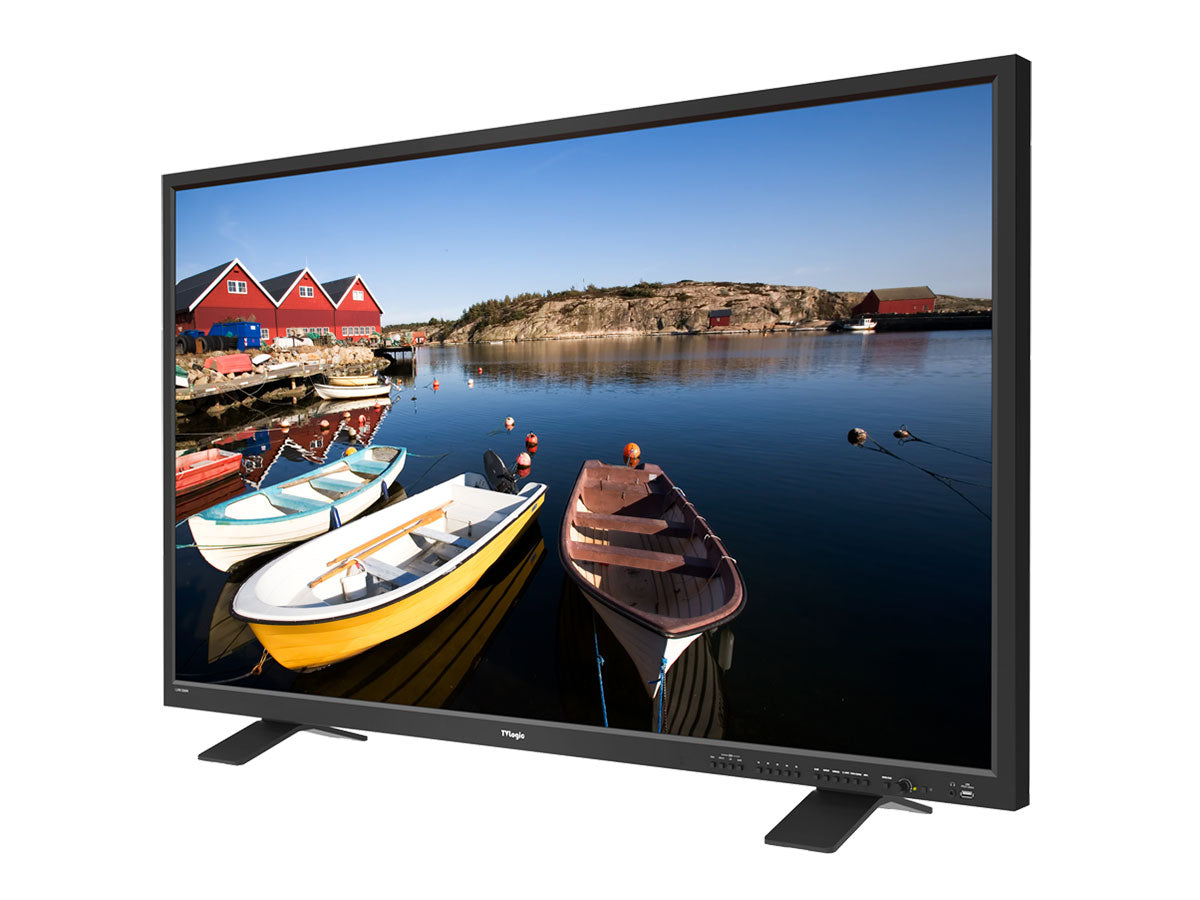

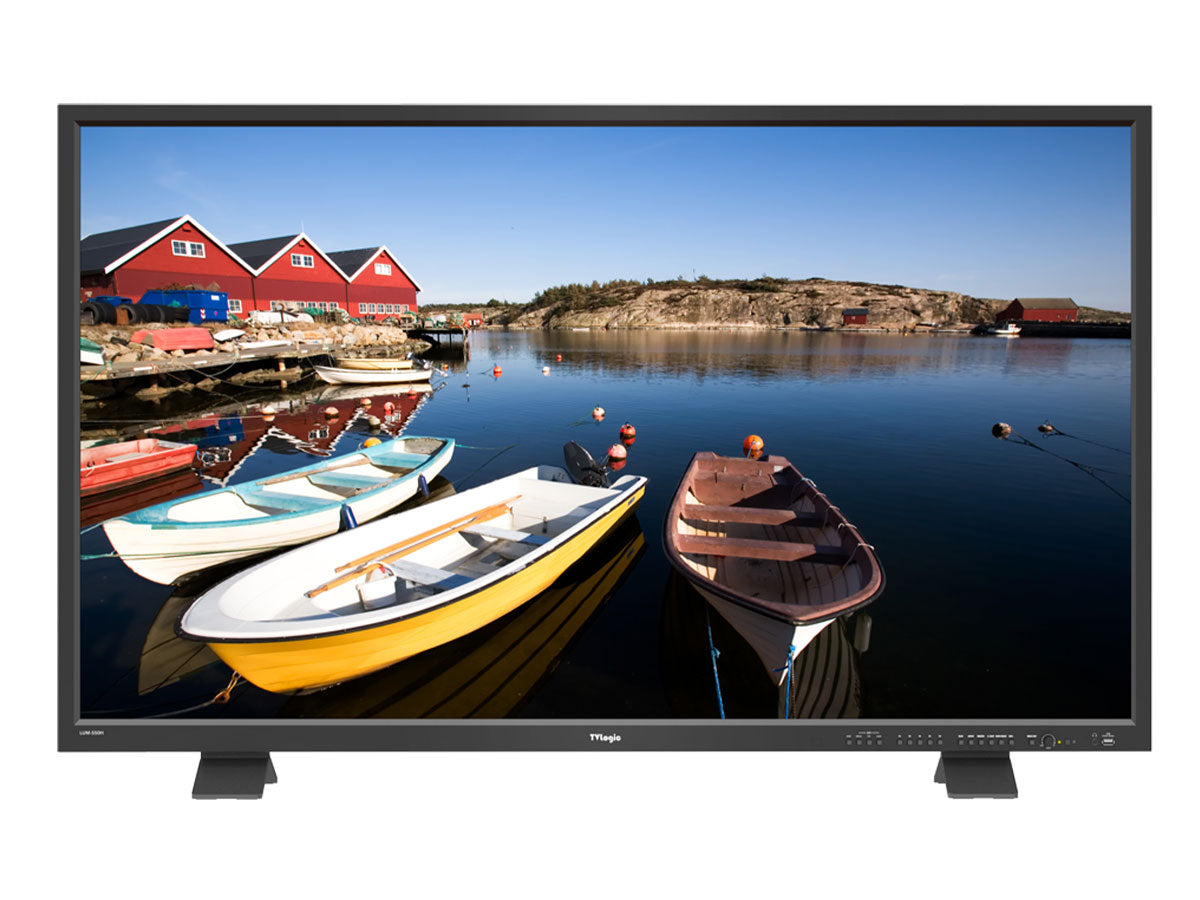

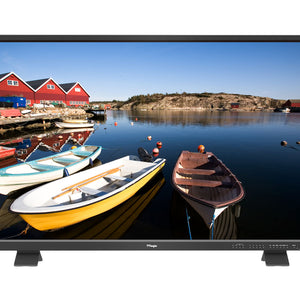

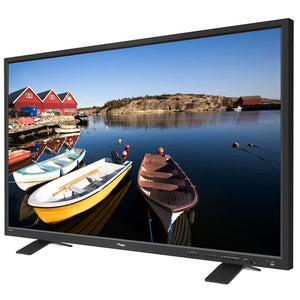

TV Logic LUM-550H 55" 4K/UHD HDR Emulation High Brightness Monitor
TV Logic LUM-550H 55" 4K/UHD HDR Emulation High Brightness Monitor
SKU:
TVL-LUM-550H
Regular price
£7,275.08 GBP ex VAT
£8,730.10 GBP inc VAT
£8,730.10 GBP inc VAT
Regular price
ex VAT
Sale price
£7,275.08 GBP ex VAT
£8,730.10 GBP inc VAT
Unit price
per
£8,730.10 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The new LUM-550H has a true UHD 3840x2160 resolution and 700 nits brightness for excellent color reproduction and high level visualization. The LUM-550H charms everyone with upper class picture quality.
- 55in True UHD Resolution (3840×2160)
- Peak Luminance 700nits
- HDR Emulation (PQ, HLG)
- 12G-SDI Single Link 4K/UHD
- 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
- Waveform / Vectorscope
- 16ch Audio Level Meter
- Marker
- Timecode Display
- UMD Display
- Blue/Mono Only
- Various Aspect
- Range Error
- Closed Caption (CC-608, CC-708)
- Tally
- IR Remote Control & Ultra Slim Bezel
| DISPLAY | |
| Size: | 54.6" |
| Resolution: | 3840 x 2160 (16:9) |
| Pixel Pitch: | 0.315mm (H) x 0.315mm (V) |
| Colour Depth: | 1.07b colours |
| Viewing Angle: | 178° (H) / 178° (V) |
| Luminance of White: | 700nits |
| Contrast Ratio: | 1100:1 |
| Display Area: | 1209.6mm (H) x 680.4mm (V) |
| INPUT | |
| 4x BNC: | 12G / 6G / 3G / HD-SDI A/B, 3G/HD-SDI C/D Channel Input |
| 1x HDMI: | HDMI (2.0) Input |
| OUTPUT | |
| 4x BNC: | 12G / 6G / 3G HD-SDI A/B, 3G/HD-SDI C/D Channel (Active Through Out) |
| INPUT SIGNAL | |
| 12G-SDI: | 12Gb/s |
| 6G-SDI: | 6Gb/s |
| 3G-SDI: | 2.970Gb/s |
| HD-SDI: | 1.485Gb/s |
| HDMI: | 2160p(60)/1080p(60)/1080i(60)/720p(60)/480p(60)/576p(50) |
| SDI INPUT SIGNAL FORMATS | |
| SMPTE ST-2082: | 3840 x 2160 (60/50/30/25/24p) |
| SMPTE ST-2081: | 3840 x 2160 (30/25/24p) |
| SMPTE ST 2036-1:2009: | 3840 x 2160 (23.98/24/25/29.97/30/50/59.94/60p) |
| SMPTE-425M-A/B: | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
| 1080i (60/59.94/50) | |
| SMPTE ST-274: | 1080i (60/59.94/50) |
| 1080p (30/29.97/25/24/24sF/23.98/23.98sF) | |
| SMPTE-296M: | 720p (60/59.94/50) |
| SMPTE-260M: | 1035i (60/59.94) |
| SMPTE-125M: | 480i (59.94) |
| ITU-R BT.656: | 576i (50) |
| SMPTE ST-2048-2:2011: | 2048 x 1080 (23.98/24/25/29.97/30p/psf,47.95/48/50/59.94/60p) |
| AUDIO | |
| Audio In: | SDI Embedded Audio (Group, Channel Selectable) |
| Audio Out: | Analog Stereo (3.5mm Phone Jack) |
| POWER | |
| Power: | AC100~240V (50~60Hz) |
| Power Consumption: | TBD |
| PHYSICAL | |
| Dimensions: | 1262 x 746 x 81.4mm / 49.68 x 29.37 x 3.2" |
| Weight: | 35.8kg / 78.92lbs |
- 1x Monitor
- 1x AC Power Cable
- 1x IR Remote
- 1x Table Stand
