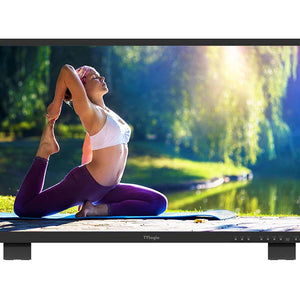

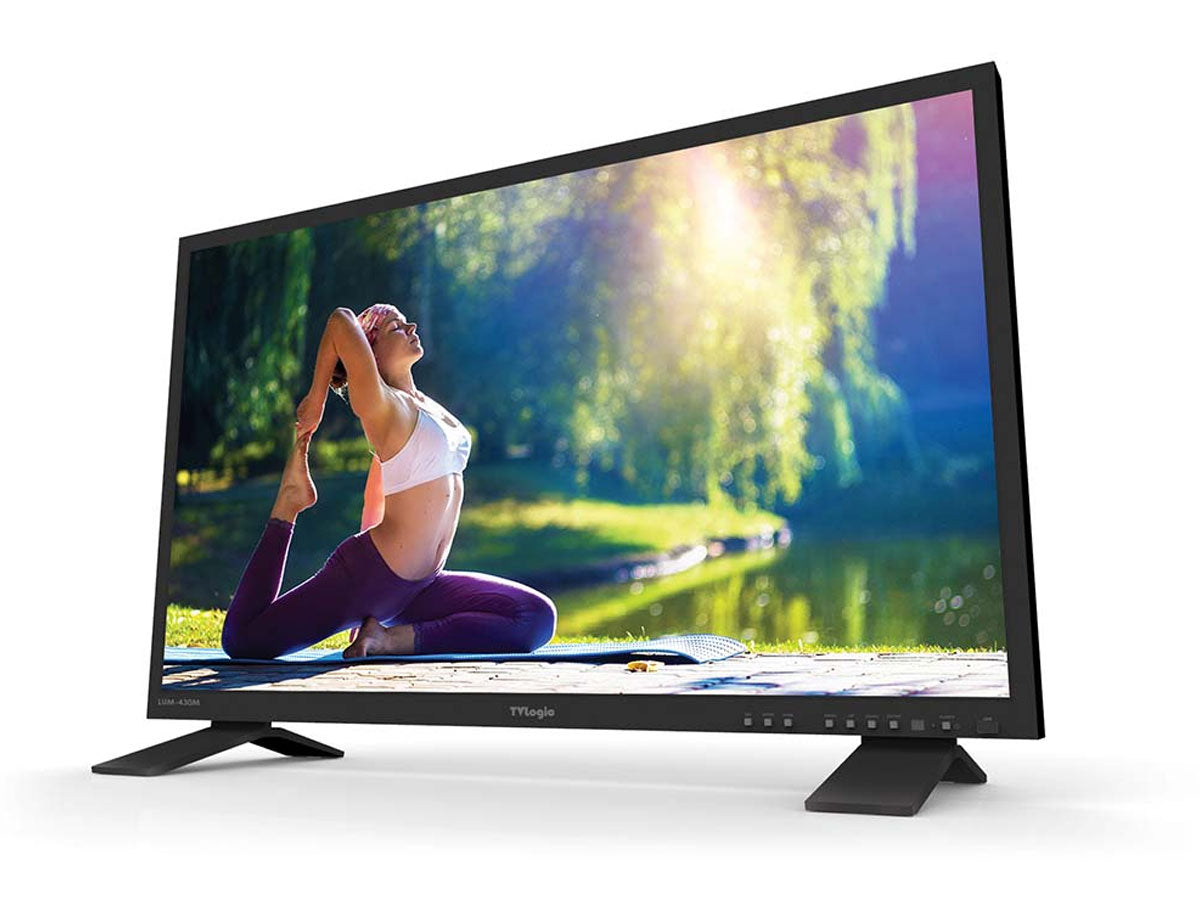

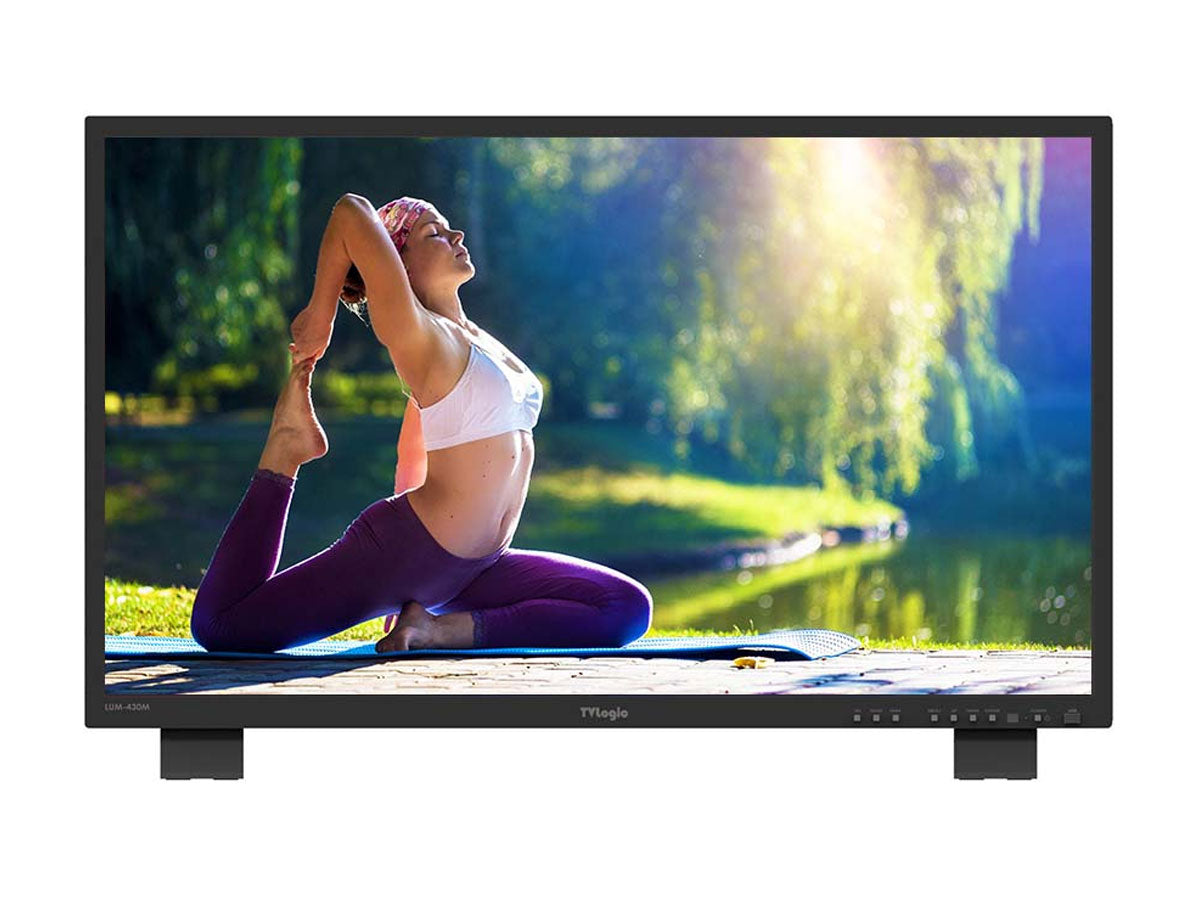

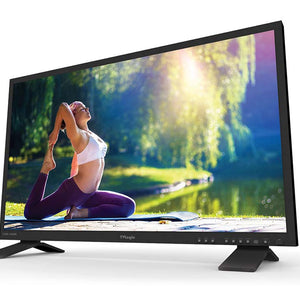

TV Logic LUM-430M2 43" 4K/UHD HDR Emulation Monitor
TV Logic LUM-430M2 43" 4K/UHD HDR Emulation Monitor
SKU:
TVL-LUM-430M2
Regular price
£5,047.93 GBP ex VAT
£6,057.52 GBP inc VAT
£6,057.52 GBP inc VAT
Regular price
ex VAT
Sale price
£5,047.93 GBP ex VAT
£6,057.52 GBP inc VAT
Unit price
per
£6,057.52 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The LUM-430M2 is a 4K/UHD monitor with a 42.5" True UHD(3840x2160) resolution and True 10-bit drivers. It supports 12G/6G/3G-SDI inputs and an HDMI 2.0 input. It supports various professional functions including Waveform/Vectorscope, CC-608, 708 and HDR function with HDR EOTFs of PQ, HLG and SLog3.
- 10bit colour depth that supports 1.07 billion colours
- Native UHD resolution (3840 x 2160)
- Colour gamuts covers up to DCI-P3
- Supports various professional features
- HDR EOTFs of PQ, HLG and SLog3
- Supports 12G/6G/3G/HD-SDI and HDMI 2.0 interfaces
| DISPLAY | |
| Size: | 42.5" |
| Resolution: | 3840 x 2160 (16:9) |
| Pixel Pitch: | 0.2451mm |
| Colour Depth: | 1.07B |
| Viewing Angle: | 178°(H) / 178°(V) |
| Luminance: | 350cd/m2 |
| Contrast Ratio: | 1,000:1 |
| Display Area: | 962(H) x 554.8(V) mm |
| INPUT | |
| 4x BNC: | 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input |
| 1x HDMI: | HDMI Input |
| OUTPUT | |
| 4x BNC: | 3G-SDI A/B/C/D Channel Output |
| 1x HDMI: | 12G/3G/HD/SD SDI Output 1Ch (SDI A/B Selected channel output) |
| INPUT SIGNAL | |
| 3G-SDI: | 2.970Gbps |
| HD-SDI: | 1.485Gbps |
| SD-SDI: | 270Mb/s |
| HDMI: | 480i/480p/576i/576p/720p/1080i/1080p/2160p |
| AUDIO | |
| Audio Out: | Analog Stereo (Phone Jack) |
| FUNCTIONS | |
| FPGA: | 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, Key Lock, Luma(Y') Zone Check, Marker, Time Code Display, UMD, Waveform/Vector, SingleMode, Camera Lut. |
| Remote: | GPI (RJ45) / TVLogic’s specification |
| USB: | Firmware update by USB memory stick |
| Ethernet: | Ethernet Control support |
| PHYSICAL | |
| Dimensions: | 985 x 587 x 87.4mm / 38.77 x 23.11 x 3.44" |
| Weight: | 23kg / 50.7lbs |
- 1x LUM-430M2 Monitor
- 1x Stand
- 1x AC Power cable
- 1x IR Remote
