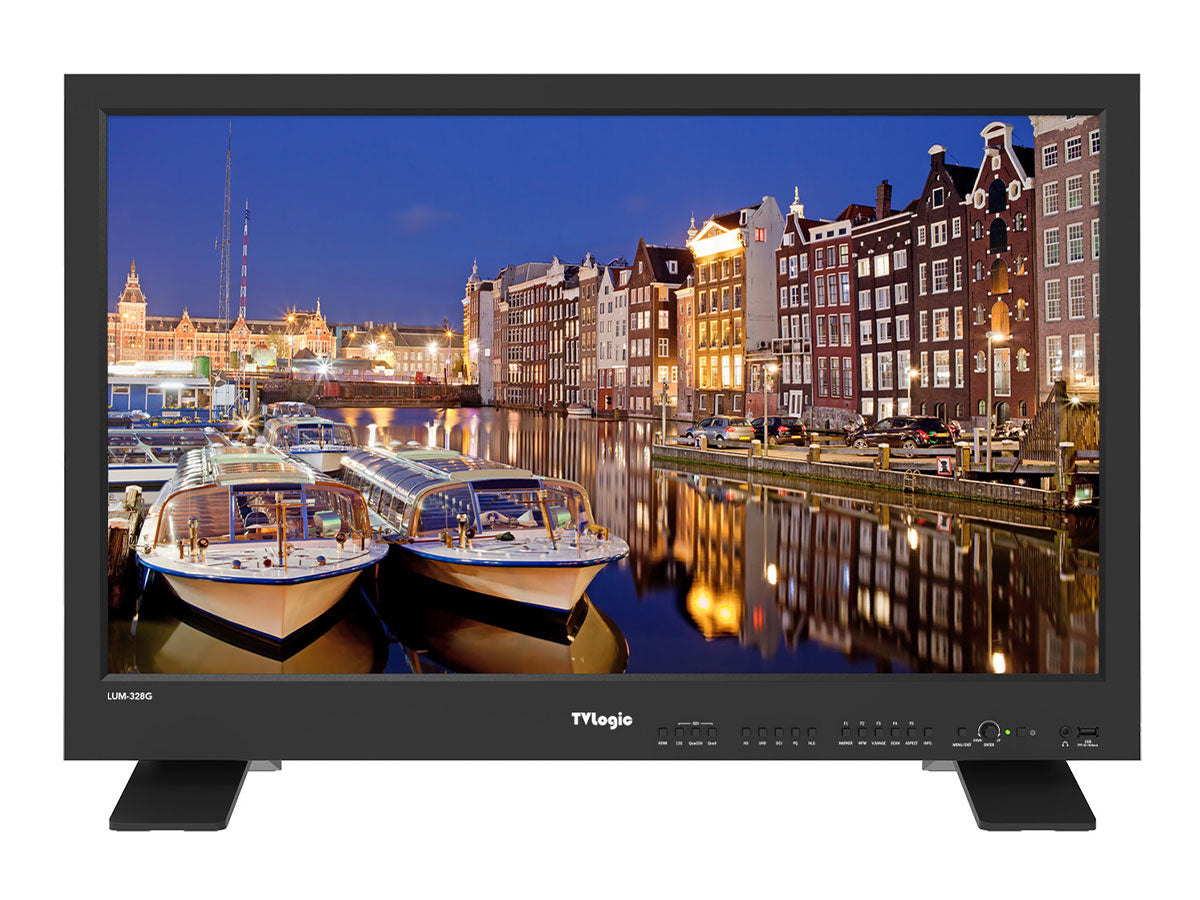

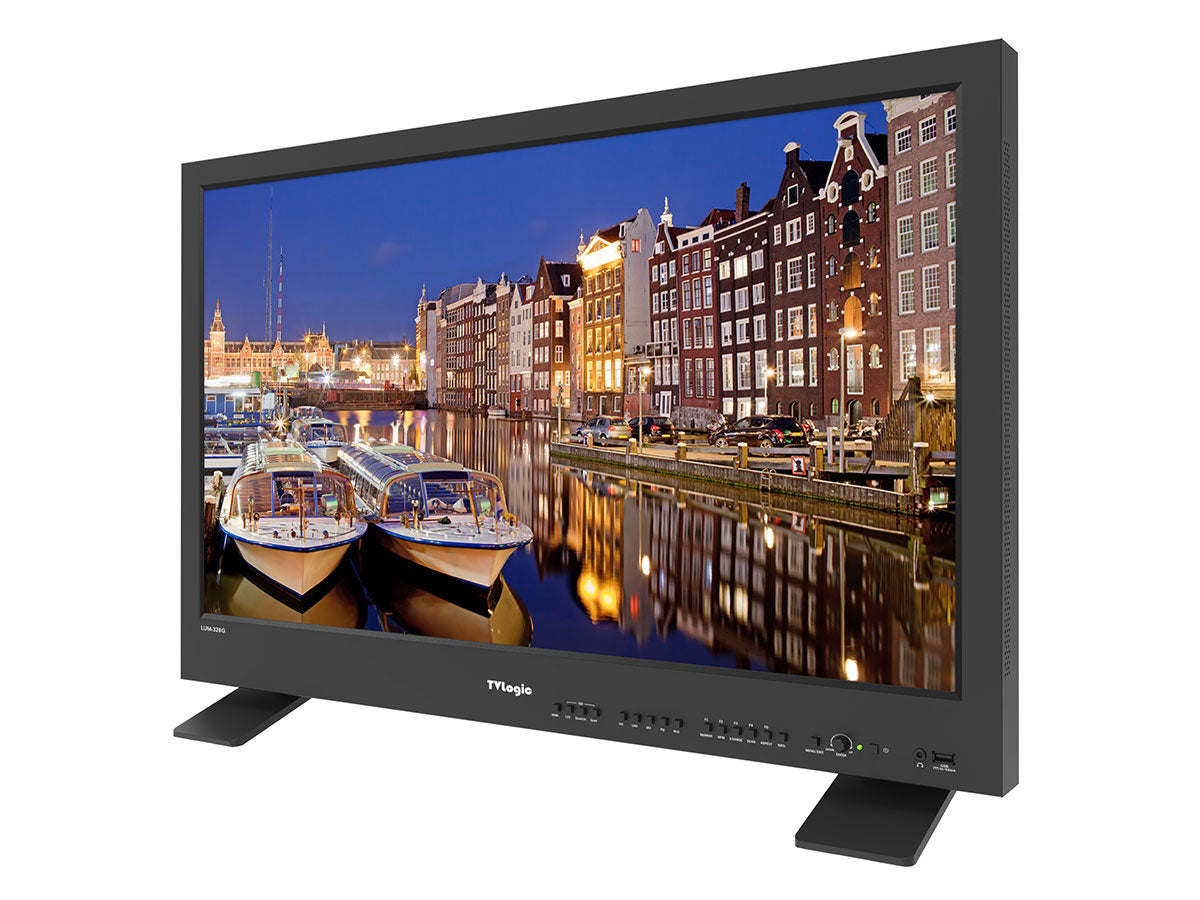

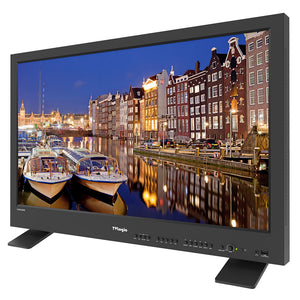

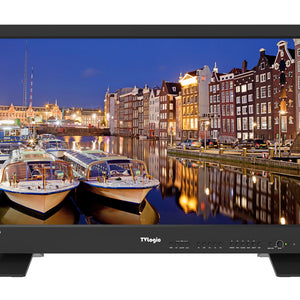

TV Logic LUM-328G 32” 4K/UHD High Brightness HDR Emulation Monitor

TV Logic LUM-328G 32” 4K/UHD High Brightness HDR Emulation Monitor

SKU: TVL-LUM-328G
£11,915.70 GBP ex VAT
£14,298.84 GBP inc VAT
ex VAT £11,915.70 GBP ex VAT
£14,298.84 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

The 32-inch UHD monitor offers excellent picture quality with 3840x2160 resolution, high brightness up to 1,000 nits, and wide viewing angles. The LUM-328G provides HDR capabilities along with HDR EOTF of PQ and HLG, a bunch of video signal analysis functions, rugged housing, which make it ideal for use in control rooms, editing suites as well as OB Vans.

  • 31.5” True UHD Resolution (3840×2160)
  • 86% Coverage of DCI-P3 Color Gamut
  • 1.07 Billion Colors (10bit)
  • Peak Luminance 1,000nits
  • HDR Emulation (PQ, HLG)
  • 12G-SDI Single Link 4K/UHD
  • 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
  • Waveform / Vectorscope
  • 16ch Audio Level Meter
  • Focus Assist / Marker
  • Timecode Display
  • UMD Display
  • Blue/Mono Only
  • Various Aspect
  • Luma(Y’) Zone Check
  • Closed Caption (CC-608, CC-708)
  • H/V Delay
  • Screen Tally
DISPLAY
Size: 31.5"
Resolution: 3840 x 2160 (16:9)
Pixel Pitch: 0.18159mm
Colour Depth: 1.07B Colors
Viewing Angle: 178°(H) / 178°(V)
Luminance: 1,000nits (center)
Contrast Ratio: 1000:1
Display Area: 697.31(H) x 392.23(V) mm

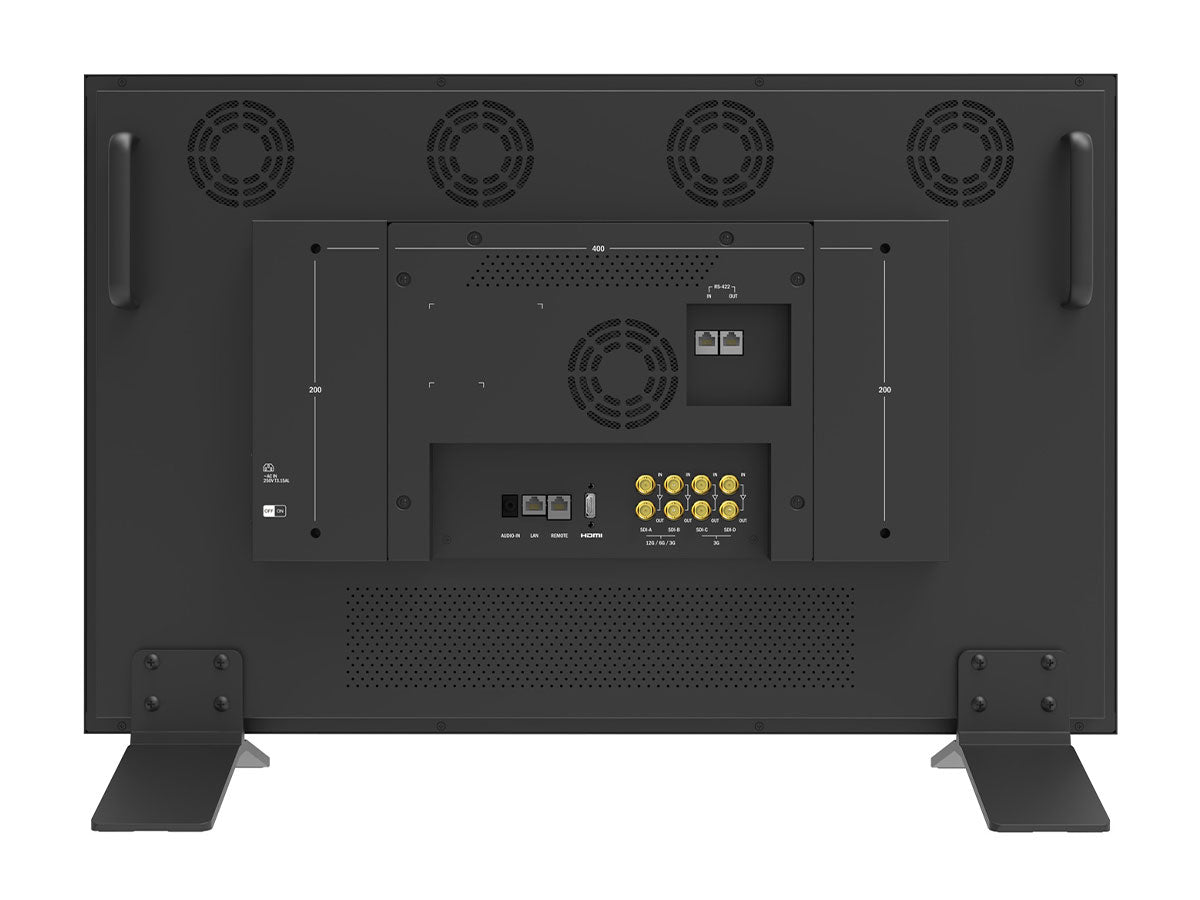

INPUT
4x BNC: 12G-SDI A/B Channel Input
3G-SDI C/D Channel Input
1x HDMI: HDMI (2.0) Input
OUTPUT
4x BNC: 12G-SDI A/B, 3G-SDI C/D Channel
(Loop Through Out)
INPUT SIGNAL
12G-SDI: 12Gb/s
6G-SDI: 6Gb/s
3G-SDI: 2.970Gb/s
HD-SDI: 1.485Gb/s
HDMI: 2160p(60)/1080p(60)/1080i(60)/720p(60)
/480p(60)/576p(50)
SDI INPUT SIGNAL FORMATS
SMPTE ST 2048-1: 2160p(60/50/59.94/30/29.97/25/24/23.98)
SMPTE ST 2082: 2160p(60/50/59.94)
SMPTE ST 2081: 2160p(30/25/24/23.98/29.97)
SMPTE-425M-A/B: 1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/23.98/
30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE-274M: 1080i(60/59.94/50)
1080p(30/29.97/25/24/23.98/24sF/23.8sF)
SMPTE-296M: 720p(60/59.94/50)
SMPTE-259M: 480i (59.94), 576i (50)
AUDIO
Audio In: Embedded Audio
Analog Stereo (Phone Jack)
Audio Out: Analog Stereo (Phone Jack)
POWER
Power: AC 100~240V(50~60Hz)
Power Consumption (Approx.): 162Watts (Max.)
TEMPERATURE
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
PHYSICAL
Dimensions: 760.3 x 485.3 x 107.1mm / 29.93 x 19.1 x 4.21"
Weight: 18.7kg / 41.22lbs
