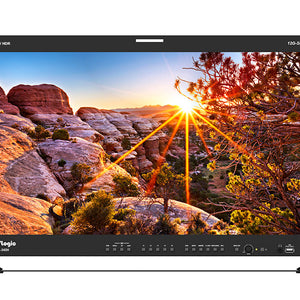

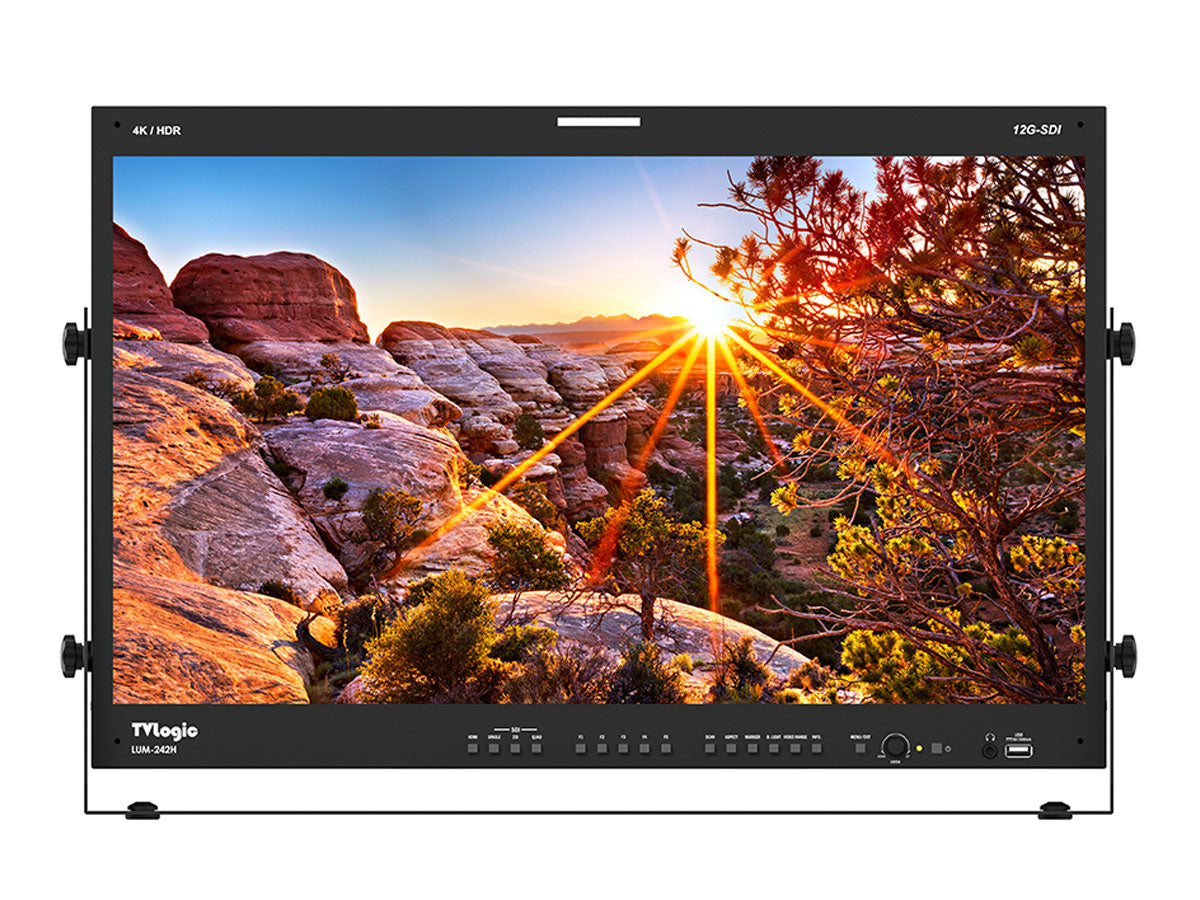

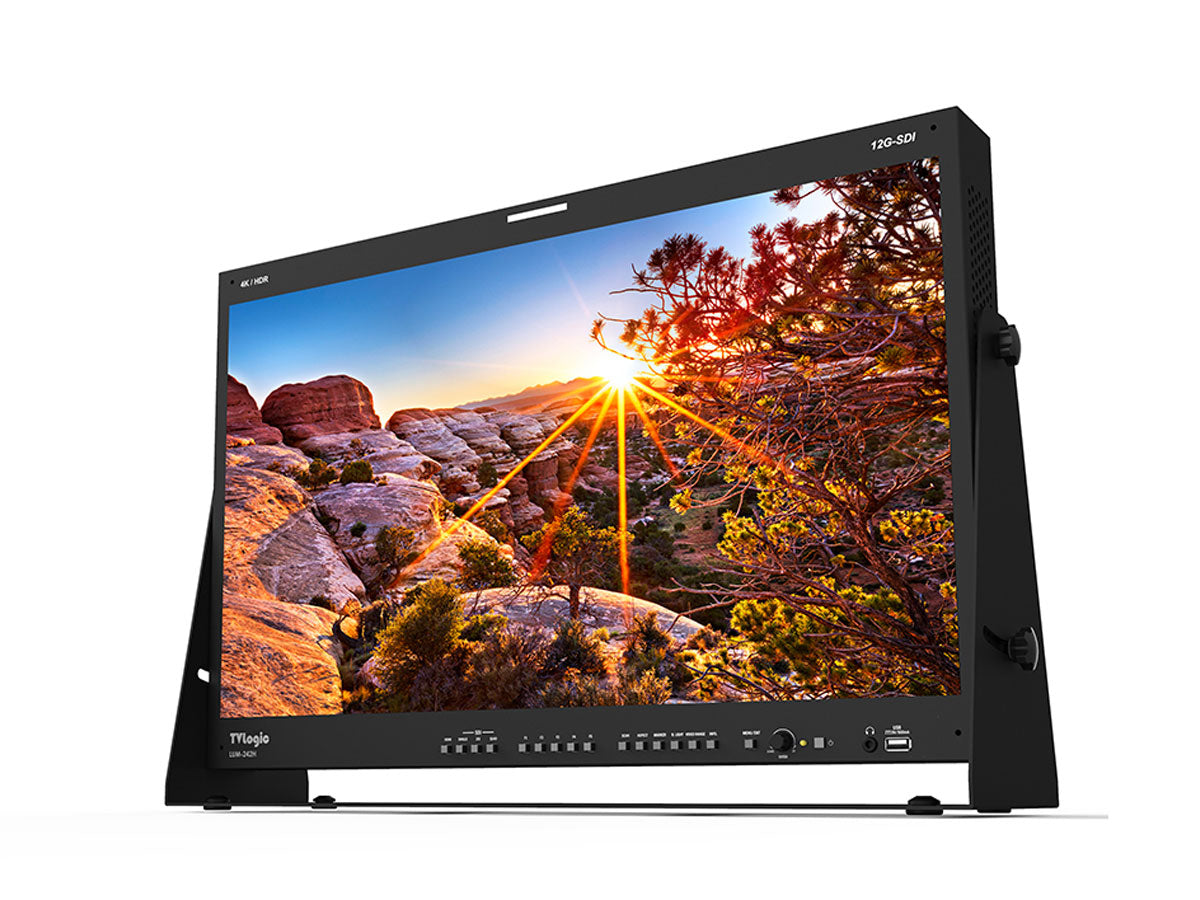

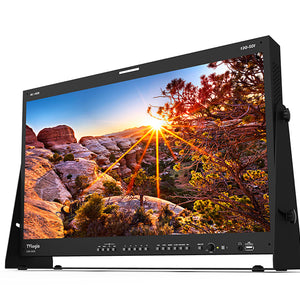

TV Logic LUM-242H 24" 4K High Brightness HDR Emulation Monitor
TV Logic LUM-242H 24" 4K High Brightness HDR Emulation Monitor
SKU:
TVL-LUM-242H
Regular price
£5,455.23 GBP ex VAT
£6,546.28 GBP inc VAT
£6,546.28 GBP inc VAT
Regular price
ex VAT
Sale price
£5,455.23 GBP ex VAT
£6,546.28 GBP inc VAT
Unit price
per
£6,546.28 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The LUM-242H is a 24 inch monitor with UHD resolution (3840 x 2160), high luminance up to 1,000cd/㎡, a 10-bit color depth, high contrast ratio of 1,000 : 1 and wide viewing angle. The LUM-242H supports various standard color gamuts including 90% DCI-P3 coverage. It supports 12G-SDI signal with 4 BNC input connectors (2 for 12G-SDI and 2 for 3G-SDI) and an HDMI 2.0 input.
High Quality HDR
LUM-242H supports maximum luminance of 1500nits for HDR and with 95% DCI-P3 coverage and true UHD resolution, LUM-242H reproduces true-to-life colour and clear details.
Fast Colour Standard Switching Speed – 1 second
Switching speed had improved from 5 seconds to 1 second when changing colour values.
- HDR EOTFs of PQ, HLG and SLog3
- 12G-SDI Single Link
- Native UHD resolution 3840 x 2160
- Colour gamuts covers up to DCI-P3 95%
- Supports peak luminance of 1500 nits for true HDR monitoring
- Supports various professional features
| DISPLAY | |
| Size: | 24" |
| Resolution: | 3840 x 2160 (16:9) |
| Pixel Pitch: | 0.137mm |
| Colour Depth: | 1.07B |
| Viewing Angle: | 178°(H) / 178°(V) |
| Luminance: | 1000 cd/m2 |
| Contrast Ratio: | 1,000:1 |
| Display Area: | 527(H) X 296(V) mm |

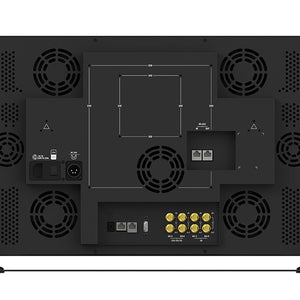

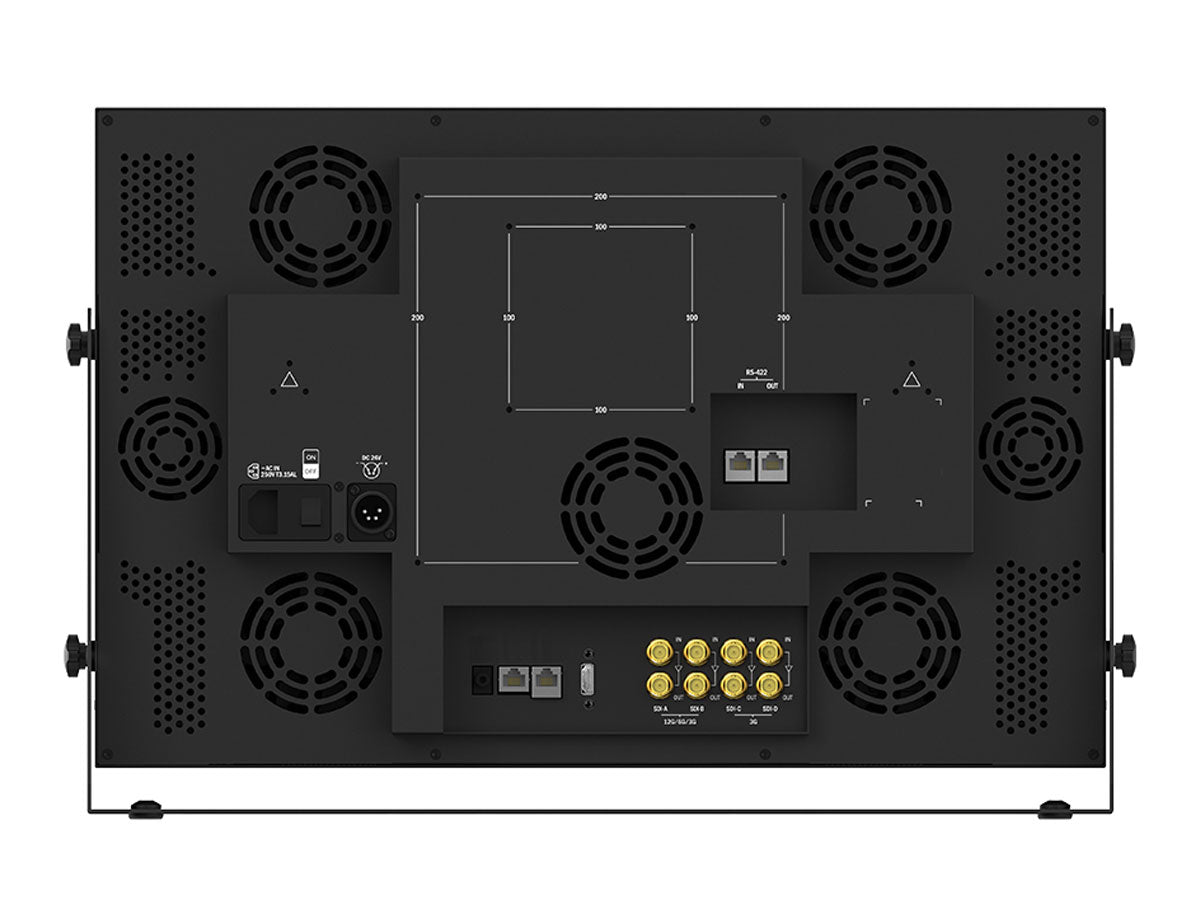

| INPUT | |
| 4x BNC: | 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input |
| 1x HDMI: | HDMI Input |
| OUTPUT | |
| 4x BNC: | 12G-SDI A/B,3G-SDI C/D Channel (Loop Through Out) |
| INPUT SIGNAL | |
| 3G-SDI: | 2.970Gbps |
| 12G-SDI: | 11.880Gbps |
| HD-SDI: | 1.485Gbps |
| SD-SDI: | 270Mb/s |
| HDMI: | 480i/480p/576i/576p/720p/1080i/1080p/2160p |
| SDI INPUT SIGNAL FORMATS | |
| SMPTE 425M-A/B: | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) |
| 1080i (60/59.94/54) | |
| SMPTE 296: | 720p (60/59.94/54) |
| SMPTE 274: | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.102sF) |
| SMPTE 260: | 47.95/48/50/59.94/60p) |
| AUDIO | |
| Audio In: | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out: | Analog Stereo (Phone Jack), Internal Speaker(Mono) |
| FPGA Functions: | 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, SingleMode |
| OTHER FUNCTIONS: | |
| Remote: | GPI (RJ45) / TVLogic’s specification |
| USB: | Firmware update by USB memory stick |
| Ethernet: | Ethernet Control support |
| PHYSICAL | |
| Dimensions: | 552 x 360 x 98.5mm / 21.73 x 14.17 x 3.88" |
| Weight: | 10.3kg / 22.71lbs |
- 1x LUM-242H Monitor
- 1x AC Power cable
- 1x Stand
