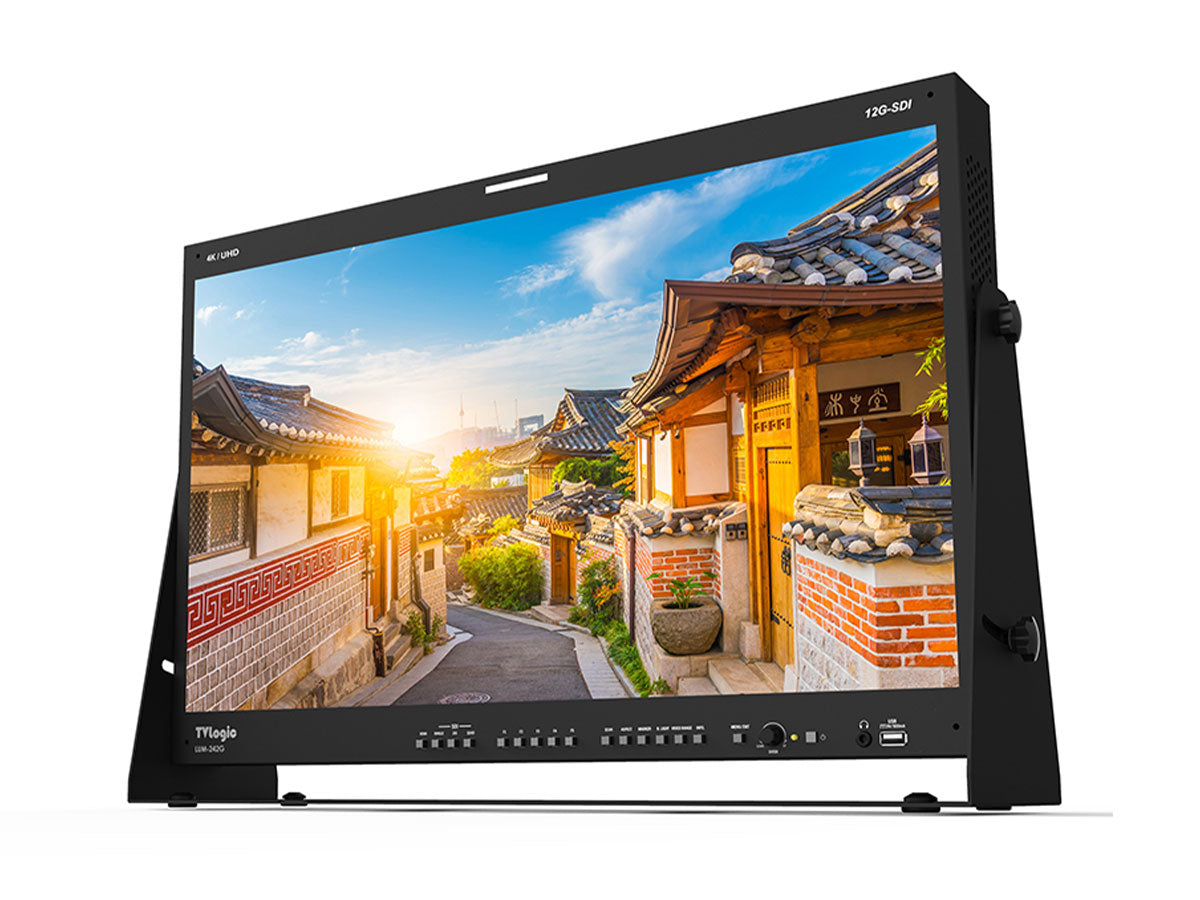

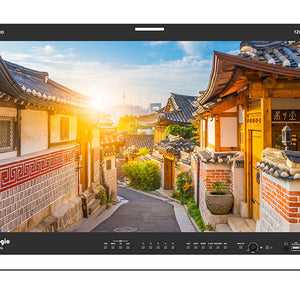

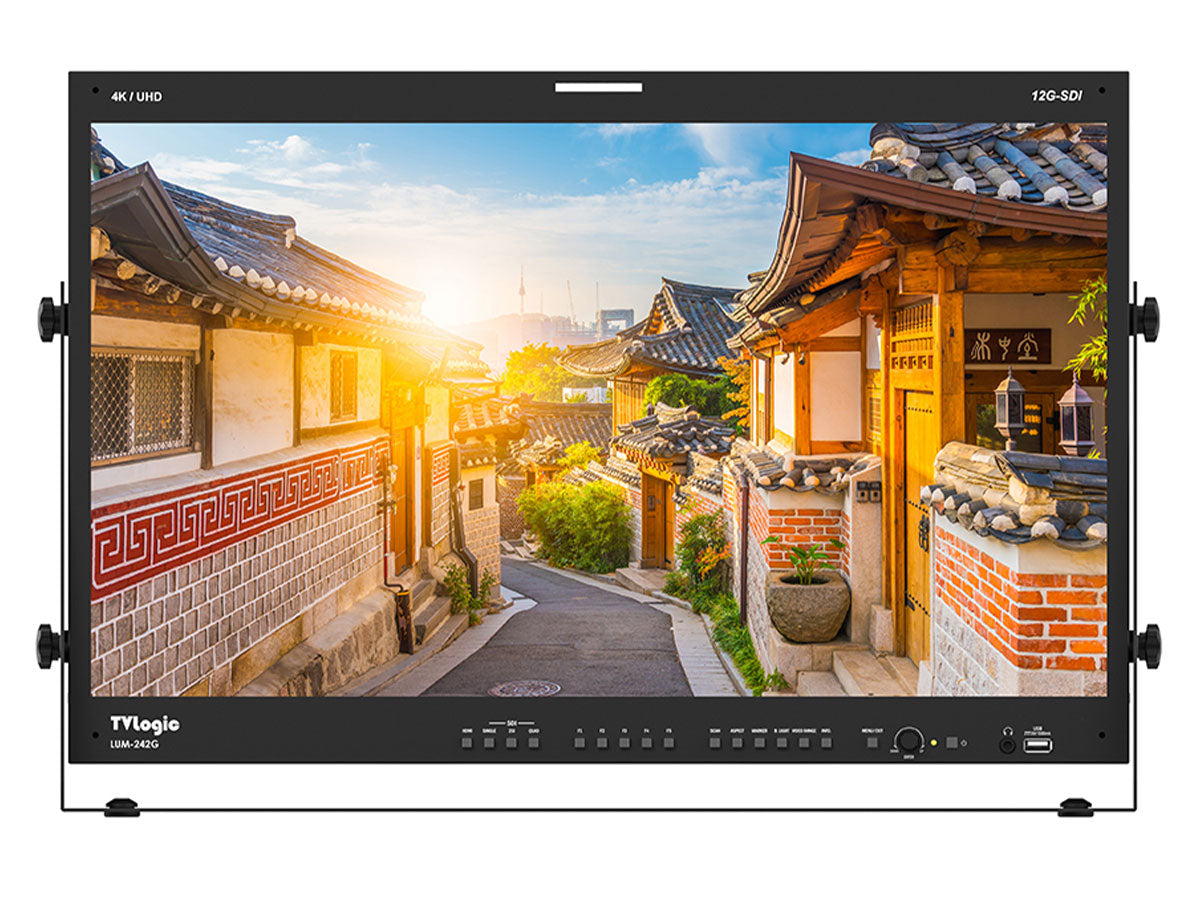

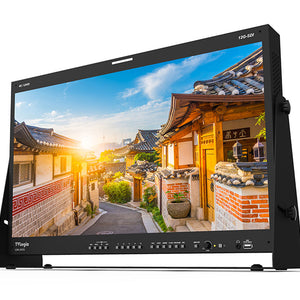

TV Logic LUM-242G 24" 4K HDR Emulation Monitor
TV Logic LUM-242G 24" 4K HDR Emulation Monitor
SKU:
TVL-LUM-242G
Regular price
£5,368.57 GBP ex VAT
£6,442.28 GBP inc VAT
£6,442.28 GBP inc VAT
Regular price
ex VAT
Sale price
£5,368.57 GBP ex VAT
£6,442.28 GBP inc VAT
Unit price
per
£6,442.28 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The LUM-242G is a 24-inch UHD resolution (3840 x 2160) monitor with maximum luminance of 500nit, contrast ratio of 1,200:1, wide colour gamut and wide viewing angle. Equipped with 4 BNCs (2x12G-SDI + 2x3G-SDI) and HDMI 2.0 interface, it supports various video formats up to 4K/60p through single-link 12G-SDI, Quad 3G-SDI and HDMI 2.0. In addition to various professional features such as Waveform monitor and Vectorscope, the LUM-242G provides HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.
Powerful Picture Quality
LUM-242G supports HDR EOTFs of PQ, HLG and SLog3 and with 98% DCI-P3 coverage and true UHD resolution, LUM-242G reproduces true-to-life picture quality.
Fast Colour Standard Switching Speed 1 Sec
Switching speed had improve from 5 seconds to 1 second when changing colour values.
- HDR EOTFs of PQ, HLG and SLog3
- 12G-SDI single link
- Native UHD Resolution (3804 x 2160)
- Colour gamuts covers up to DCI-P3 P5%
- Supports 3D LUT for accurate colour reproduction
- Supports various professional features
| DISPLAY | |
| Size: | 24" |
| Resolution: | 3840 x 2160 (16:9) |
| Pixel Pitch: | 0.137mm |
| Colour Depth: | 1.07B |
| Viewing Angle: | 178° (H) / 178° (V) |
| Luminance: | 500cd/m2 |
| Contrast Ratio: | 1,200:1 |
| Display Area: | 526(H) X 296(V) mm |

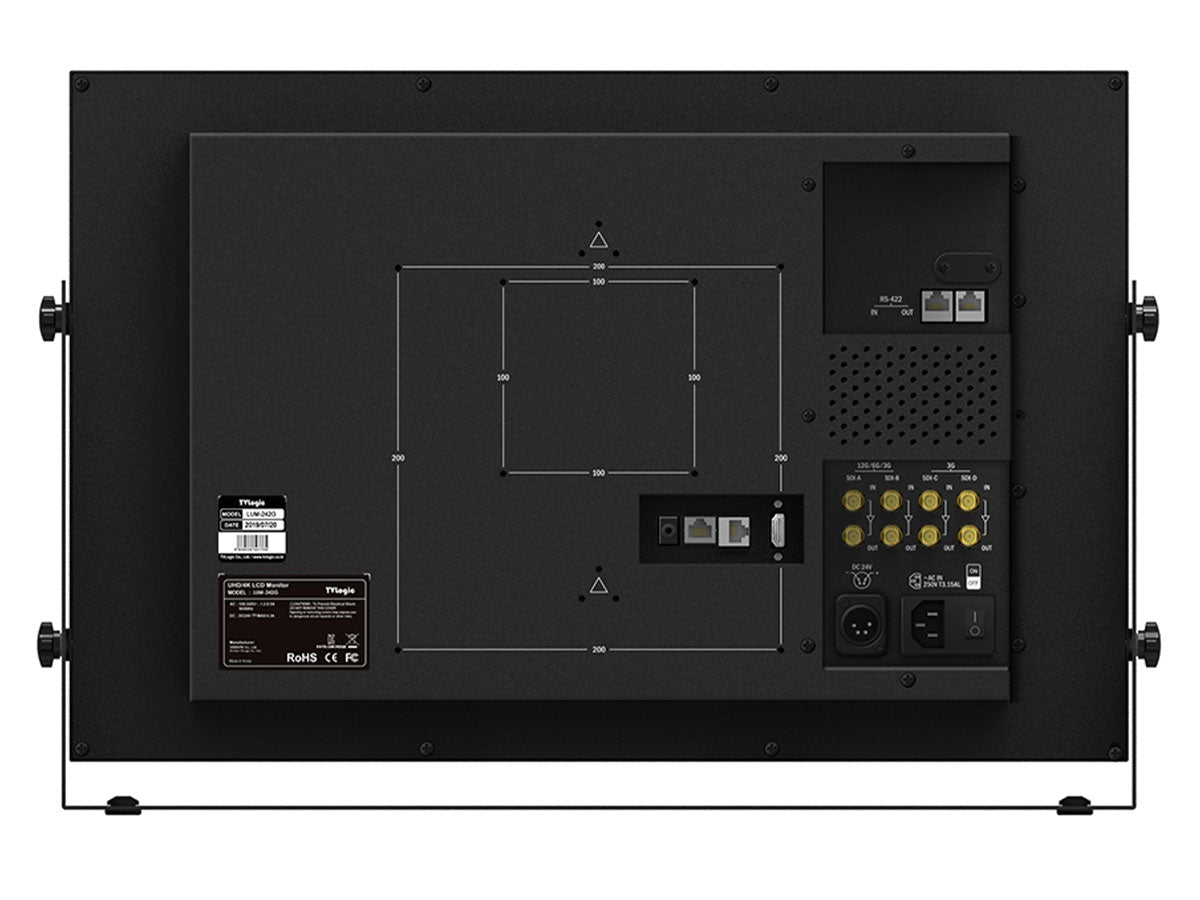

| INPUT | |
| 4x BNC: | 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input |
| 1x HDMI: | HDMI Input |
| OUTPUT | |
| 4x BNC: | 12G-SDI A/B,3G-SDI C/D Channel (Loop Through Out) |
| INPUT SIGNAL | |
| 3G-SDI: | 2.970Gbps |
| 12G-SDI: | 11.880Gbps |
| HD-SDI: | 1.485Gbps |
| SD-SDI: | 270Mb/s |
| HDMI: | 480i/480p/576i/576p/720p/1080i/1080p/2160p |
| SDI INPUT SIGNAL FORMATS | |
| SMPTE 425M-A/B: | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) |
| 1080i (60/59.94/54) | |
| SMPTE 296: | 720p (60/59.94/54) |
| SMPTE 274: | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.102sF) |
| SMPTE 260: | 47.95/48/50/59.94/60p) |
| AUDIO | |
| Audio In: | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out: | Analog Stereo (Phone Jack), Internal Speaker(Mono) |
| FPGA Functions: | 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, SingleMode |
| OTHER FUNCTIONS | |
| Remote: | GPI (RJ45) / TVLogic’s specification |
| USB: | Firmware update by USB memory stick |
| Ethernet: | Ethernet Control support |
| PHYSICAL | |
| Dimensions: | 552 x 360 x 98.5mm / 21.73 x 14.17 x 3.88" |
| Weight: | 10.3kg / 22.71lbs |
- 1x LUM-242G Monitor
- 1x AC Power Cable
- 1x Stand
