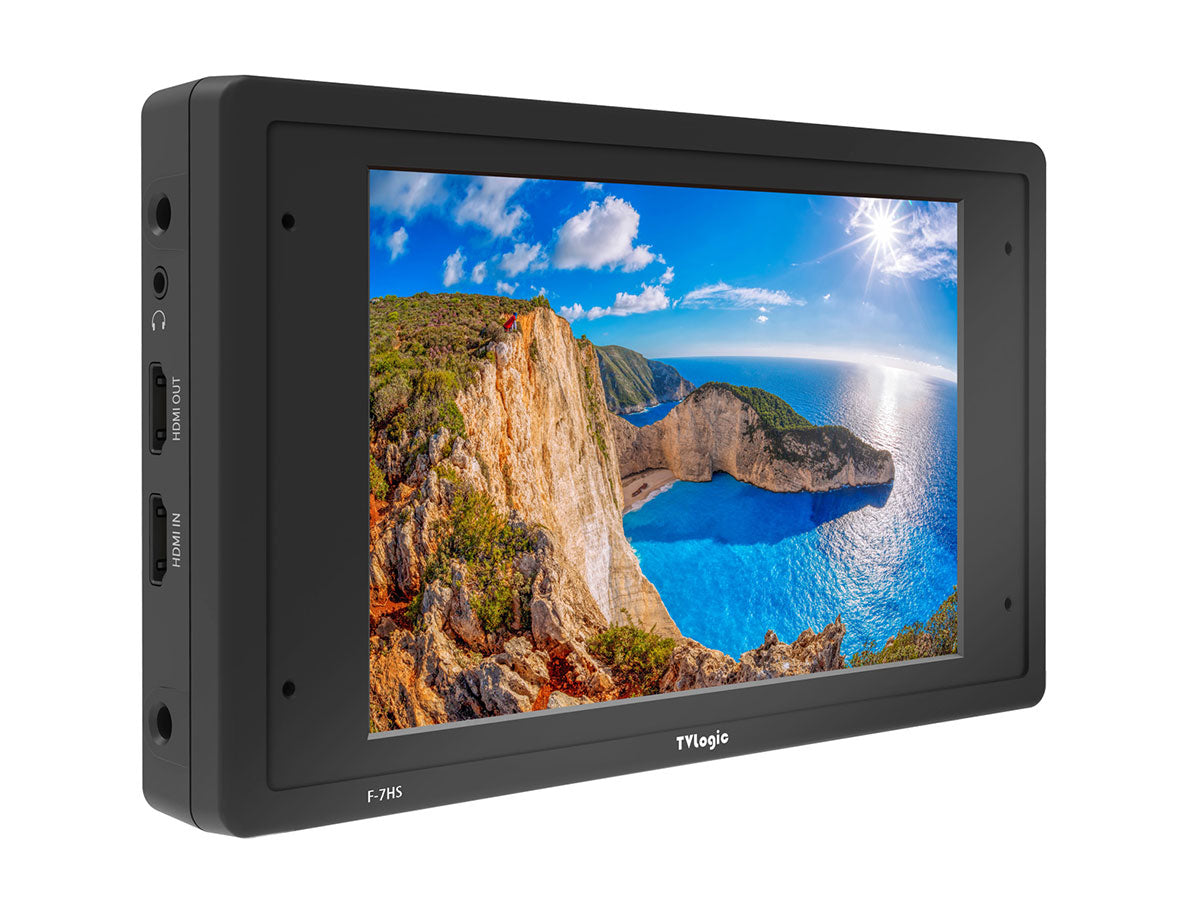

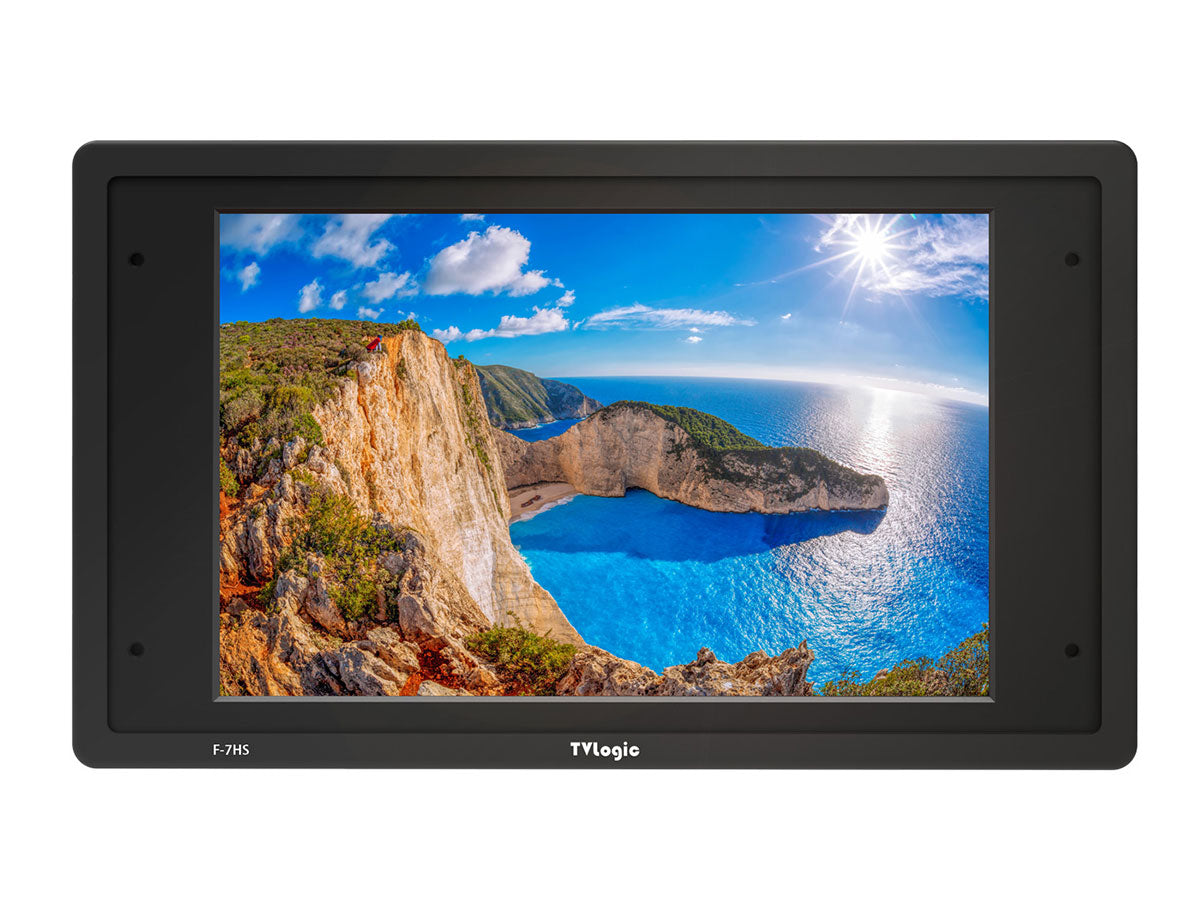

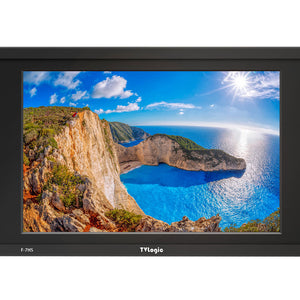

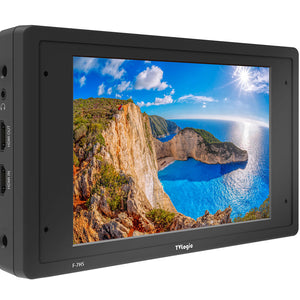

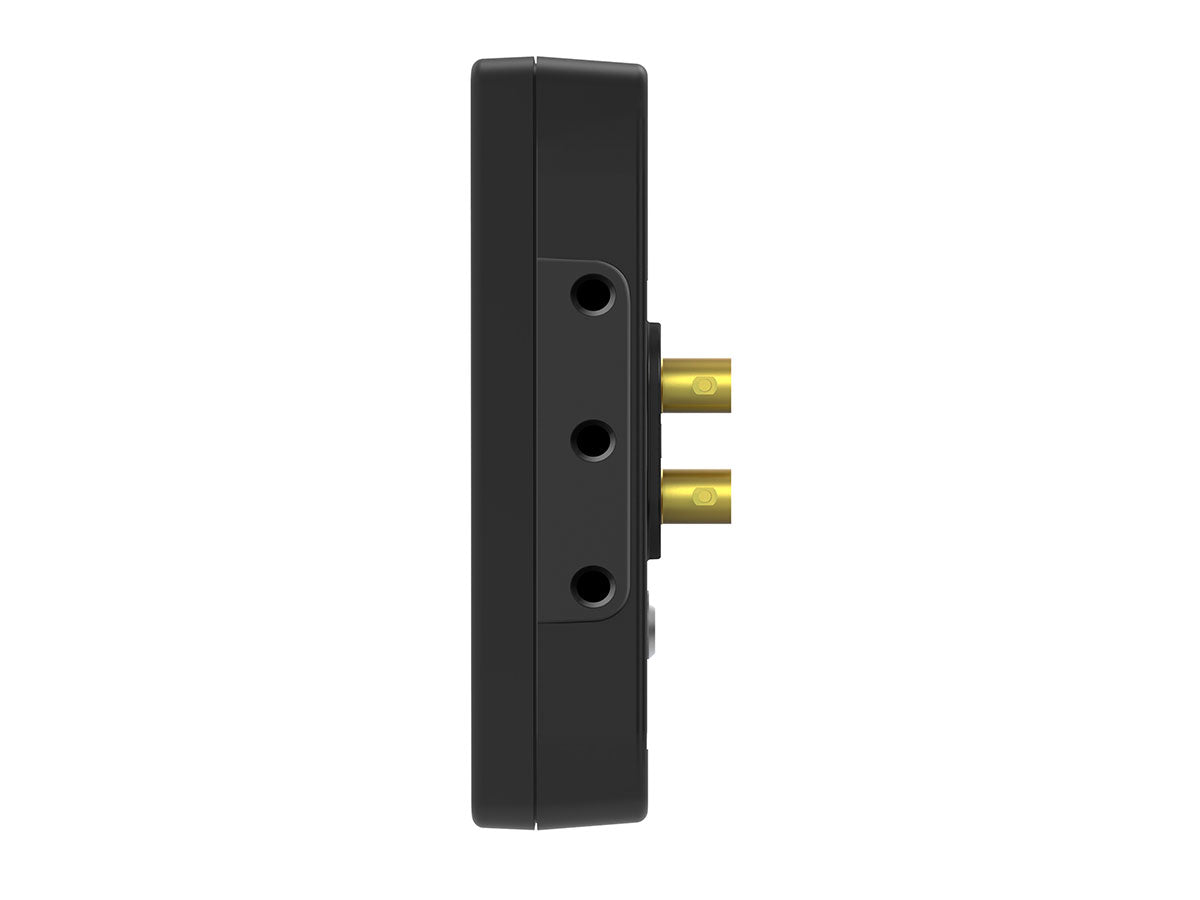

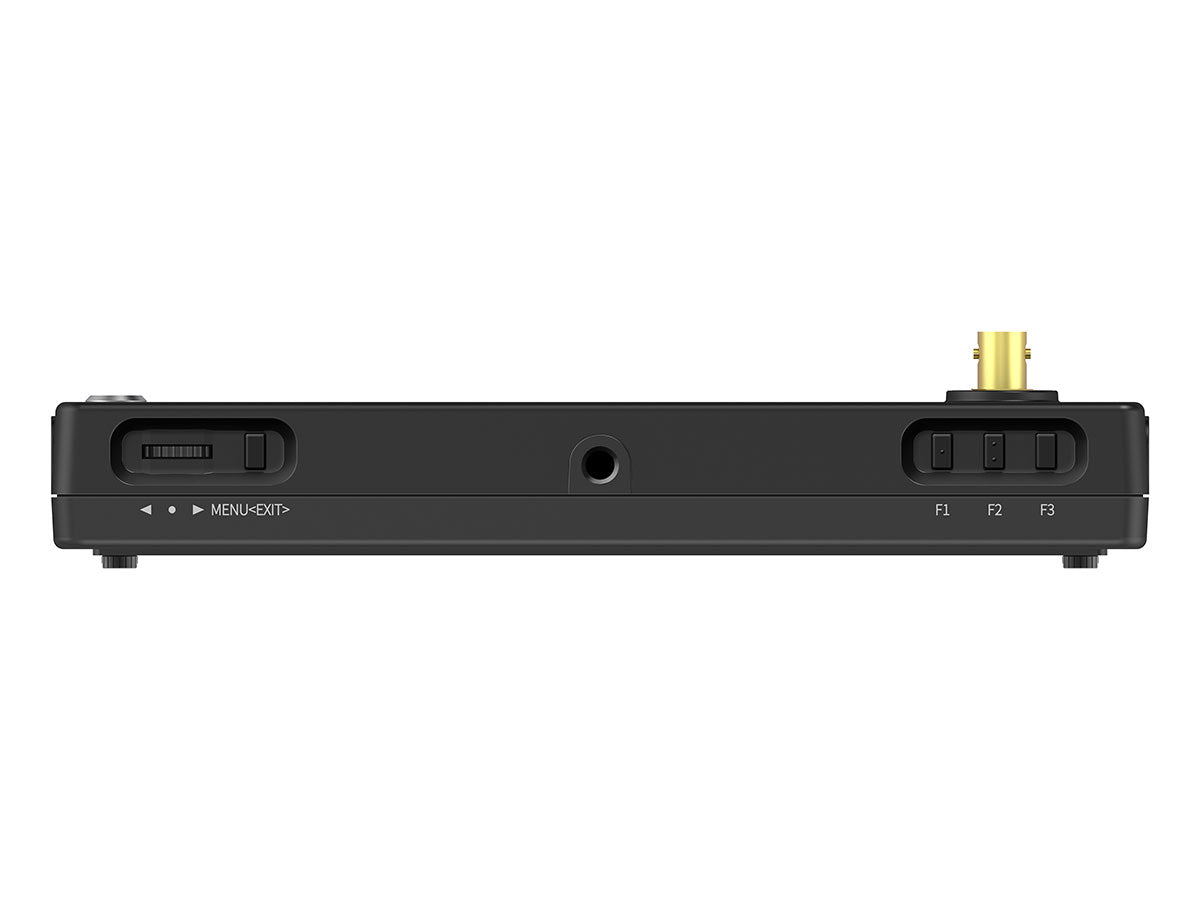

TV Logic F-7HS 7" FHD Field Monitor
TV Logic F-7HS 7" FHD Field Monitor
SKU:
TVL-F-7HS
Regular price
£1,884.85 GBP ex VAT
£2,261.82 GBP inc VAT
£2,261.82 GBP inc VAT
Regular price
ex VAT
Sale price
£1,884.85 GBP ex VAT
£2,261.82 GBP inc VAT
Unit price
per
£2,261.82 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
7" Full HD High Brightness Field Monitor with Enhanced Sharpness
The F-7HS is a 7’’ 1920x1080 resolution field monitor that offers Max Brightness of 1800nits with enhanced sharpness and peaking boost function via the refined image processing engine. With the high quality picture and professional features, F-7HS shows the best performance anywhere.
The F-7HS is a 7’’ 1920x1080 resolution field monitor that offers Max Brightness of 1800nits with enhanced sharpness and peaking boost function via the refined image processing engine. With the high quality picture and professional features, F-7HS shows the best performance anywhere.
- 7’’ Full HD Resolution (1920 x 1080)
- HDMI ↔ SDI Cross Conversion
- HDR Emulation (PQ, HLG, S-Log3)

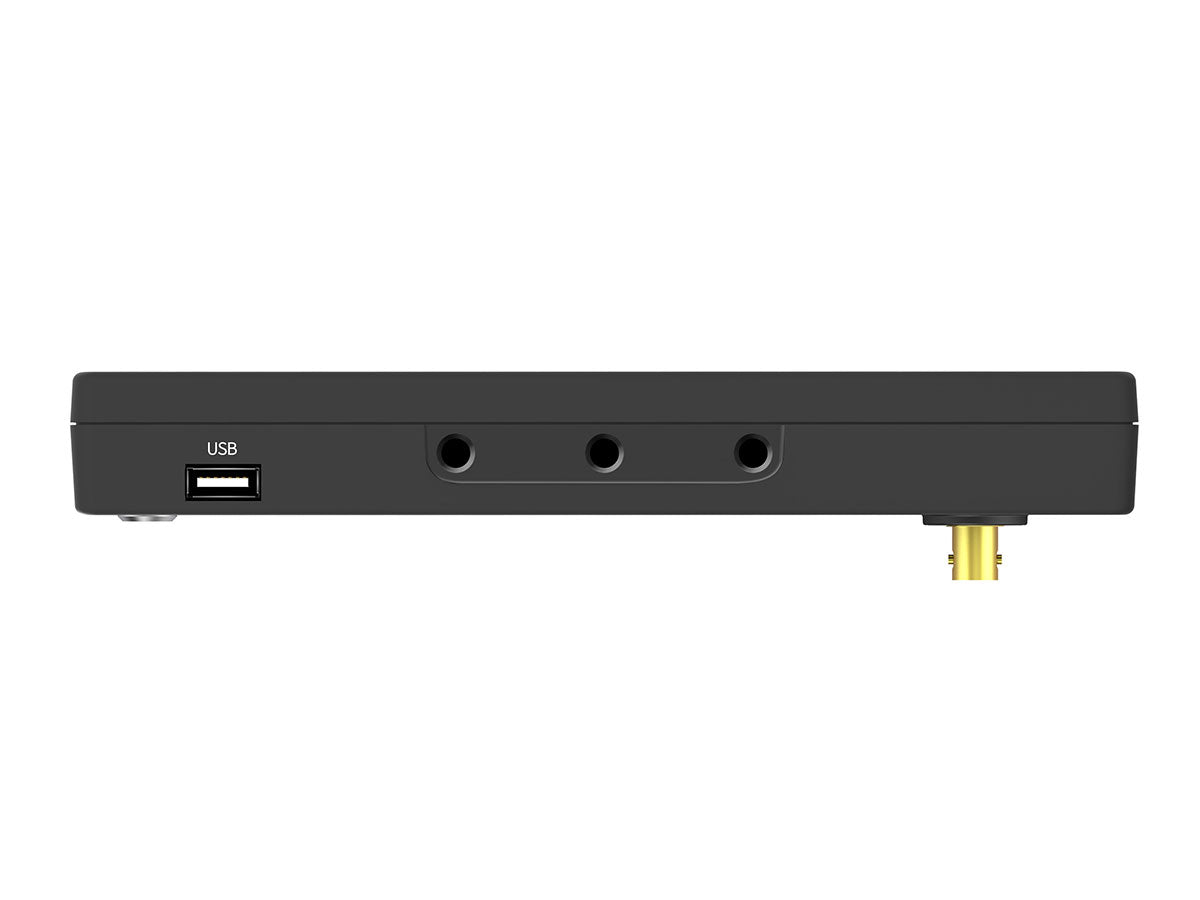

- Custom 3D LUT Import by USB Flash Drive
- Various Built-in Camera LUTs
- ARRI Metadata
- Excellent Sharpness
- Peaking Boost
- Waveform / Vectorscope
- H/V Flip
- Marker
- Split Zoom
- Focus Assist
- 16ch Audio Level Meter
- Anamorphic Desqueeze
- Timecode Display
- Luma(Y’) Zone Check
- Screen Tally
| DISPLAY | |
| Size: | 7" |
| Resolution: | 1920 x 1200 (16:10) |
| Pixel Pitch: | 0.0787(H) x 0.0787(V) mm |
| Colour Depth: | 1.073B Colors (10 bit) |
| Viewing Angle: | 160°(H) / 160°(V) |
| Luminance of White: | 1500nits |
| Contrast Ratio: | 1200:1 |
| Display Area: | 151.2(H) x 94.5(V) mm |
| INPUT | |

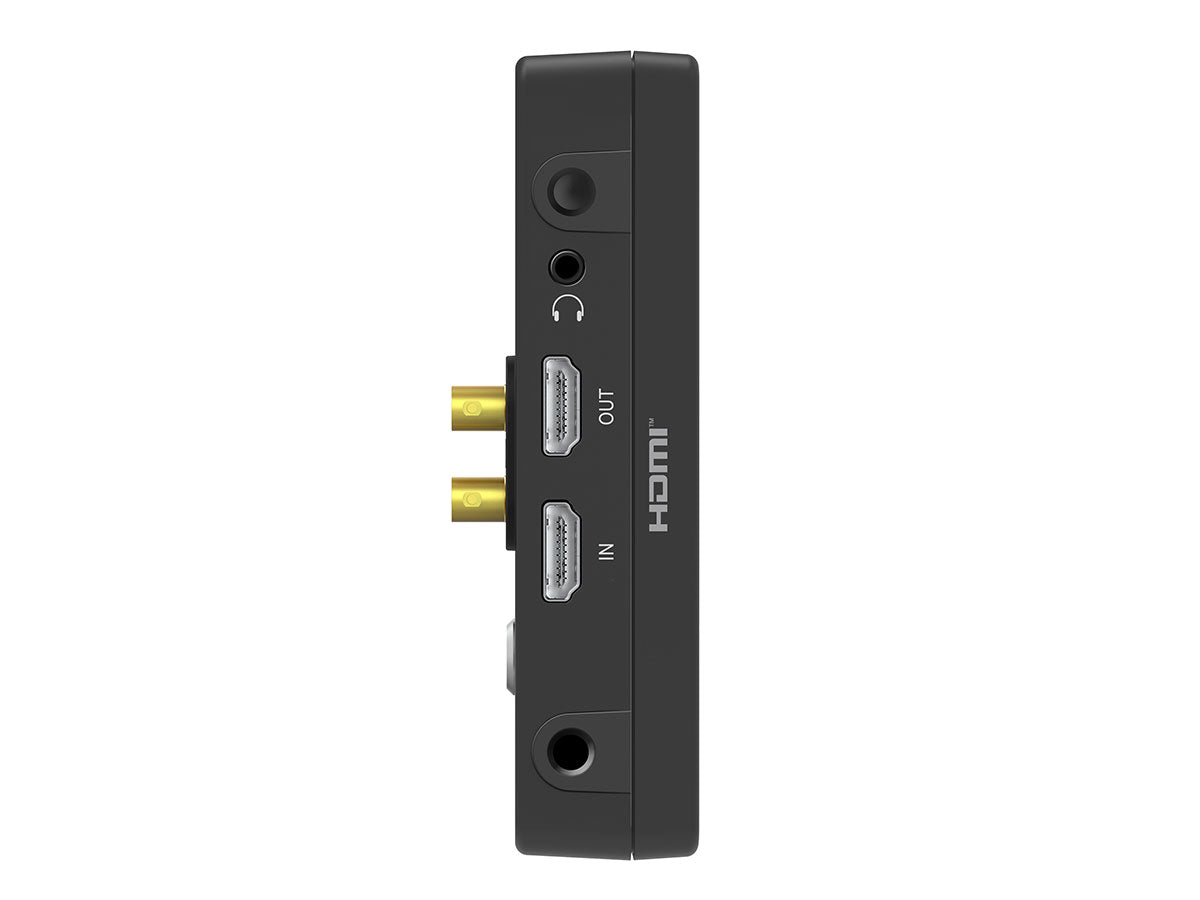

| 1x HDMI: | HDMI Input |

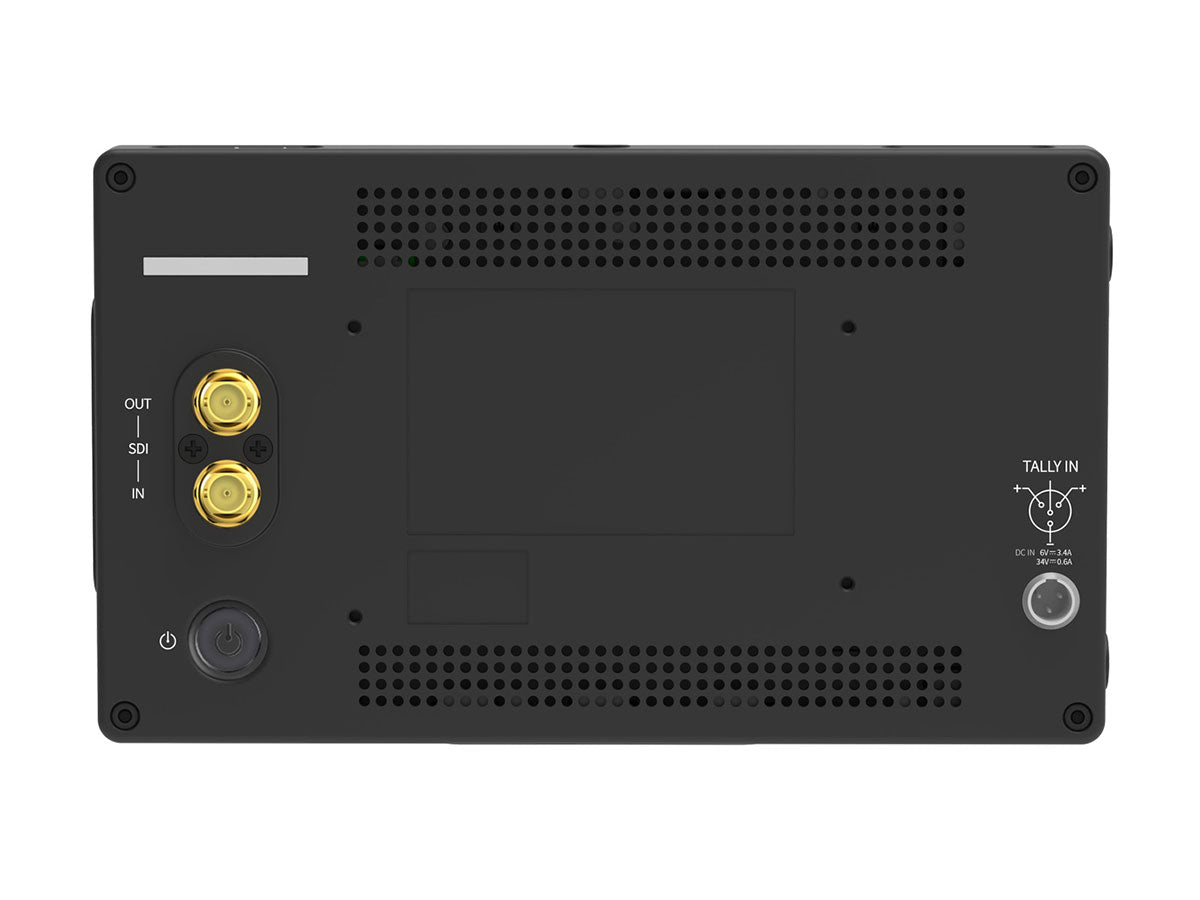

| 1x BNC: | SDI Input |
| OUTPUT | |
| 1x HDMI: | HDMI Output (HDMI loop out,SDI-to-HDMI Conversion output) |
| 1x BNC: | SDI Output (SDI loop out, HDMI-to-SDI Conversion output) |
| INPUT SIGNAL | |
| 3G-SDI: | 2.970Gb/s |
| HD-SDI: | 1.485Gb/s |
| SD-SDI: | 270Mb/s |
| HDMI: | 1080p(60)/1080i(60)/720p(60)/480p(60)/576p(50) |
| SDI INPUT SIGNAL FORMATS | |
| SMPTE ST-425M-A/B: | 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
| 1080i(60/59.94/50) | |
| SMPTE ST-274M: | 1080i(60/59.94/50) |
| 1080p (30/29.97/25/24/24sF/23.98/23.98sF) | |
| SMPTE ST-296M: | 720p(60/59.94/50) |
| SMPTE ST-125M: | 480i(59.94) |
| ITU-R BT.656: | 576i(50) |
| AUDIO | |
| Audio In: | SDI Embedded Audio (Group, Ch Selectable) |
| Audio Out: | External Output Port (3.5mm Phone Jack) |
| POWER | |
| Power: | DC 12V 1.8A |
| Power Consumption: | 21W (Max) |
| PHYSICAL | |
| Dimensions: | 211 x 125 x 28.3mm / 8.3 x 4.92 x 1.11" |
| Weight: | 0.76kg / 1.67Ibs |
- 1x Monitor
- 1x D-Tap Cable
- 1x Camera Mount
