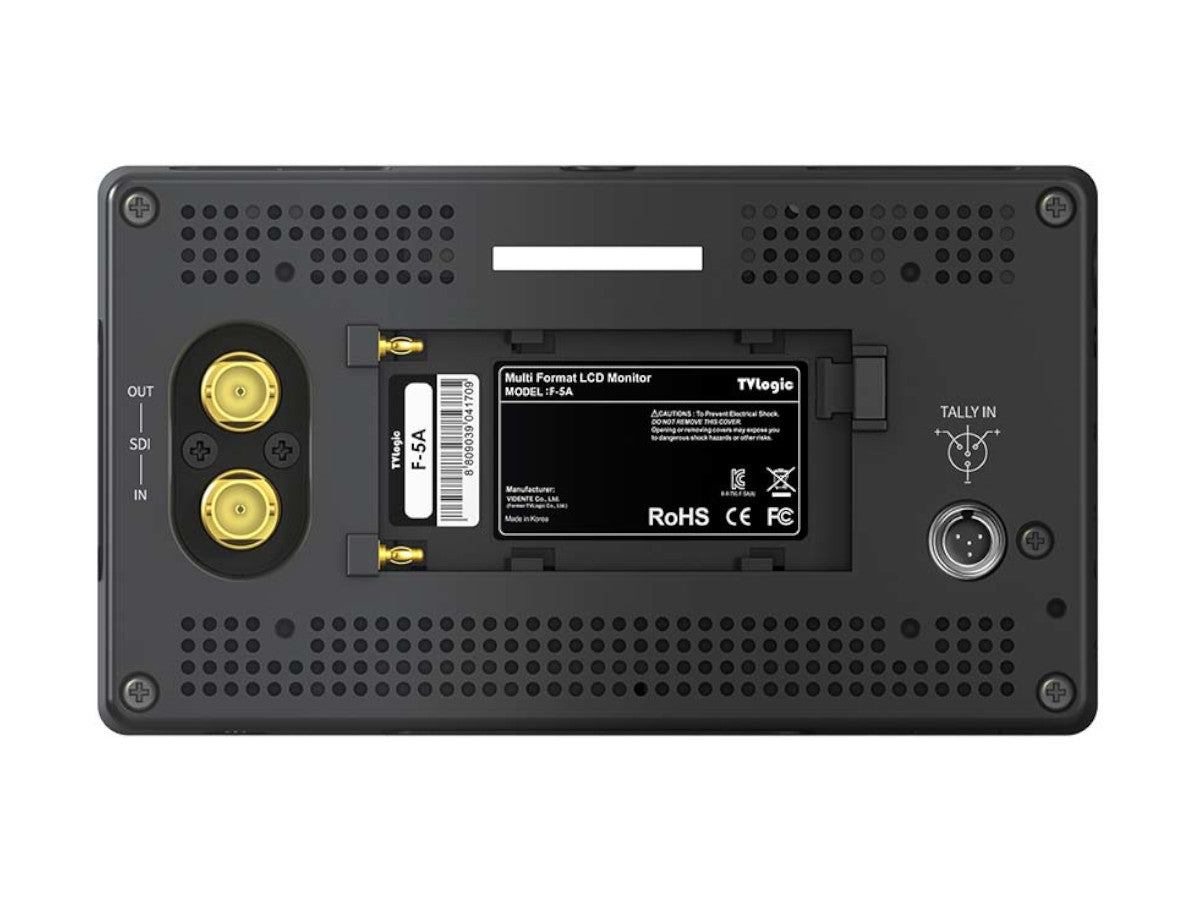

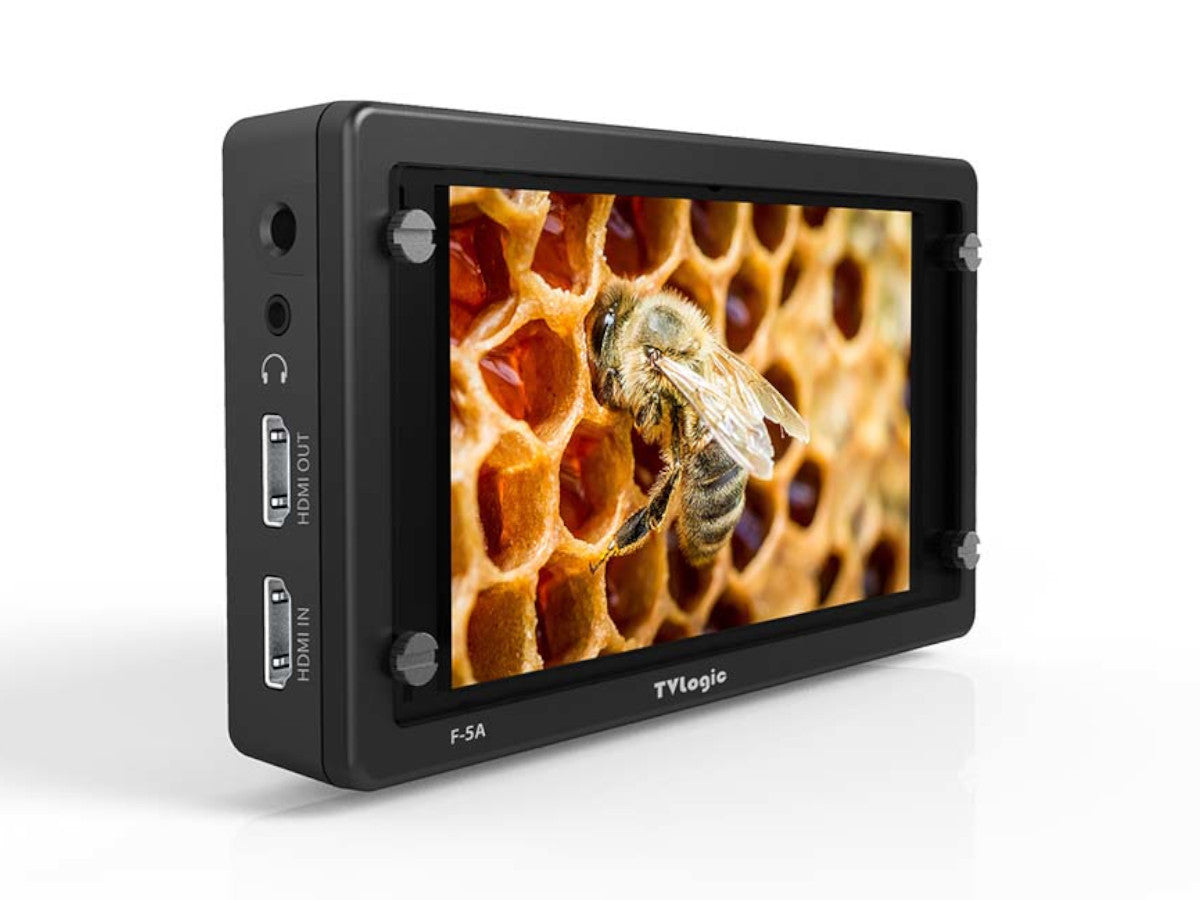

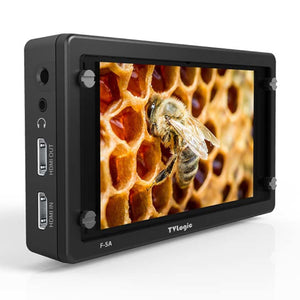

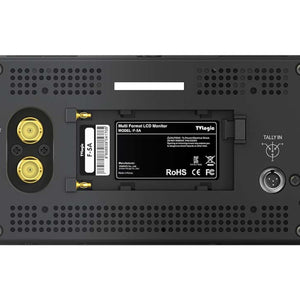

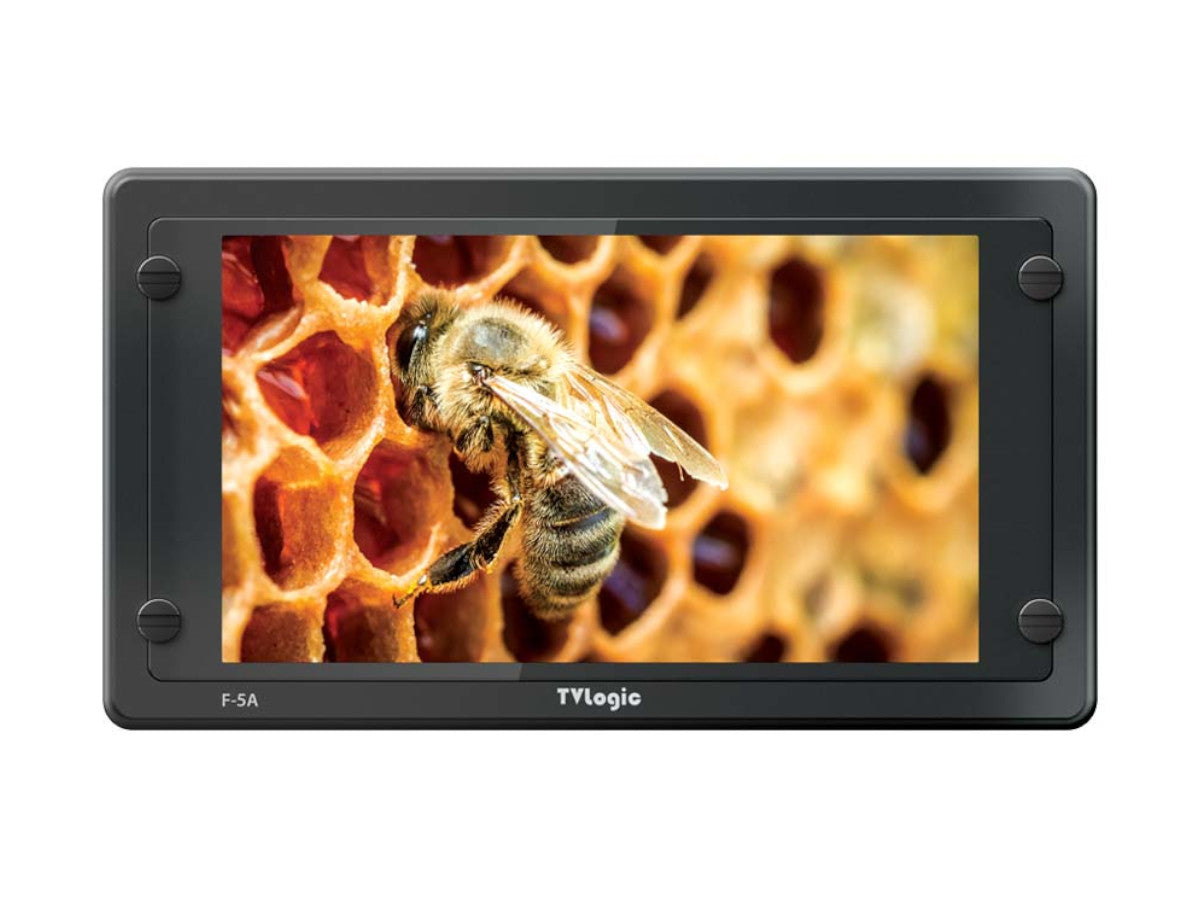

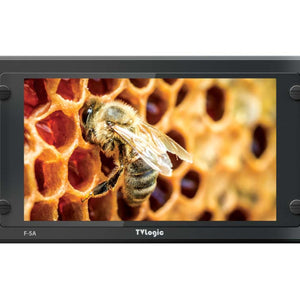

TV Logic F-5A 5.5Inch Monitor
TV Logic F-5A 5.5Inch Monitor
SKU:
TVL-F-5A
Regular price
£1,018.25 GBP ex VAT
£1,221.90 GBP inc VAT
£1,221.90 GBP inc VAT
Regular price
ex VAT
Sale price
£1,018.25 GBP ex VAT
£1,221.90 GBP inc VAT
Unit price
per
£1,221.90 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The F-5A is a compact and light-weight field production monitor with Full HD resolution of 1920 x 1080, nice viewing angle and max luminance of 500nit. Equipped with a new image processing engine, F-5A reproduces even better sharpness and peaking boost capability for focus pullers. It also supports various video formats via 3G-SDI and HDMI 1.3 interface. And also support professional features such as Waveform/Vectorscope, Focus Assist, 3D LUT import, Camera Logs and HDR emulation.
Super-Sharp Details
Upgraded with the Sharpness + Peaking Boost function, the F-5A offers exceptional clarity and detail for focus pullers.
Upgraded with the Sharpness + Peaking Boost function, the F-5A offers exceptional clarity and detail for focus pullers.
Easy Control, Versatile Ports
The F-5a offers a convenient control with a scroll wheel and 3x function keys and provides various video inputs including 3G-SDI and HDMI
The F-5a offers a convenient control with a scroll wheel and 3x function keys and provides various video inputs including 3G-SDI and HDMI
Audio Level Metre Display
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Blue Only / Mono
Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the colour tones (tones and saturation) of the screen using the SMPTE Colour Bar. For example, after displaying the Blue channel, adjust the Colour (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the colour tones (tones and saturation) of the screen using the SMPTE Colour Bar. For example, after displaying the Blue channel, adjust the Colour (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
Focus Assist
Assigns a colour to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Assigns a colour to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
H/V Delay
Allows you to check the Blanking area and synchronise signals by displaying the horizontal and vertical intervals in the center of the screen.
Allows you to check the Blanking area and synchronise signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Flip
Allows the displayed image to be flipped horizontally or vertically. This feature provides flexible mounting options for camera operators.
Allows the displayed image to be flipped horizontally or vertically. This feature provides flexible mounting options for camera operators.
Key Lock
Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Luma(Y') Zone Check
Displays the Luma(Y’) level of the input image in colours. Each pixel’s Y’ analysed and changed to a certain colour or zebra pattern according to the Index on the right side of the screen.
Displays the Luma(Y’) level of the input image in colours. Each pixel’s Y’ analysed and changed to a certain colour or zebra pattern according to the Index on the right side of the screen.
Marker
Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line colour and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line colour and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Max Brightness On/Off
Displays the brightness increases from the normal up to max brightness to obtain a sharp and bright image when shooting outdoors.
Displays the brightness increases from the normal up to max brightness to obtain a sharp and bright image when shooting outdoors.
Range Error
Analyses the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.
Analyses the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.
Time Code Display
Displays the Timecode information on the screen.
Displays the Timecode information on the screen.
User Aspect
Adjusts the Width /Height display ratio.
Adjusts the Width /Height display ratio.
Various Scan Modes
Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Waveform / Vector Scope
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.Vector Scope: Displays the colour components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.Vector Scope: Displays the colour components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Zoom
Magnifies the input signal from 0% to 90%.
Magnifies the input signal from 0% to 90%.
Camera LUT
Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).
Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).
ARRI Alex Metadata over SDI
Takes the Metadata from the ARRI ALEXA is transported through the SDI outputs of the camera, and displays it on the monitor.
Takes the Metadata from the ARRI ALEXA is transported through the SDI outputs of the camera, and displays it on the monitor.
Split Zoom
Zooms the specified area sequentially.
Zooms the specified area sequentially.
Anamorphic Desqueeze
Supports several formats and resolutions that are ideally suited for anamorphic lenses and aspect ratios. When shooting anamorphic the image you are monitoring is an “unsqueezed” preview of what’s actually being recorded.
Supports several formats and resolutions that are ideally suited for anamorphic lenses and aspect ratios. When shooting anamorphic the image you are monitoring is an “unsqueezed” preview of what’s actually being recorded.
Sleep Mode
Sets the LUMINANCE to the minimum value when the time set in the still image output is exceeded.
Sets the LUMINANCE to the minimum value when the time set in the still image output is exceeded.
Power
The product is powered by a normal DC source. Can be battery-powered - DC 6V 1.25A/34V 0.27A (Typical).
- Audio Level Meter Display
- Blue Only/ Mono
- Focus Assist
- H/V Delay
- H/V Flip
- Key Lock
- Luma(Y') Zone Check
- Marker
- Max Brightness On/ Off
- Range Error
- Time Code Display
- User Aspect
- Various Scan Modes
- Waveform/ Vector
- Zoom
- Camera Lut
- Arri Camera Metadata
- Split Zoom
- Anamorphic Desqueeze
- Sleep Mode
- Sharpness + Peaking Boost
- Auto Flip
| DISPLAY | |
| Size: | 5.5" |
| Resolution: | 1920 x 1080 (16:9) |
| Pixel Pitch: | 0.0213 x 0.0639mm |
| Colour Depth: | 16.7M |
| Viewing Angle: | 160°(H) / 160°(V) |
| Luminance: | 500cd/m2 |
| Contrast Ratio: | 1,000:1 |
| Display Area: | 122.7(H) × 69(V)mm |
| INPUT | |
| 1x BNC: | 3G-SDI A Channel Input |
| 1x HDMI: | HDMI Input |
| OUTPUT | |
| 2x BNC: | 3G-SDI Output |
| 1x HDMI: | HDMI Output |
| AUDIO | |
| Audio In: | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out: | Analog Stereo (Phone Jack), Internal Speaker(Mono) |
| FPGA Functions: | 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut., Arri Camera Metadata |
| OTHER FUNCTIONS | |
| USB: | Firmware update by USB cable Firmware update by USB memory stick |
| Conversion: | HDMI-to-HDMI, HDMI-to-SDI, SDI-to-HDMI, SDI-to-SDI |
| PHYSICAL | |
| Dimensions: | 162.5 x 92 x 27.6mm / 6.39 x 3.6 x 1.11" |
| Weight: | 0.42kg / 0.92lbs |
- 1x TV Logic F-5A 5.5in Monitor
- 1x Coiled D-Tap Cable
- 1x L-Shaped BNC Adapter
- 1x Screen Protector
