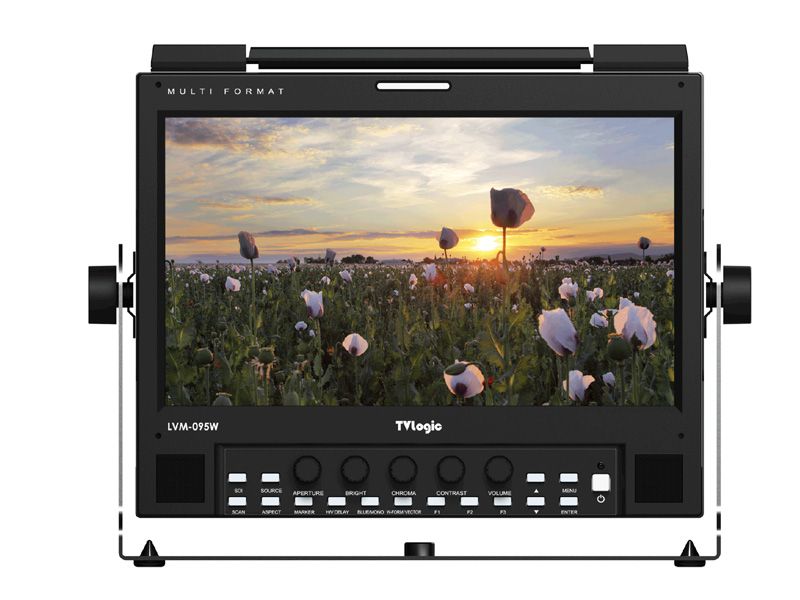

TV Logic 9" Full HD Multi-Purpose 3G/HD/SD-SDI LCD Monitor
TV Logic 9" Full HD Multi-Purpose 3G/HD/SD-SDI LCD Monitor
£3,114.55 GBP inc VAT
£3,114.55 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
The LVM-095W-N the new 9" released from TVLogic displays full HD resolution of 1920x1080. It also corresponds with a wide range of image sources (3G HD/SD-SDI, HDMI) and provides a wide viewing angle (176 degrees). For maximized efficiency and economic feasibility, LVM-095W-N is constructed from aluminum for an extra-light body weight and a holds a built-in V-Mount. Upgraded with new FHD panel with accurate color reproduction capability that exactly meets the HDTV standards, LVM-095W-N gives super clear picture quality with powerful features.
- Supports TVLogic Color Calibration Utility for propercolor alignment
- GPI (RJ45)
- Timecode Display
- Waveform/Vectorscope (Y/ Cb/Cr, Wide Type, LineWaveform)
- Range Error
- Marker
- User Aspect
- Blue Only/Mono
- H/V Delay
- UMD support (ANC, Manual, Dynamic & User)
- Closed Caption: CEA- 608/708 (SDI), Line 21, ANC
- Monitor control using RS422
- Aluminum Die-cast Case
- Focus Assist
- Built-in V-Mount
Display Spec.
Size 9"
Resolution 1920 X 1080 (16 : 9)
Pixe Pitch 0.1035mm
Color Depth 16.7M
Viewing Angle 176°(H) / 176°(V)
Luminance 400cd/m2
Contrast Ratio 750:1
Display Area 199(H) x 112(V) mm
Input
2 X BNC 3G-SDI A/B Channel Input
1 X HDMI HDMI Input
Output
1 X BNC Analog Output (Composite)
1 X BNC 3G-SDI Output
Audio
Audio In Embedded Audio/Analog Stereo (Phone Jack)
Audio Out Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Temperature Adaptive Color, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom
Closed Caption
CC-608 ANC, CC-608 LINE 21, CC-708
Other Functions
USB Firmware update by USB cable
Ethernet
Conversion HDMI-to-SDI, SDI-to-SDI,
