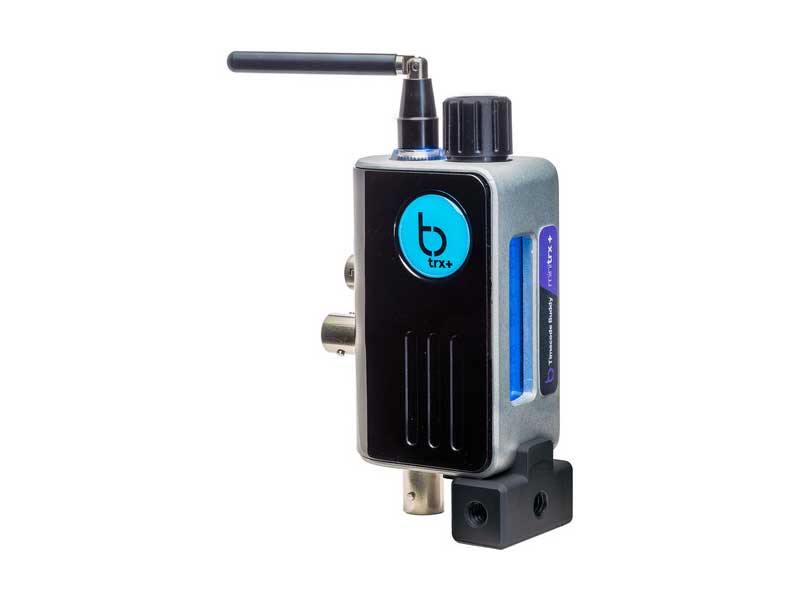

Timecode Systems Timecode Buddy: Mini TRX

Timecode Systems Timecode Buddy: Mini TRX

SKU: TCB-05CE
£595.00 GBP ex VAT
£714.00 GBP inc VAT
ex VAT £595.00 GBP ex VAT
£714.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Specifications

The Timecode Buddy Mini TRX from Timecode Systems is a versatile unit that serves as a standalone generator, a transceiver, TC IN and OUT, and a Genlock out. It offers all the functionalities of the Timecode Buddy Wi-Fi, just without the Wi-Fi. Small in size, it measures up at just 1.1 x 1.7 x 2.7” (29.0 x 44.0 x 70.0mm) and weighs just 4.3 oz (122g). This miniature timecode powerhouse is aptly proportioned to attach to a camera.

The Timecode Buddy: mini TRX serves as a standalone transceiver unit. It can also be paired with the Timecode Buddy: Wi-Fi master, enabling you to send real-time timecode and production metadata directly to up to 10 iOS devices over Wi-Fi.

  • Multi-channel digital transceiver with 4 modes for complete flexibility
  • 4 modes to choose from, namely Internal Timecode, Jam External Timecode, RF TX, or RX Timecode
  • Powered by an internal Li-polymer rechargeable battery (12 to 15 hours of minimum operation), micro USB 5V or external 7 to 24VDC
  • Micro USB offers on-the-go connectivity for internal battery charging, firmware updates, and future metadata use
  • Blue backlit display screen shows set up mode, timecode, user bits, fps (frames per second), and TX / RX channel number
  • Simple programming from an onscreen menu using a one finger navigation system with no confusing DIP switches to worry about
  • Pre-programmed with 14 license-free channels in the ISM Band, for robust timecode syncing between TCB devices
  • Provides Genlock TV Sync
  • Compatible with today's broadcast needs
  • Every component has been designed using technology to work across today's demanding recording formats, for use by television and film professionals worldwide

Function     Timecode & Genlock generator with multi-channel digital transceiver
LCD Display     2 line, 16 character, blue variable brightness backlit display
Frames Per Second (FPS)     Supported Modes: 23.98, 24, 25, 29.97, 30, 29.97DF, 30DF
Antenna     Halo Light Pipe: Bi-color LED (Green / Red)
TC Input / Output     Input: BNC connector 0.1 to 5 Vpp
Output: BNC connector (selectable standard or mic level)
Frequency     865.050 to 868.550 MHz (CE approved) and 915.050 to 918.650 MHz (FCC / IC / C-Tick approved), 920.6 to 923 MHz (ARIB Japan approved)
RF Frequency Range     Transceiver & Transmitter:
915.050 MHz
915.150 MHz
915.250 MHz
915.350 MHz
915.450 MHz
915.550 MHz
915.650 MHz
918.050 MHz
918.150 MHz
918.250 MHz
918.350 MHz
918.450 MHz
918.550 MHz
918.650 MHz
Sync Mode     Output Sync Modes: PAL, NTSC, 720p, 720p double frame, 1080i, 1080p, 1080p double frame
Video Sync     Output Video Sync: 1 Vpp / 75 Ω or 1 Vpp / 37.5 Ω for High Level Genlock mode (3D camera rigs)
Dimensions     External: 1.1 x 1.7 x 2.7" (29.0 x 44.0 x 70.0 mm)
Weight     4.3 oz (122.0 g)
