Tilta Nucleus-M Lens Control

Tilta Nucleus-M Lens Control

SKU: TIL-WLC-T03
£921.85 GBP ex VAT
£1,106.22 GBP inc VAT
ex VAT £921.85 GBP ex VAT
£1,106.22 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Specifications
  • What's Included

The Nucleus -M Lens Control System allows connections between the hand unit or handles to the motors which are completely wirelesses (no MDR required). It can be used with a gimbal, shoulder mount system or even a drone. The Nucleus-M features a wireless range of 1 1⁄4 miles which is ideal for long distance drone work.

This system is compatible with DSLR and cinema cameras and has full control of focus, iris and zoom for cinema lenses.

Each motor has a wireless module to receive signal without the MDR, which will help save space and set-up time

  • PLEASE NOTE: Batteries not included.

Material: Aluminium-Alloy
  Stainless Steel
  ABS Plastic
  Rubber
  Brazilian Rosewood

Weight: FIZ Hand Unit (with focus disk but no batteries): 0.972 lb
  FIZ Hand Unit (with focus disk and batteries): 1.164 lb
  Right Handle Grip (no batteries or adapters): 0.582 lb
  Left Handle Grip (no batteries or adapters): 0.529 lb
  Arri Rosette Male to Handle Grip Adapter: 0.161 lb
  25mm/30mm Gimbal to Handle Grip Adapter: 0.099 lb
  Motor (no rail adapter): 0.419 lb
  Motor with 15mm rail adapter: 0.496 lb
  Motor with 19mm rail adapter: 0.487 lb

Motor Dimensions: Length/Height: 4 1/2 Inches
  Width: 2 3/4 Inches (motor plus rail adapter)
  Width: 2 5/8 Inches (ports to tip of gear)
  Width: 3 2/8 Inches (end to end furthest points)
  Depth: 5/8 Inches (rail mount section)
  Depth: 3/4 Inch (base section)
  Depth: 1 3/8 Inches (motor section)

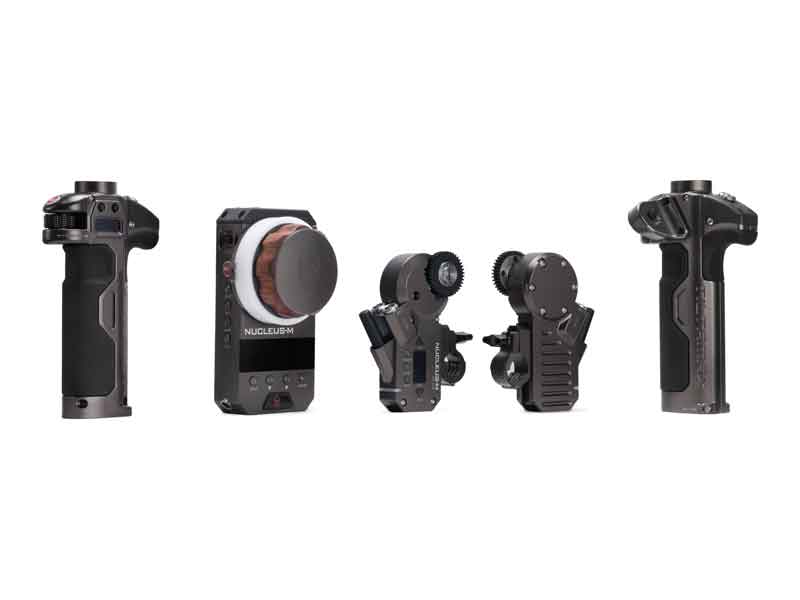

  • 1x Wireless FIZ Hand Unit
  • 2x Brushless Wireless Motors
  • 1x Wireless Handle Left (Focus)
  • 1x Wireless Handle Right (Iris, Zoom)
  • 4x Follow Focus marking disks
  • 1x 7-Pin to 740mm P-TAP Motor Power Cable
  • 1x 296mm 7-Pin to 7-Pin Straight Motor Connection Cable
  • 1x 18650 4 Slot Battery Charger
  • 2x Handle to Arri Standard Rosette Adapter
  • 2x Handle to Gimbal Bar Adapter (Compatible with 25mm/30mm Diameter)
  • 1x Wireless FIZ Hand Unit Strap
  • 1x Hard Shell Waterproof Safety Case
