Teradek Spark 4K Transmitter/Receiver Set
Teradek Spark 4K Transmitter/Receiver Set
SKU:
TER-10-1855
Regular price
£1,289.00 GBP ex VAT
£1,546.80 GBP inc VAT
£1,546.80 GBP inc VAT
Regular price
ex VAT
Sale price
£1,289.00 GBP ex VAT
£1,546.80 GBP inc VAT
Unit price
per
£1,546.80 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Transport your 4K HDR video from source to screen in 0.001 seconds with the Spark 4K Transmitter and Receiver Set. Spark 4K is a wireless video system that transmits premium quality video and audio to your desired HDMI destination at up to 500 feet. It’s the perfectly simple A/V solution for zero-delay wireless transmission, designed for everything from weddings, conferences, live sports, and trade shows, to table tops and cameras.
The Spark 4K Transmitter and Receiver Set has everything you need to effortlessly stream. The TX/RX set is simple to set up and helps to create a clean, organized work environment, wirelessly transmitting vivid images – with 10-Bit 4:2:2 color sampling and 4Kp30 resolution – at up to 500 feet. And thanks to a lightweight design, Spark 4K is perfect for on-the-move camera work.
With Spark 4K you can transmit in even the most crowded areas with confidence. That’s because Spark 4K uses 5GHz frequency for less sensitivity to line-of-sight obstructions and smart frequency hopping to automatically find a clear channel.
Key features of this streaming include dual-powering options (USB-C and Barrell Connector) for backup battery redundancy – with the transmitter having an internal battery life of up to two hours – signal status and pairing with the Launchpad desktop and mobile app, and multicast transmission. The Spark 4K Transmitter works with cameras, switchers, computer, and any self-generated video source. The Spark 4K Receiver works with projectors, switchers, monitors, TV screens, and LED video walls.
Zero-Delay Signal Integrity
Transmit and receive video with less than 1ms of delay.
Transmit and receive video with less than 1ms of delay.
Mobility
Get wireless coverage for up to 500 feet of range. Now, your computers, cameras, switchers, projectors, and screens are all within range with robust wireless connectivity.
Get wireless coverage for up to 500 feet of range. Now, your computers, cameras, switchers, projectors, and screens are all within range with robust wireless connectivity.
4K HDR Color
Maintain premium video quality at 10-Bit 4:2:2 color sampling.
Maintain premium video quality at 10-Bit 4:2:2 color sampling.
Smart Transmission
Transmit in crowded areas with confidence. Spark 4K uses the 5GHz frequency for less sensitivity to line-of-sight obstructions, and smart frequency hopping to automatically find a clear channel.
Transmit in crowded areas with confidence. Spark 4K uses the 5GHz frequency for less sensitivity to line-of-sight obstructions, and smart frequency hopping to automatically find a clear channel.
Lighter Than Lightweight
Spark TX weighs just 5.6oz, perfect for on-the-move camera work.
Spark TX weighs just 5.6oz, perfect for on-the-move camera work.
Smaller Than Small
Spark RX is just 4.39" x 3.19" x 1", just slightly larger than a cassette tape.
Spark RX is just 4.39" x 3.19" x 1", just slightly larger than a cassette tape.
Common Workflows Using Spark 4K
- Professional A/V (conferences, tradeshows, pop-up events) Workflows:
- Computer > Spark 4K > Consumer TV/Projector (Up to 2 sources)
- Computer > Spark 4K > Graphics Processors > Projector
- Computer > Spark 4K > Video Mixer
- Camera > Spark 4K > Switcher > Consumer TV/Projector
- Camera > Spark 4K > Switcher > Live Stream
- House of Worship Workflows:
- Computer > Spark 4K > Consumer TV/Projector (Up to 2 sources)
- Camera > Spark 4K > Monitor/Projector
- Camera > Spark 4K > Switcher
- Live Sports Workflows:
- Camera > Spark 4K > Switcher
- Camera > Spark 4K > Monitor (For coaches)
- Live Event (weddings, funerals) Workflows:
- Camera > Spark 4K > Switcher
- Switcher Program Output > Spark 4K > Live event monitor/projector
- Zero-delay 4K wireless video (<0.001sec)
- 4K HDR with 10-bit 4:2:2
- Wireless range of up to 500 ft line of sight
- Internal TX battery allows quick deployments and fewer power accessories
- USB-C and Barrel Connector for power
- Third party power solutions

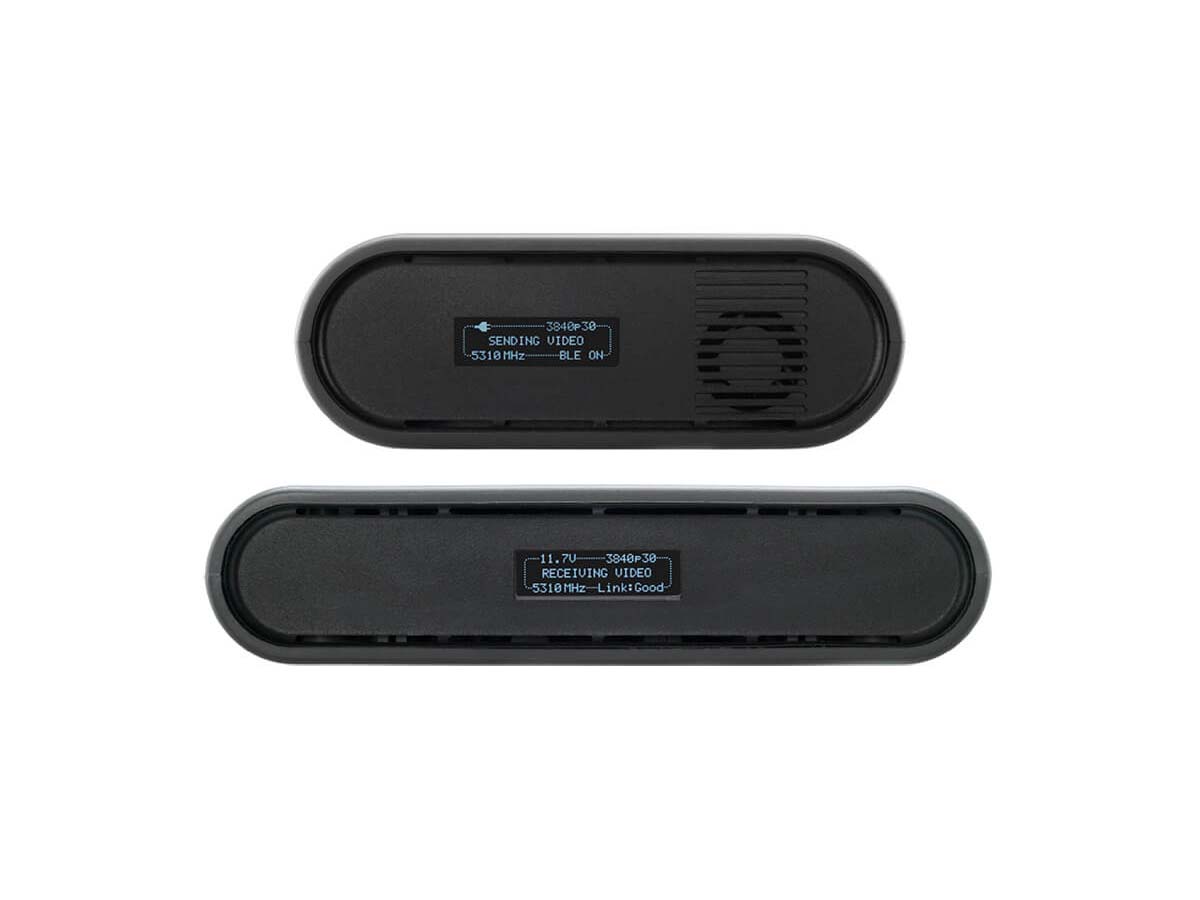

- OLED display for status and troubleshooting
- Supports up to 4Kp30 with HDMI
- Multicast transmission: 1:2 TX:RX
| Spark 4K TX | |
| VIDEO | |
| Video Inputs: | 1x HDMI 1.4b Type-A receptacle |
| Colour Sampling: | RGB 4:2:2, 10-bit |
| Delay TX to RX: | <0.001sec (without format conversions) |
| SUPPORTED RESOLUTIONS | |
| Supported Resolutions: | 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 |
| VIDEO PROCESSING | |
| Video Compression: | Visually lossless |
| AUDIO PROCESSING | |
| Audio Compression: | 48kHz 24-bit PCM |
| INPUTS | |
| Audio Input: | Embedded HDMI Audio Input (2 channel) |
| PHYSICAL | |
| Dimensions: | 3.44” x 2.66” x 1.22” (87mm x 68mm x 31mm) |
| Weight: | 158g (5.6 oz) |
| Construction: | ABS Plastic |
| Mountability: | Multiple mounting options with M3 and 1/4-20” holes |
| INTERFACES | |
| Configuration Interfaces: | OLED display - Input video format, Selected frequency, Video Quality % , Link status |
| Switches: | On/Off Switch |
| Mobile App: | Launchpad App |
| Desktop App: | Launchpad application for OSX & Windows |
| USB Interface Functionality: | Upgrade via Micro-USB |
| External Control: | Enable/disable Bluetooth |
| Bluetooth: | 2.4 GHz |
| NETWORK | |
| Wireless: | DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz |
| RF Channel Selection: | Auto only, 40 MHz only, no blocked frequencies |
| Encryption: | AES-128, RSA-1024 key exchange |
| RF Power: | 19 dbm EIRP (<80mW transmit power) |
| Range: | Up to 500 ft line of sight |
| Unicast Multicast: | Can connect one transmitter to up to 2 receivers |
| Noise Rejection: | Can coexist with Wi-Fi and 5GHz cordless phones, and can operate up to 4 sets in same location |
| POWER | |
| Power Input: | USB-C power input |
| Battery: | Internal 9.5Wh battery (1.5hr run time) |
| Nominal Power Consumption: | 7.5W charging battery while on 5.5W not charging battery while on 5W charging batt and off |
| ENVIRONMENTAL | |
| Operating Temperature: | 0°C - 40°C |
| Spark 4K RX | |
| VIDEO | |
| Video Outputs: | 1x HDMI 1.4b Type-A receptacle |
| Colour Sampling: | RGB 4:2:2, 10-bit |
| Delay TX to RX: | <0.001sec (without format conversions) |
| SUPPORTED RESOLUTIONS | |
| Supported Resolutions: | 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 |
| VIDEO PROCESSING | |
| Video Compression: | Visually lossless |
| AUDIO PROCESSING | |
| Audio Compression: | 48kHz 24-bit PCM |
| OUTPUTS | |
| Audio Output: | Embedded HDMI Audio Input (2 channel) |
| PHYSICAL | |
| Dimensions: | 4.39” x 3.19” x 1” (112mm x 81mm x 25mm) |
| Weight: | 187g (6.6 oz) |
| Construction: | ABS Plastic |
| Mountability: | Multiple mounting options with M3 and 1/4-20” holes |
| INTERFACES | |
| Configuration Interfaces: | OLED display - Input video format, Selected frequency, Video Quality % , Link status |
| Switches: | On/Off Switch |
| Mobile App: | Launchpad App |
| Desktop App: | Launchpad application for OSX & Windows |
| USB Interface Functionality: | Upgrade via Micro-USB |
| External Control: | Enable/disable Bluetooth |
| Bluetooth: | 2.4 GHz |
| NETWORK | |
| Wireless: | DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz |
| RF Channel Selection: | Auto only, 40 MHz only, no blocked frequencies |
| Encryption: | AES-128, RSA-1024 key exchange |
| RF Power: | 17 dbm EIRP (<51mW transmit power |
| Range: | Up to 500 ft line of sight |
| Unicast Multicast: | Can connect one transmitter to up to 2 receivers |
| Noise Rejection: | Can coexist with Wi-Fi and 5GHz cordless phones, and can operate up to 4 sets in same location |
| POWER | |
| Power Input: | USB-C and 6-18 DC power input |
| Battery: | NONE |
| Nominal Power Consumption: | 7.5 Watts |
| ENVIRONMENTAL | |
| Operating Temperature: | 0°C - 40°C |
- 1x Hot Shoe Adaptor
- 1x Lightstand Adaptor ¼-20in
- 1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
- 1x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in Cable
- 1x PSU 18W AC Adapter 12VDC (Int) - 6ft Cable
- 1x PSU 30W USB-C Power Adapter
- 1x Teradek Standard Terms and Conditions
- 1x Insert - Product Register
- 1x Quickstart Guide - Spark 4K
