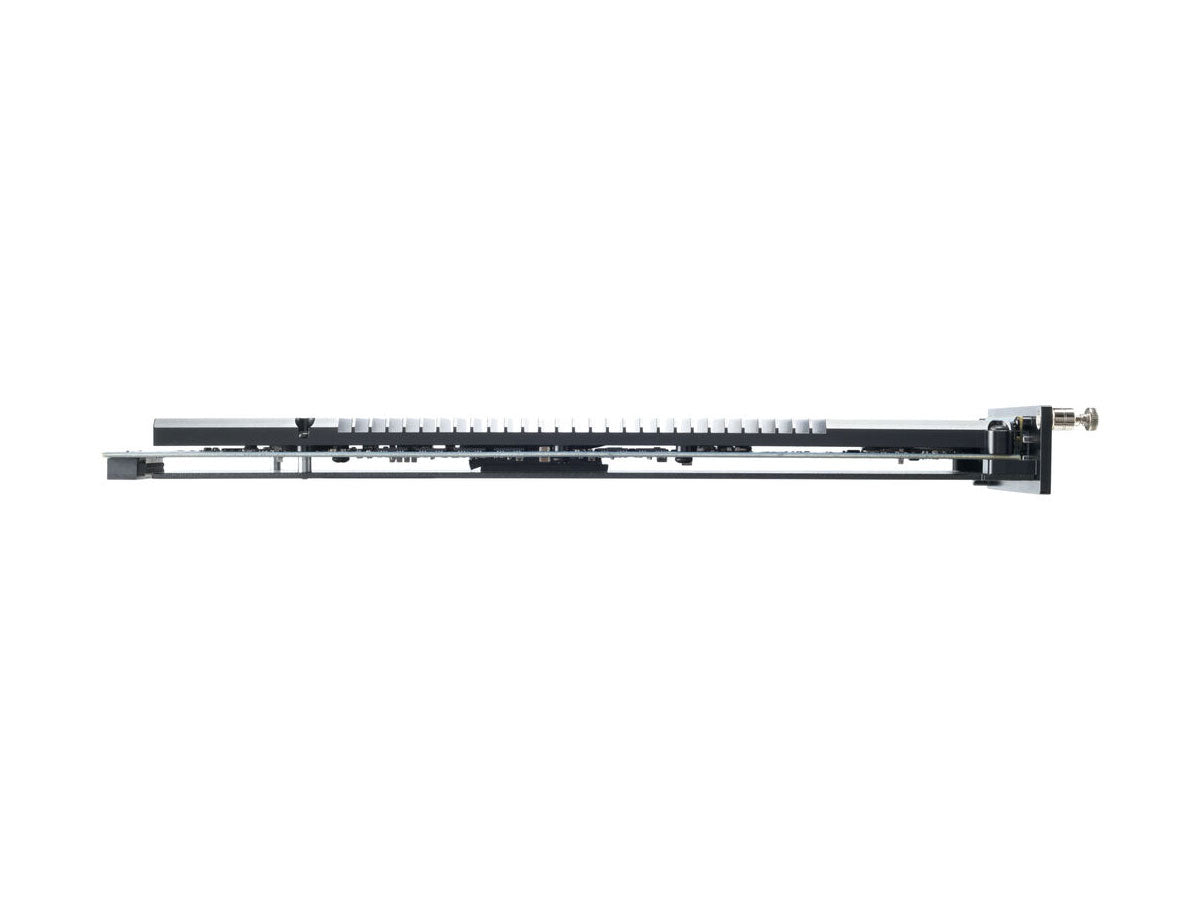

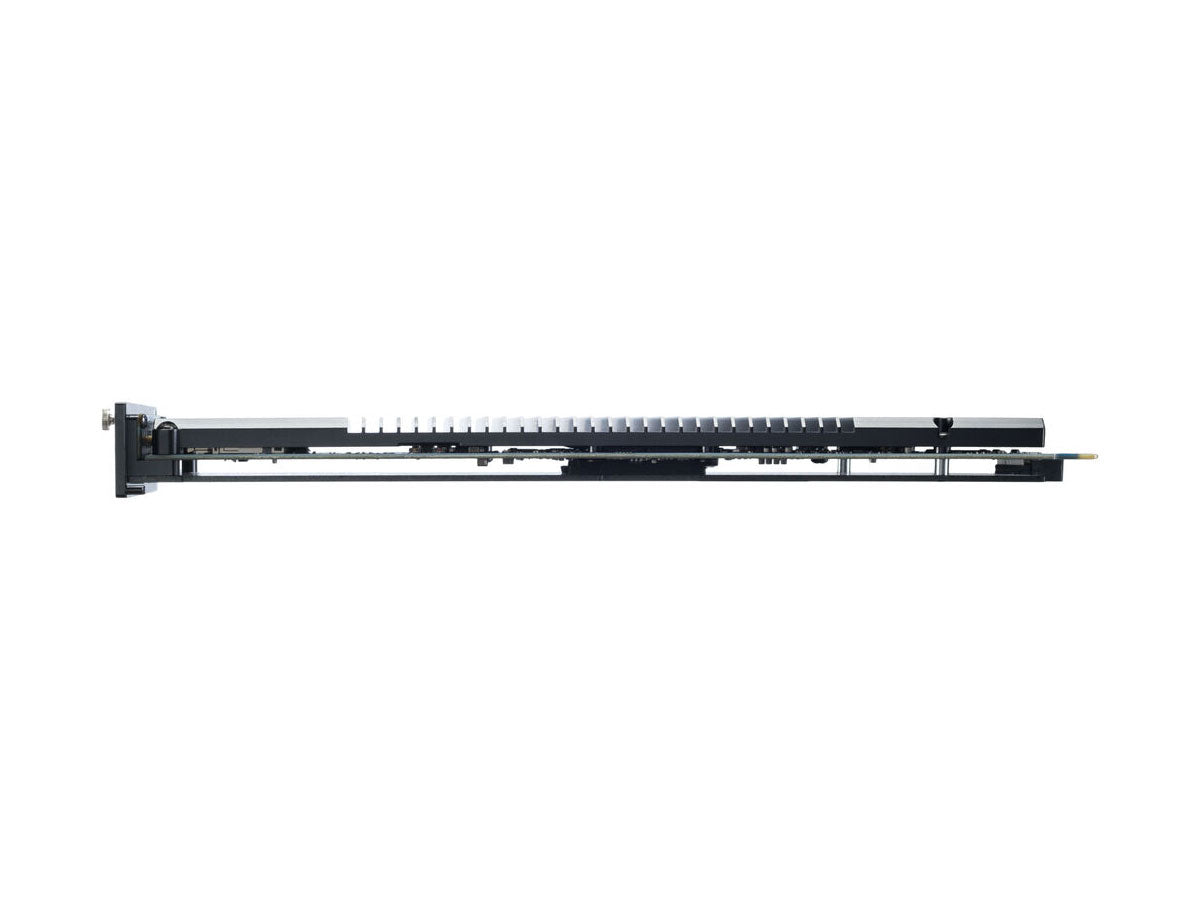

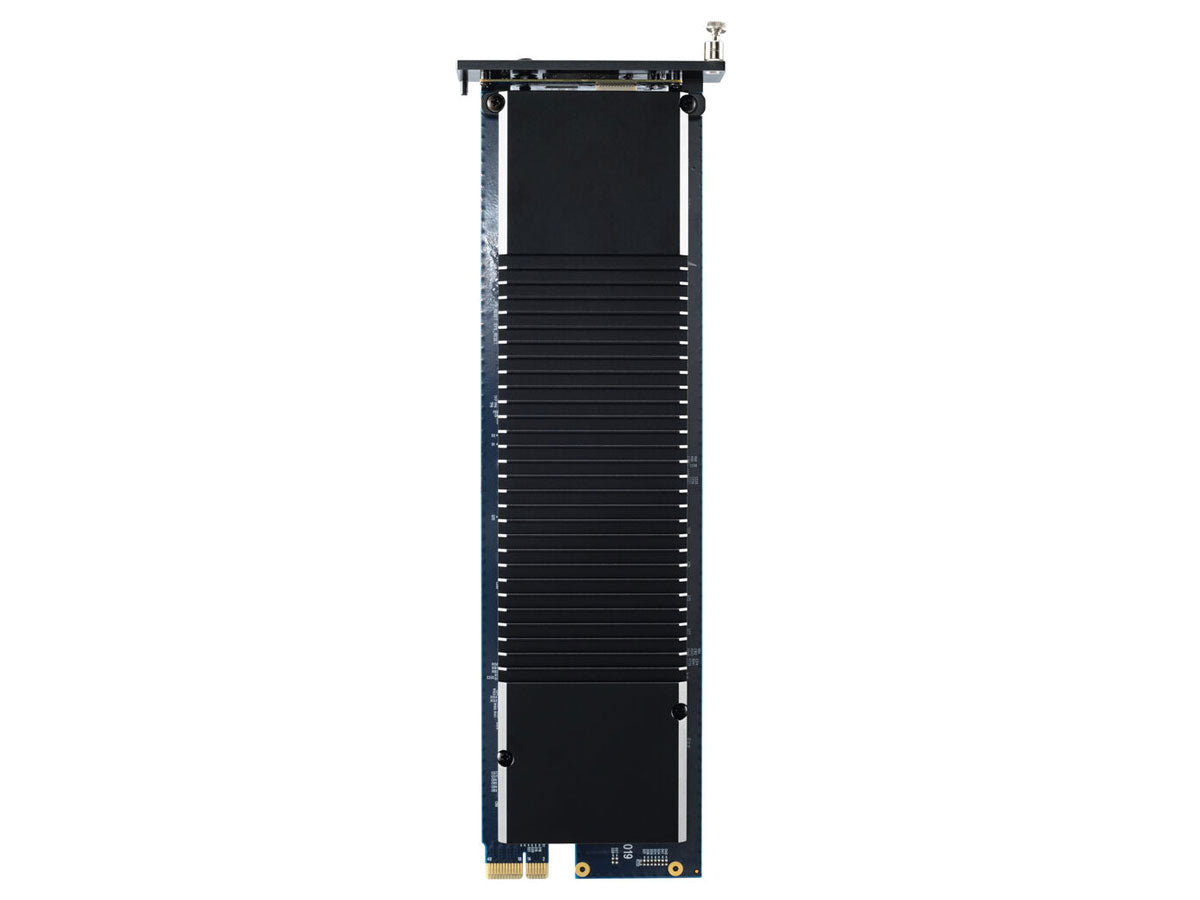

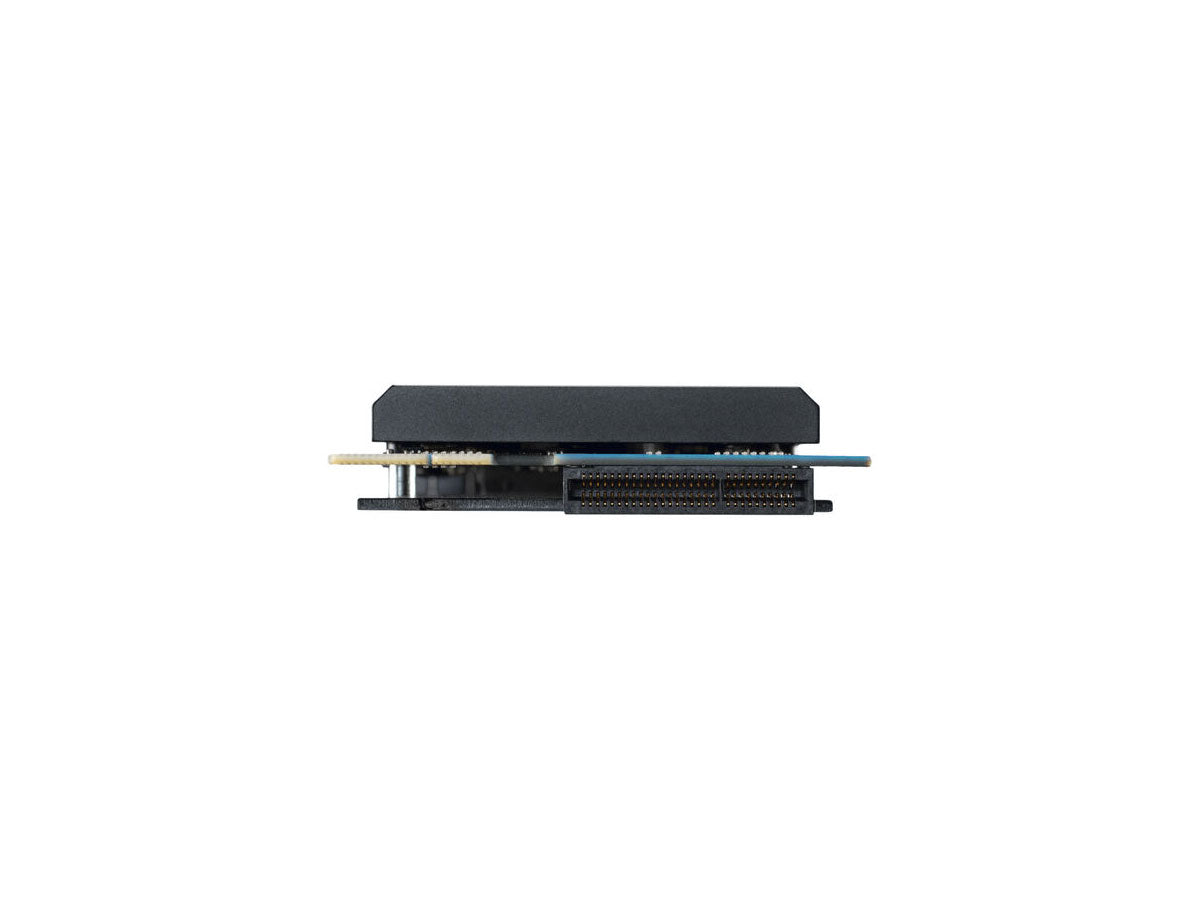

Teradek Prism 853 4K 10bit HEVC/AVC 12G-SDI Encoder Card

Teradek Prism 853 4K 10bit HEVC/AVC 12G-SDI Encoder Card

SKU: TER-10-2853
£2,197.00 GBP ex VAT
£2,636.40 GBP inc VAT
ex VAT £2,197.00 GBP ex VAT
£2,636.40 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

Industry leading, low-latency blade encoder for Prism 1RU and 2RU rack mount systems. Supports 4K, 10-bit, 4:2:2 video encoding in a high density format. Can transmit video to Prism, Cube, Slice, Core, and T-Rax decoders.

  • Designed for Prism Rack Base System
  • HEVC / H.264 compression
  • Supports encoding up to 2160p60
  • HDR ready: 10-bit, 4:2:2
  • Protocols: SRT, MPEG-TS, RTMP(S)
  • 12G-SDI input and looping output
  • 3.5mm analog audio input and output
VIDEO
Video Inputs: 1x SD/HD/3G/6G/12G-SDI (75 Ω BNC)
HDR Support: 10-bit, 4:2:2
Video Outputs: 1x SD/HD/3G/6G/12G-SDI (75 Ω BNC)
SUPPORTED RESOLUTIONS
Supported Resolutions:
  • 4Kp 23.98/24/25/29.97/30/50/59.94/60
  • 1080p 23.98/24/25/29.97/30/50/59.94/60
  • 1080i 50/59.94/60*
  • 1080PsF 23/24/25/29/30*
  • 720p 50/59.94/60
  • 576i 480i
  • *Prism encoders can encode interlaced or PsF video, but it will be deinterlaced inside the Prism first for H.264. Prism does not output H264 interlaced stream, but can output HEVC interlaced streams. Prism decoders can interlace video, i.e. it can receive progressive stream and output 1080i/etc video.
VIDEO PROCESSING
Video Compression:
  • ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
  • AVC: Baseline, Main, High, High10, High 4:2:2 up to 5.2 level
  • ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
  • HEVC: Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier
Supported Video Bitrate: 250 Kbps to 85 mbps
Video Format Conversion Support: Built in Video Scaler and Deinterlacer
Colour Correction: None
PROTOCOL SUPPORT
Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL,IGMP
Supported Video Transport Protocols: RTMP/RTMPS, MPEG-TS, Secure Reliable Transport (SRT), RTSP, Airmix
Remote Control: Teradek Core
AUDIO PROCESSING
Audio Compression: AAC-LC
INPUTS
Audio Input:
  • Embedded, 2 channels
  • 3.5mm Stereo Line Level Analog
OUTPUTS
Audio Output:
  • Embedded, 2 channels
  • 3.5mm Stereo Line Level Analog
INTERFACES
Configuration Interfaces:
  • Feature-rich Web UI for configuration and control

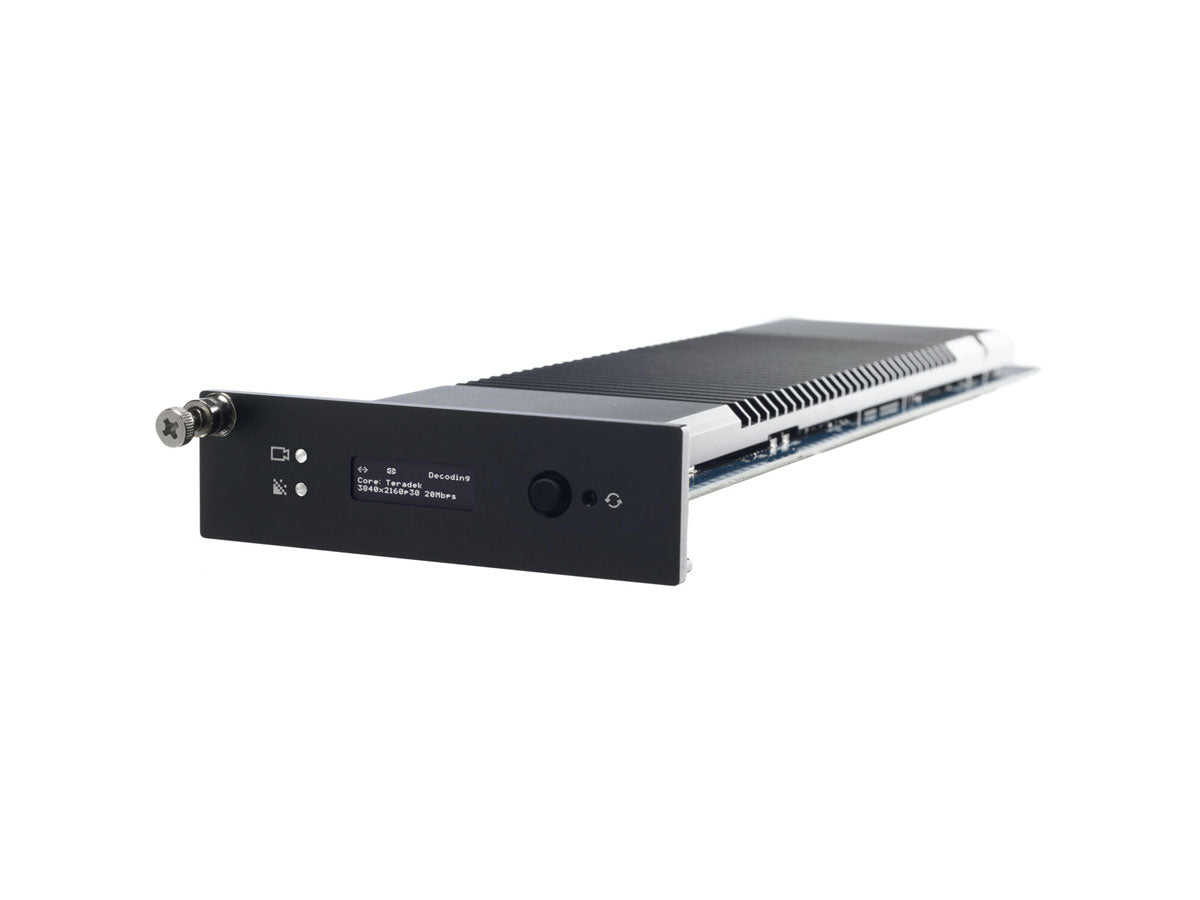

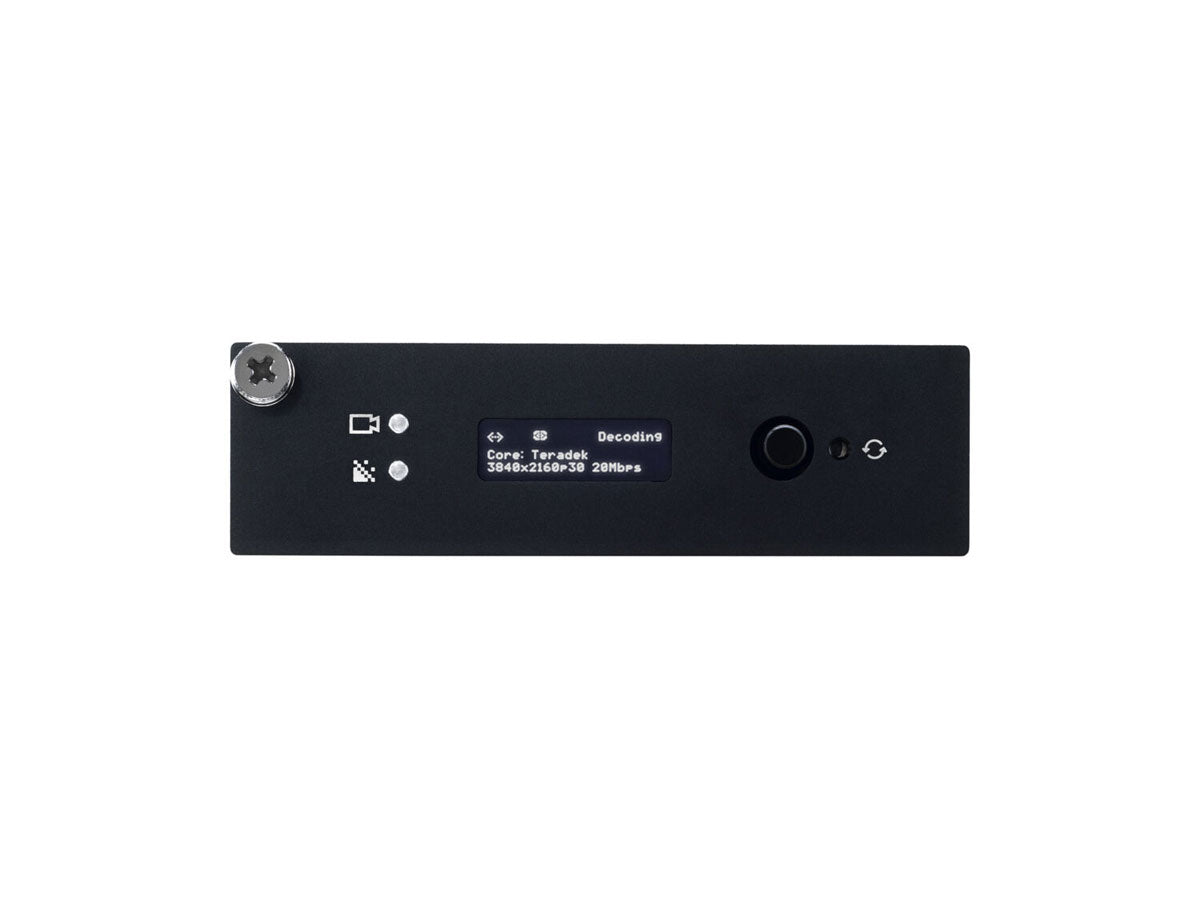

  • 0.9” OLED Status Display w/ Nav control
  • Video LED
  • ENC/DEC LED
Switches: Reset Switch
NETWORK
Ethernet: Dual 10/100/100 Ethernet
POWER
Power Input: Powered By Chassis
Nominal Power Consumption: Up to 15W per card



  • 1 x Prism 853 4K 10bit HEVC/AVC 12G-SDI Encoder Card

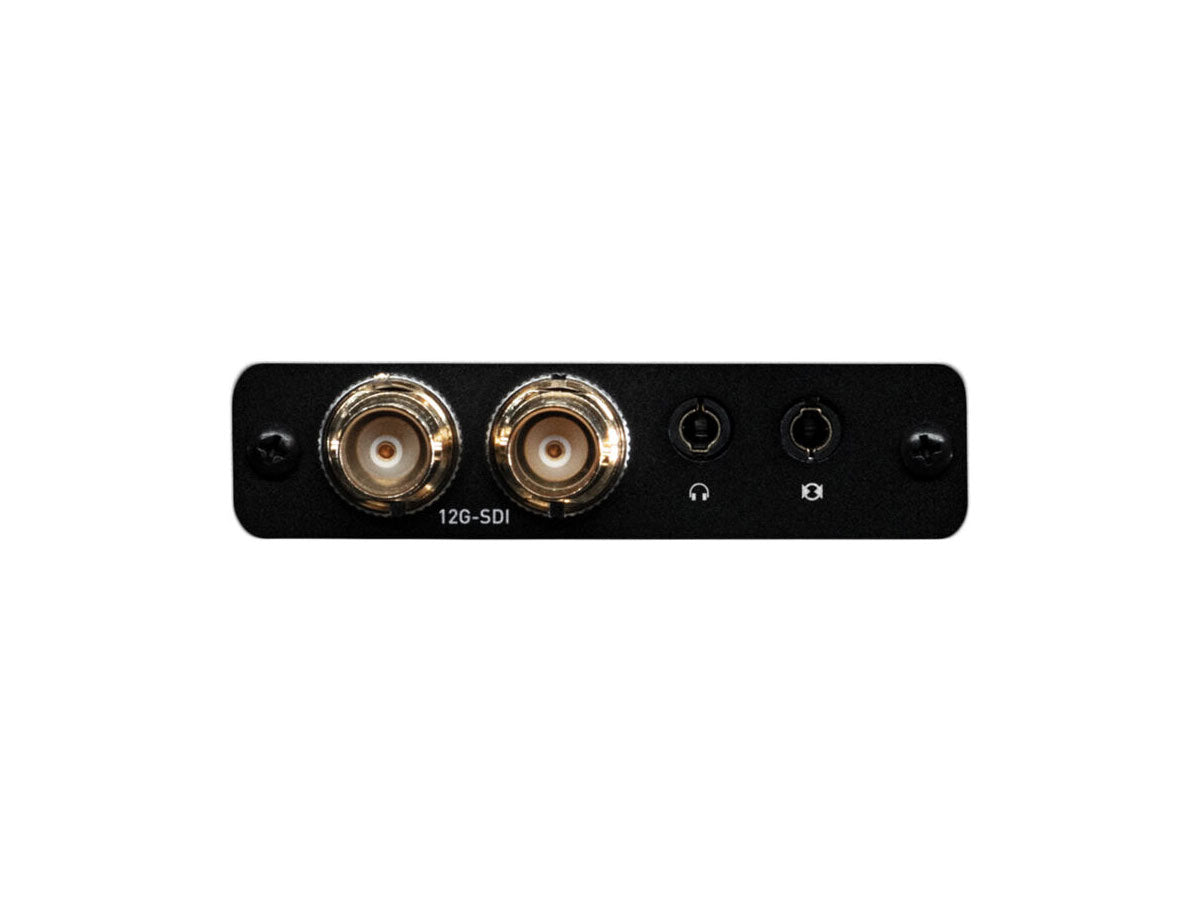

  • 1x Audio/Video Backplate
