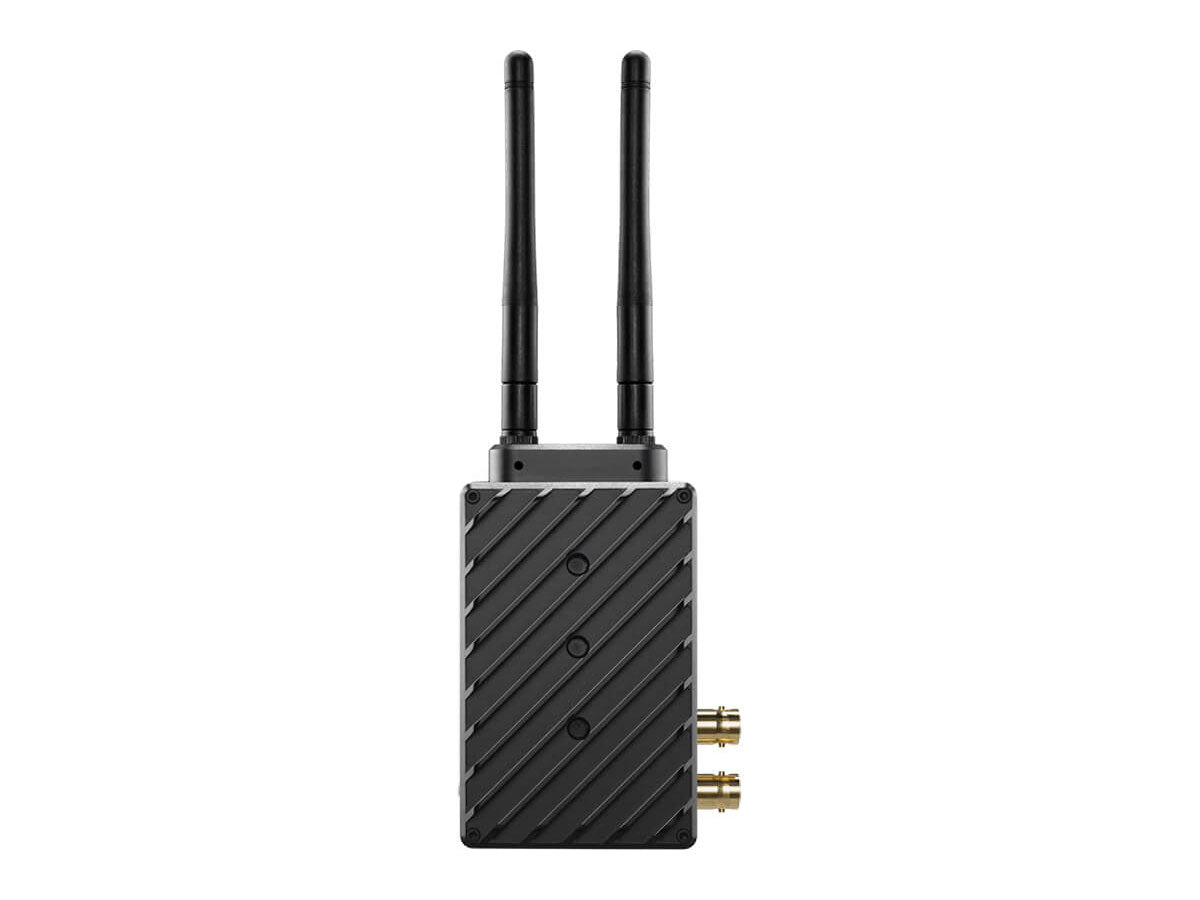

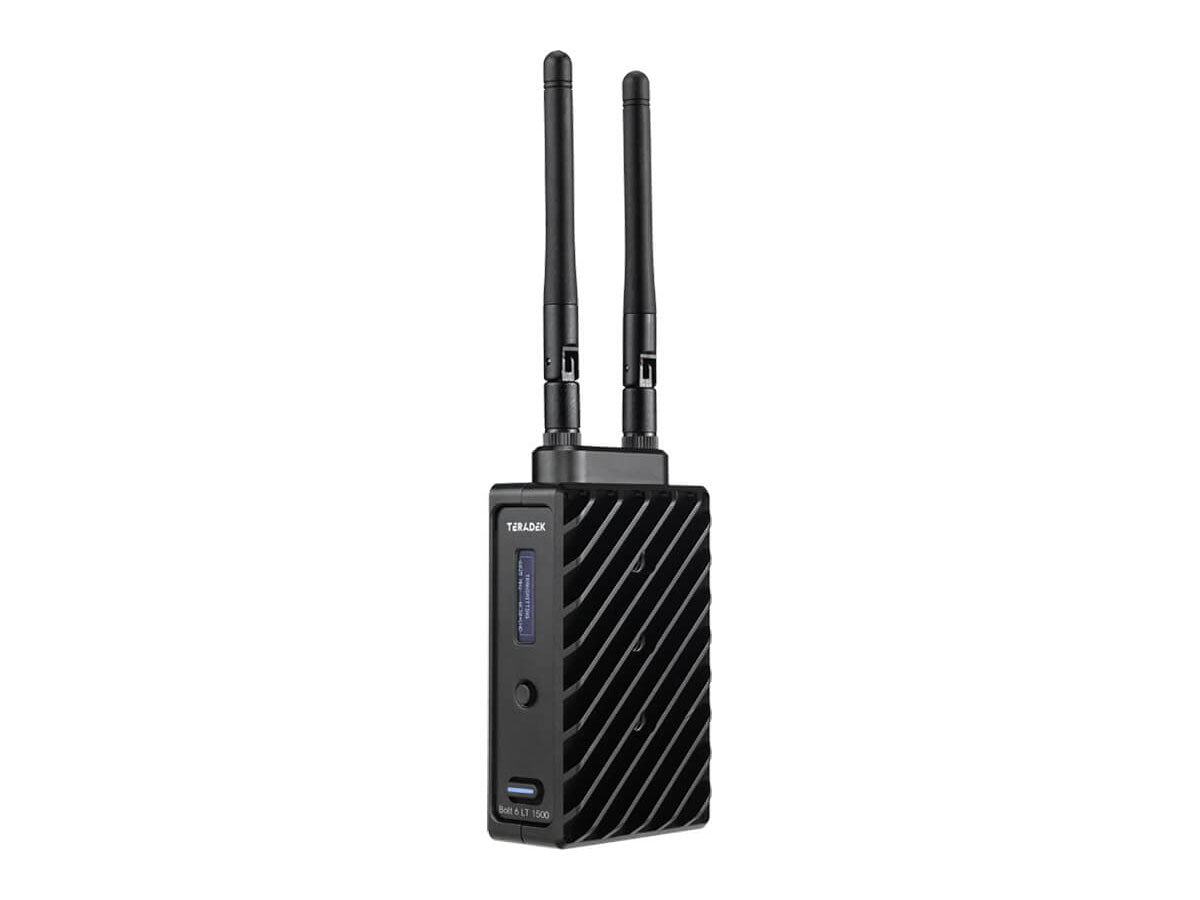

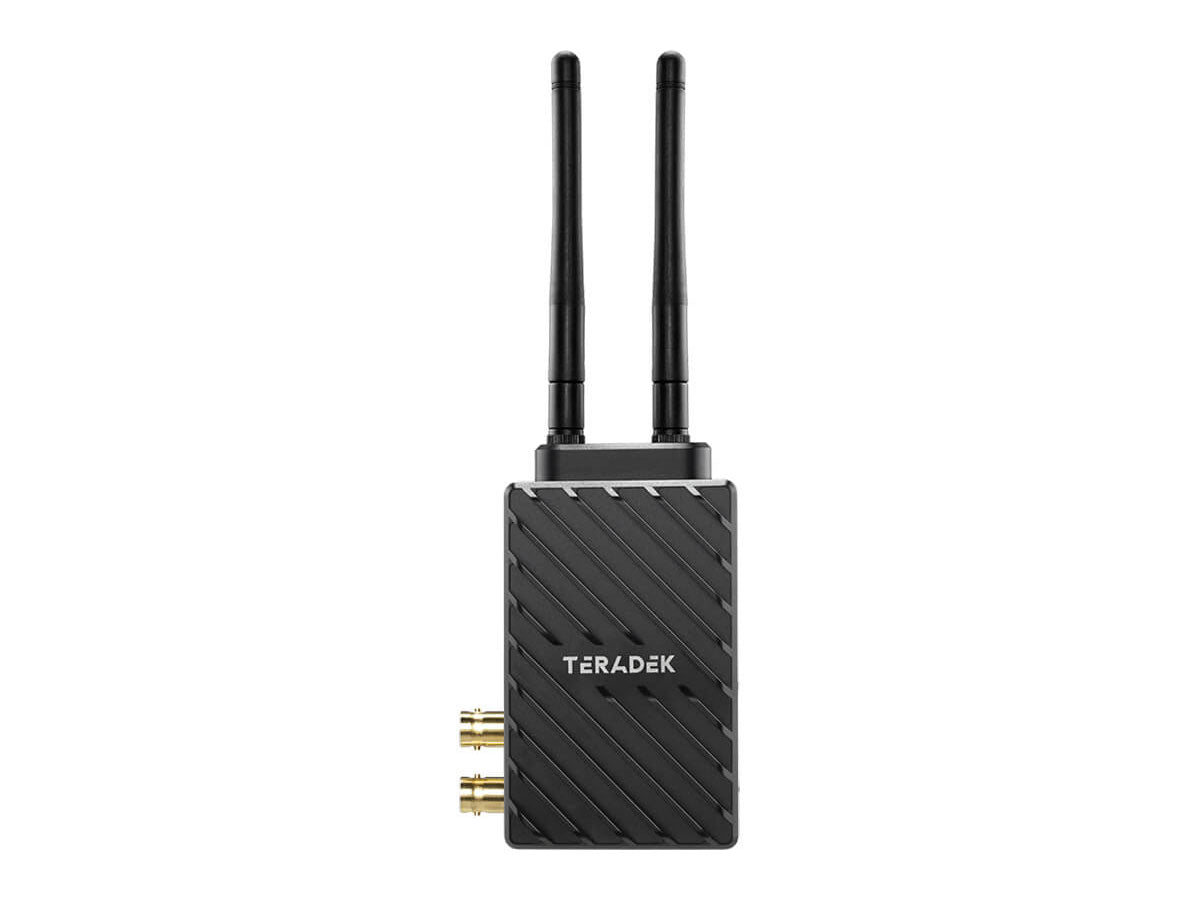

Teradek Bolt 6 LT MAX Transmitter

Teradek Bolt 6 LT MAX Transmitter

SKU: TER-10-2281
£4,933.55 GBP ex VAT
£5,920.26 GBP inc VAT
ex VAT £4,933.55 GBP ex VAT
£5,920.26 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
The Bolt 6 LT Set is a real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 LT can send and receive color-accurate, True-HDR videos in under 0.001 seconds using the set’s included Bolt 6 LT video Transmitter and Receiver.
Key features of the Bolt 6 LT Set include range options designed for a variety of production needs, fast reconnection times, an intuitive, easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 LT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 LT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.
Bolt 6 also offers new tools for high-end users, including better visibility over connections and signals, adding confidence to the workflow no matter how challenging the environment. It additionally gives you access to our new Long Range Mode, offering better video quality at longer distances. A 5-pin USB adapter, sold separately, allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors.
The included Transmitter, our most compact design ever, and the Receiver are cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).
Bolt 6 LT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates. And while the Bolt 6 LT Set has both 4K HDMI and 1080p SDI input and outputs, you can also select the Bolt 6 LT HDMI model if your production needs require HDMI only.
About 6GHz
Wifi routers, cell phones, IOT devices, and competitor wireless video systems are among the many devices that use the 5GHz frequency to communicate wirelessly, making it a highly crowded space where you’ll likely encounter frequent interference and even video dropouts. Bolt 6 uses the newly opened 6GHz wireless frequency for a dramatically quieter wireless environment (though it can still be set up in 5GHz Mode for backwards compatibility). In 6GHz Mode, Bolt 6 users will access faster connections and less interference for a better wireless experience.6GHz frequency is now available in the US and Canada under UNII-5 government specifications. More countries will open the 6GHz frequency in 2023.
  • Real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology
  • Zero Delay
  • 6GHz Wireless Frequency Access
  • Bolt 4K Cross-Compatibility
  • Improved Long Range Mode

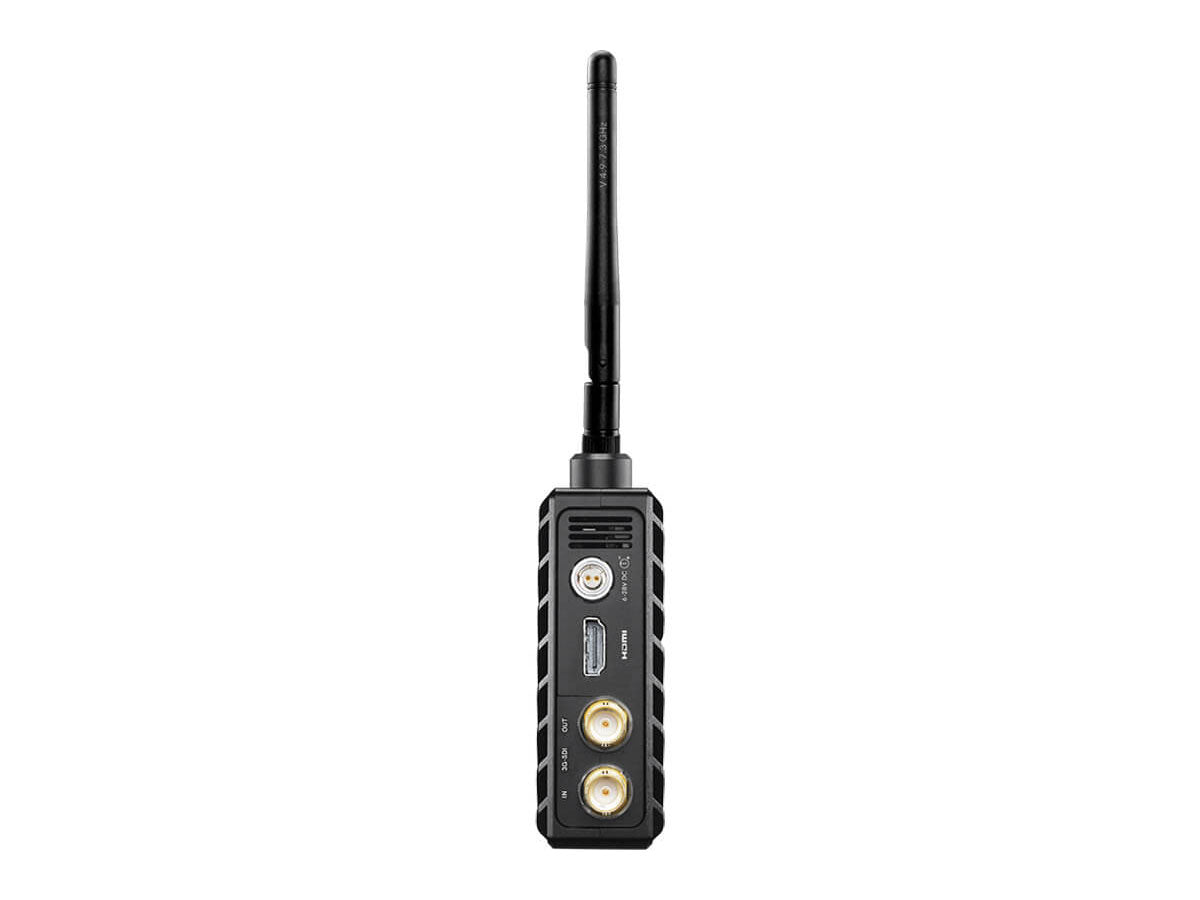

  • Inputs: LT: HDMI, 3G-SDI / LT HDMI: HDMI
  • Outputs: LT: HDMI, 3G-SDI / LT HDMI: HDMI
VIDEO
VIdeo Inputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
1 x HDMI 1.4b Type-A receptacle
Video Outputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Colour Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay TX to RX: <0.001sec
Input Cross Conversion: Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)
SUPPORTED RESOLUTIONS
Supported Resolutions: 4Kp23.98/24/25/29.97/30 (HDMI only)
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p59.94 576p50
480i(NTSC)/576i(PAL)
VIDEO PROCESSING
Video Compression: Visually Lossless
Colour Correction: None
AUDIO PROCESSING
Audio Compression: 48kHz 24-bit PCM
INPUTS
Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)
PHYSICAL
Dimensions: 60mm x 103mm x 33mm
Weight: 206g (7.3oz)
Construction: Milled Aluminum (Chassis) and regulation-compliant PCB

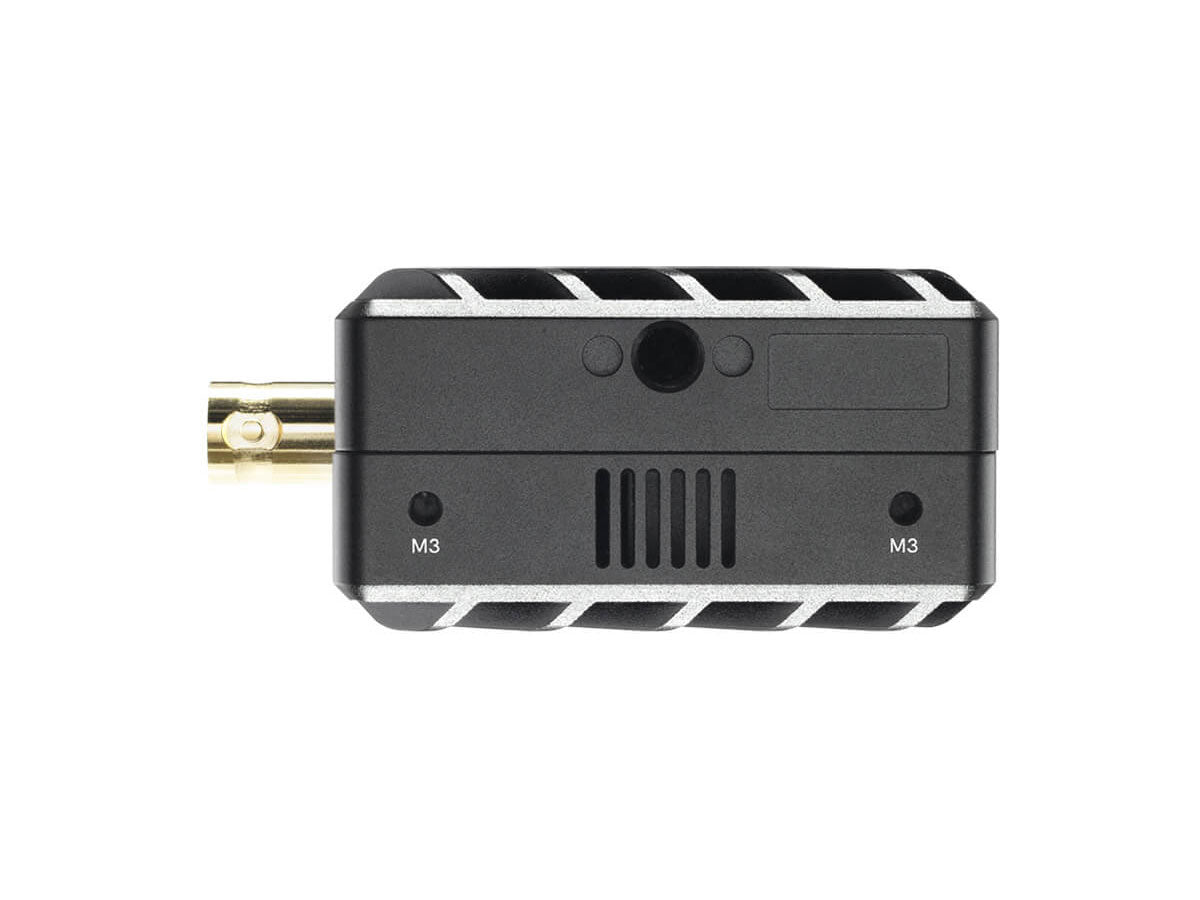

Mountability: Multiple mounting options with 1/4"x20 and M3 holes
INTERFACES
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Mobile App: Bolt App
Desktop App: Bolt Manager application for OSX & Windows
USB Interface Functionality: Upgrade via Micro-USB
Bluetooth: 2.4 GHz
NETWORK

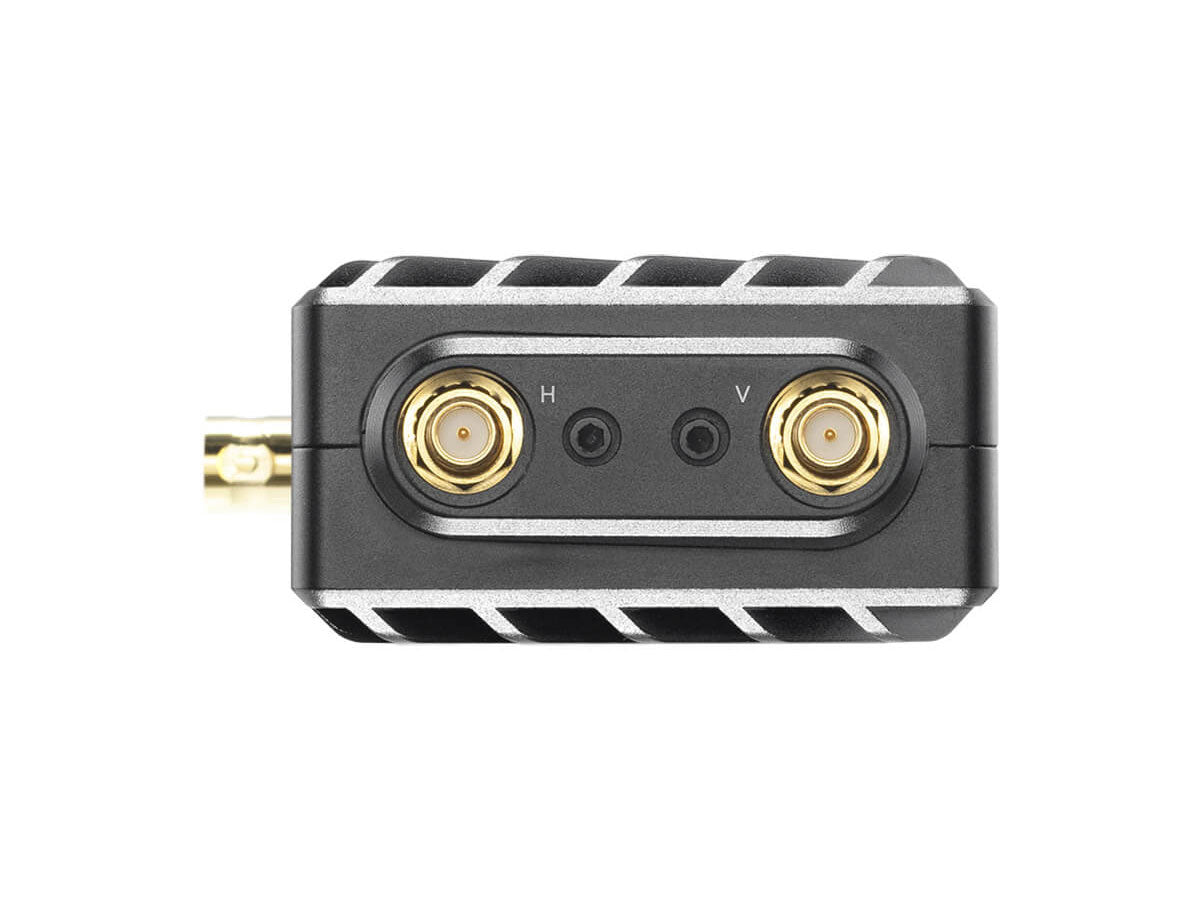

Antennas: 2 External 2dBi antennas (included)
Wireless: Non-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz
RF Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
RF Power: 23 dbm EIRP
Range: Up to 5000 ft, line of sight
Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 sets in same location
Interoperability: Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
POWER
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: None, optional Sony/Canon dual battery plate
Nominal Power Consumption: 9 Watts
ENVIRONMENTAL
Operating Temperature: 0-40℃
  • 1x Bolt 6 LT MAX TX
  • 1x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
  • 1x SDI - BNC to BNC Cable, 10in
  • 1x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable
  • 1x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
  • 1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
