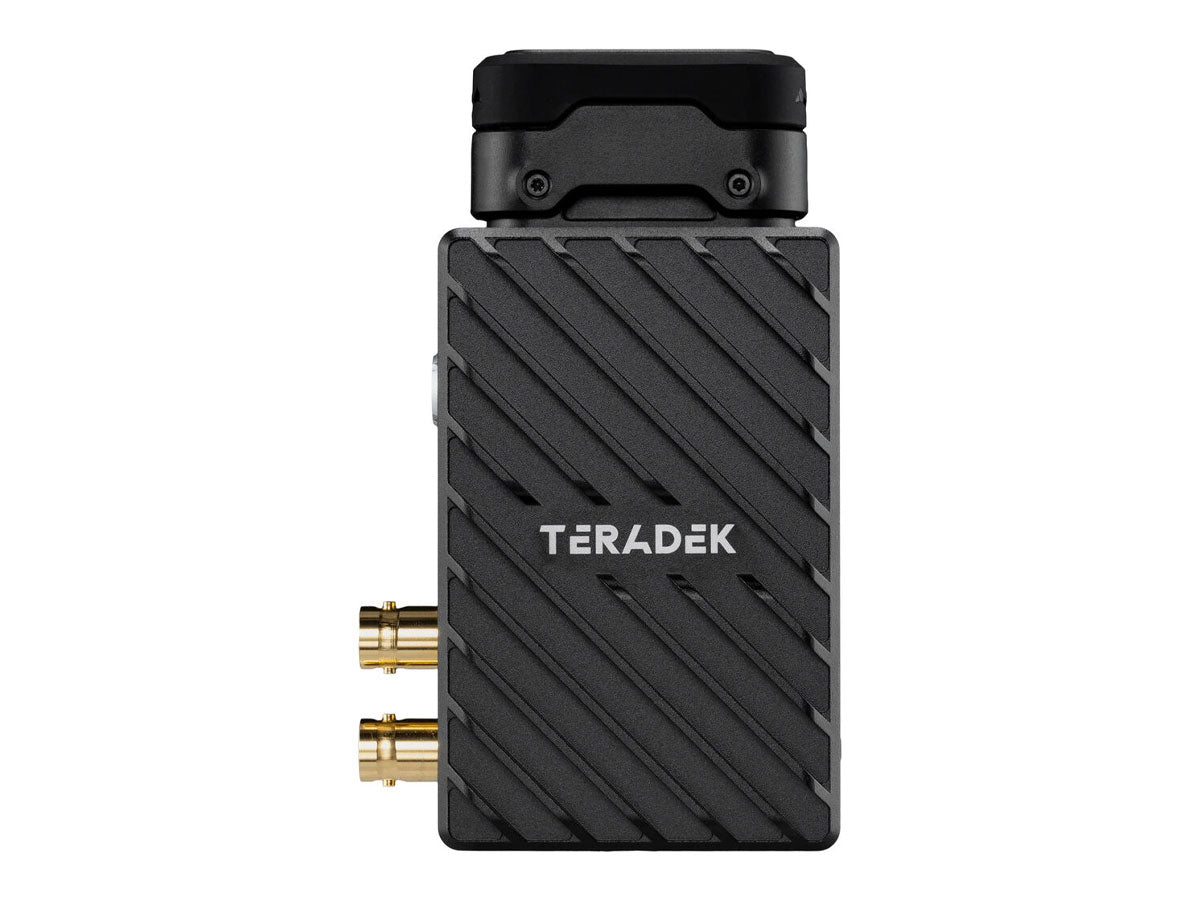

Teradek Bolt 6 LT 750 Int Ant TX
Teradek Bolt 6 LT 750 Int Ant TX
SKU:
TER-10-2263-I
Regular price
£1,281.72 GBP ex VAT
£1,538.06 GBP inc VAT
£1,538.06 GBP inc VAT
Regular price
ex VAT
Sale price
£1,281.72 GBP ex VAT
£1,538.06 GBP inc VAT
Unit price
per
£1,538.06 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Bolt 6 LT TX is a wireless video transmitter that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
Bolt 6 LT TX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode.
The Transmitter is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).
The 750 model of Bolt 6 LT TX includes permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.
Bolt 6 LT TX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode.
The Transmitter is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).
The 750 model of Bolt 6 LT TX includes permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.
- Built-in antenna (cannot ever be removed or changed)
- Omnidirectional
- Most compact form factor
- Zero hassle, never need to replace broken antennas
- Uses smaller V antenna, therefore recommended to use with other V+V configurations
- Only works up to 750ft
| VIDEO | |
| Video Inputs: | 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle |
| Video Outputs: | 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) |
| SDI Ancillary Data Support: | Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. |
| Colour Sampling: | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit |
| Delay TX to RX: | <0.001sec |
| Input Cross Conversion: | Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout) |
| SUPPORTED RESOLUTIONS | |
| Supported Resolutions: | 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 |
| VIDEO PROCESSING | |
| Video Compression: | Visually Lossless |
| Colour Correction: | None |
| AUDIO PROCESSING | |
| Audio Compression: | 48kHz 24-bit PCM |
| INPUTS | |
| Audio Input: | Embedded SDI/HDMI Audio Input (2 Channel) |
| PHYSICAL | |
| Dimensions: | 2.8" x 4.7" x 1.3" (72mm x 119.8mm x 33.1mm) |
| Weight: | 7.5 oz (212 g) |
| Construction: | Milled Aluminum (Chassis) and regulation-compliant PCB |
| Mountability: | Multiple mounting options with 1/4"x20 and M3 holes |
| INTERFACES | |
| Configuration Interfaces: | OSD with Menu, Joystick Navigation |
| Switches: | On/Off Switch |
| Mobile App: | Bolt App |
| Desktop App: | Bolt Manager application for OSX & Windows |
| USB Interface Functionality: | Upgrade via Micro-USB |
| Bluetooth: | 2.4 GHz |
| NETWORK | |
| Antennas: | 4x Internal 2dBi Antennas |
| Wireless: | DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz |
| RF Channel Selection: | Auto, Manual |
| Encryption: | AES-256, RSA-1024 key exchange |
| RF Power: | 23 dbm EIRP |
| Range: | Up to 750 ft, line of sight |
| Unicast Multicast: | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection: | Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location |
| Interoperability Compatibility: | Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device) |
| POWER | |
| Power Input: | 2-Pin Circular locking Connector 6-28 VDC |
| Battery: | None, optional Sony/Canon dual battery plate |
| Nominal Power Consumption: | 9 Watts |
| ENVIRONMENTAL | |
| Operating Temperature: | 0-40℃ |
- 1 x Bolt 6 LT 750 TX Internal Antenna
- 1 x 2pin to P-Tap Cable, 18in
- 1 x 2pin to AC Adapter 18W, 6ft
- 1 x Ultra Thin HDMI Male to Male Cable, 18in
- 1 x SDI Cable, 10in
- 1 x USB-C 2.0 Male to Male, 1m
