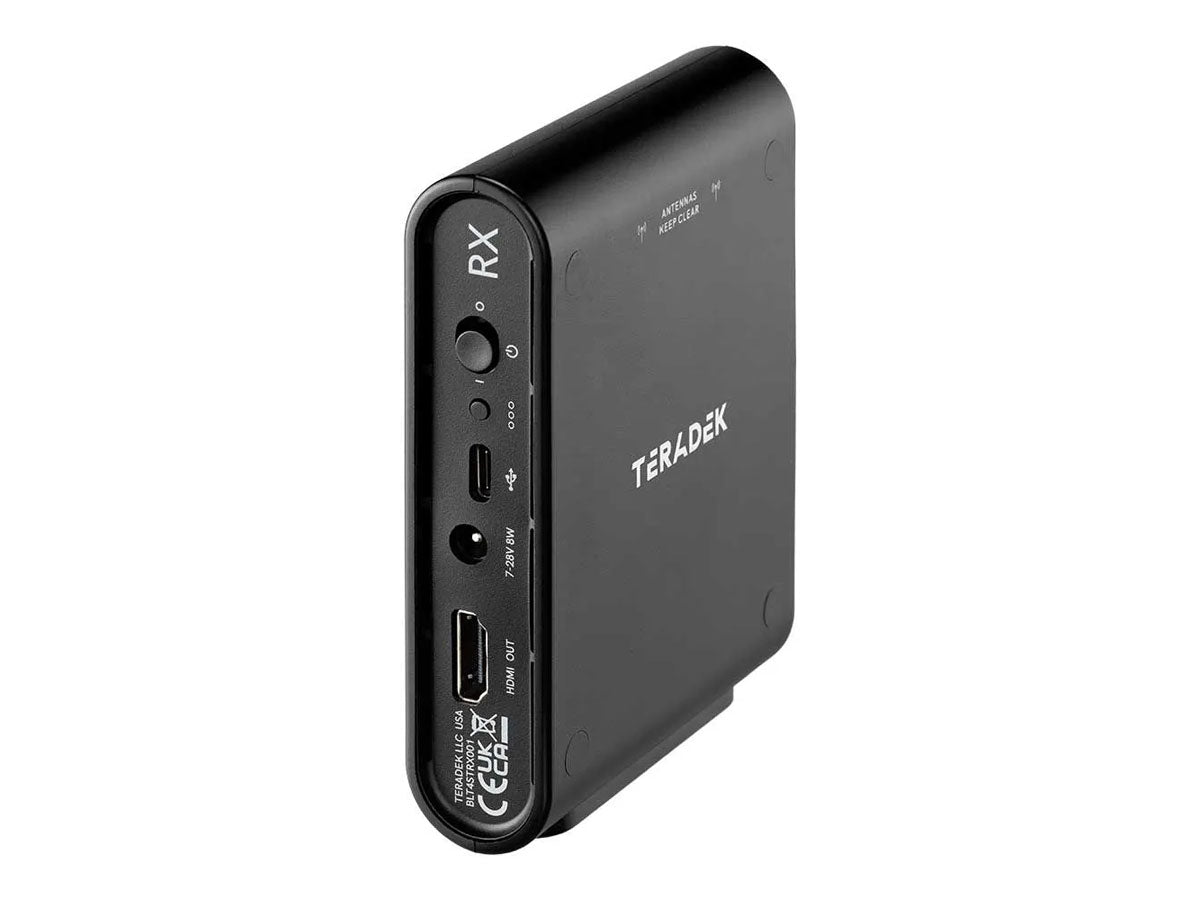

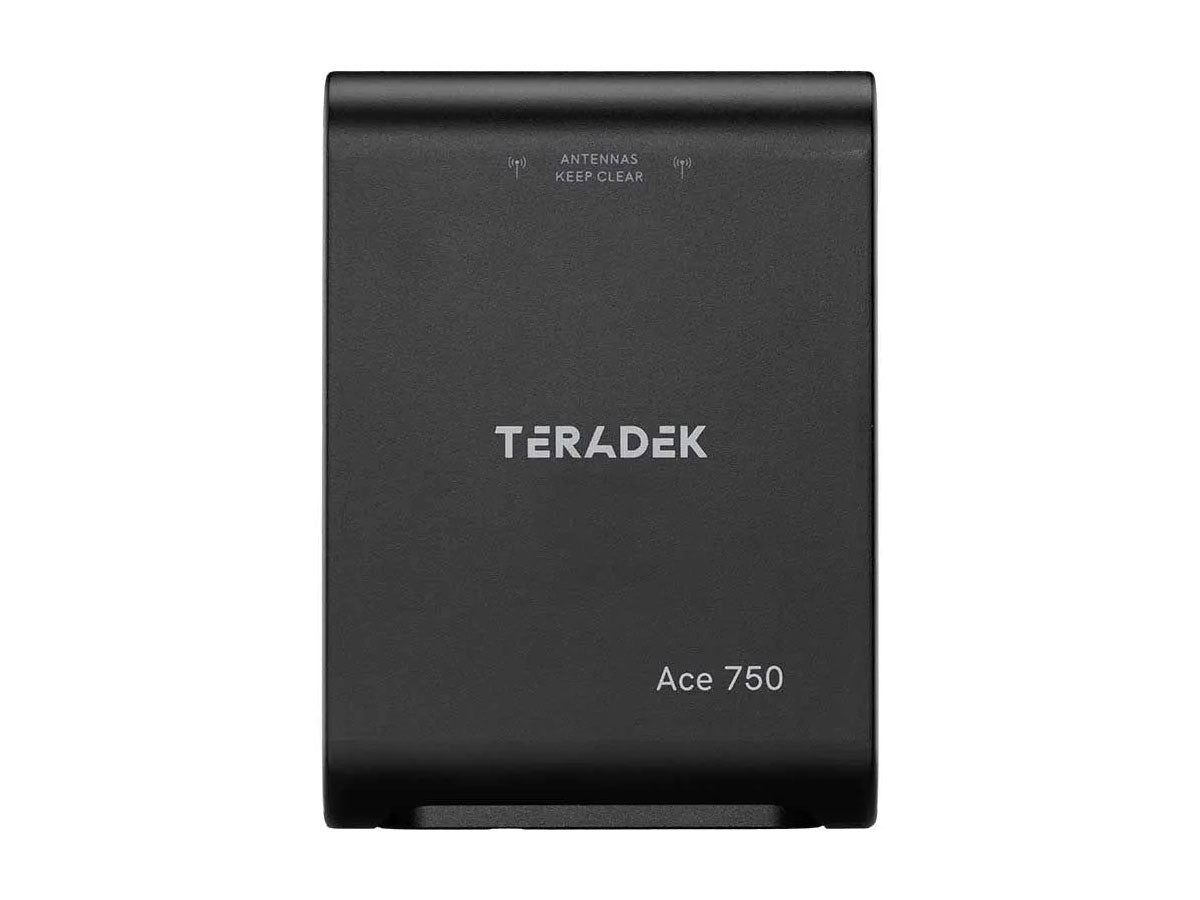

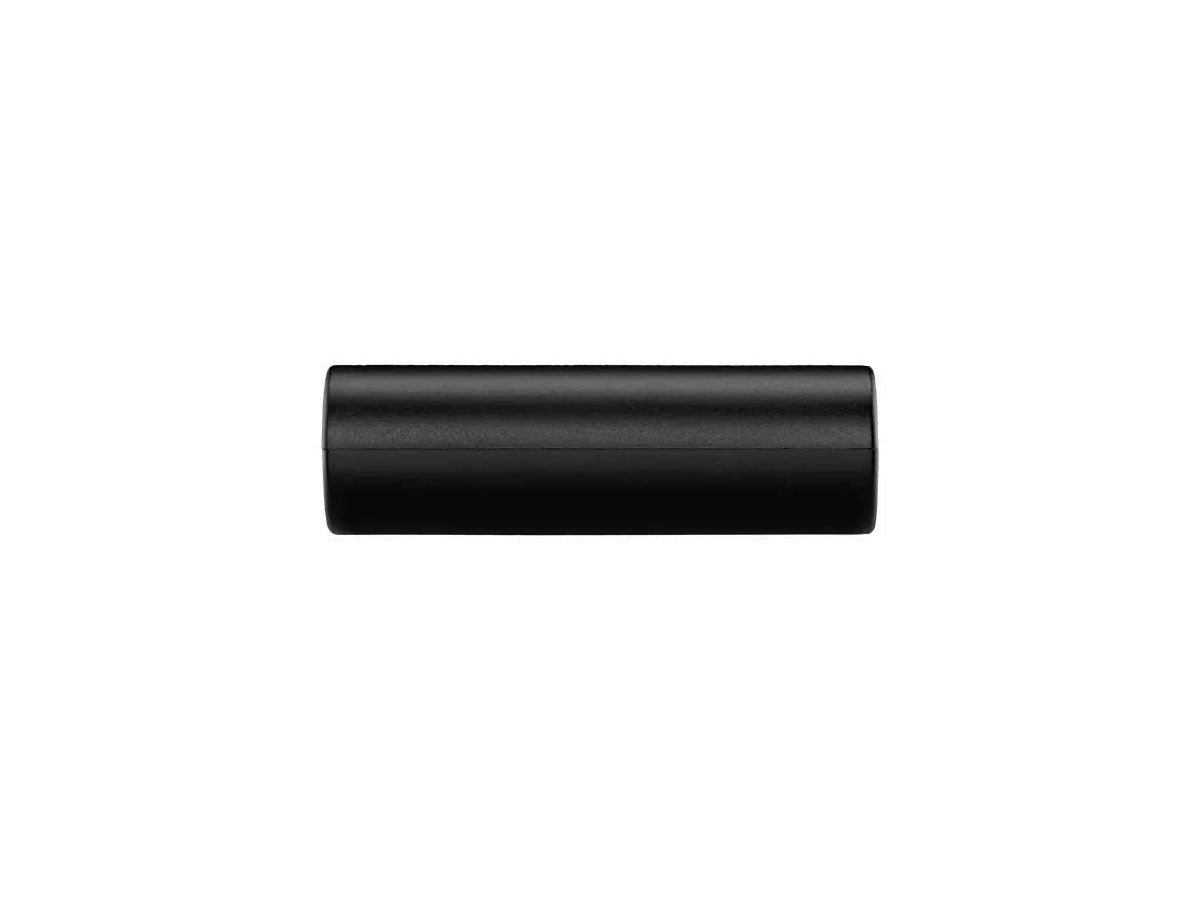

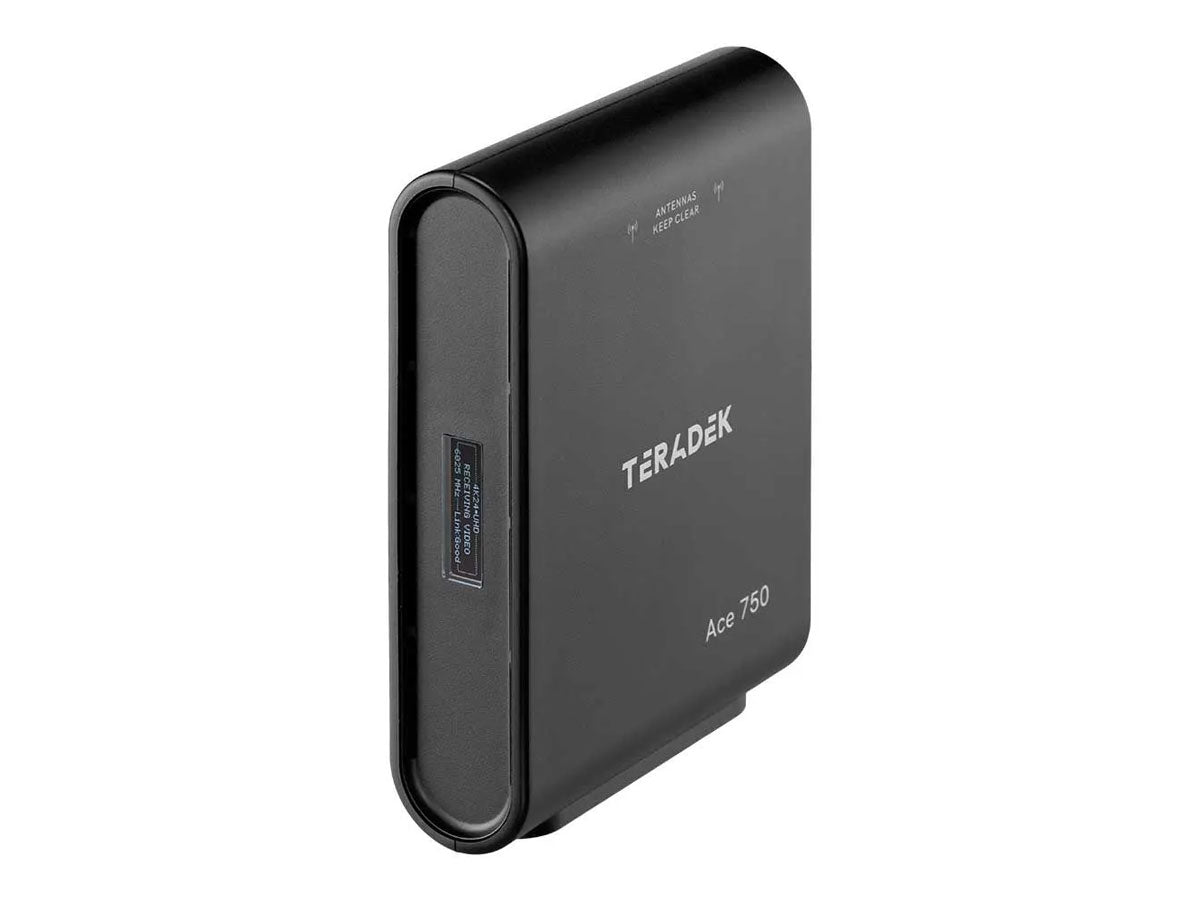

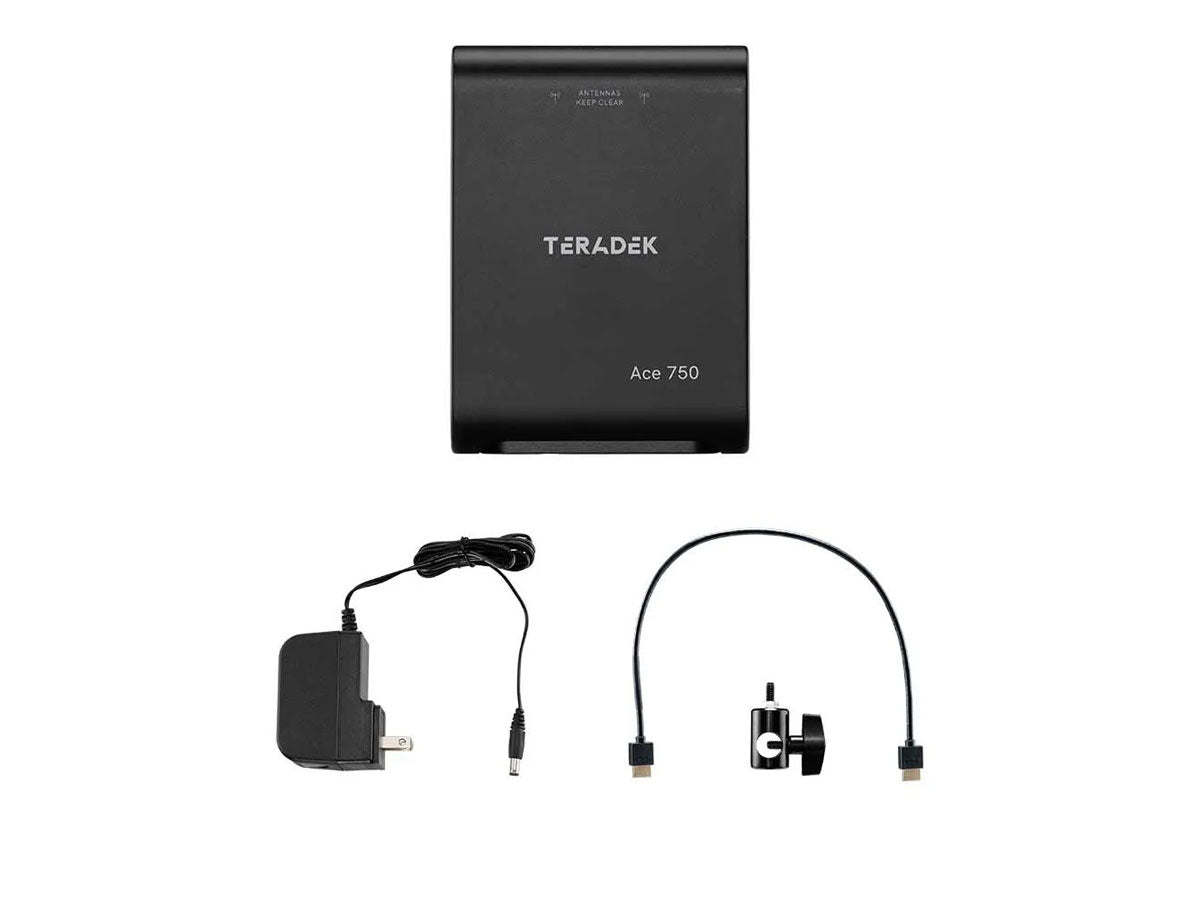

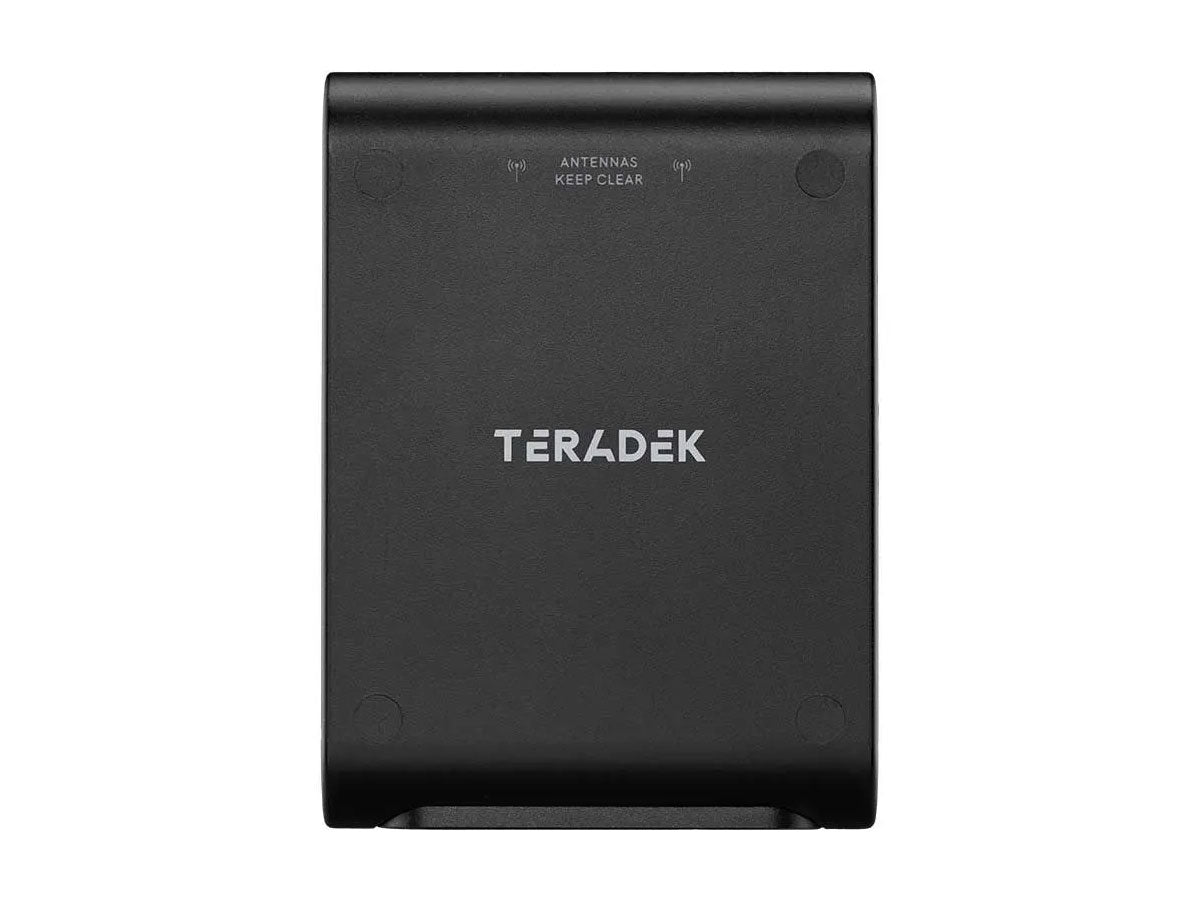

Teradek ACE 750 RX
Teradek ACE 750 RX
£557.99 GBP inc VAT
£557.99 GBP inc VAT
Couldn't load pickup availability
- Details
- Specifications
Ace 750 is a lightweight, compact, HDMI wireless video system with built-in antennas designed to be used with mirrorless cameras, camcorders, action cameras and A/V workflows. It sends uncompressed zero-delay, 4Kp30, HDR video and audio with up to 750 feet (230m) of range. Ace 750 is cross-compatible with Bolt 4K and Bolt 6 in 5GHz and 6GHz modes and is fully compliant with FCC and CE frequency usage and power output guidelines. Ace 750 features an integrated hole pattern for mounting and can be powered with NP-F or LP-E6 batteries using an optional L-shaped plate. Ace 750 is built with the same reliable wireless technology found in our acclaimed Bolt product line. Because of this, Ace 750 is fully compatible with all Bolt 4K and Bolt 6 models.
| VIDEO | |
|---|---|
| Video Inputs | N/A |

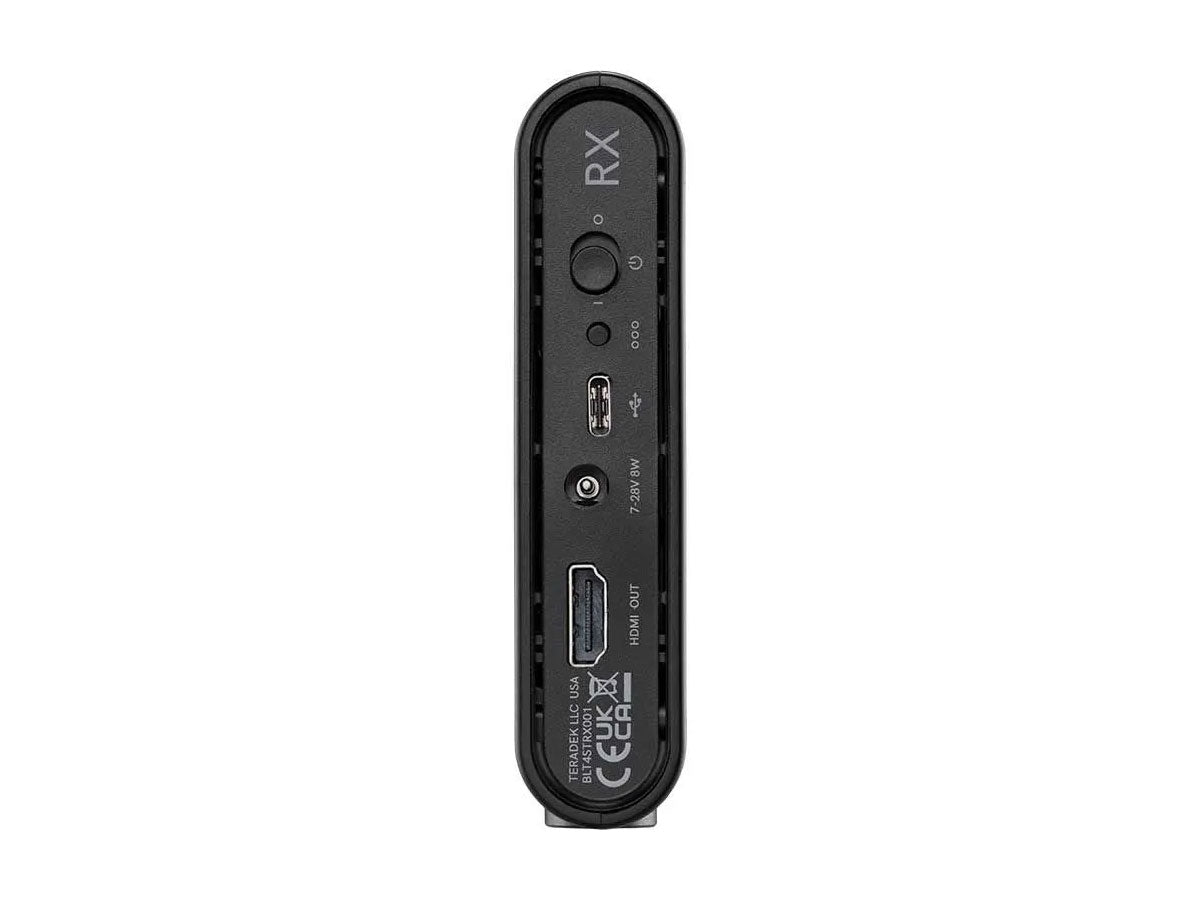

| Video Outputs | 1x HDMI 1.4b Type-A receptacle |
| SDI Ancillary Data Support | N/A |
| Color Sampling | YCbCr 4:2:2 10-Bit |
| RGB 4:4:4 8-bit | |
| Delay (TX to RX) | <0.001sec |
| Supported Resolutions | 4Kp23.98/24/25/29.97/30 |
| 1080p23.98/24/25/29.97/30/50/59.94/60 | |
| 1080i50/59.94/60 | |
| 720p50/59.94/60 | |
| Input Cross Conversion | N/A |
| Output Video Scaling | N/A |
| VIDEO PROCESSING | |
| Video Compression | Visually lossless |
| Test Pattern Generator | N/A |
| Spectrum Analyzer | N/A |
| Color Correction | N/A |
| AUDIO | |
| Audio Compression | 48kHz 24-bit PCM |
| Audio Input | N/A |
| Audio Output | Embedded HDMI Audio Input (2 channel) |
| PHYSICAL ATTRIBUTES | |
| Dimensions | 4.39” x 3.19” x 1” (112mm x 81mm x 25mm) |
| Weight | 6.6 oz (187g) |
| Construction | ABS Plastic / Milled Aluminium |
| INTERFACES | |

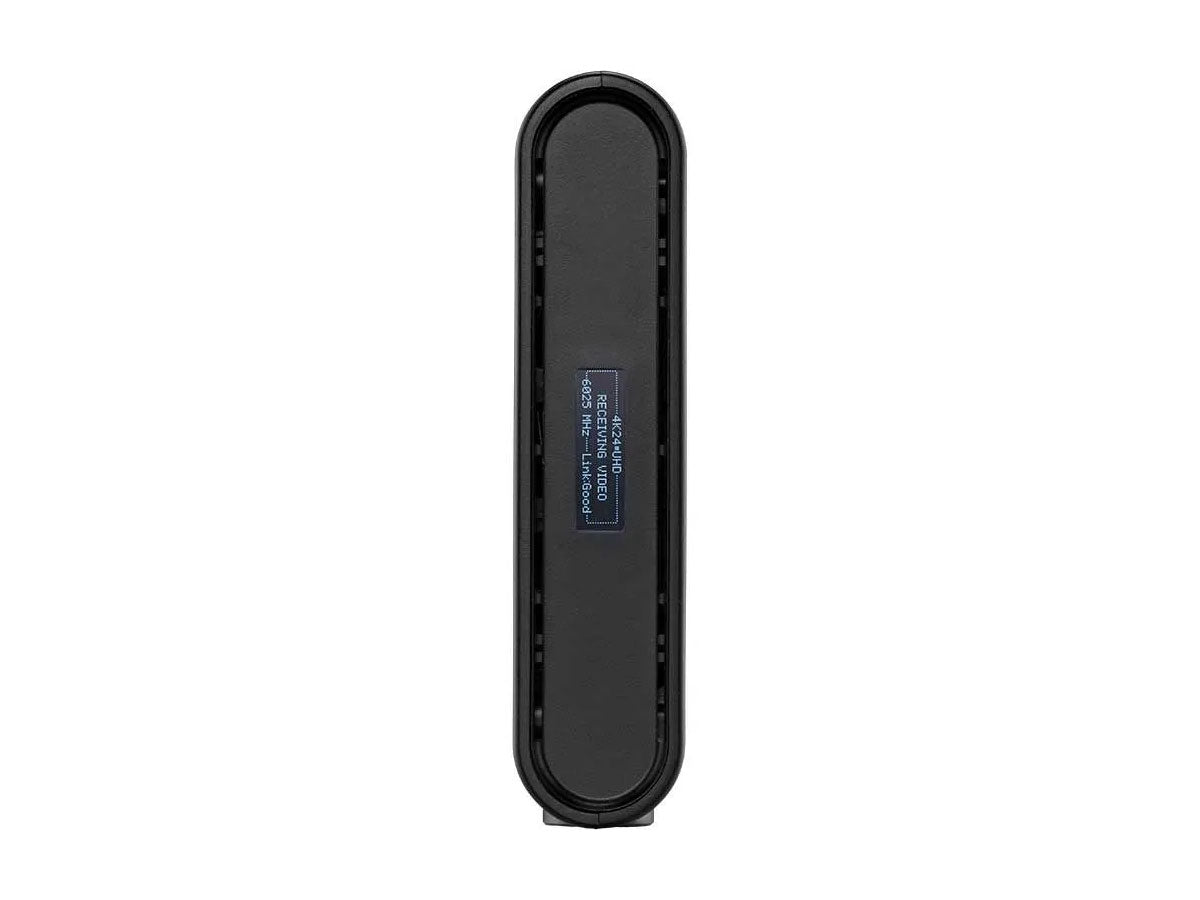

| Configuration Interface | OLED display: |
| • Input video format | |
| • Selected frequency | |
| • Video Quality % | |
| • Link status | |
| Switches | On/Off Switch |
| Recessed Button | Enable/disable Bluetooth |
| Desktop App | Bolt Manager application for OSX & Windows |
| Mobile App | Bolt App |
| USB Interface | Upgrade via USB-C |
| Bluetooth Compatibility | Yes |
| NETWORK | |
| Wireless | DFS Frequencies: |
| 5.270 ~ 5.670 GHz | |
| Non-DFS Frequencies: | |
| 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 | |
| ~ 6.425GHz | |
| Bluetooth | 2.4 GHz |
| RF Channel Selection | Auto only, 40 MHz only, no blocked frequencies |
| Encryption | AES-256, RSA-1024 key exchange |
| RF power | 17 dbm EIRP (1x external 2dBi antenna; |
| <51mW transmit power) | |
| Antennas | 5x 2dBi Internal antennas |
| Range | Up to 750 ft line of sight |
| Multicast | TX transmits video to up to 6 receivers |
| simultaneously | |
| Noise Rejection | Can coexist with Wi-Fi and 5GHz cordless phones, |
| and can operate up to 4 sets in same location | |
| Interoperability | Compatible with Bolt 4k and Bolt 6 products |
| POWER | |
| Power Input | Barrel connector 7-18V |
| Battery | None, optional Gold or V mount battery plate |
| Nominal Power | 6 Watts |
| Consumption | |
| Operating Temperature | 32~104°F (0~40°C) |
| GENERAL | |

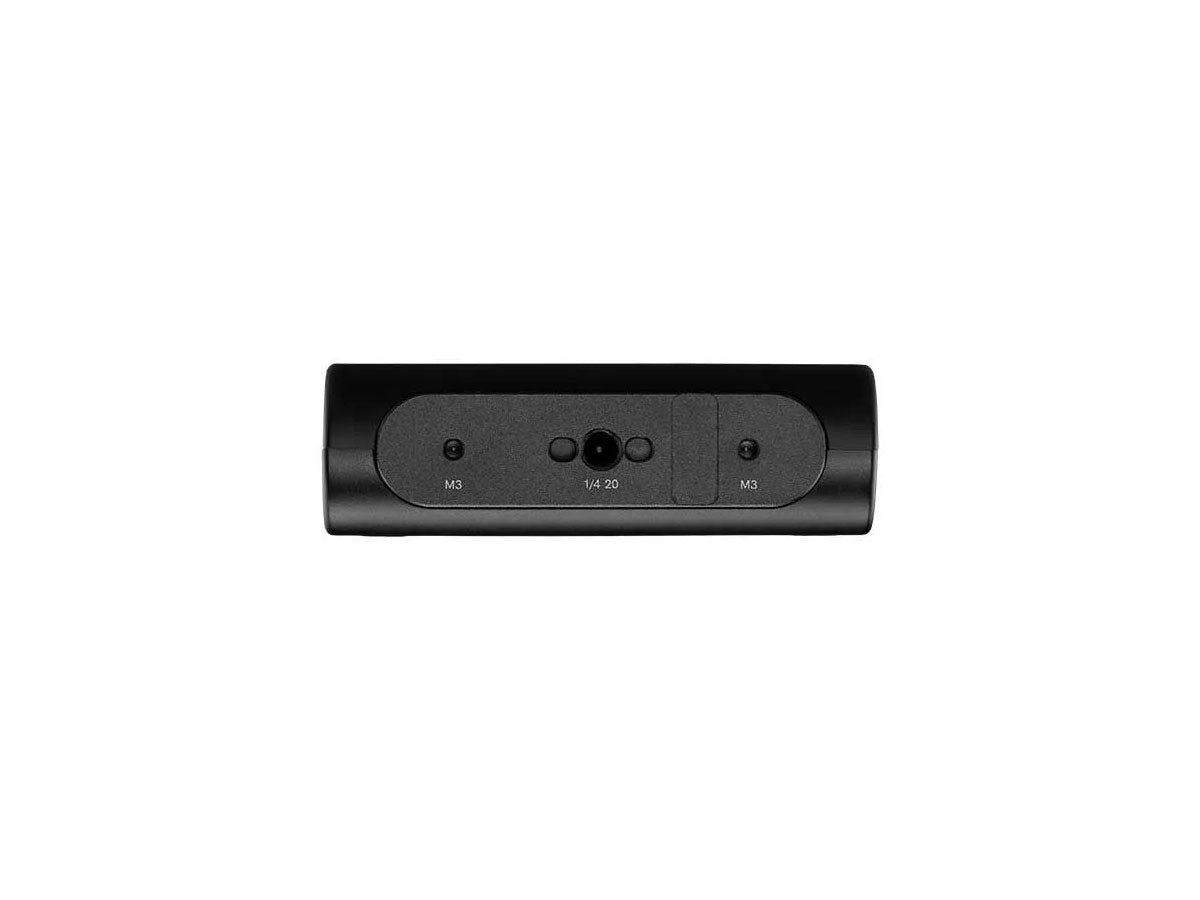

| Mountability | Multiple mounting options with M3 and |
| 1/4-20” holes | |
