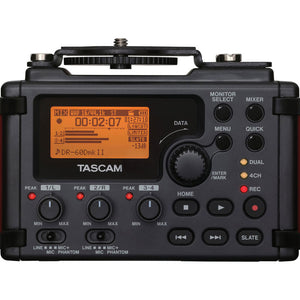

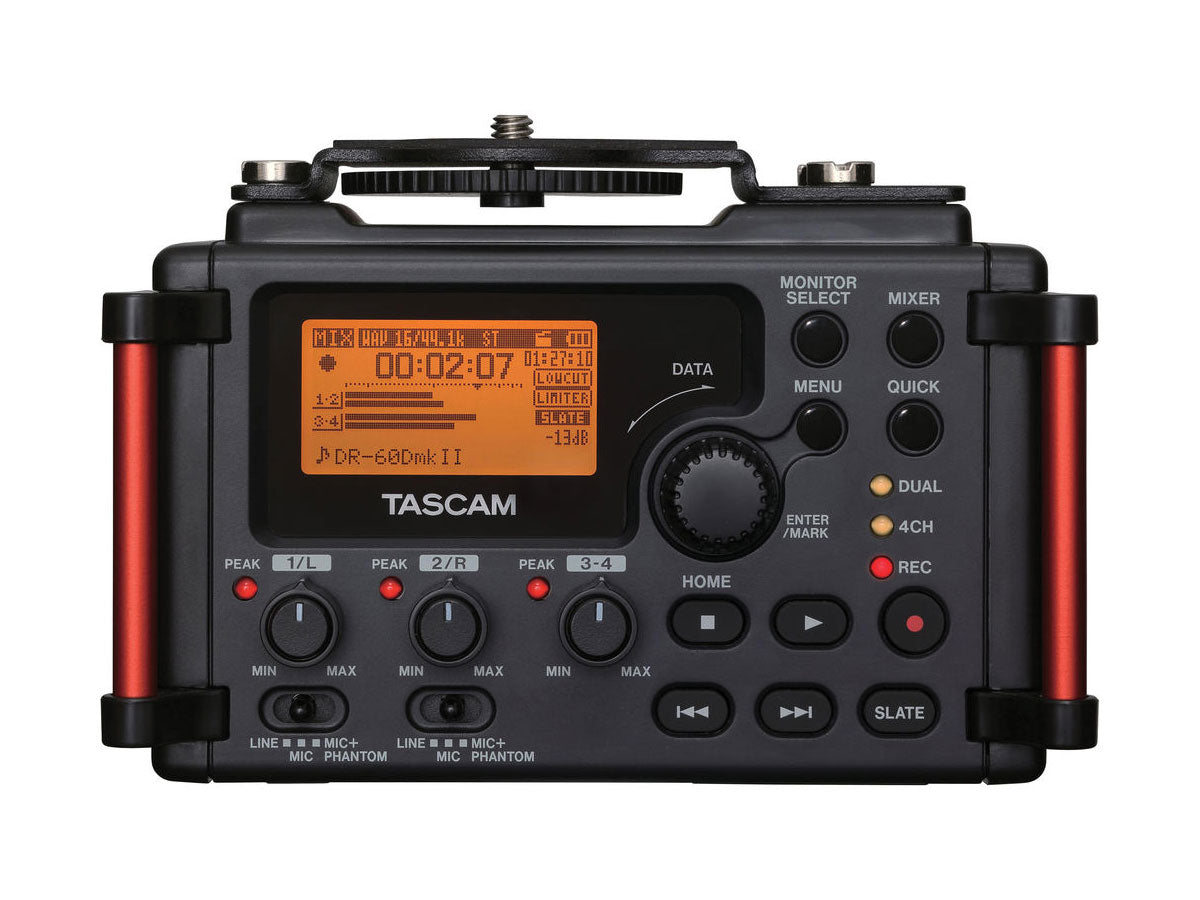

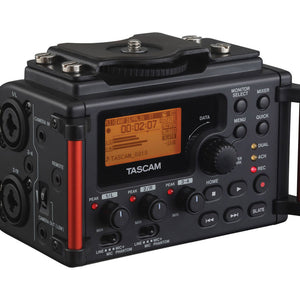

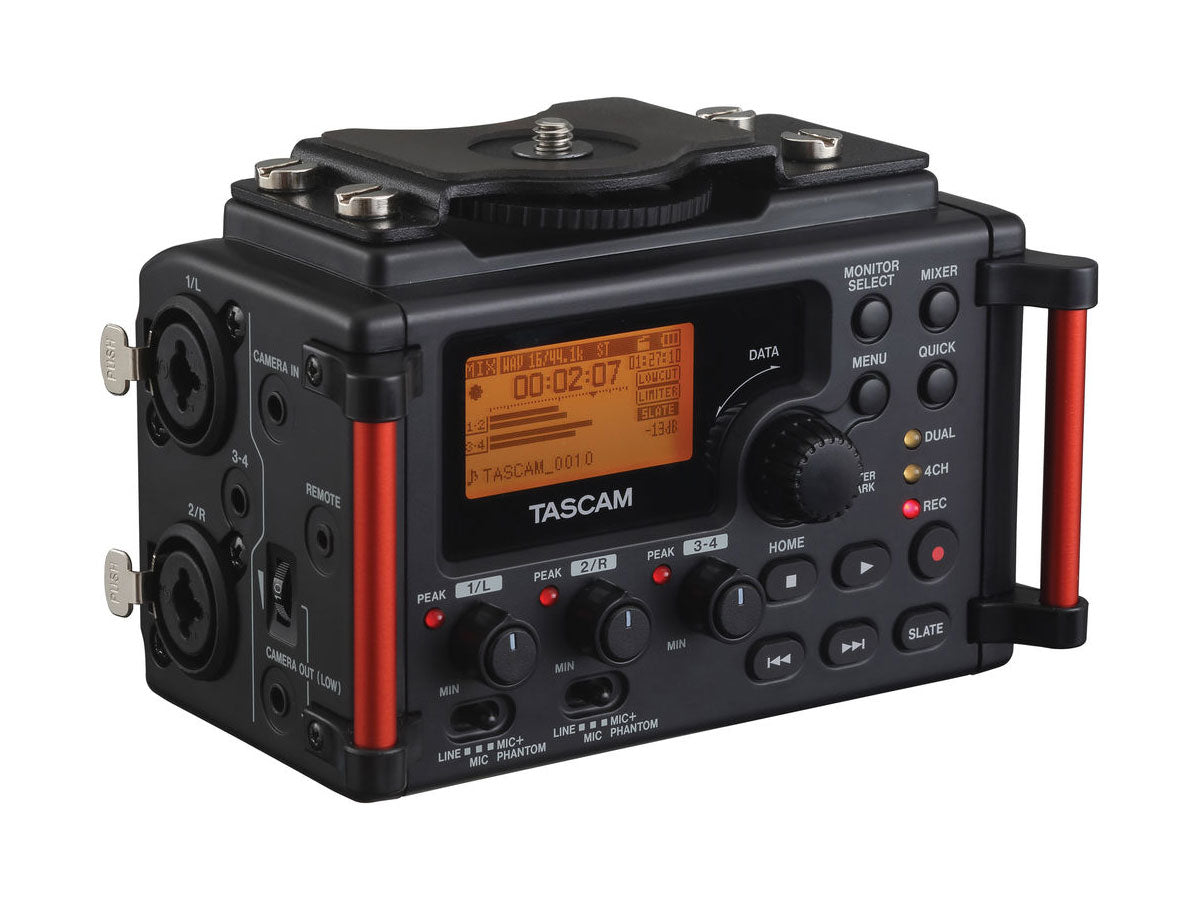

The DR-60D MKII is a compact 4-track audio recorder for dedicated use with a digital single-lens reflex (DSLR) or digital single-lens mirrorless (DSLM) camera as a video system. It can be mounted directly to the camera and offers various audio inputs and outputs to allow the recording of high-resolution audio material in parallel to, but separated from the camera and its video data.
The recorder features Tascam original HDDA microphone preamps which are known for high S/N ratio, low input-referred noise and low distortion. Recordings can be made at 44.1/48/96 kHz, 16/24-bit in WAV or BWF format. In addition to ordinary stereo recording, it is possible to record up to four channels simultaneously which can then be mixed down to a stereo signal. Recording levels can be adjusted independently for inputs 1, 2 and 3–4 and the Dual Recording function allows two files to be recorded in parallel at different levels.
The DR-60D MKII can output high-quality audio to a DSLR/DSLM camera to be recorded there as a reference track, and a camera input enables convenient monitoring of audio sent from a DSLR camera. Mid-side decoding, slate tone functions (automatic/manual), selectable time delay and other functions for convenient recording are also available.
- Compact, high-quality audio recorder designed to be used in combination with a DSLR camera
- Uses an SD/SDHC card as recording medium
- High-quality recording inputs through Tascam original High Definition Discrete Architecture (HDDA) microphone preamps
- In addition to ordinary stereo recording, simultaneous recording of up to four channels is possible
- Four channels can be mixed down to a stereo signal
- Recording levels can be adjusted independently for inputs 1, 2 and 3–4
- Dual recording function allows two files to be recorded simultaneously at different levels
- Recording at 44.1/48/96 kHz, 16/24-bit, linear PCM (WAV format)
- Broadcast Wave Format (BWF) supported as WAV recording format
- New, smooth XLR/TRS combo jacks
- XLR mic/line inputs can provide phantom power (+24V/+48V)
- TRS mic/line inputs support +24 dBu input when used as line inputs
- "HI+PLUS" setting allows a maximum input gain of 64 dB
- Stereo mini jack input supports mics that require plug-in power, allowing the input of video mics and other high-output mics (+10 dBV maximum input level)
- Low-cut filter conveniently reduces low-frequency noise (40 Hz, 80 Hz, 120 Hz)
- High-quality audio can be output to a DSLR camera for recording
- Two camera outputs with different levels allow audio signal to be sent to a line or mic input of the camera
- Camera input enables convenient monitoring of audio from a DSLR camera
- Selectable mid-side decoding for use with MS microphone setups
- Slate tone functions (automatic/manual) to simplify synchronization with video files when editing
- Pre-recording function allows the unit to record the two seconds of sound before recording is activated
- Auto recording function to start start and stop recording by input level
- A new file can be created during recording (manually or by file size)
- Self-timer function to start recording after a set period of time
- Jump-back function allows the last several seconds of the currently played file to be replayed again by simply pressing a button
- Selectable delay to eliminate time lags caused by differences in the distances of two input sources
- QUICK button allows easy access to various functions
- Divide function allows files to be split where desired
- Mark function convenient for moving to specific locations
- Equalizers for playback, and level alignment function to enhance the perceived overall sound pressure
- File name format can be set to use a user-defined word or the date
- Resume function to memorize the playback position before the unit is turned off
- Line output and headphones output with individual level controls (3.5-mm jack)
- 128 x 64 pixel LC display with backlight
- USB 2.0 port

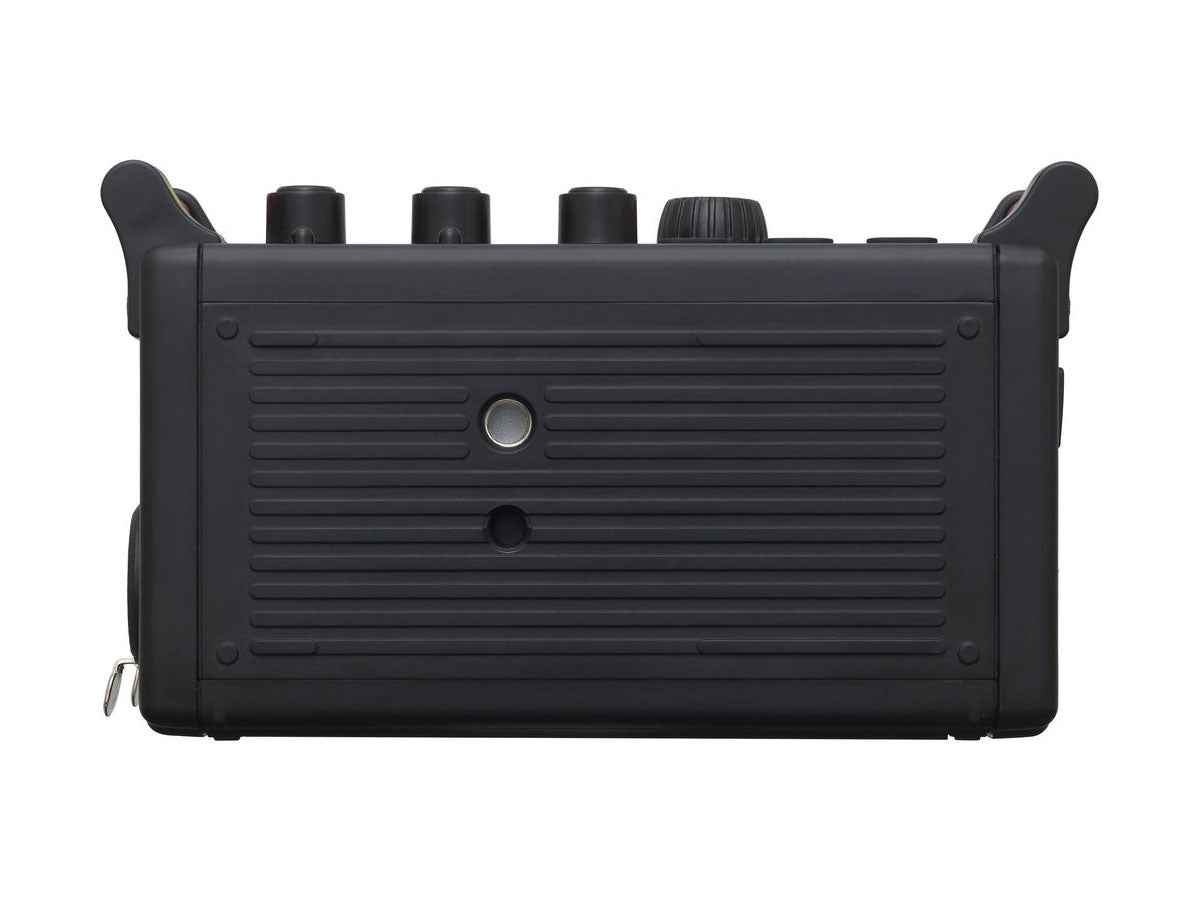

- Stand adapter (¼ inch) on bottom side to attach the unit to a tripod
- DSLR bracket for easy camera attachment and removal with a coin
- Dedicated remote control jack (for use with RC-10 and RC-3F (sold separately))
- Hold switch to prevent accidental operation
- Handles on the front left and right sides protect the screen and can be used to attach a shoulder belt

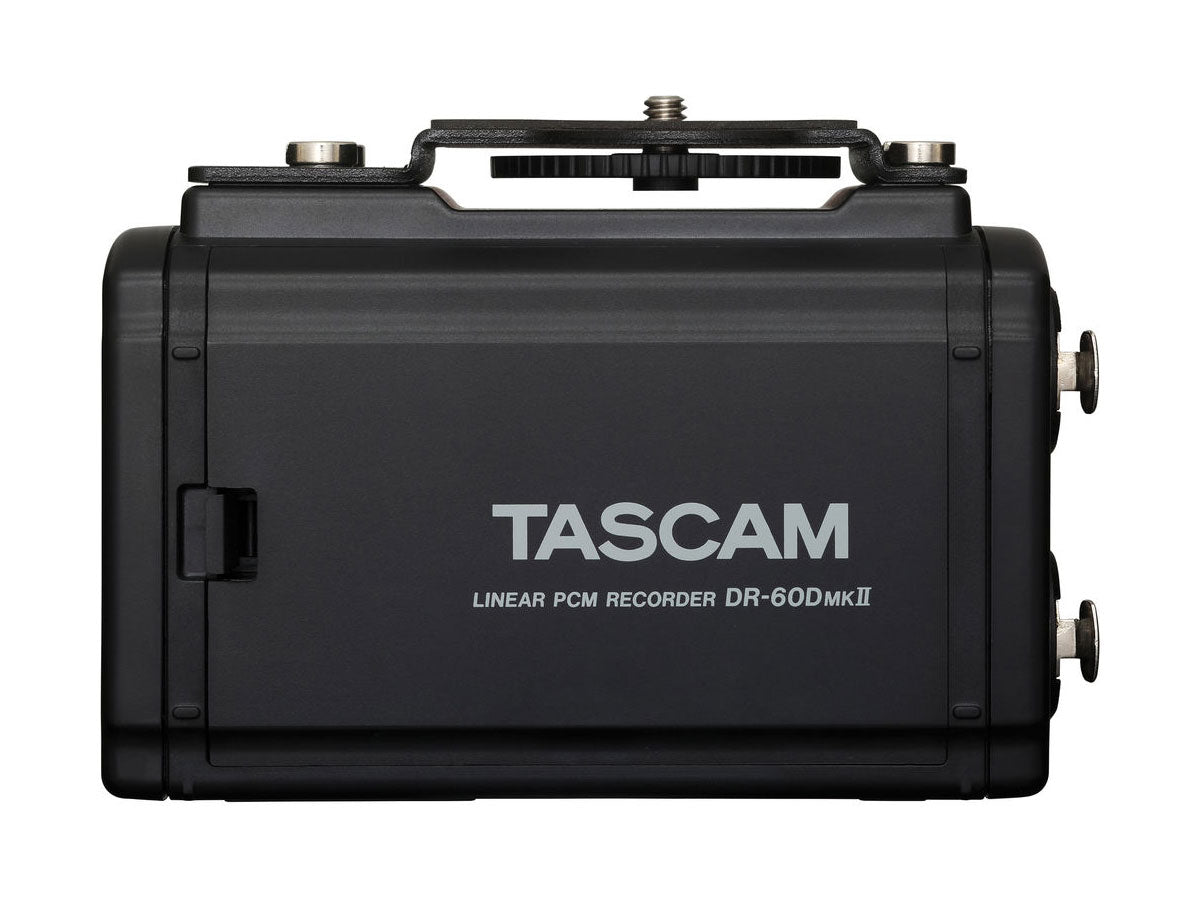

- Operates on four AA batteries, an optional AC adaptor (Tascam PS-P520U), optional external battery pack (Tascam BP-6AA) or USB bus power
- Power source switches automatically from external to internal when necessary (with pop-up message on display)
| GENERAL | |
| Recording Media: | SD Card (64 MB – 2 GB) SDHC card (4–32 GB) |
| Audio File Compatibility: | WAV: 44.1/48/96 kHz, 16/24-bit BWF (Broadcast Wave Format): 44.1/48/96kHz, 16/24-bit |
| Number of Channels: | 4 channels (stereo x 2) |
| ANALOGUE AUDIO INPUTS & OUTPUTS | |

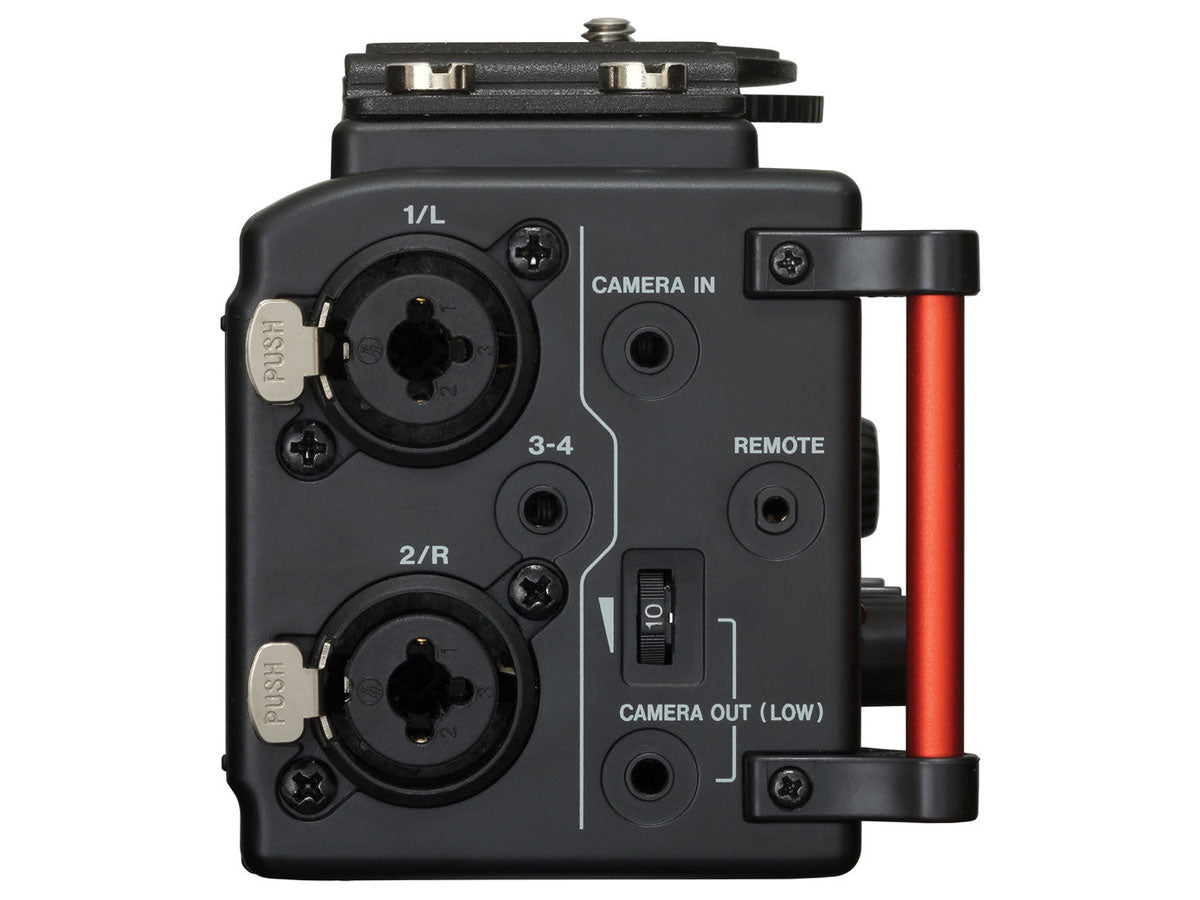

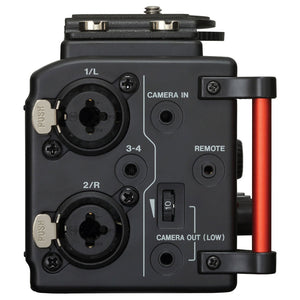

| Mic/Line Input 1/L, 2/R (Switchable Phantom Power): | XLR-3-31 6.3-mm standard TRS Jack |
| Input Switch Set to MIC or MIC+PHANTOM | |
| Input Impedance: | 2 kΩ |
| Phantom Power: | 48 V ±4 V (10 mA/channel) or 24 V ±4 V (10 mA/channel) |
| Maximum Input Level: | 0 dBu |
| Minimum Input Level: | −72 dBu |
| Mic Input Gain (Input Level Knob at Maximum): | LOW: +11 dB MID: +36 dB HIGH: +52 dB HIGH+PLUS: +64 dB |
| Input Switch Set to LINE | |
| Input Impedance: | 10 kΩ or higher |
| Nominal Input Level: | +4 dBu |
| Maximum Input Level: | +24 dBu |
| Mic / Line Input 3-4 (Supports Plug-In Power): | 3.5-mm stereo mini jack |
| Input Impedance: | 10 kΩ |
| Maximum Input Level: | +10 dBV |
| Minimum Input Level: | −50 dBV |
| Mic Input Gain (Input Level Knob at Maximum): | LOW: +3 dB HIGH: +26 dB HIGH+PLUS: +38 dB |
| CAMERA IN Jack: | 3.5-mm stereo mini jack |
| Input Impedance: | 10 kΩ |
| Nominal Input Level: | −10 dBV |
| Maximum Input Level: | +6 dBV |
| CAMERA OUT (LOW) Jack: | 3.5-mm stereo mini jack |
| Output Impedance: | 200 Ω |
| Nominal Output Level: | −50 dBV |
| Maximum Output Level: | −30 dBV |

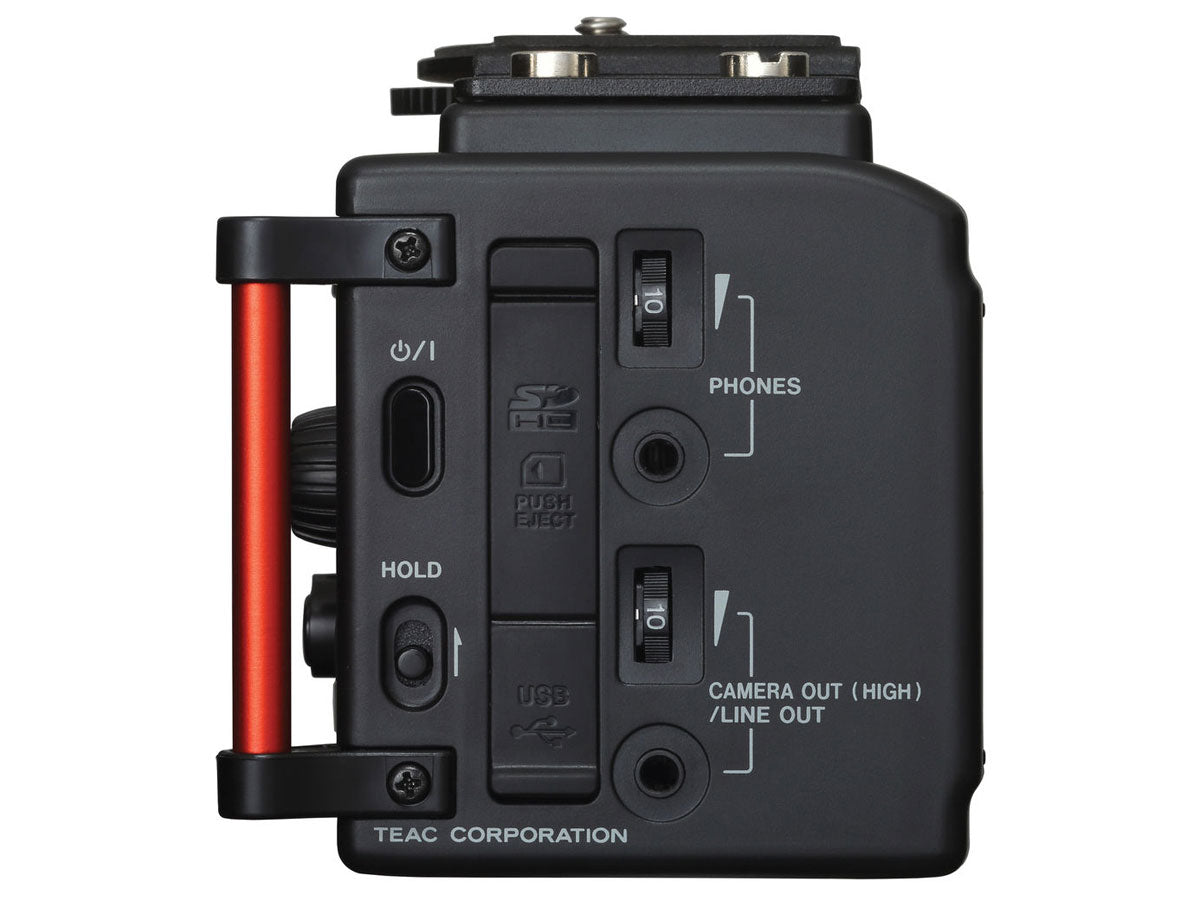

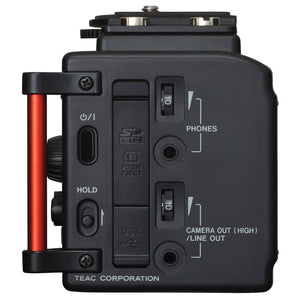

| Headphones Output: | 3.5-mm stereo mini jack |
| Maximum Output Power: | 50 mW + 50 mW |
| CAMERA OUT (HIGH) / LINE OUT Jack: | 3.5-mm stereo mini jack |
| Output Impedance: | 200 Ω |
| Nominal Output Level: | −10 dBV |
| Maximum Output Level: | +10 dBV |
| OTHER INPUTS & OUTPUTS | |
| USB: | USB Mini-B Type |
| Format: | USB 2.0 HIGH SPEED mass storage class |
| REMOTE Jack: | 2.5-mm TRS jack |
| AUDIO PERFORMANCE | |
| Frequency Response: | 20 Hz – 20 kHz, +0.5/–2 dB (LINE IN or MIC IN to LINE OUT, Fs 44.1/48 kHz, JEITA) 20 Hz – 40 kHz, +0.5/–3 dB (LINE IN or MIC IN to LINE OUT, Fs 96 kHz, JEITA) |
| Distortion: | 0.02% or less (LINE IN or MIC IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA) |
| S/N Ratio: | 92 dB or more (LINE IN or MIC IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA) |
| Equivalent Input Noise: | –120 dBu or less |
| Note for JEITA: | Conforming to JEITA CP-2150 |
| POWER SUPPLY & OTHER SPECIFICATIONS | |
| Power Supply: | Four AA batteries (Alkaline or Ni-MH) USB bus power supplied from a computer AC adaptor (TASCAM PS-P520U, sold separately) External battery pack (TASCAM BP-6AA, sold separately) |
| Power Consumption: | 5.4 W (maximum) |
| Dimensions: | 133 mm × 93 mm × 78 mm (with the top adapter attached) |
| Weight: | 510 g (without batteries) |
| Operating Temperature Range: | 0–40 °C |
- 1x Tascam DR-60D MkII Recorder
