SWIT WAVE500 Dual Channel Wireless Microphone Kit

SWIT WAVE500 Dual Channel Wireless Microphone Kit

SKU: SWI-WAVE500
£192.00 GBP ex VAT
£230.40 GBP inc VAT
ex VAT £192.00 GBP ex VAT
£230.40 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

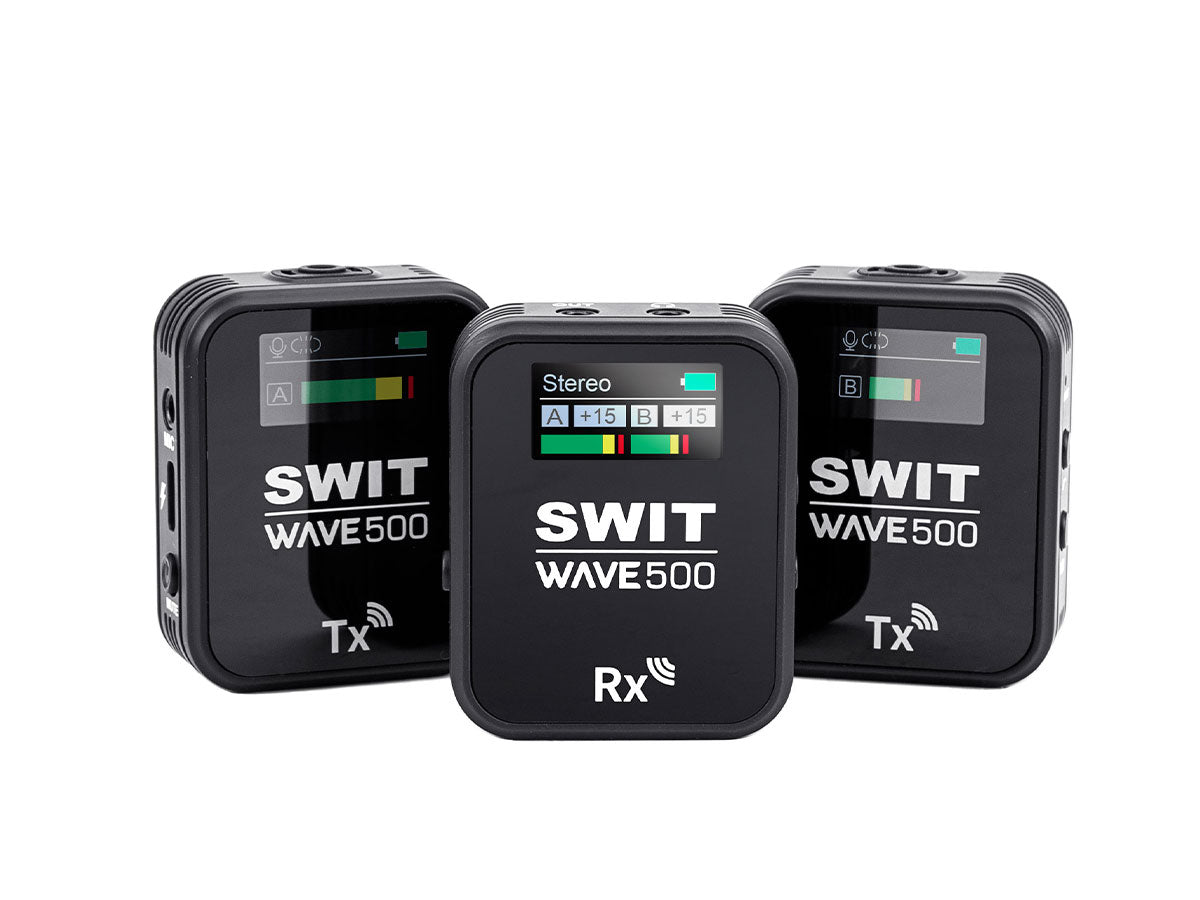

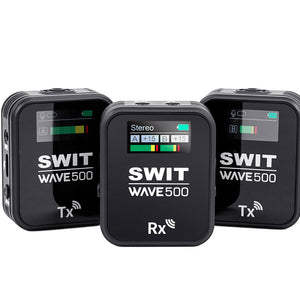

Dual Channel Wireless Microphone
WAVE500 is a compact size 2.4G wireless microphone with dual channel Transmitters and 1 stereo Receiver, to simultaneously record two sound sources in livestreaming.
500ft Wireless Receiving
The Receiver could be mounted to cameras by code shoe, output 3.5mm stereo audio of crystal clear broadcast quality to the camera to record with video. The wireless transmits up to 500ft range, zero latency and full synchronization.
Smart Phone Recording
You can also connect the Receiver 3.5mm audio output to smart phones to make livestreaming. Please use IMF certificated 3.5mm to lightning adaptor, and use 4-section 3.5mm jack to the adaptor, and 3-section 3.5mm jack to the Receiver.

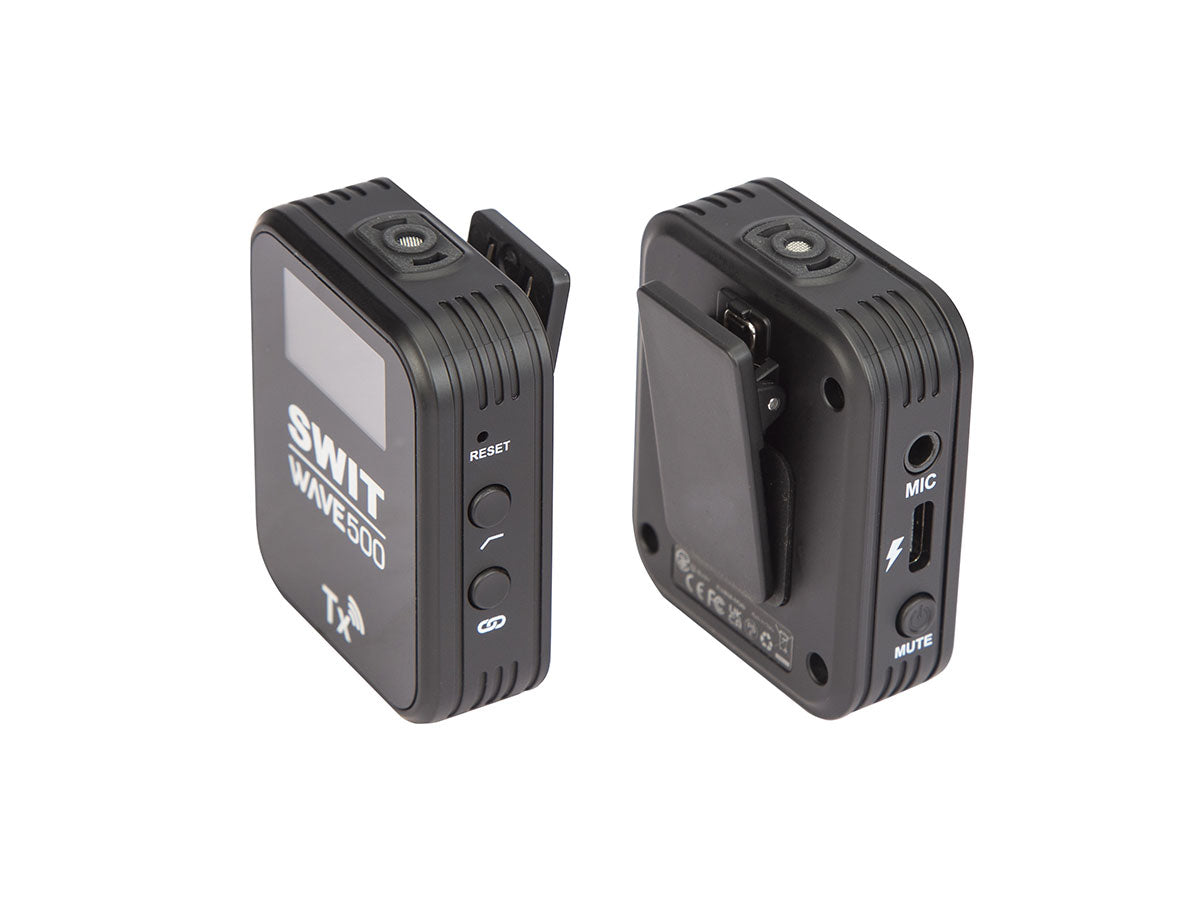

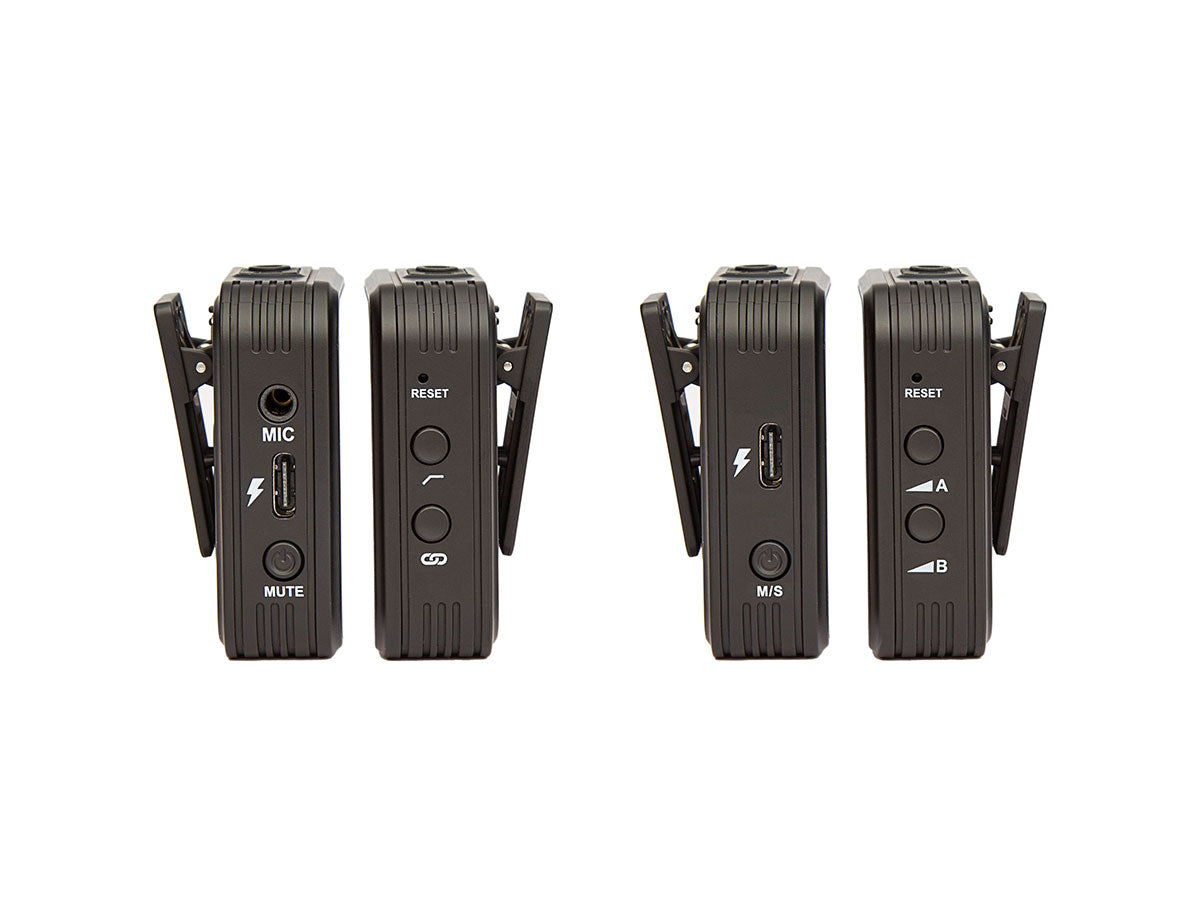

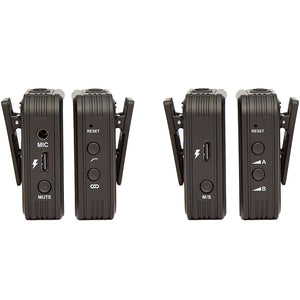

The Transmitter
The Transmitter has a built-in Mic on the top side, and could connect external Mic input. Support one-key mute and one-key low cut function, to filter out ＜180Hz background noise, like air conditioner or computer fans.

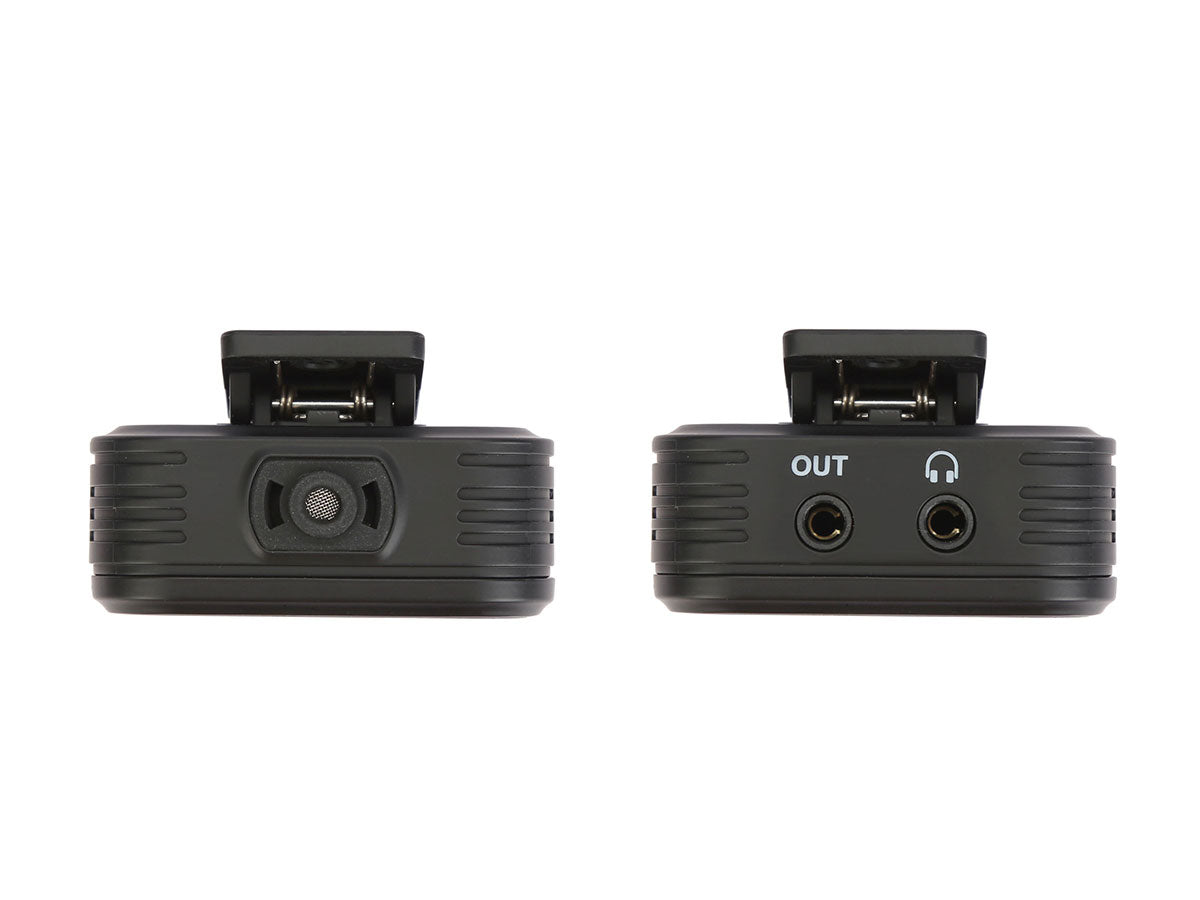

The Receiver
The Receiver has a 3.5mm audio output socket and a 3.5mm headphone monitoring socket on the top side; supports audio Gain adjustment for each channel, and Mono / Stereo switching.
Display Screen on Both Tx and Rx
The Transmitter screen displays channel (A or B), audio meter, mute status, low cut status, and battery status. The Receiver screen displays audio meters and gain value for both 2 transmitter channels, stereo or mono modes, and battery status.
8 hours Battery, 3-in-1 Charging
Both the WAVE500 Tx and Rx have internal battery, could ensure 8 hours continued working. The package provides a 3-in-1 USB-C charging cable to charge 2x Tx and 1x Rx simultaneously. It takes 1 hours to charge to 80%, and 1.5 hours to fully charged.
  • 2x Transmitter 1x Receiver Kit
  • 2.4G wireless, 500ft receiving
  • Zero latency and full synchronization
  • Compact size, built-in Mic or Lav beltpack
  • Pocket clip and Coldshoe mounting
  • 3.5mm Mic input and audio output
  • 180Hz low cut and Gain control
  • SPL 110dB, more space for post production
  • LCD display for both Tx and Rx
  • 8 hours run time built-in battery
  • 1.5 hours quick charging via USB-C
Transmitter
Wireless Transmission
Digital 2.4GHz
RF Frequency Band
2400-2483.5MHz
Frequency Response
20Hz-20KHz
Working Distance
500ft/150m (LOS)
Mounting
Pocket clip and Cold shoe
Audio Input
1/8" / 3.5mm TRS Mic input
Audio Input Level
1V (0dBV)
Power Consumption
3.3V-4.7V
Inner Battery
400mAh, 8 hours run time
Charging Port
USB Type C
Charging Time
1.5 hours
Dimensions
52x42x17mm
Weight
39g
Receiver
Wireless Transmission

Digital 2.4GHz
RF Frequency Band
2400-2483.5MHz
RF Sensitivity
-81dBm
Working Distance
500ft/150m (LOS)
Mounting
Pocket clip and Cold shoe
Audio Channels
2 channels
Audio Output
1/8" / 3.5mm TRS Mic output
1/8" / 3.5mm TRS Headphone output
Gain
0-5 level
Audio Output Level
Line out: 1V; Headphone out: 25-30mW
Power Consumption
3.3V-4.7V
Inner Battery
400mAh, 8 hours run time
Charging Port
USB Type C
Charging Time
1.5 hours
Dimensions
52x42x17mm
Weight
39g
Microphone
Form Factor
Built-in / External Mic
Sound Field
Mono
Polar Pattern
Omnidirectional
Frequency Range
50Hz-20KHz
Sensitivity
-40dB (±3dB, re 1V/Pa at 1KHz)
Maximum SPL
135dB SPL (at 1KHz)

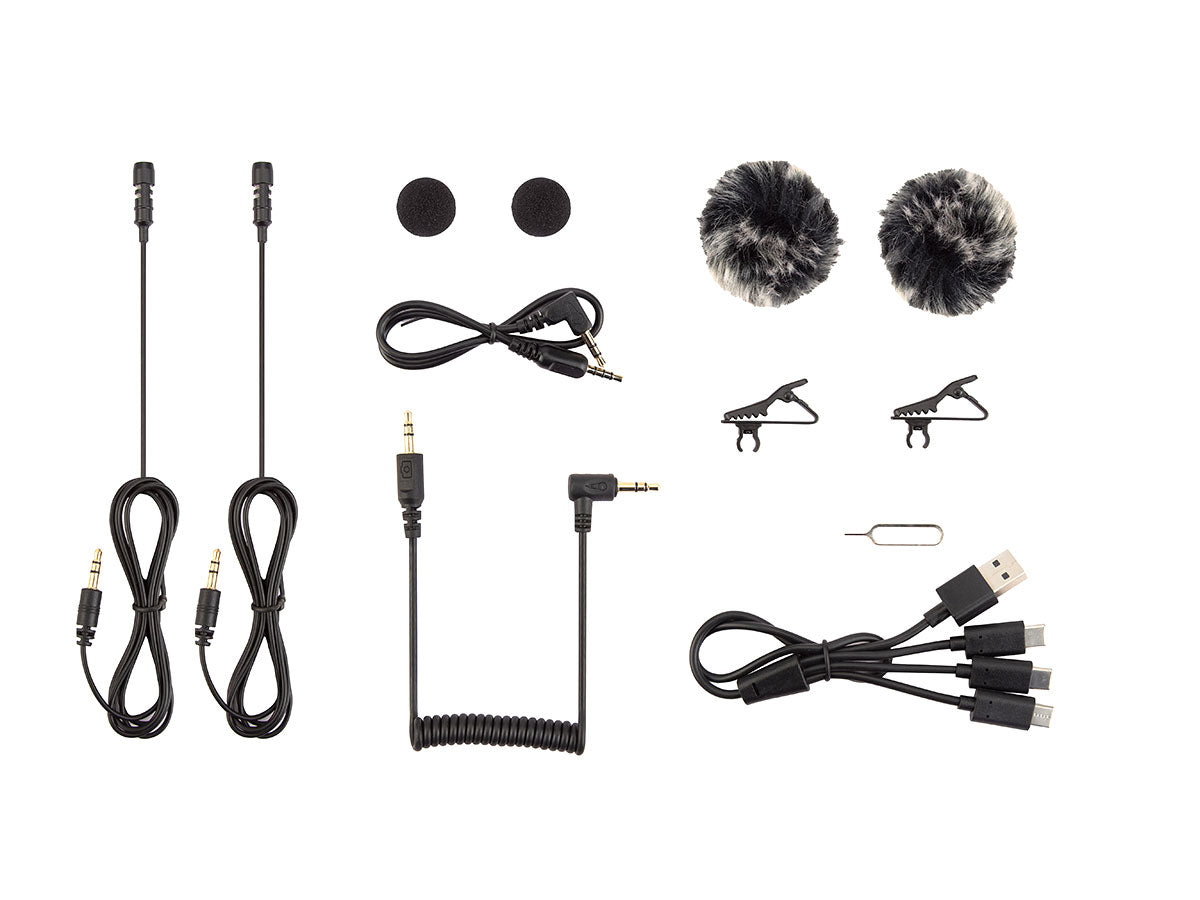

  • 2 x Transmitters
  • 1 x Receiver
  • 1 x 3-in-1 USB-C Charging Cable
  • 2 x External Lav Mic (with wind muff)
  • 2 x Mic Windshields
  • 1 x 3.5mm TRRS Smartphone Cable
  • 1 x 3.5 TRS Camera Cable
  • 1 x Carrying Bag
  • 1 x Eject Pin
