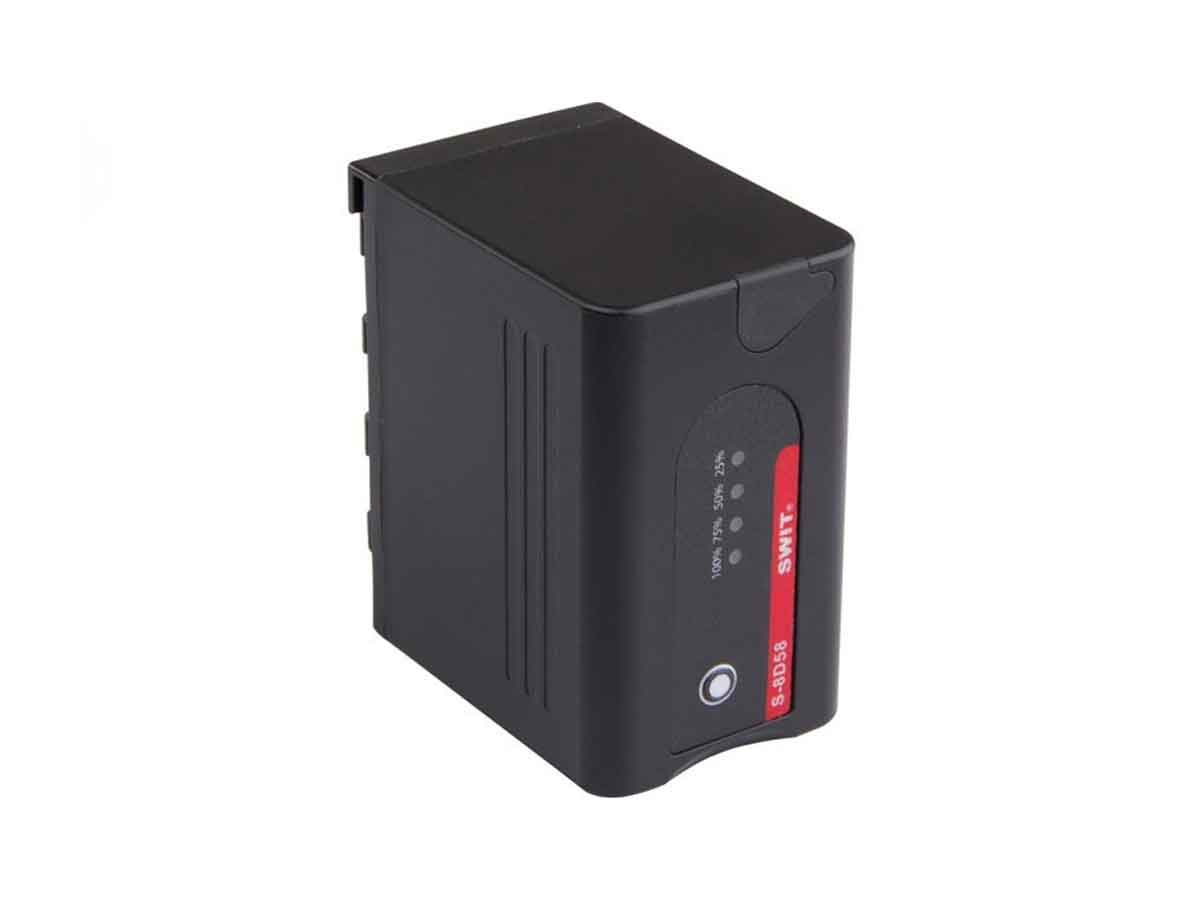

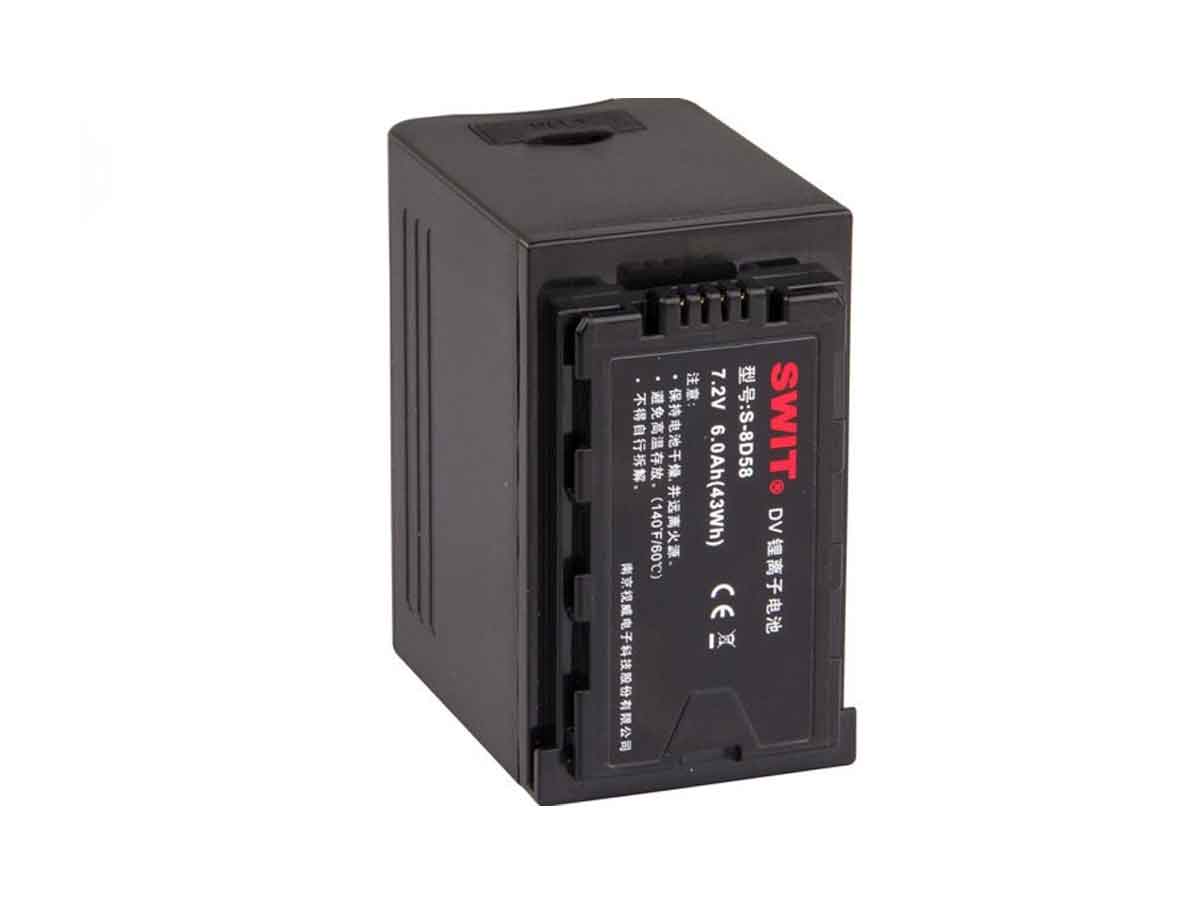

Swit S-8D58 Panasonic DV Camcorder Battery

43Wh/6000mAh Capacity

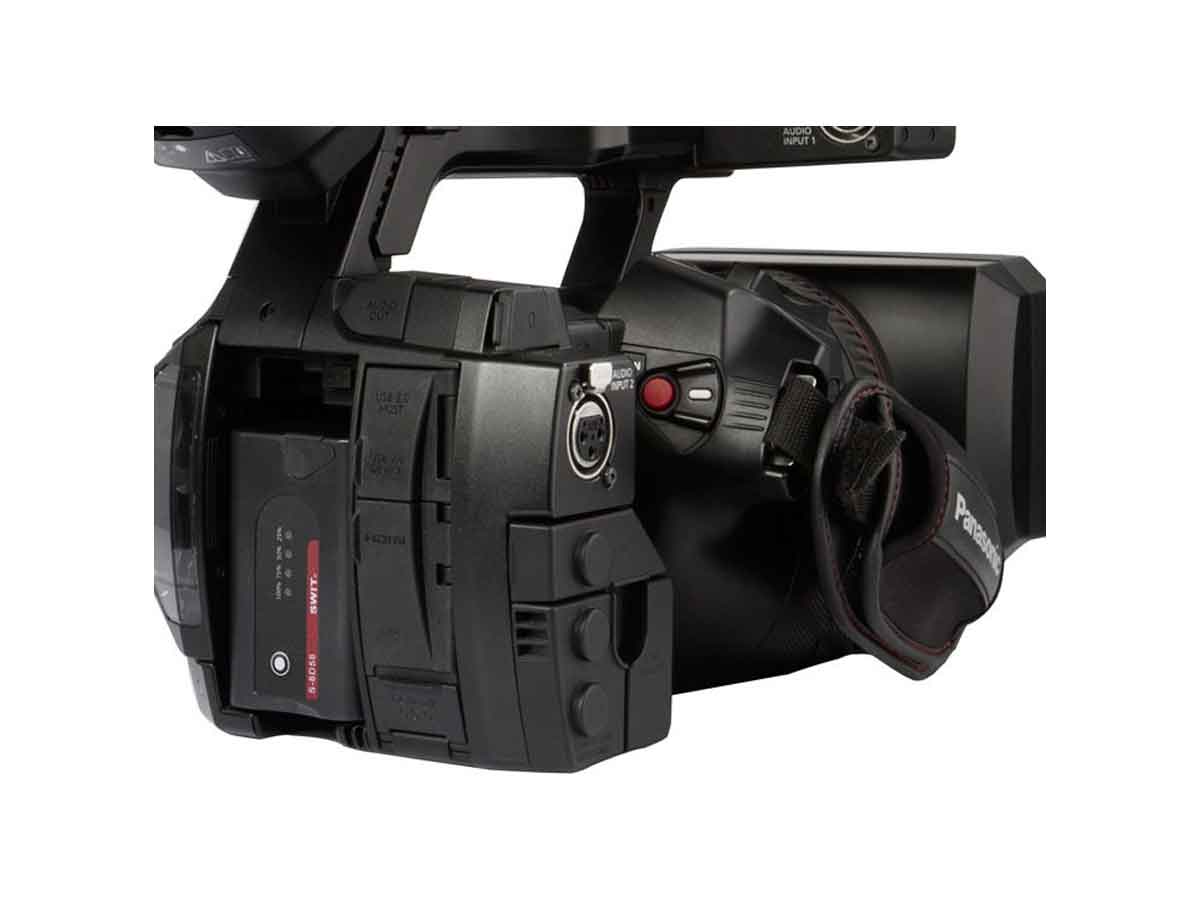

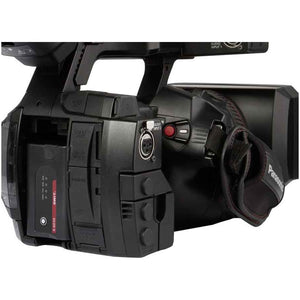

With 7.2V nominal voltage, the S-8D58 has 43Wh / 6000mAh capacity,and can run approx 2 hours on AJ-PX270 series camcorders when LCD monitor is on.

Built-in Pole-tap DC Socket for DC output or Charging input

A 5.5/2.1mm pole-tap DC output socket is equipped on the S-8D58 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera.

The Max power from the pole-tap is 30W, 4A.

The Pole-tap socket can also be used as charging input, by SWIT portable charger S-3010D.

Built-in 5V/1A USB Socket

Use S-8D58 as Power Station to your cell phone.

It’s rather a fantastic function to have a USB socket on the DV battery.

Connect your smart phone or pad to the USB socket, press the “Check” button, and then the S-8D58 starts to output 5V/1A power to charge your devices.

4-level LED Power Indicator

The S-8D58 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

Easy Charging

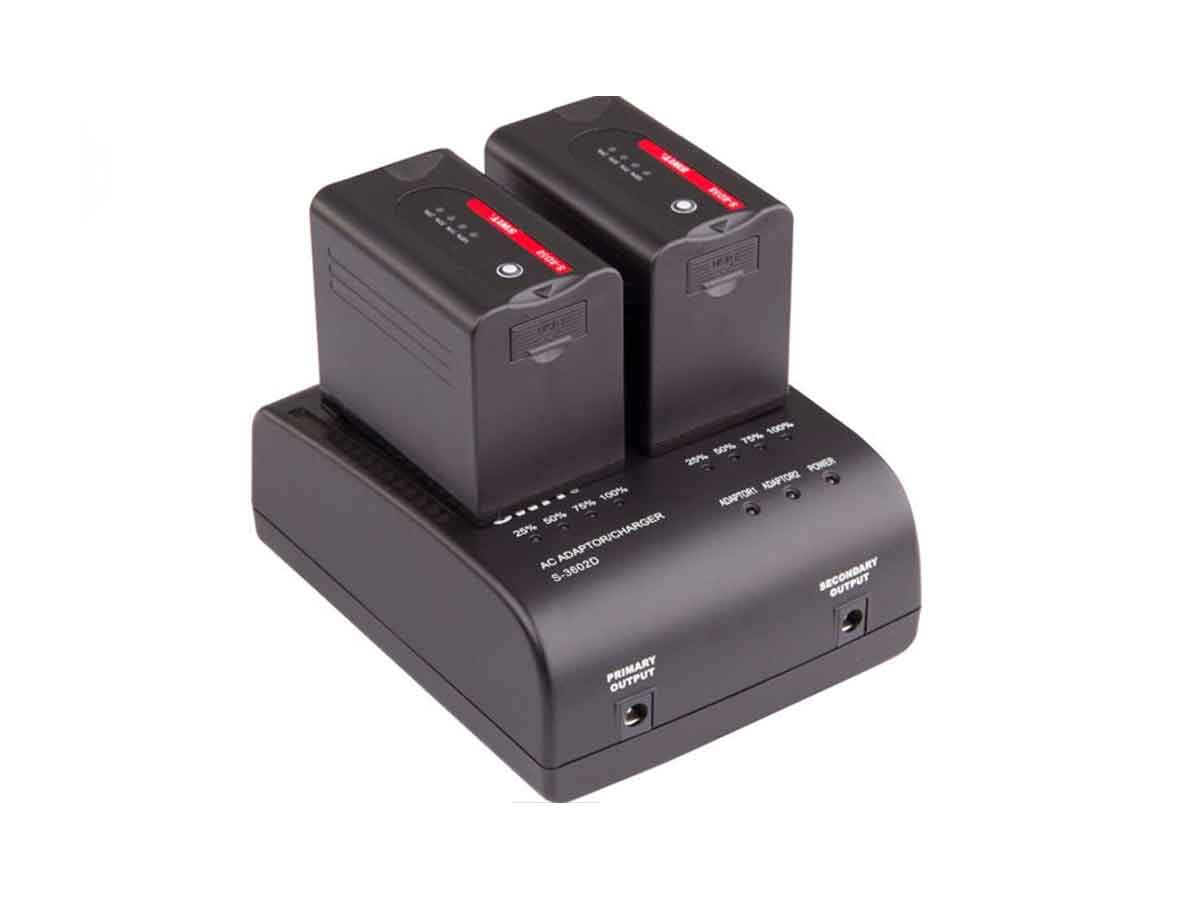

The S-8D58 can be charged on Panasonic original charger DE-A88, and SWIT also provides the Dual channel charger S-3602D for S-8D58, will take about 4 hours to charge from empty to 100%.

You can also use SWIT S-3010D PortablePole-tap Charger for S-8D58. It will take 7 hours to fully charge.

Adopted high quality Lithium cells

Over more than 15 years, SWIT has been leading brand of broadcast camera batteries.

The first reason is the high quality Lithium cells we adopted.

The high quality cells featured long life, durable, safety, and most of all, the cells has very little difference to each other, which ensures the high performance of the whole battery pack.

Moreover, the cells we’re using, have a smooth discharging curve by voltage, so that you can judge the remaining running time accordingly. Also when in storage, the self-discharging rates are very little, that extends the battery life effectively.

Strong and Durable Housing

The S-8D58 housing is made of high-impact ABS material, and the advanced plastic welding technical ensures the strong and durable structure.

Multiple Safety Protection Design

The battery has an MCU to measure and record the real time data, and will cut off power when over-voltage, under-voltage, over-current, high-temperature of low-temperature is detected. Meanwhile, the battery housing adopts high-impact ABS material, with waist design and non-slip tread for secure handling.

Cell balance adjustment

After the batteries are used for a period of time, the cells voltage might get difference, and our specially designed circuit can optimize the imbalanced cells, to prolong the battery life.
