Portable DVI to 3G/HD/SD-SDI Converter
Portable Mini Converter
S-4612 is a mini converter for DVI to SDI conversion, (DVI-D, 18+1 connector), which can be widely used for DVI video source to deliver and broadcast, support up to 1080p 50/60 format DVI to convert to SDI.
Input and Output
S-4612 offers:

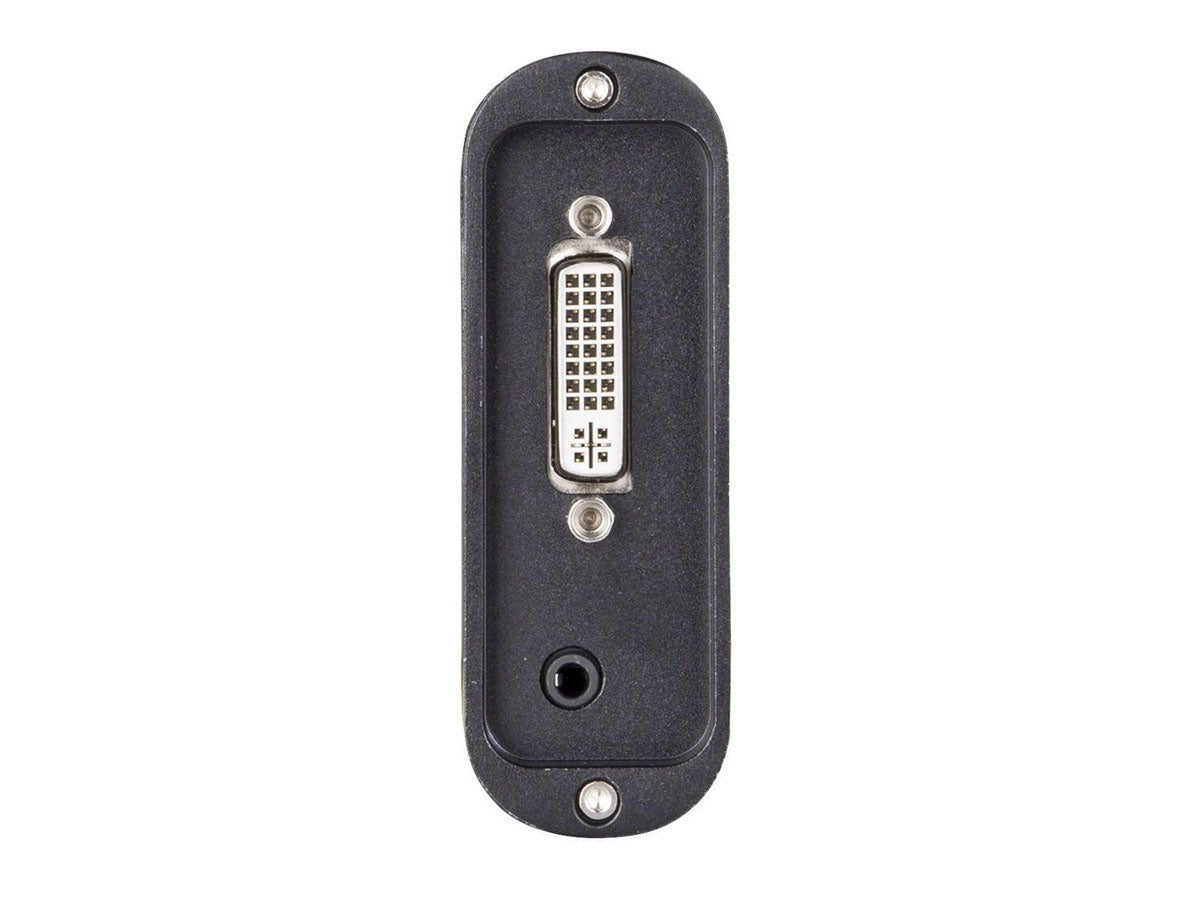

1× DVI-D (18+1) input

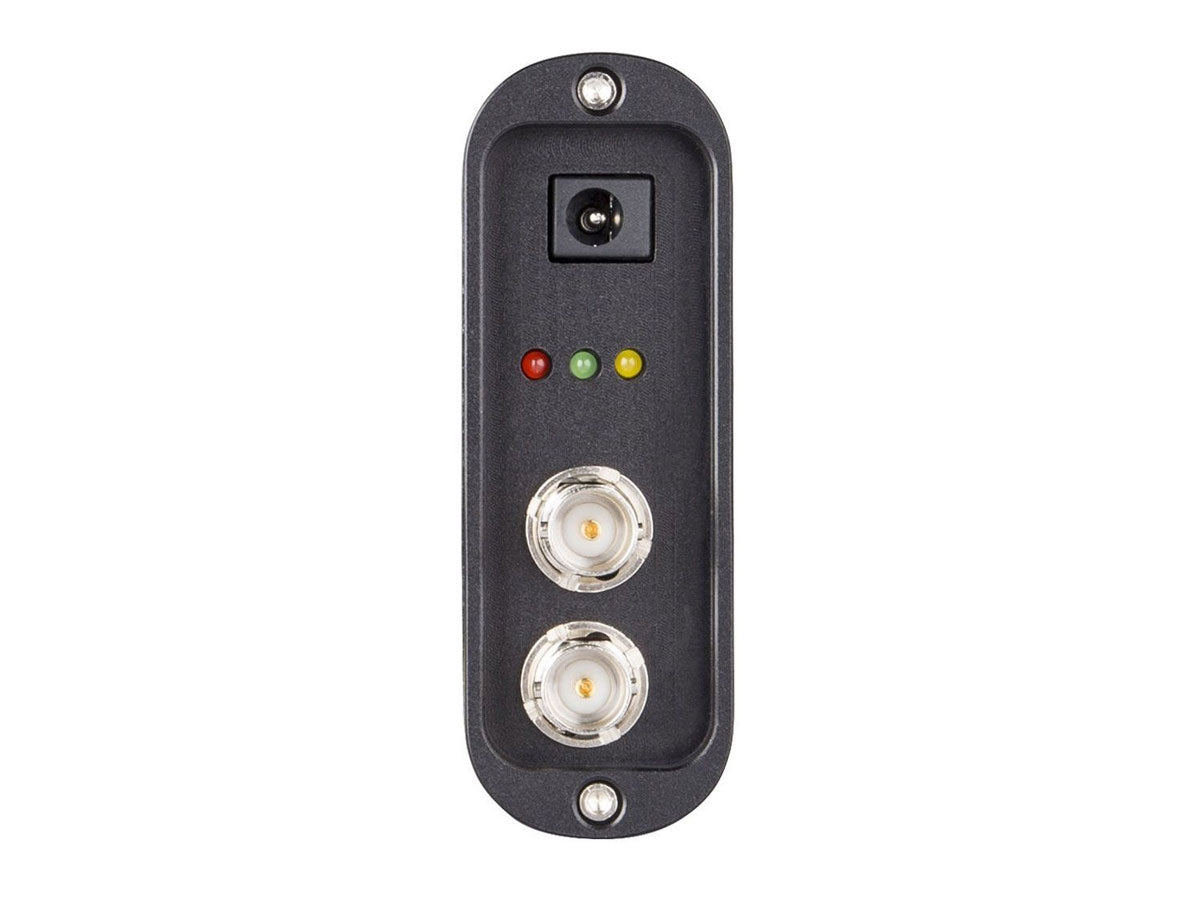

2× 3G/HD/SD-SDI output (Reclocked)
1× 3.5mm audio input
(The DVI to SDI supports the same format conversion only.)
S-4612 features low SDI jitter and SDI re-clocking so that you can use the longest SDI cable lengths and maintain pristine quality images.
Embed Analog audio into SDI output
S-4612 support 3.5mm analog audio input, and can be embedded into SDI to output. The audio supports 48kHz sample rate.
Status Indicators
Power / Input / Output
S-4612 provides 3 LED indictors, to check if the power is connected, and if the input/output signal is delivered.
Power Supply
Pole-tap DC input
The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing

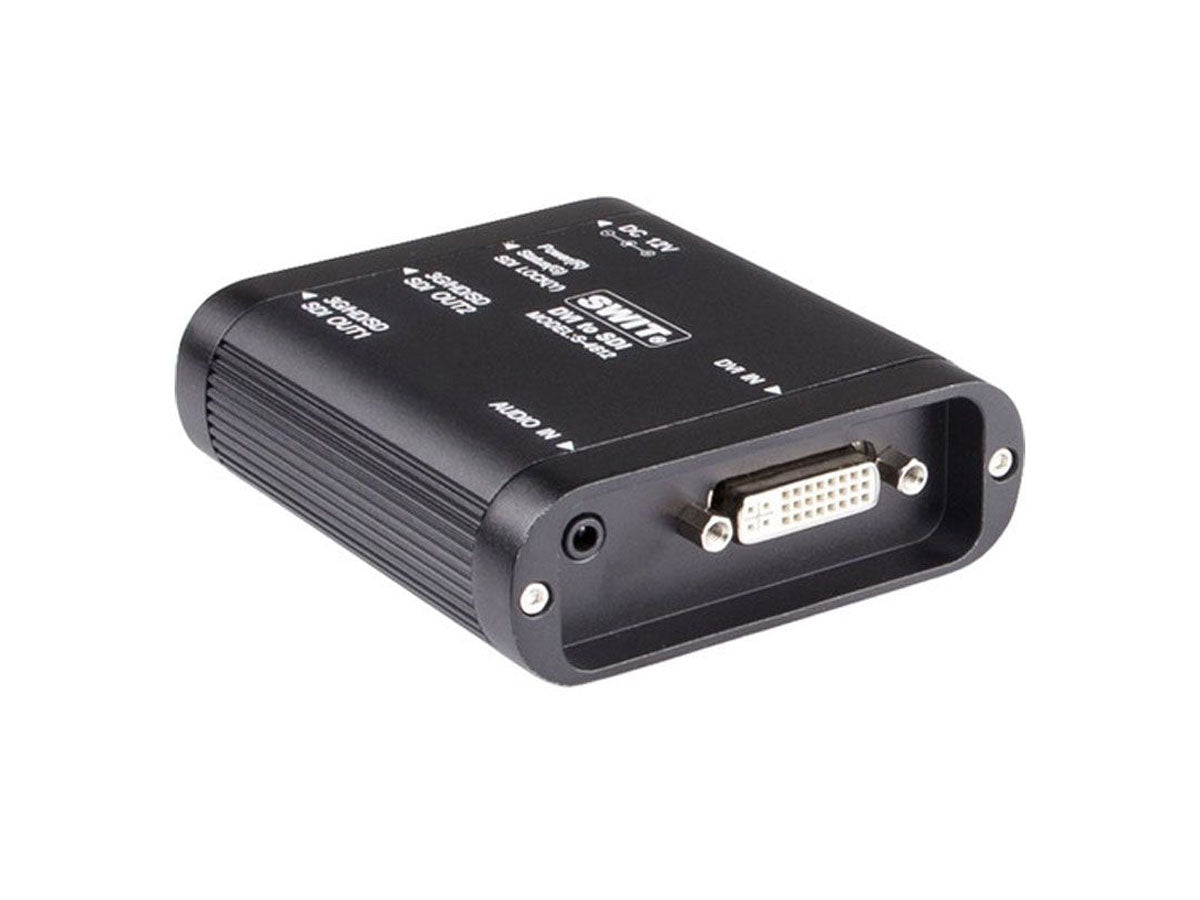

The S-4612 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.
Installation

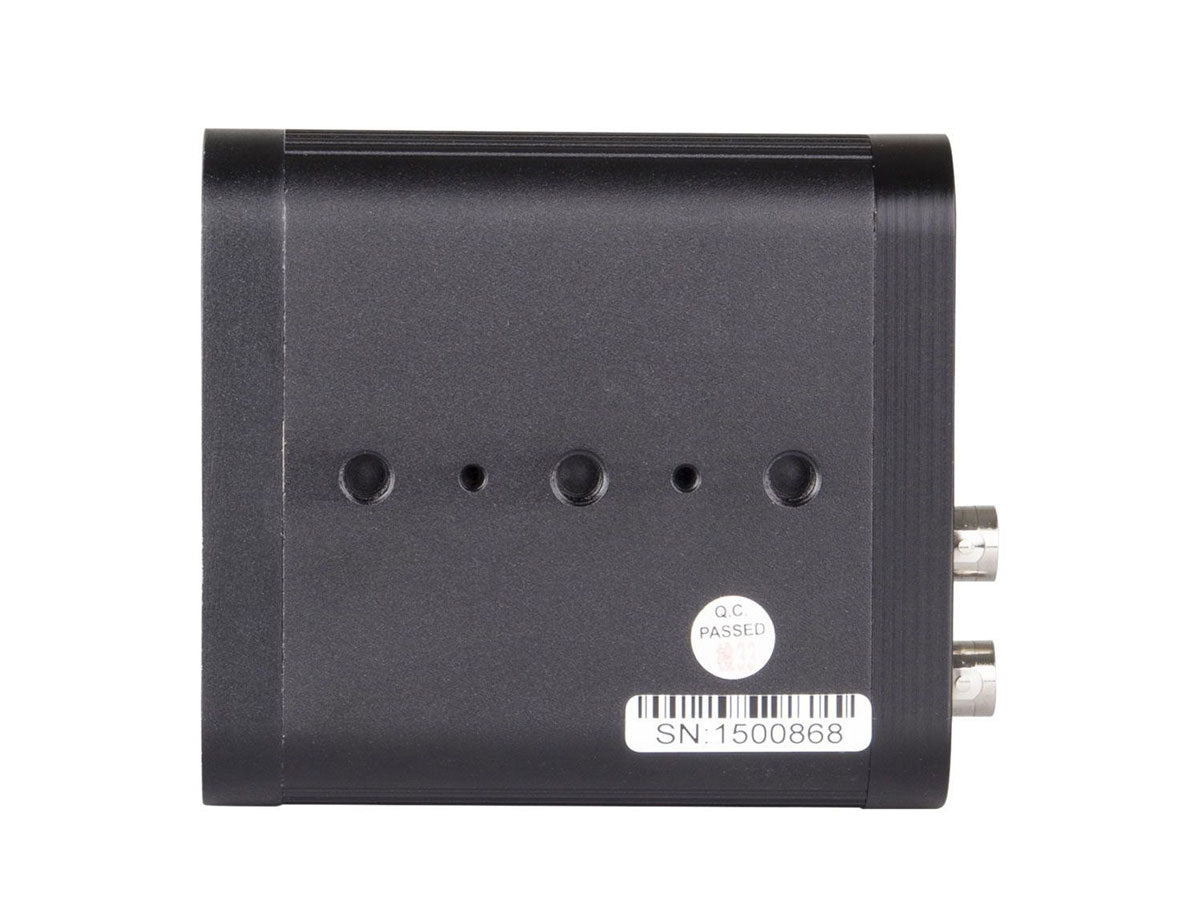

S-4612 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate A-IP00 is supplied in the package, for fixing on wall and binding the BNC/DVI cables.

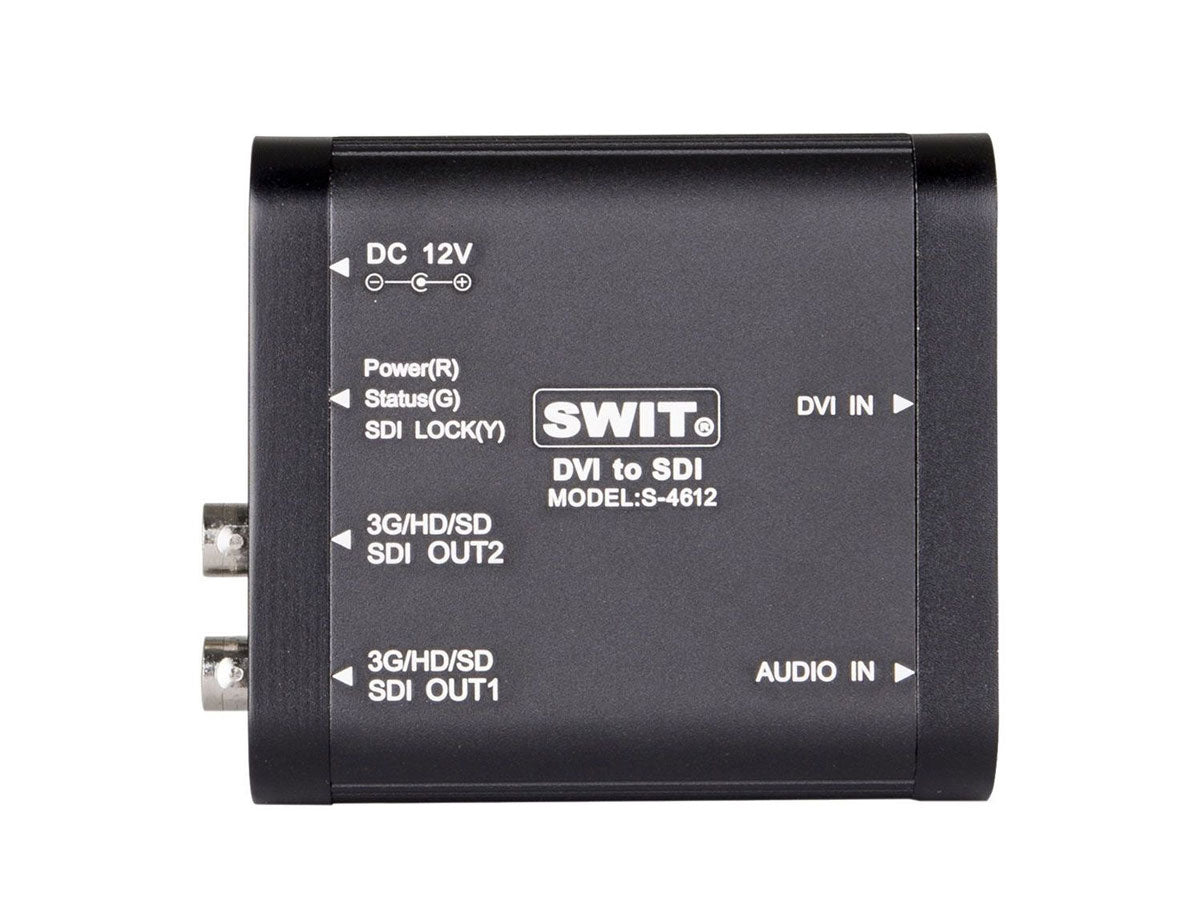

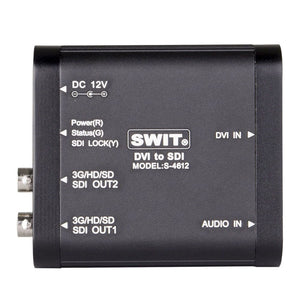

- 1 DVI input, 1 analog audio input, 2 SDI output
- Embed Analog audio into SDI output
- Power/input/output status indicator
- Pole-tap 6-18V DC power input
| S-4612 | ||
|---|---|---|
| Input | DVI-D ×1 3.5mm×1 | DVI input Analog audio input |
| Output | BNC ×1 | 3G/HD/SD-SDI loop output |
| Video Format | SDI | 1080p (60 / 59.94 / 50) 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94) 576i (50) |
| DVI | 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) 480i / 576i | |
| Audio | 48KHz Sync | |
| Power | ≤3W | |
| Working Voltage | DC 6-18V | |
| Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% | |
| Dimensions | 98×84×29 mm | |
| Net weight | 207g | |
- Installation plate
- AC-DC Adaptor
