Portable 3G/HD/SD-SDI to DVI Converter
Portable Mini Converter

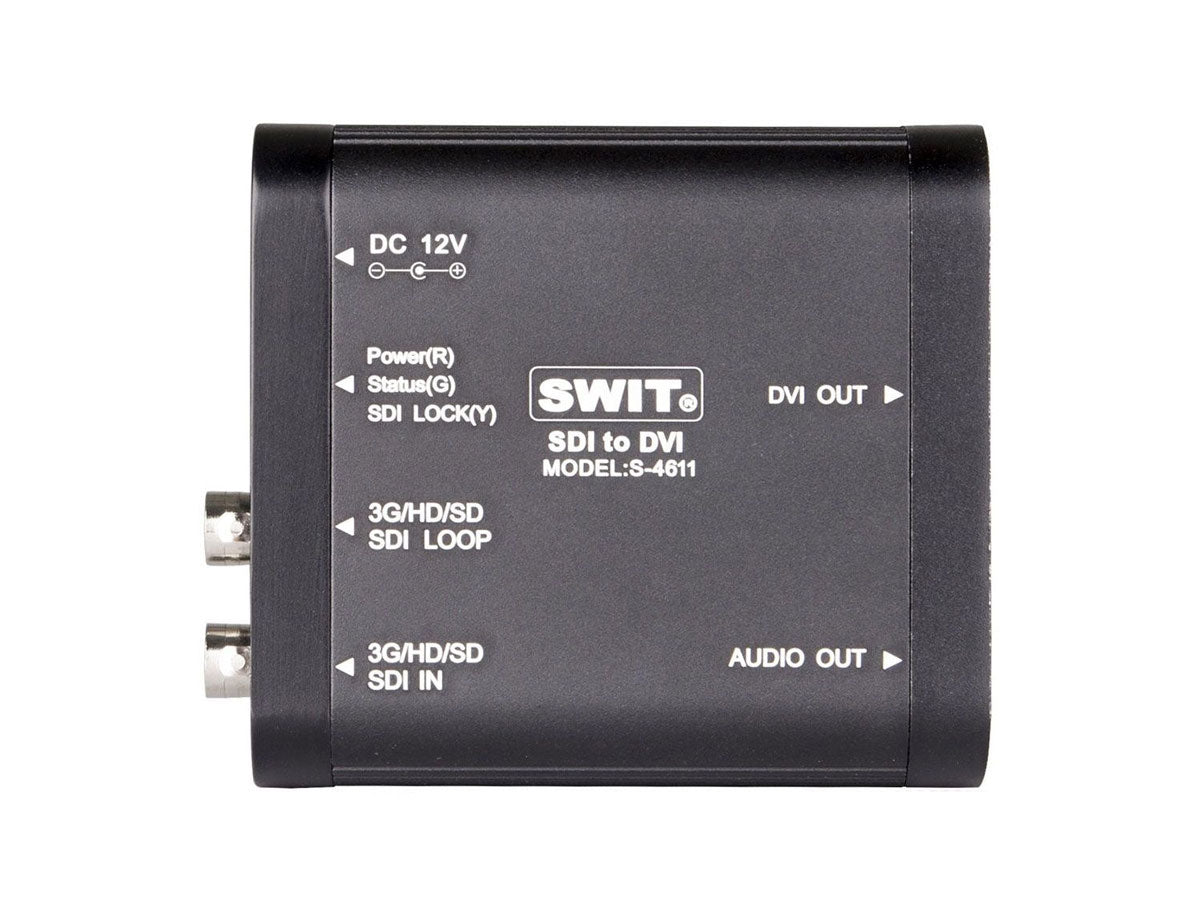

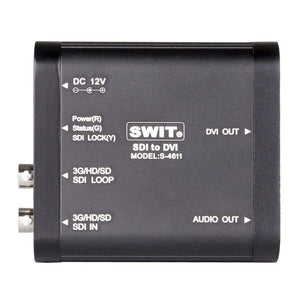

S-4611 is a mini converter for SDI to DVI conversion, (DVI-D, 18+1 connector), which can be widely used to display up to 3Gb/s broadcast SDI video on DVI monitor, televisions, LED board or projectors.
Input and Output
S-4611 offers:
1× 3G/HD/SD-SDI input
1× 3G/HD/SD-SDI loop output (Reclocked)

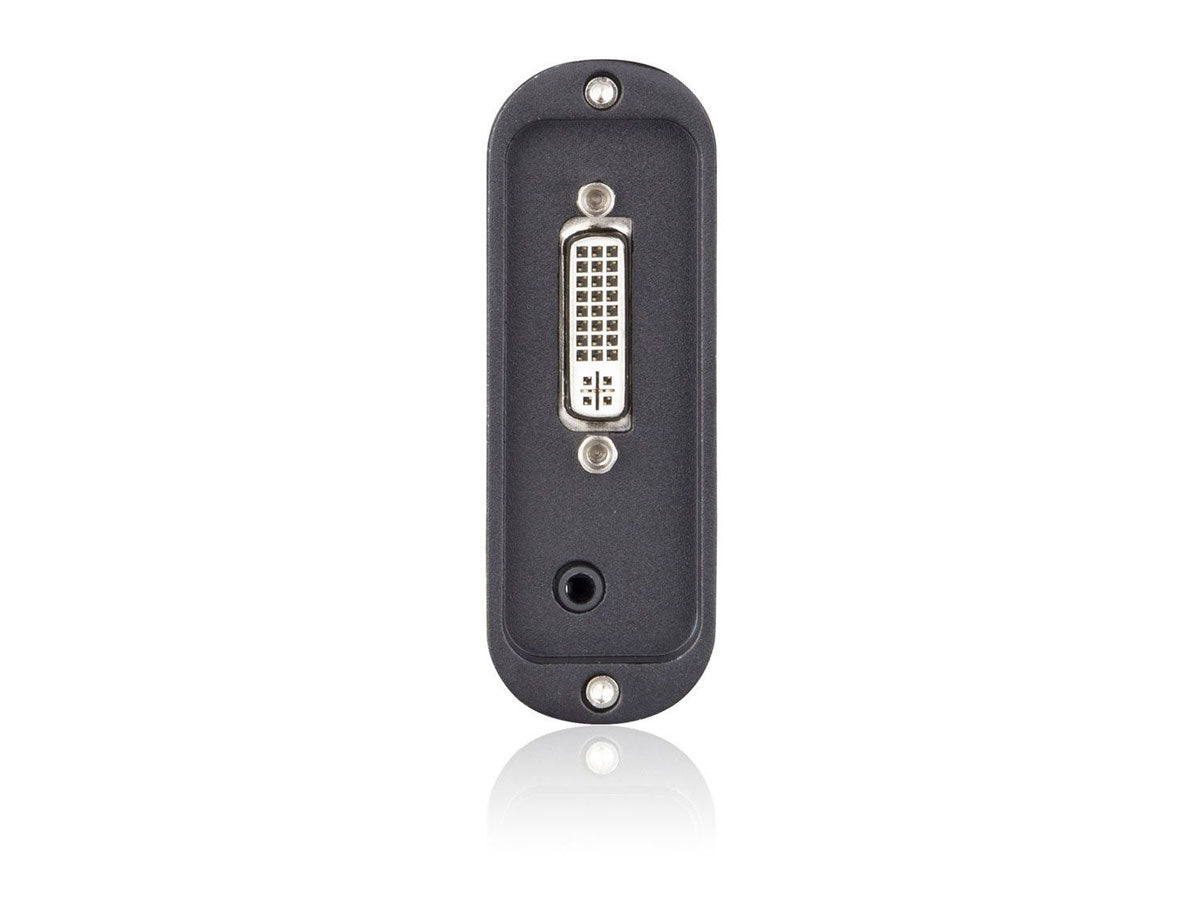

1× DVI-D output
1× 3.5mm audio output
(The SDI to DVI supports the same format conversion only.)
Embedded Audio output
The SDI embedded audio ch-1 & ch-2 can be converted to analog audio and output via 3.5mm headphone socket, supports 48kHz sample rate.
Status Indicators
Power / Input / Output

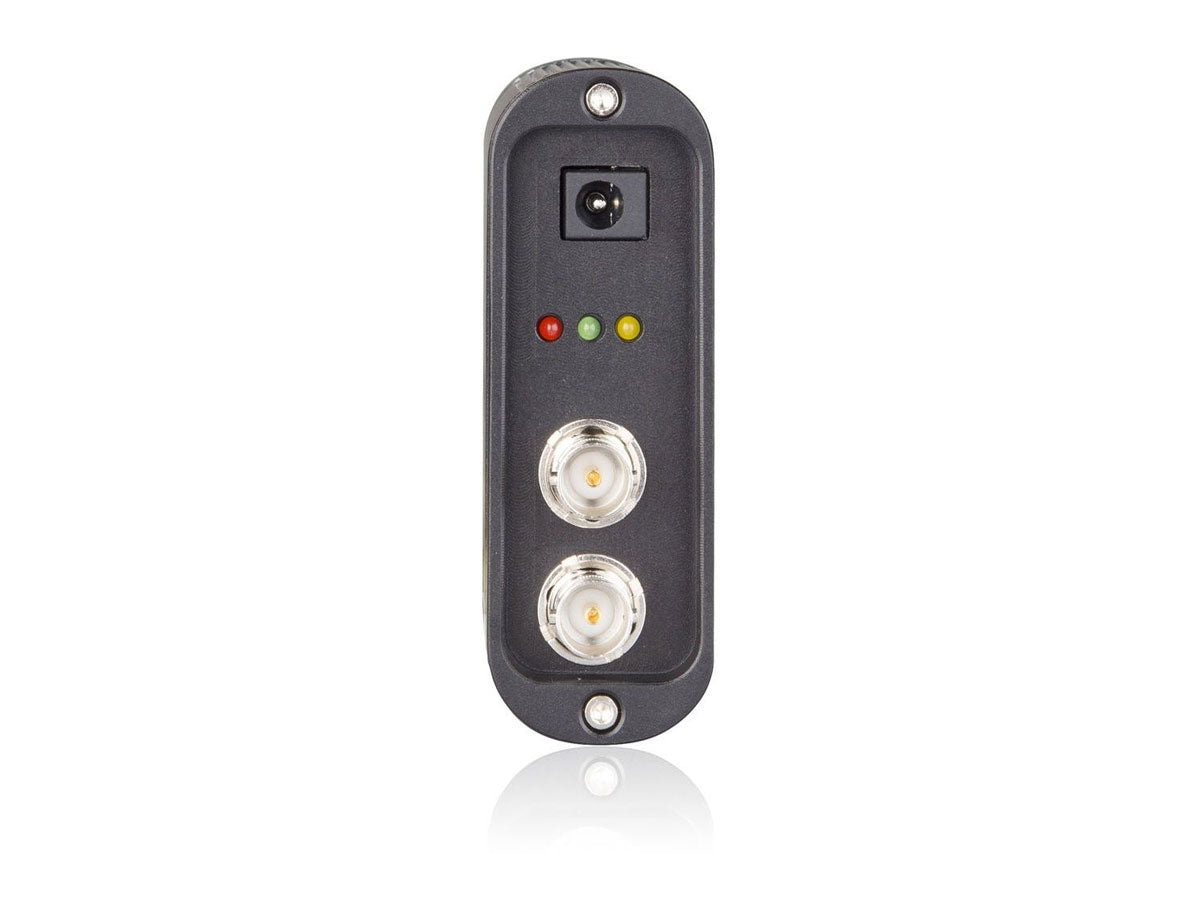

S-4611 provides 3 LED indictors, to check if the power is connected, and if the input/output signal is delivered.
Power Supply
Pole-tap DC input
The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing

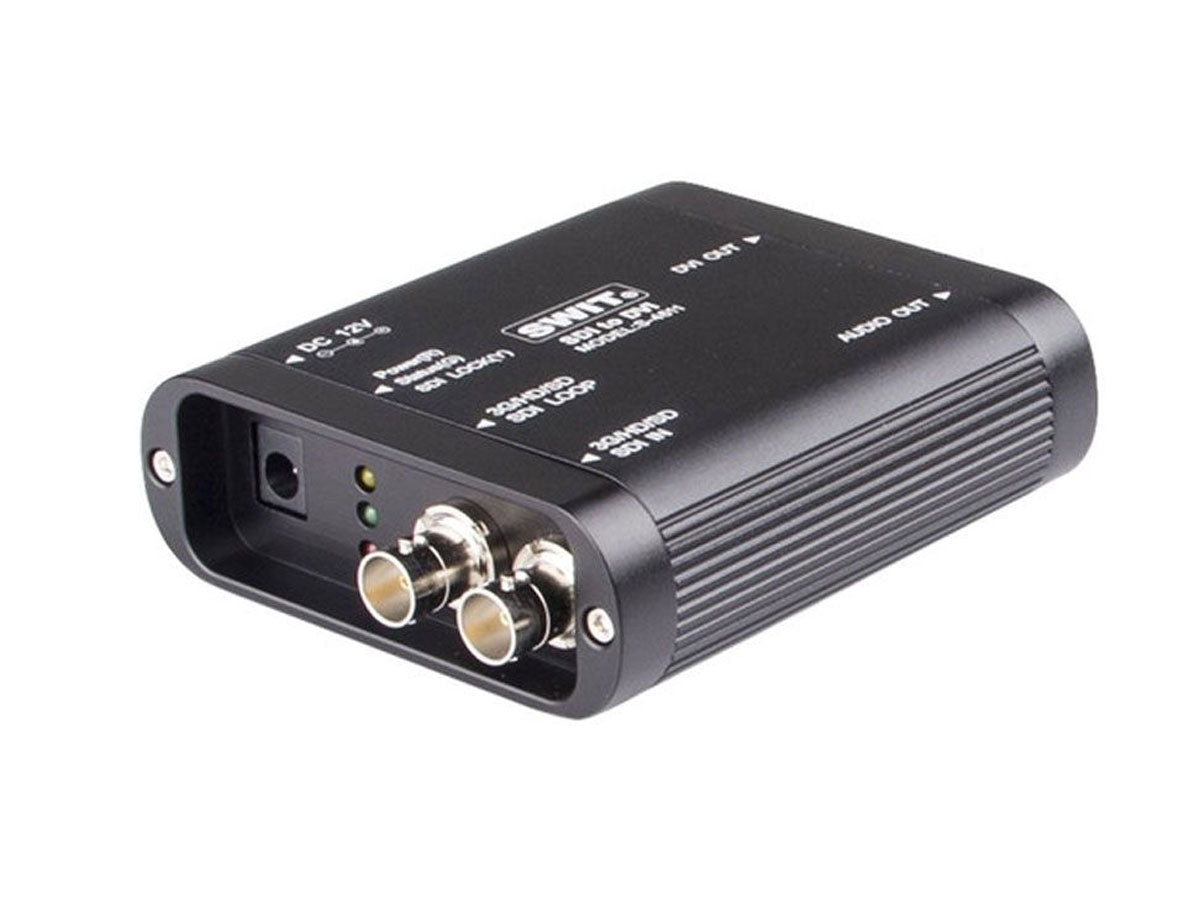

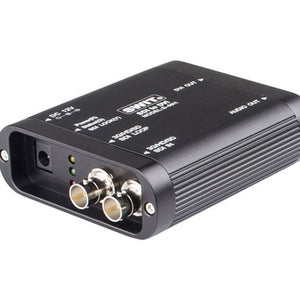

The S-4611 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.
Installation

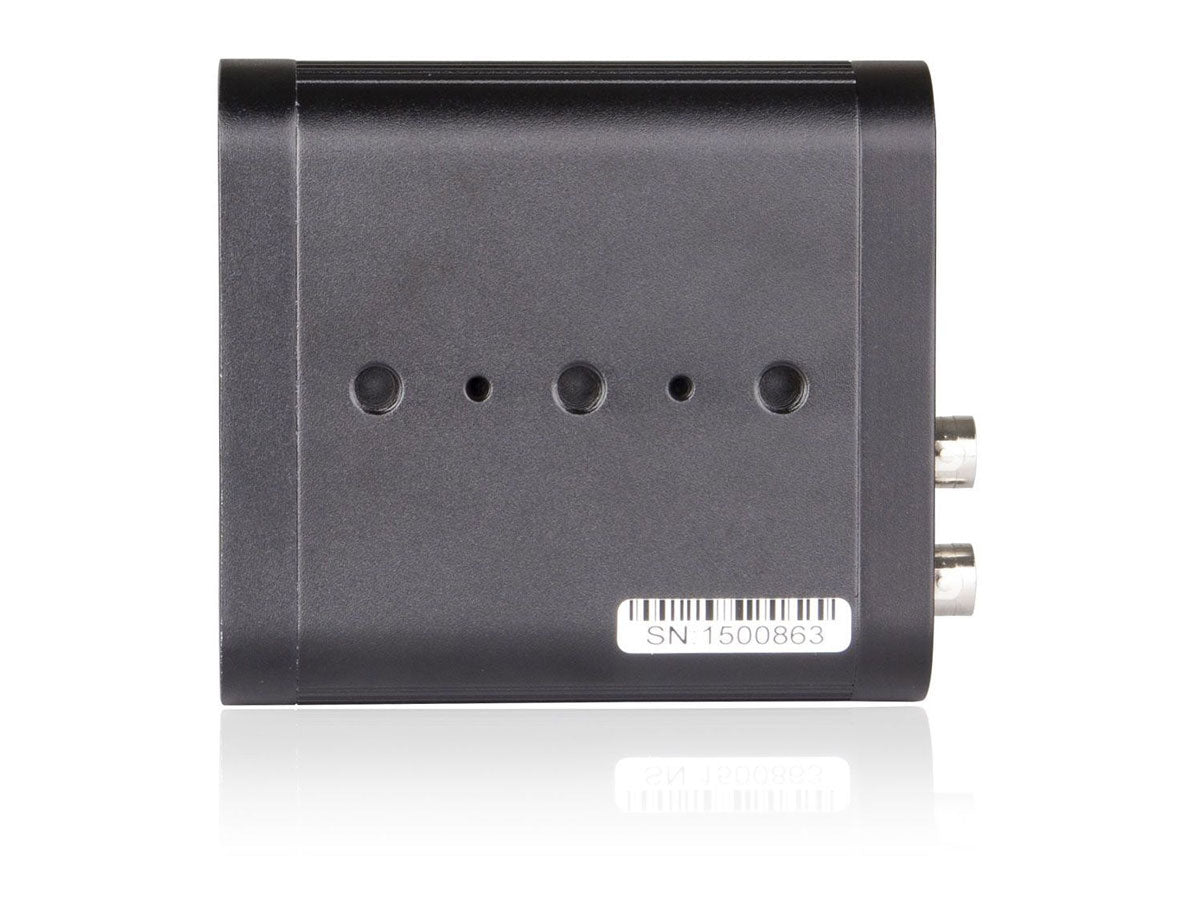

S-4611 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate A-IP00 is supplied in the package, for fixing on wall and binding the BNC/DVI cables.
- 1 SDI input, 1 DVI output, and 1 SDI loop
- SDI audio output via 3.5mm socket
- Power/input/output status indicator
- Pole-tap 6-18V DC power input
| S-4611 | ||
|---|---|---|
| Input | BNC×1 | 3G/HD/SD-SDI input |
| Output | BNC ×1 DVI-D ×1 3.5mm ×1 | 3G/HD/SD-SDI loop output Converted Optical fiber output SDI audio output |
| Video Format | SDI | 1080p (60 / 59.94 / 50) 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94) 576i (50) |
| DVI | 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) 480i / 576i | |
| Audio | 48KHz Sync | |
| Power | ≤3W | |
| Working Voltage | DC 6-18V | |
| Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% | |
| Dimensions | 98×84×29 mm | |
| Net weight | 209g | |
- Installation plate
- AC-DC Adaptor
