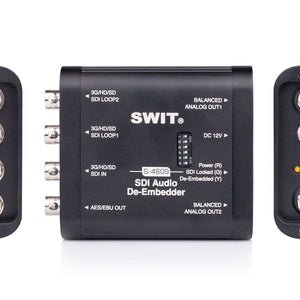

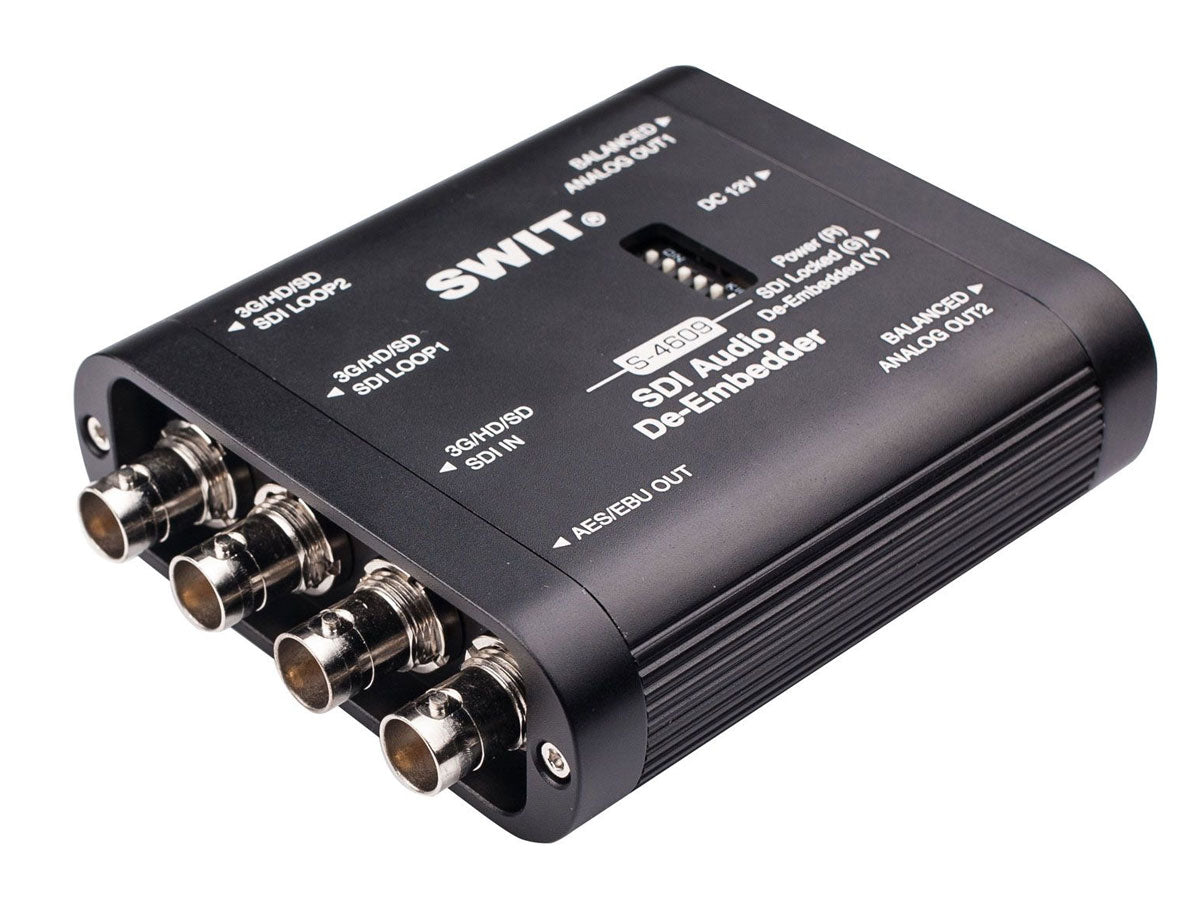

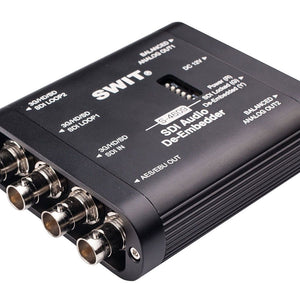

Swit S-4609 SDI Audio De-Embedder
Swit S-4609 SDI Audio De-Embedder
£313.20 GBP inc VAT
£313.20 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Portable SDI to Audio Mini Converter
The S-4609 is a portable mini SDI audio de-embedder, supports up to 3Gb/s SDI, and can be widely used in broadcast field productions and professional audio/video conversion and transmission.

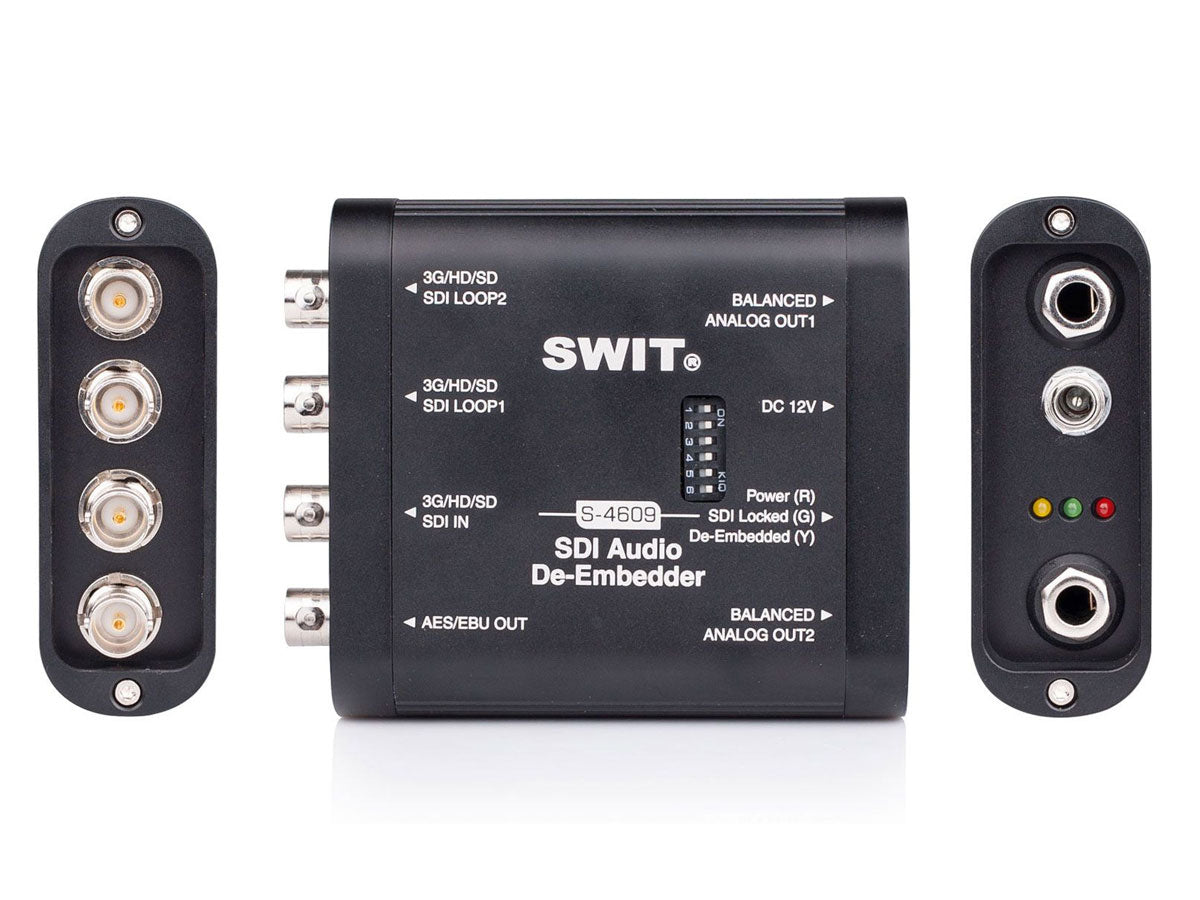

Input and Output
S-4609 provides:
- 1x 3G/HD/SD-SDI input
- 2x 3G/HD/SD-SDI loop output (Reclocked)
- 1x AES/EBU digital audio output (2-ch)
- 2x 6.35mm analog audio output (balanced)
- (If both AES/EBU audio and analog audio is connected, only AES/EBU audio outputs)

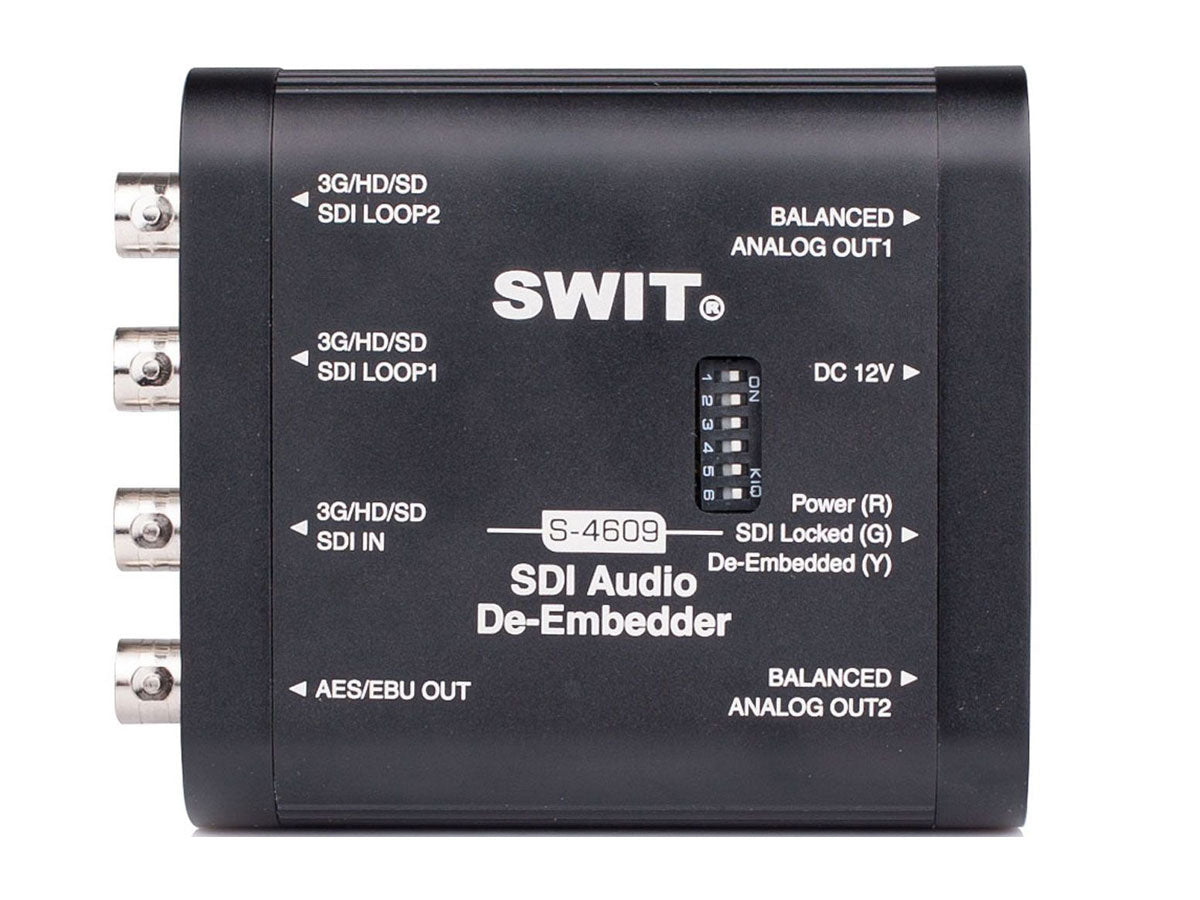

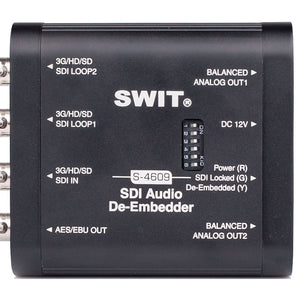

De-embed Channel Selection By 6 Switchers

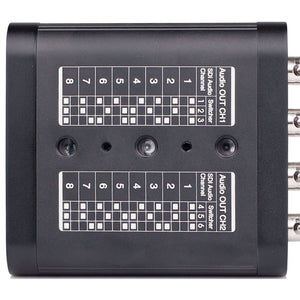

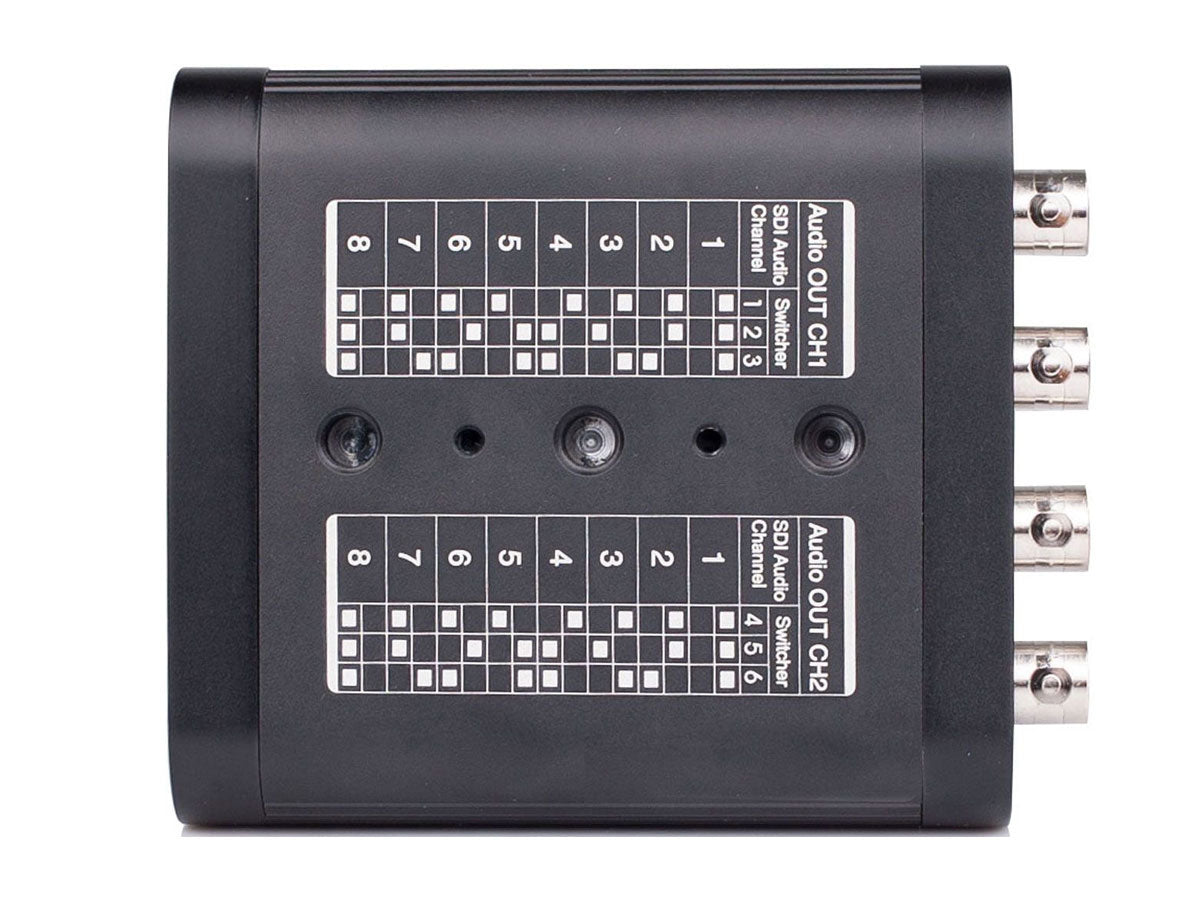

S-4609 can de-embeded any 2-ch audio from SDI first 8-ch embedded audios. User can select the channel number to be de-embedded by the 6 switchers on the front panel of the product. And on the rear side, S-4609 provides the description of the 6 switchers for reference.
Status Indicators : Power / Input / Output
S-4609 provides 3 LED indictors, to check if the power is connected, if the SDI input is recognized, and if de-embedded audio is delivered
Power Supply
Pole-tap DC input
The mini converter is powered by pole-tap DC socket.
The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing
The S-4609 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the audio/video connectors effectively.
Installation
S-4609 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC/audio cables.
- Portable SDI to Audio De-embedder
- 3G/HD/SD-SDI supported
- De-embed any 2-ch from first 8-ch audio
- Output AES/EBU audio
- Output 6.35mm balanced audio
- Provide 2x SDI loop output
- Power/input/output status indicator
- Pole-tap 6-18V DC power input
- Heavy duty aluminium housing
- Bottom screw threads for installing
| S-4609 | ||
|---|---|---|
| Input | BNC×1 | 3G/HD/SD-SDI input |
| Output | BNC ×4 | 3G/HD/SD-SDI loop output |
| Video Format | SDI | 1080p (60 / 59.94 / 50) 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94) 576i (50) |
| HDMI | 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) 480i / 576i | |
| Audio | 48KHz Sync | |
| Power | ≤2W | |
| Working Voltage | DC 6-18V | |
| Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% | |
| Dimensions | 105×84×29 mm | |
| Net weight | 240g | |
- Installation plate
- AC-DC Adaptor
