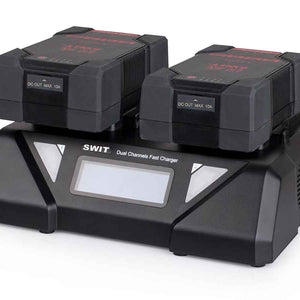

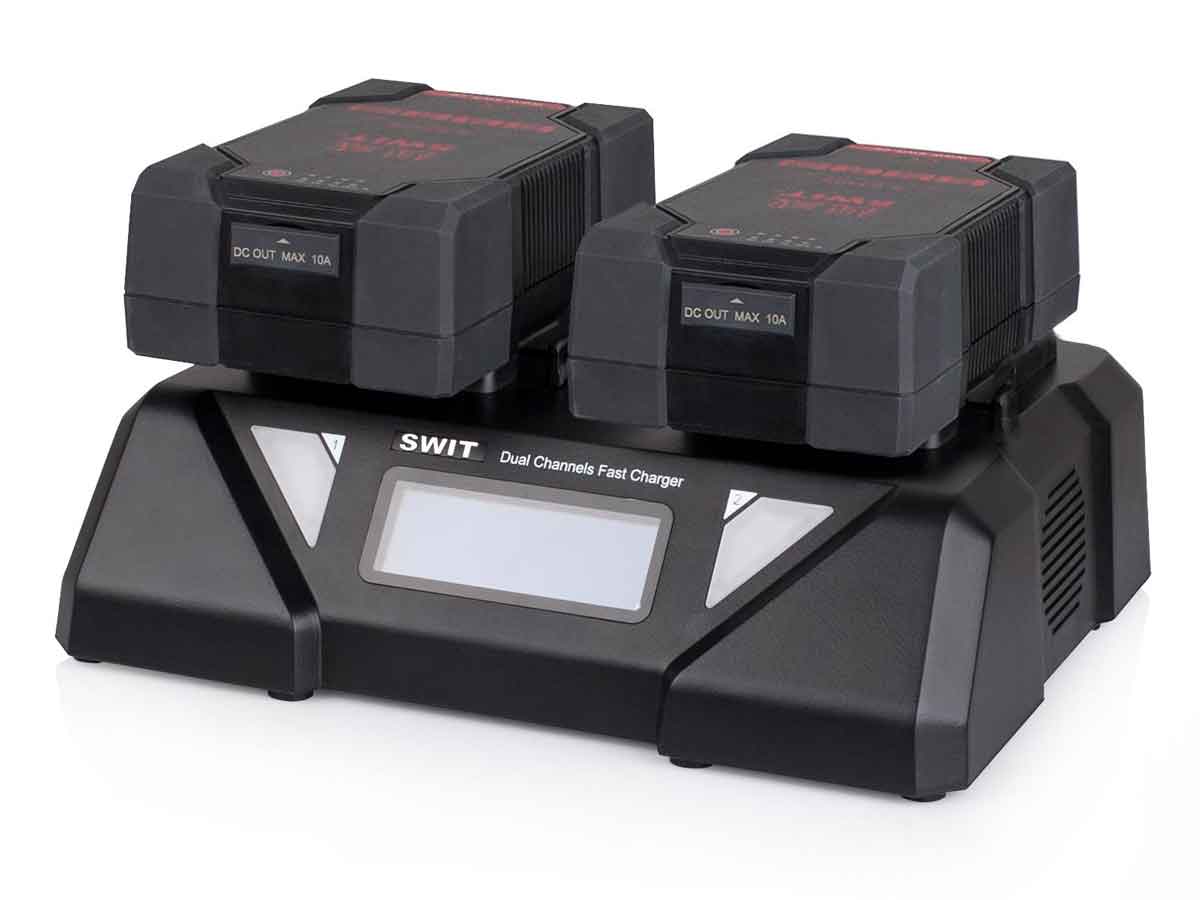

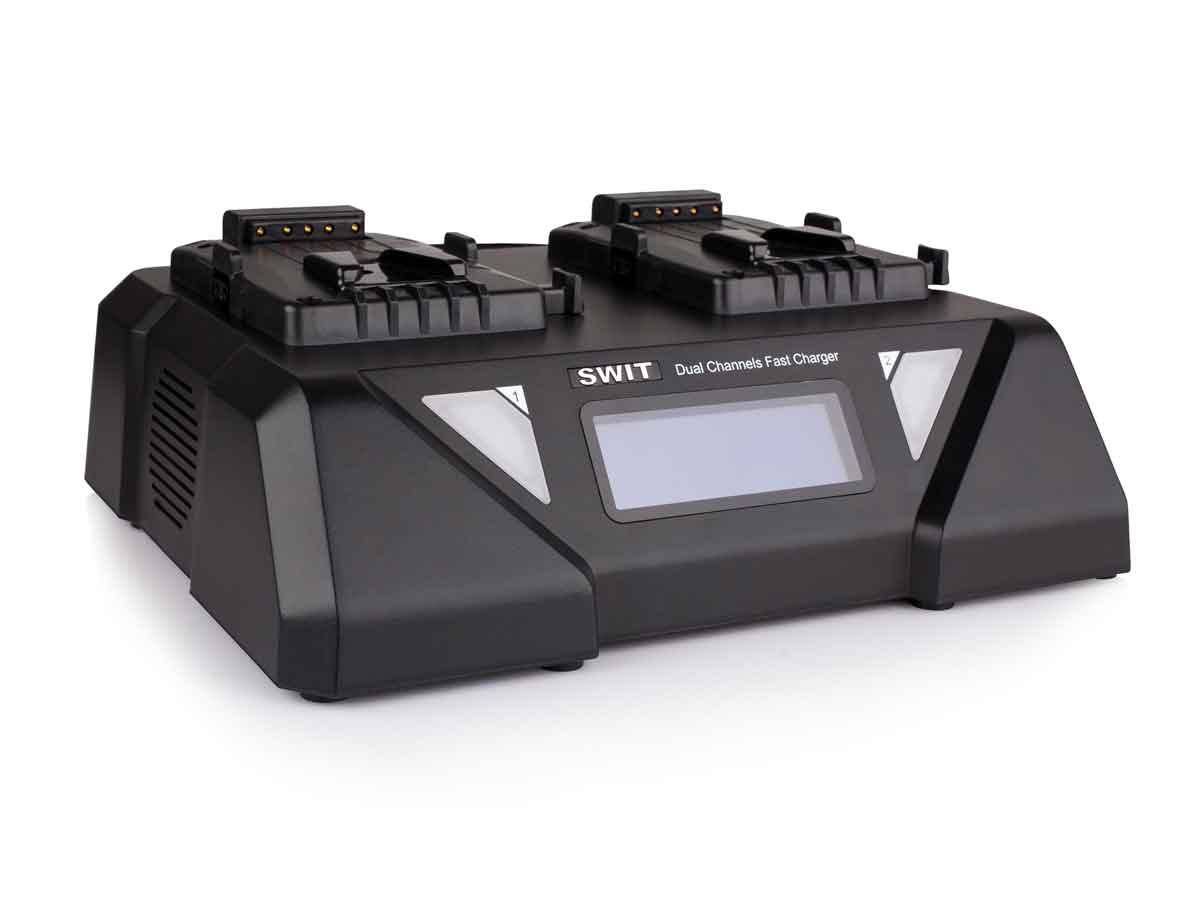

Swit S-3812S 2-ch V-Mount Fast Charger

The S-3812S fast charger can charge 2 V-mount batteries simultaneously at Max 6A fast charging current when partnered with the new SWIT fast charge V-mount battery range. The charging speed is twice as fast than normal V-mount chargers. The following battery models support 6A fast charging: S-8340S, S-8360S, D-8161S. For other batteries, the charging current is 3A.

AC-DC Adapting Output

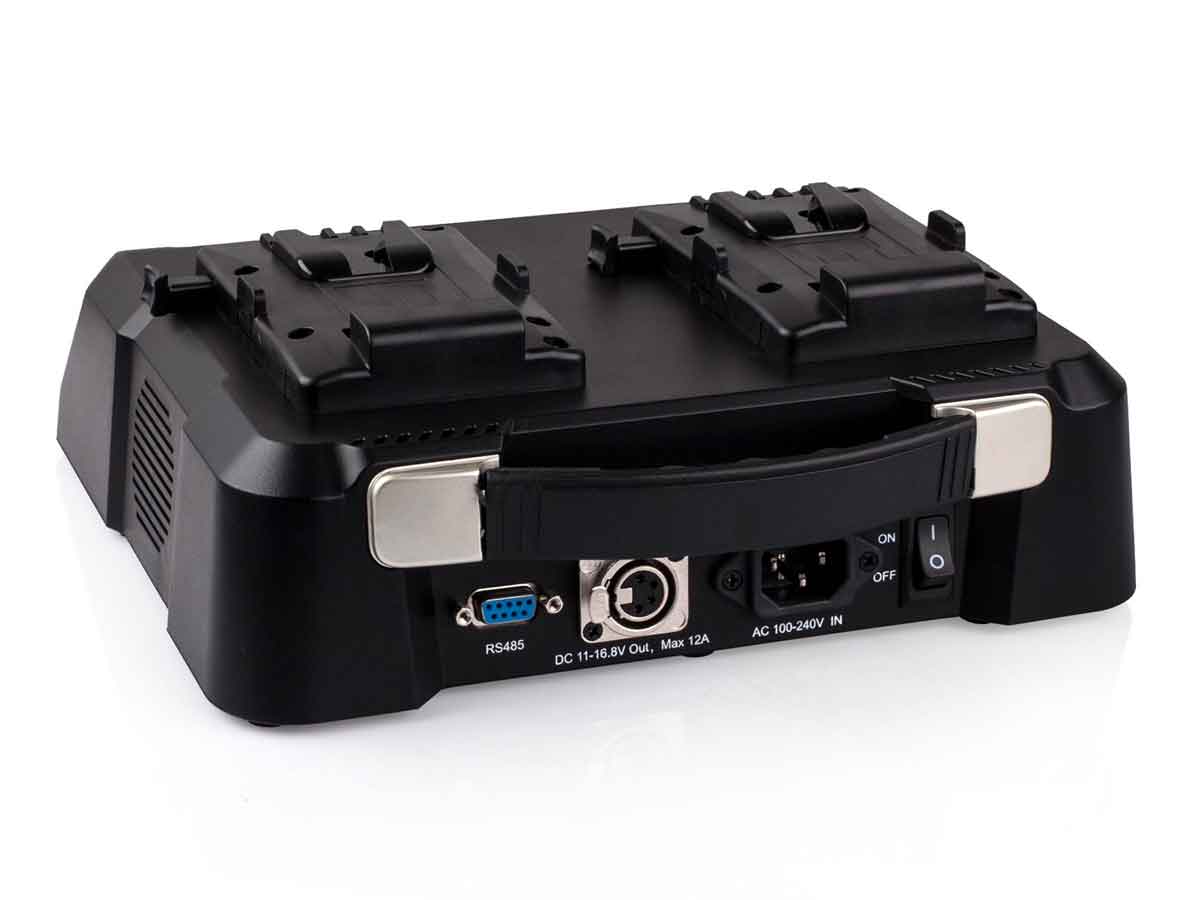

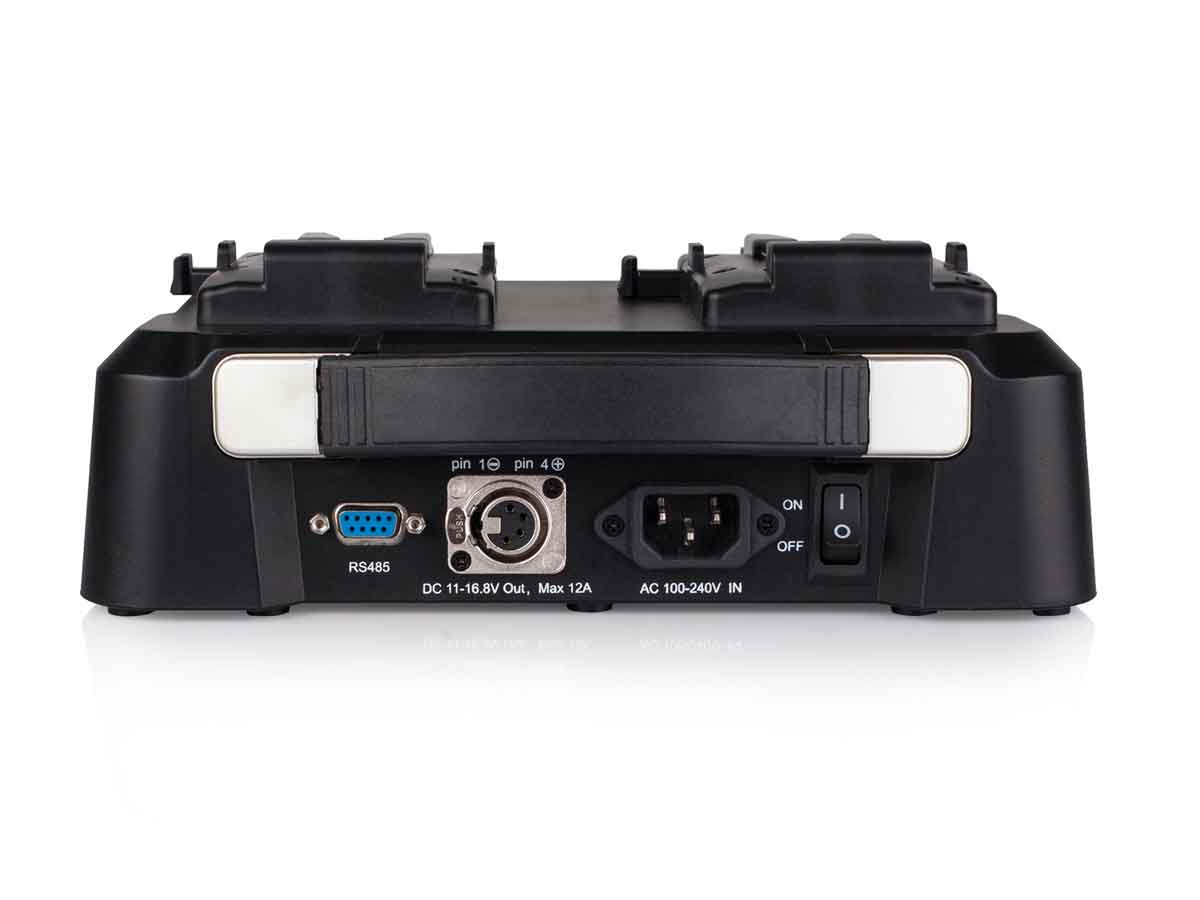

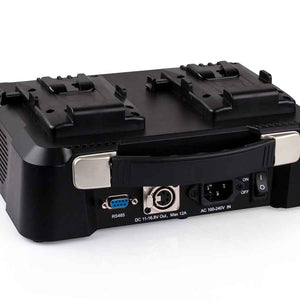

The S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR port. With the S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to other equipment up to a maximum load of 200W/12A. When the adapting load is less than 100W, the S-3812S quick charger can still charge the battery simultaneously. (With 2 batteries, the charge is sequential).

Battery-DC Adapting Output
You can also mount batteries on to the S-3812S charger, and output DC power via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A.

LCD Charging Info Display
The S-3812S has an LCD screen to display the real time charging/adapting information.

This includes:

• Battery Charging/Discharging status
• Real time capacity and percentage
• Real time Voltage/Current
• Remaining time until fully charged
• Remaining time until fully discharged
• Battery cycle times
• Adapting output current and power

3-Colour LED Indicators

The S-3812S has the 3-colour LED indicators for both 2 channels:

• Red light slowly flashes: The battery is charging
• Red light fast flashes: The battery is almost fully charged
• Green light constant: The battery is fully charged
• Green light flashes: The battery is adapting output
• Orange light flashes: Battery or Charger has an error
