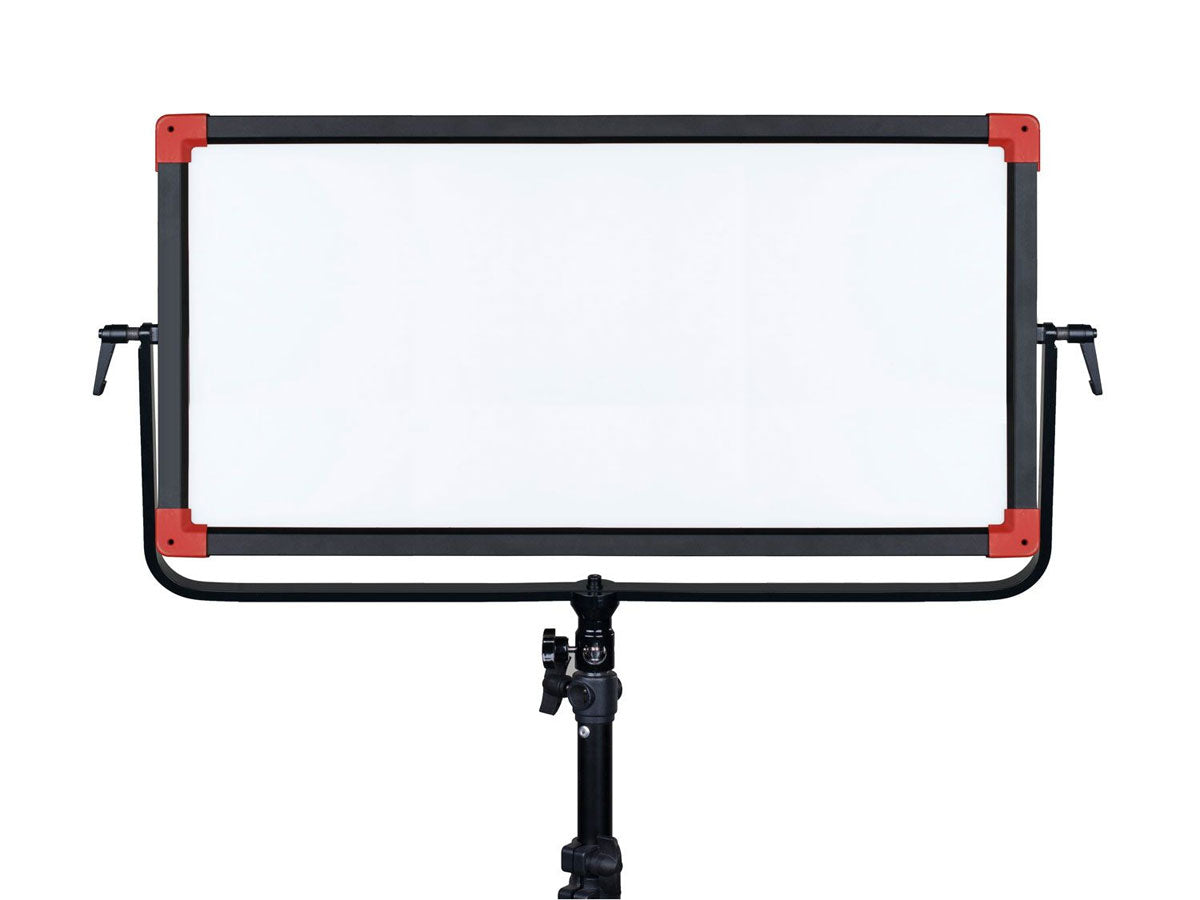

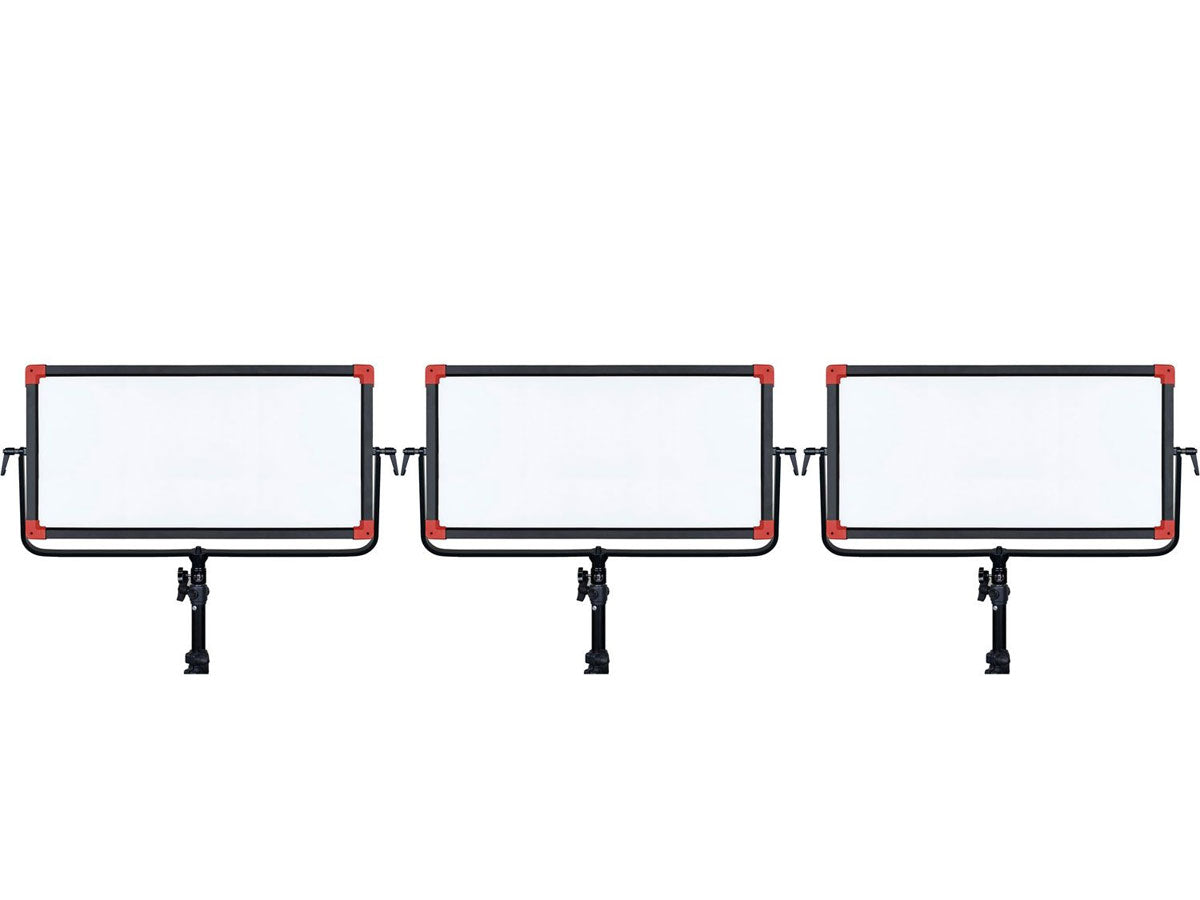

Swit PL-E90 - 3 Portable Bi-color PL-E90 3 Kit

Unique 90° light guide technology

Super thin, area light, soft and glareless

PL-E90 is specially designed for field portable lighting applications. 480pcs SMD-LEDs are mounted in the inner edge of the light frame, and with SWIT unique 90° light guide technology, PL-E90 can output bright, soft and equally spread light, meanwhile, the light body is slim enough and portable, which is an ideal light source for interview kit and field video productions.

Laser Dots 90° Light Guide

High efficiency and super bright

The traditional edge mounted LED lights are always not so bright, because half of the light will go to the backside, even if there’s reflection board, there’s still a lot of light lost.
SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots, and output 90° to the front with minimum light lost. Then the slim edge mounted light can also be high brightness.

2200 Lux @ 1 meter

0-100% flick-free dimming

PL-E90 outputs 90W power, feeds 2200Lux luminance at 1 meter distance (center), much brighter than other similar size LED panels. The effective beam angle reaches 70°, bounded by 50% decline. PL-E90 also supports 0 to 100% PWM digital dimming, smoothly and non-flickering

Bi-color Temperature

2700K-6500K continuously adjustable

PL-E90 alternated with 2700K and 6500K LEDs, and the output color temperature can be continuously adjustable between 2700K and 6500K.

High Color Reveal Ability

CRI Ra 98; TLCI 99

CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while PL-E90 offers the super high CRI at 98 and TLCI at 99, and will not lost the object original colors.

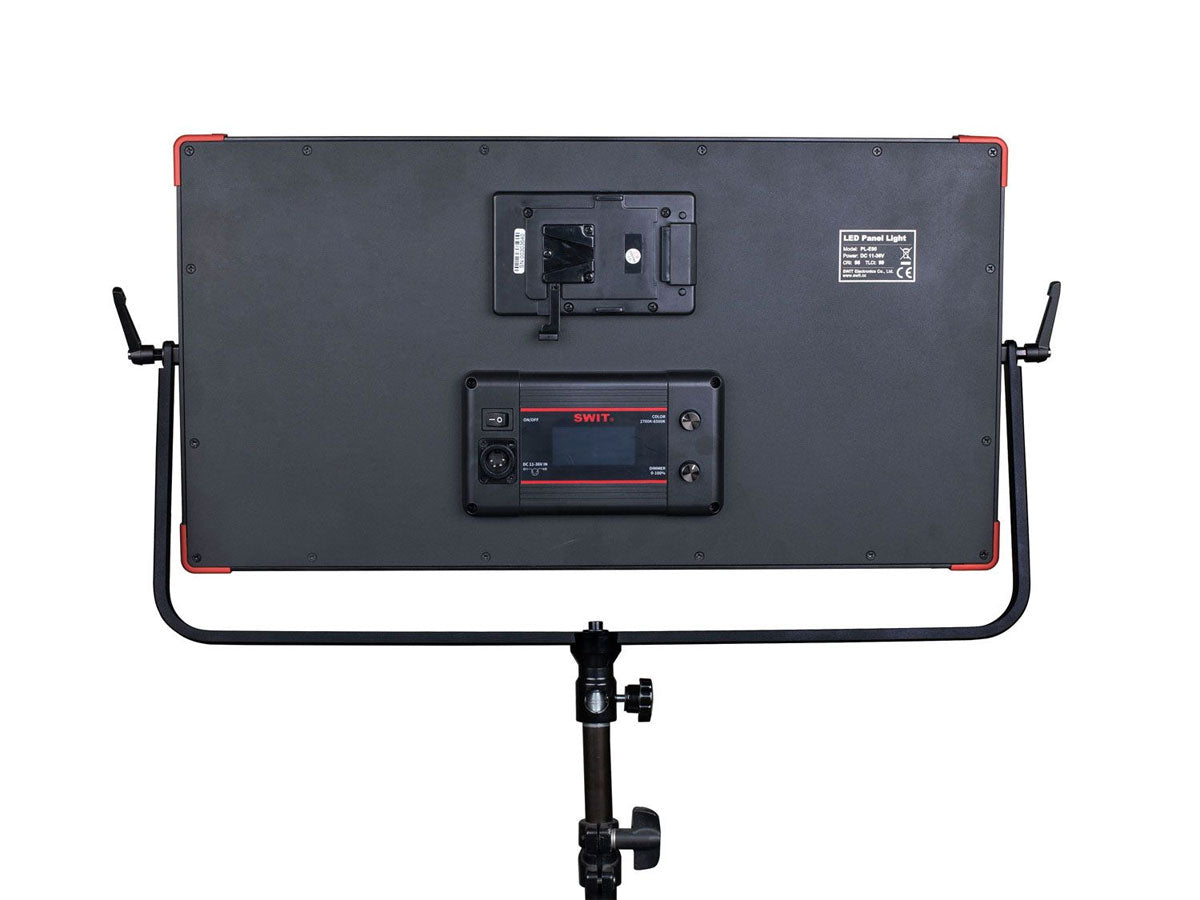

LCD Screen Display

Dimmer / color temperature value, battery info

The rear LCD screen can display the current dimmer percentage, color temperature value, and remaining battery indications.

Quick Adjust Mode

By pressing the adjusting knob

PL-E90 supports quick adjusting brightness and color temperature:
Press the Dimmer knob, it will switch from 1% stepping to 10% stepping, to quick adjust brightness;
Press Color temperature knob, it will switch from 50K stepping to the following commonly used color temperature selection: 2700K / 3200K / 4500K / 5600K / 6500K.

11-36V Wide Input Voltage

By V-mount/Gold mount battery or 4-pin XLR

PL-E90 supports 11-36V wide range voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount plate to power by batteries.
(The default battery plate is V-mount.)

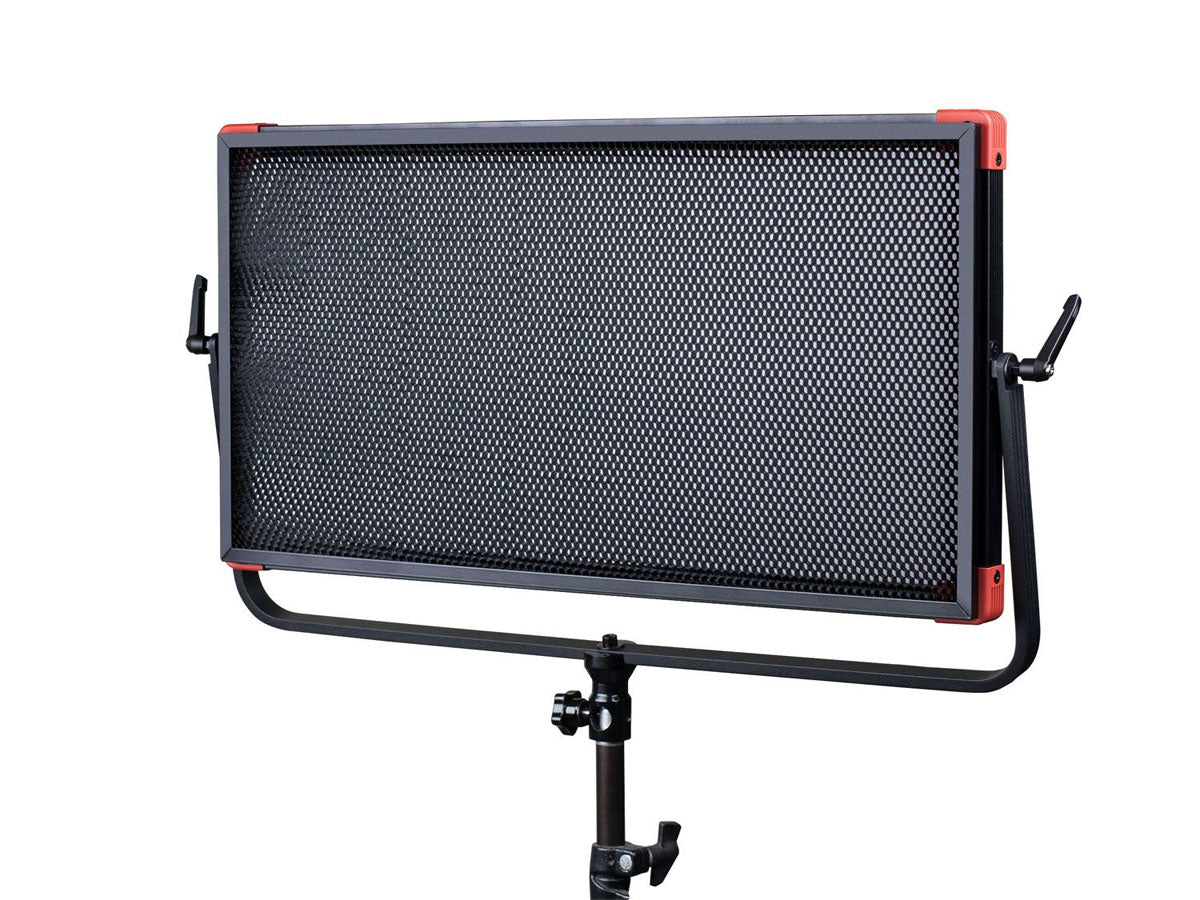

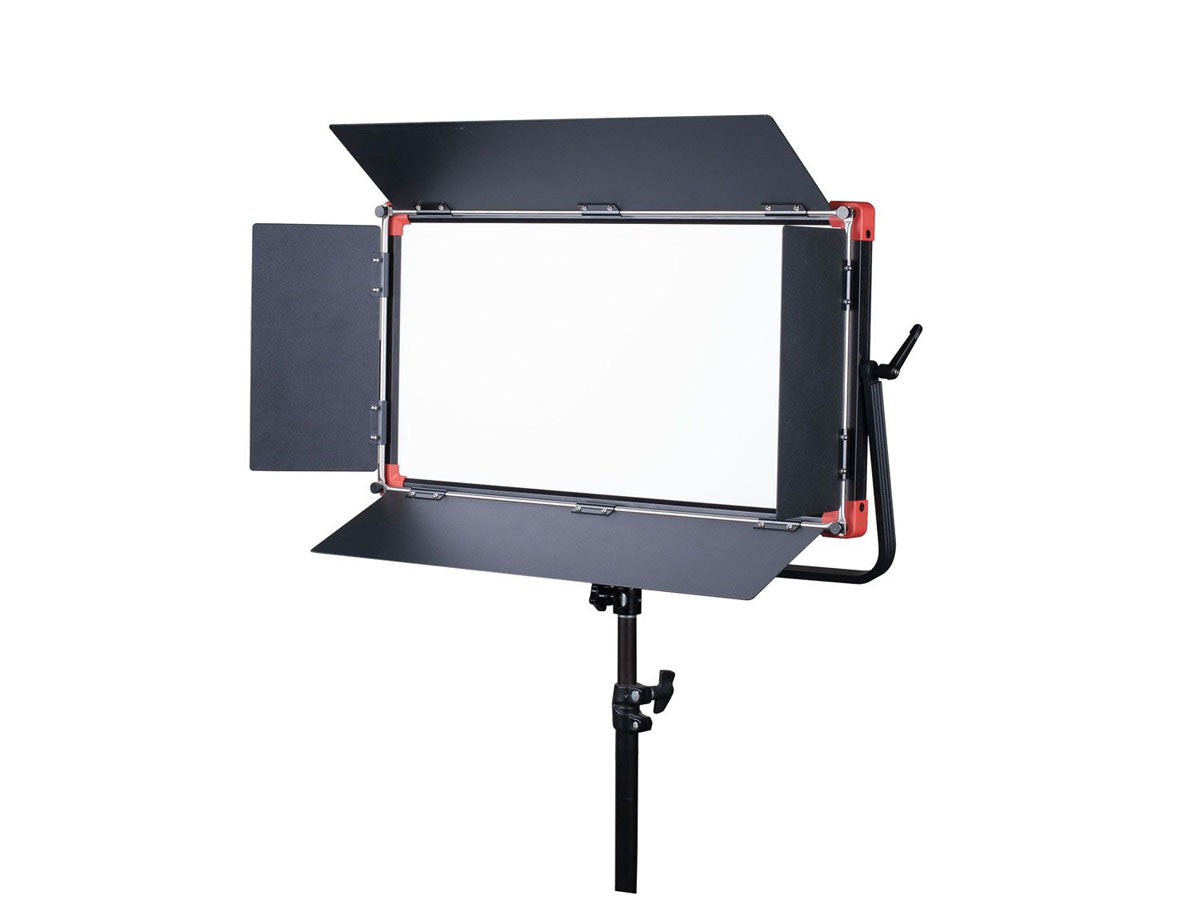

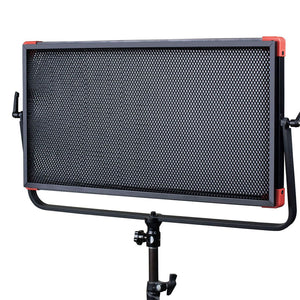

Barn Door / Honeycomb

Optional purchase, Easy to assemble

PL-E90 has all-metal housing, and provides the 4-leaf metal barn door and 40° metal honeycomb accessories, easy to assemble.
Barn door (Model # LA-HE90) and Honeycomb (Model # LA-GE90) are optional purchased.
