SWIT PL-E60D 3rd Generation Natural-Born-Soft TLCI-99 60W LED Panel Light

The PL-E60DA Portable Bi-Color SMD DMX LED Panel with Gold Mount Battery Plate from SWIT is a low-profile fixture with a thin 1.8" design and a 70° beam angle for wide coverage. The continuous variable color temperature range from 2700 to 6500K makes it possible to match existing ambient light conditions, other fixtures, or to work creatively without resorting to filters. The durable metal chassis is passively convection-cooled for completely silent operation, making it well suited to shooting applications when audio is being recorded.

Built around 320 high-efficiency LED bulbs results in a high CRI: 98, TLCI: 99 rating, ensuring accurate color rendition, skin-tone rendering, and flicker-free dimming from 0 to 100%. Color temperature and brightness functions can be adjusted locally on the fixture using intuitive controls, or remotely via onboard DMX.. Settings are displayed on the large, easy-to-read LCD screen on the rear of the panel. The PL-E60DA may be used anywhere in the world by using the included multi-voltage AC adapter, but can also be operated by optional Gold Mount batteries when mains power is unavailable.

320 Surface Mounted LEDs

The PL-E60DA LED Panel employs surface mounted LED technology and includes 320 bright LEDs. The built-in diffuser generates an even 70° beam spread for effective wide coverage, ideal for broadcast studio and field video productions.

Quick Adjust Mode

The integrated Quick Adjust Mode allows for quickly toggling the dimming mode between continuous dimming and scrolling in 10% steps with the push of a button. In addition, the continuous color temperature adjustment can be alternated with the ability to scroll through preset commonly used color temperatures: 2700K, 3200K, 4500K, 5600K, 6500K.

Onboard DMX

Adjust the LED panel brightness and color temperature settings locally using the integrated controls and LED panel, or network multiple panels via the onboard 5-pin XLR DMX in/out ports. Set up a local network with master/slave function, or as part of a larger DMX512 network.

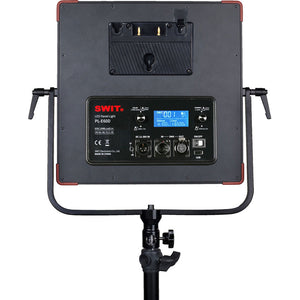

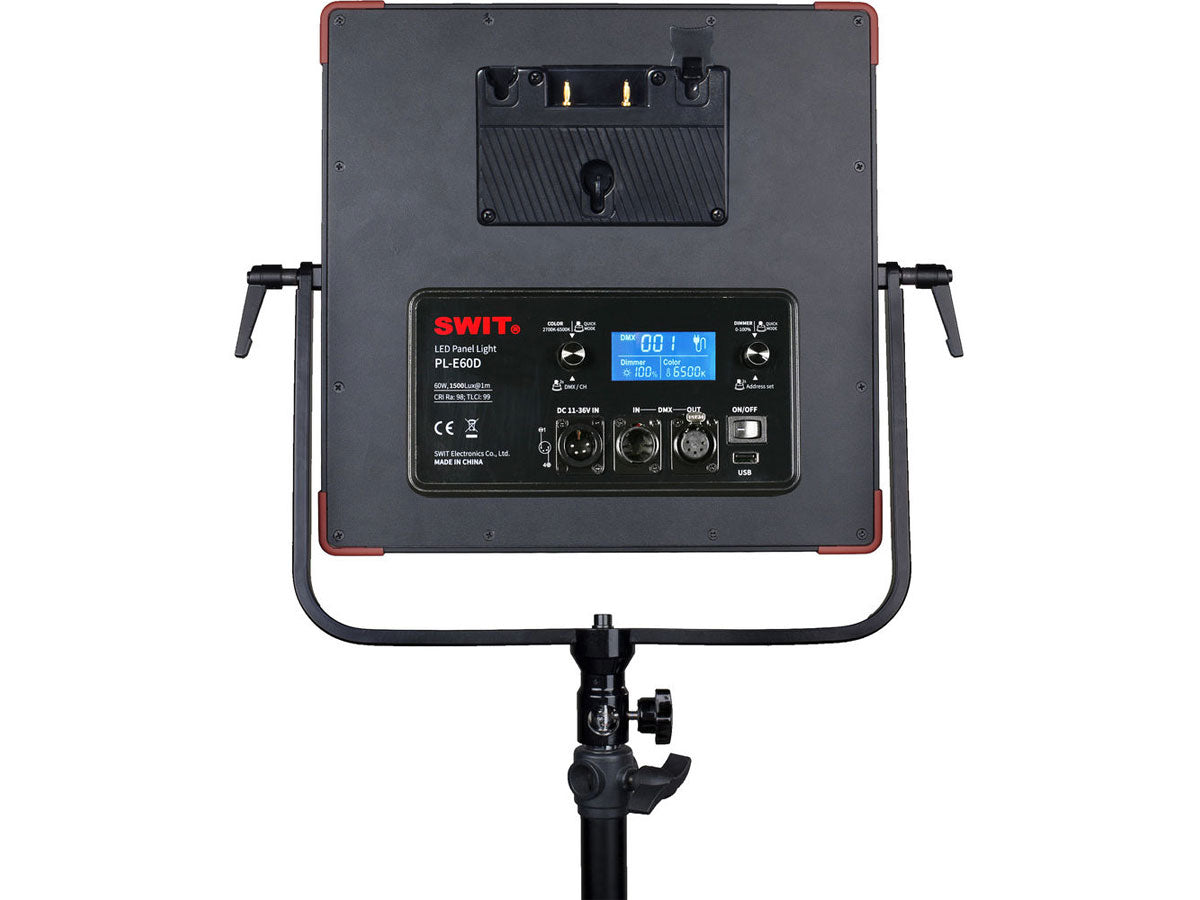

LCD Screen Display

The rear LCD screen can display the current dimmer percentage and color temperature values.

11 to 36 VDC Power Supply

The light supports a 11-36 VDC 4-pin XLR input and is equipped with a Gold Mount battery plate to power it with an optional Gold Mount battery or by the included multi-voltage AC adapter.

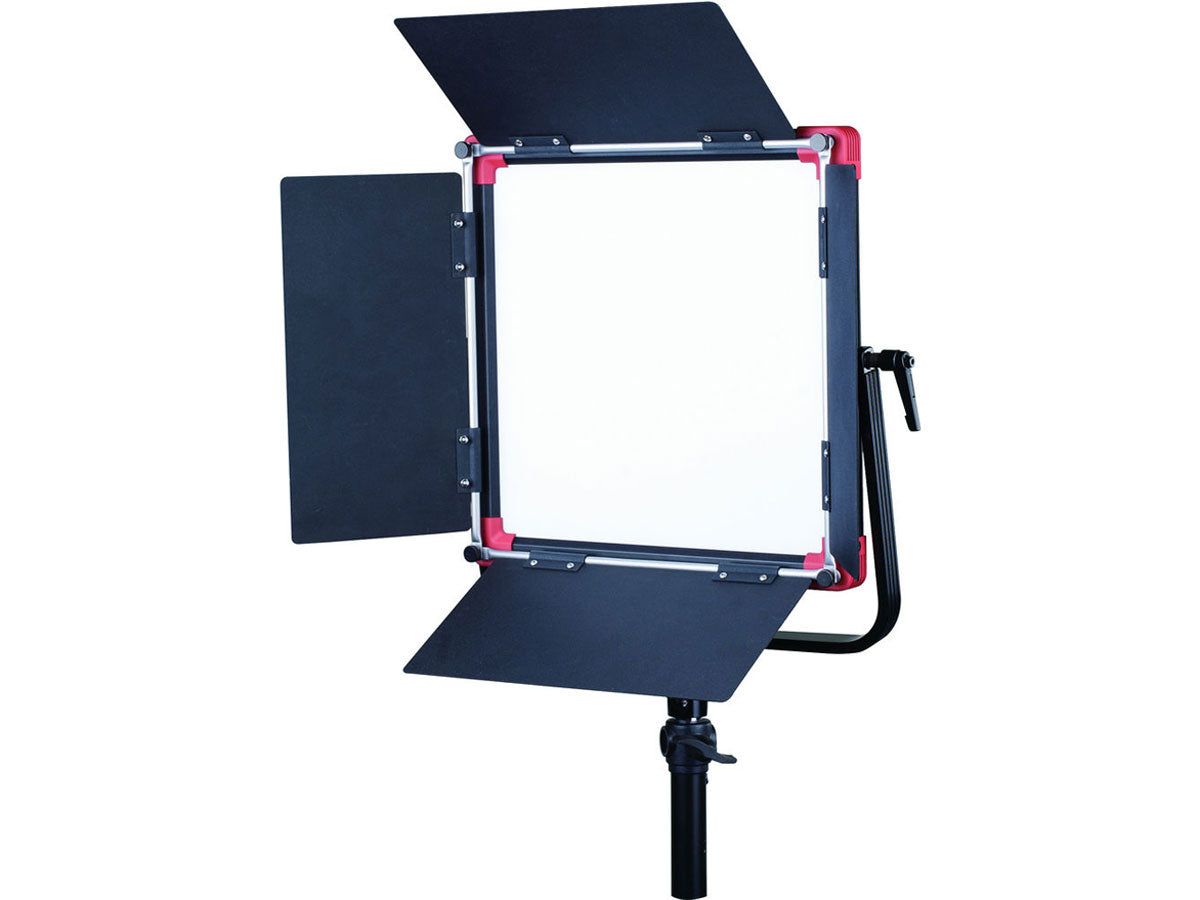

4-Way Barndoors

4-Way barndoors allow you to direct light, highlight the subject, control beam spread, and help prevent unwanted flare.
