Swit PB-S290A 290Wh Multi-sockets Square Battery - Gold Mount
Swit PB-S290A 290Wh Multi-sockets Square Battery - Gold Mount
SKU:
SWI-PB-S290A
Regular price
£457.00 GBP ex VAT
£548.40 GBP inc VAT
£548.40 GBP inc VAT
Regular price
ex VAT
Sale price
£457.00 GBP ex VAT
£548.40 GBP inc VAT
Unit price
per
£548.40 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
Square Shape Design for Cine Cameras
PB-S series camera batteries are compact designed, shorter than normal Gold mount batteries, and match perfectly with most of the Cine-cameras.
290Wh / 20.1Ah Capacity
Consists of 24pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 290Wh / 20.1Ah high capacity. Can run approx 11 hours for normal ENG cameras and approx 3.5 hours for ARRI ALEXA.
High Load for Cine Cameras - At least 200W / 16A load
PB-S290A provides at least 200W/16A high load even at 1% capacity, to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.

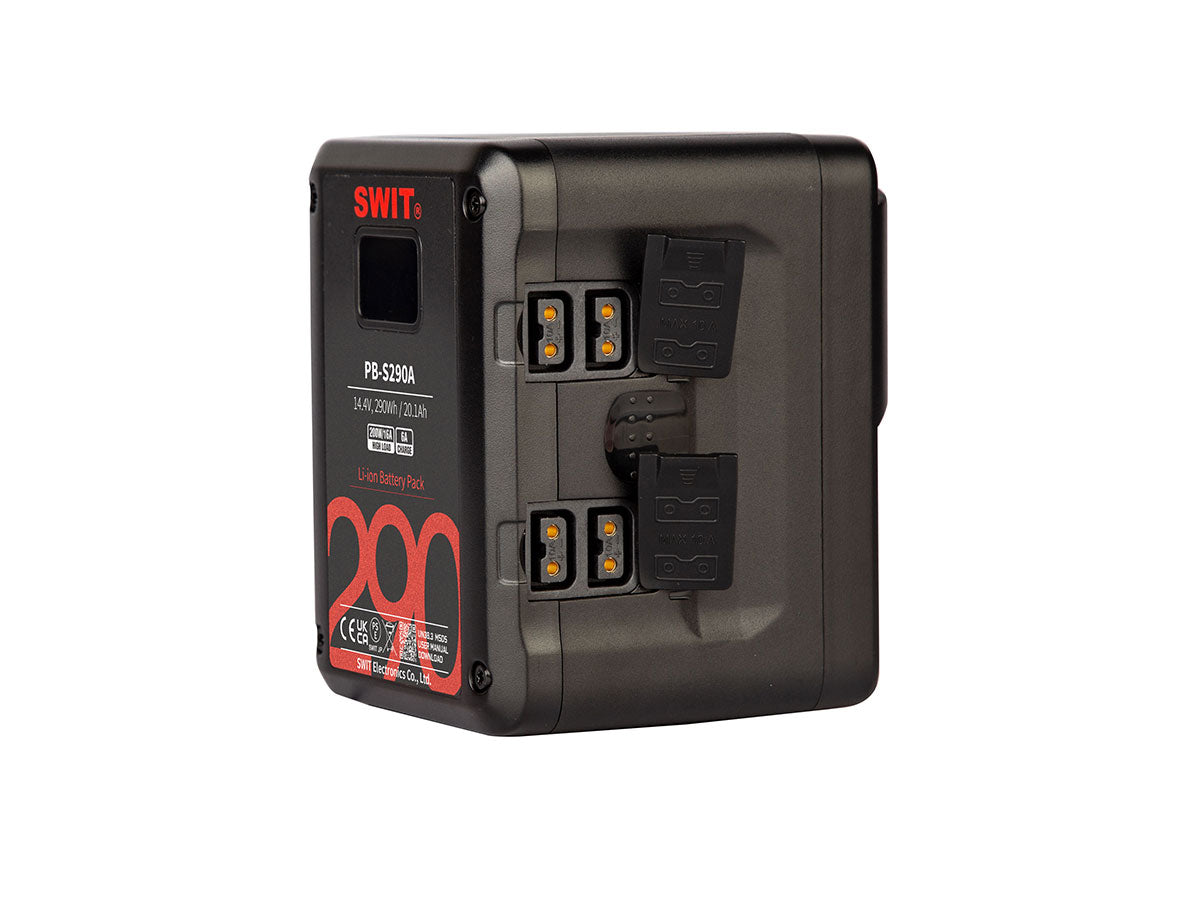

4× D-Tap, 1× USB
PB-S290A provides 4x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.
6A Fast Charging - Using SWIT 6A fast charger
PB-S290A supports 6A fast charging by SWIT PC-P461A or S-3812A fast charger, to save more than 50% charging time. The 290Wh PB-S290A battery can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.
- Square shape design for Cine-cameras
- At least 200W, 16A constant load
- 4× D-tap output sockets
- 1× USB 5V/2A power output sockets
- 6A super fast charging

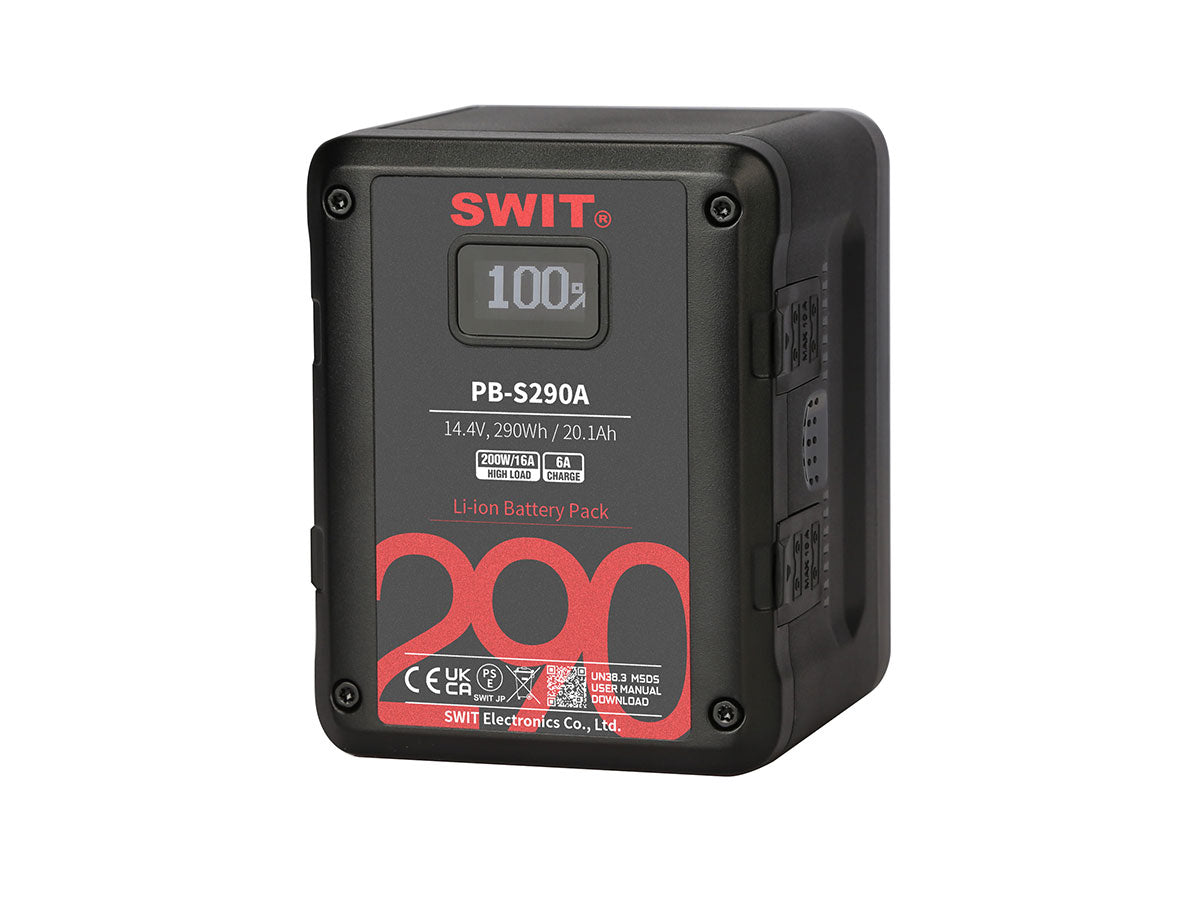

- OLED display accurate remaining run time
- Multiple circuit protections
| Model: | PB-S290A | |

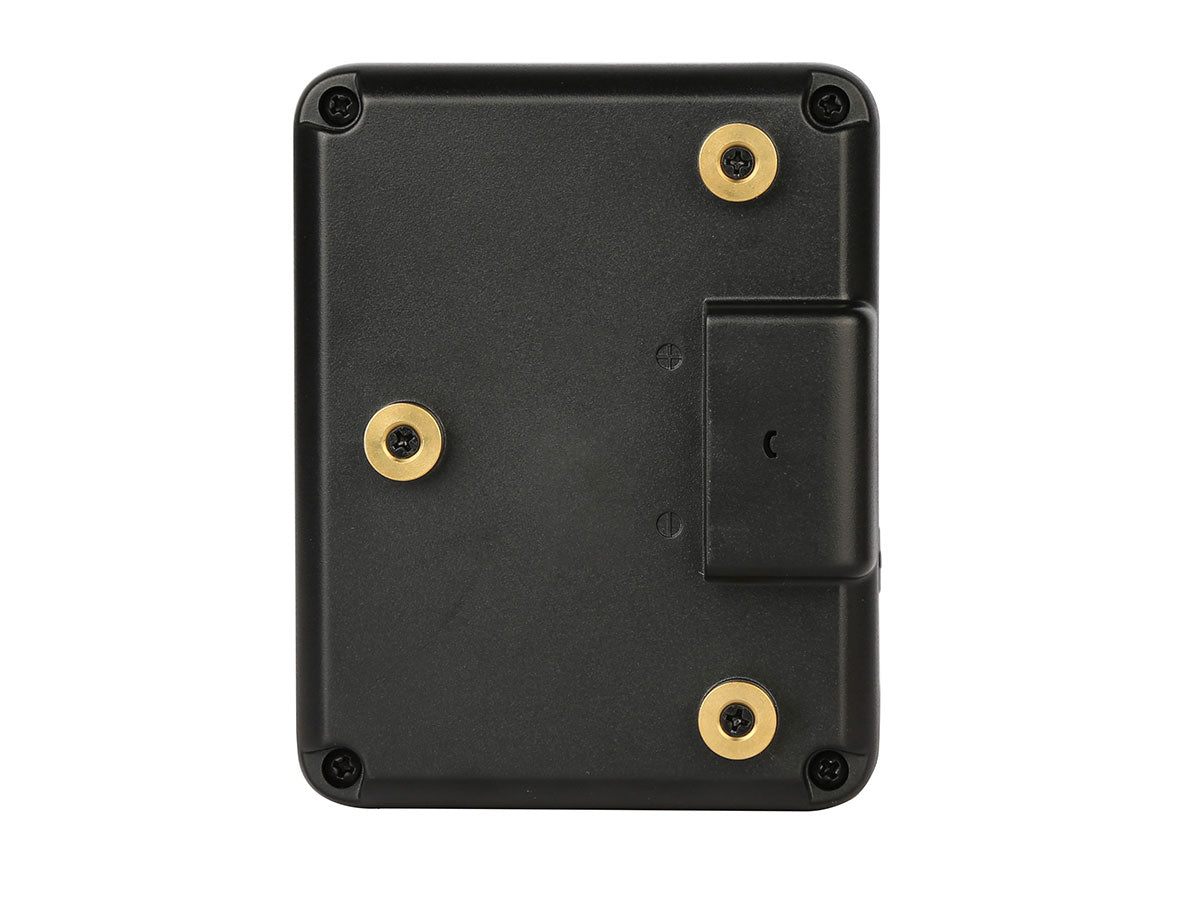

| Battery Plate: | Gold-mount | |
| Nominal Voltage: | 14.4V | |
| Capacity: | 290Wh, 20.1Ah | |
| Max Output: | In Total: | 200W |
| Electrodes: | 200W,16A | |
| USB: | 10W, 5V/2A | |
| D-Tap: | 120W / 10A | |
| Dimensions: | 121 x 95 x 99mm | |
| Charging Temperature: | 0-40°C | |
| Discharging Temperature: | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) | |
| Net Weight: | 1.435kg | |
| Max Charging Current: | 6A | |
| D-Tap Socket Number: | 4 | |
| USB Socket Number: | 1 | |
