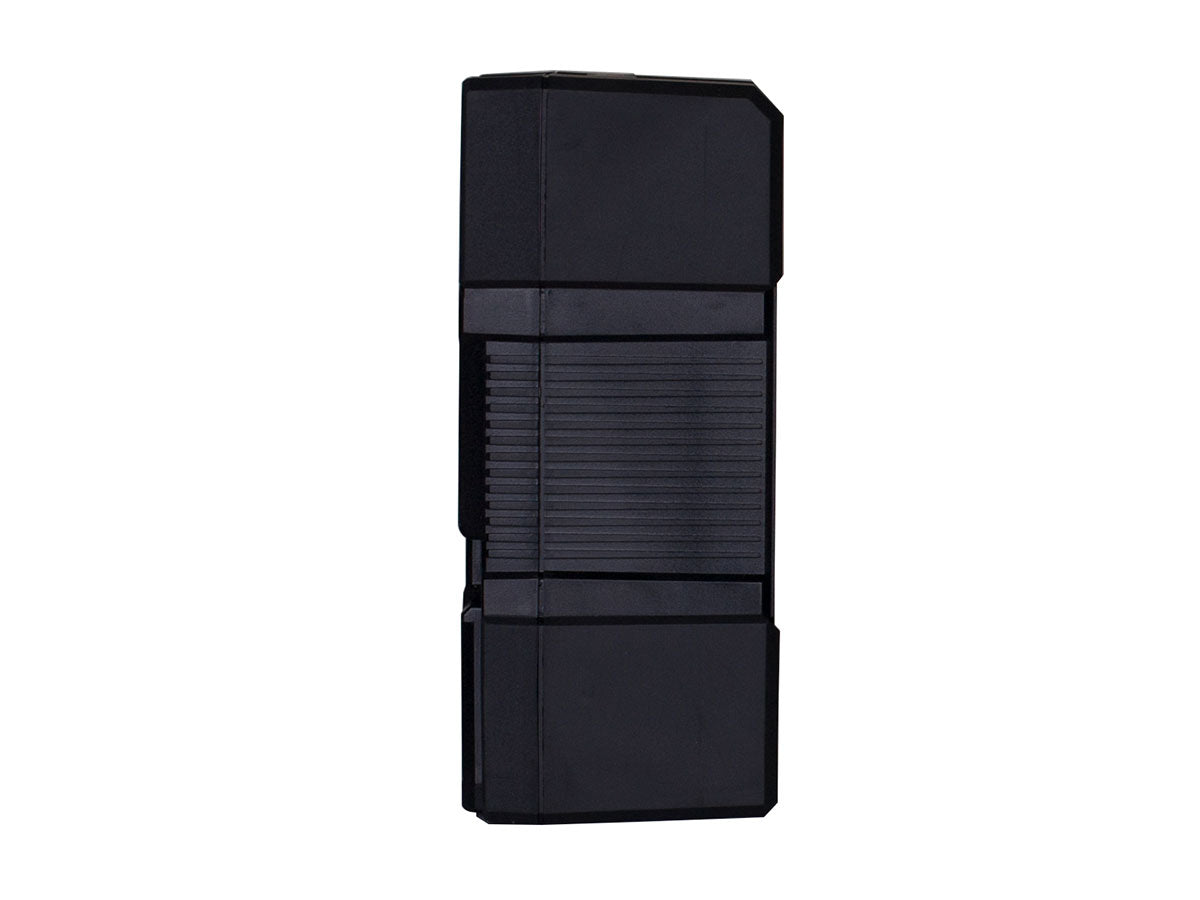

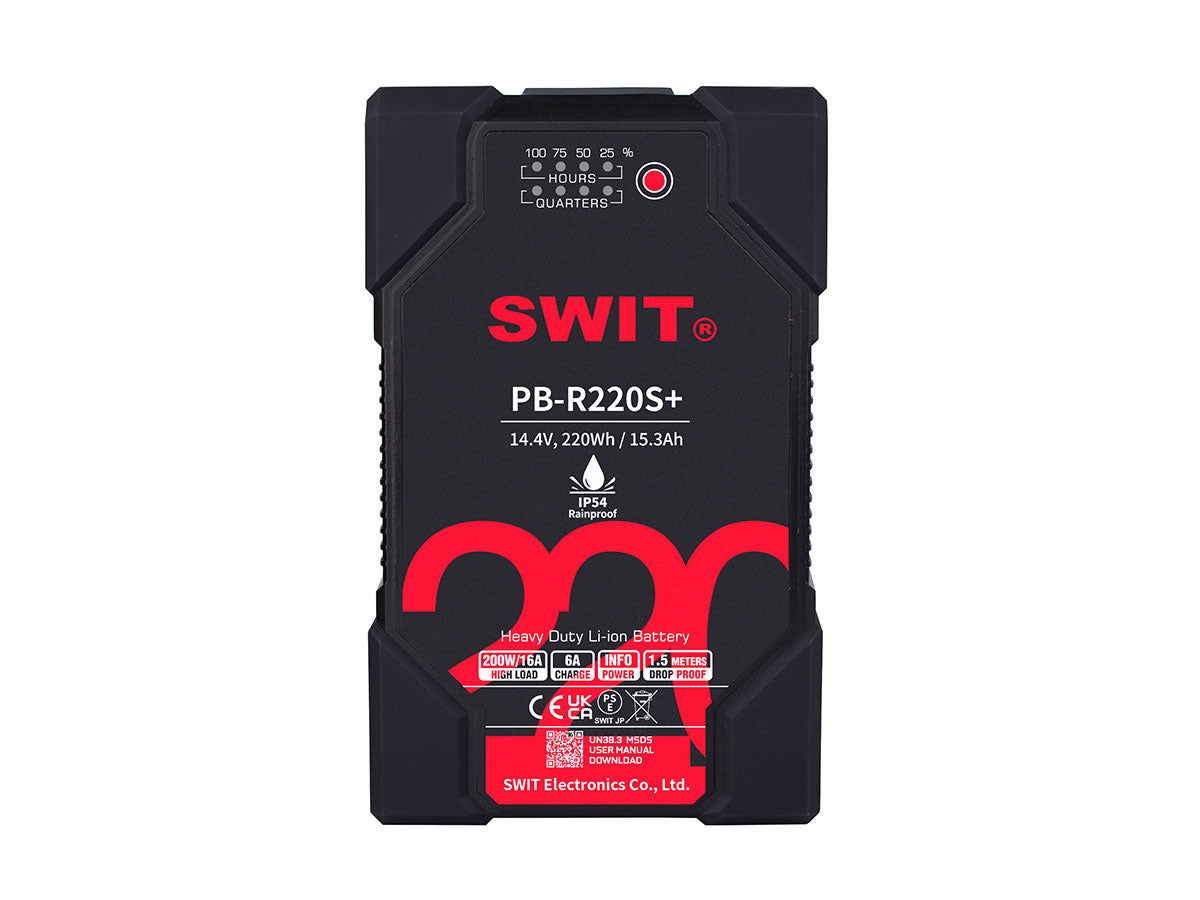

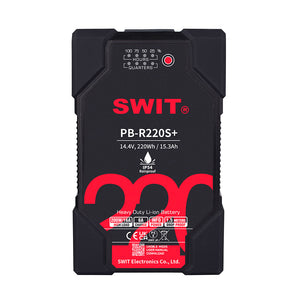

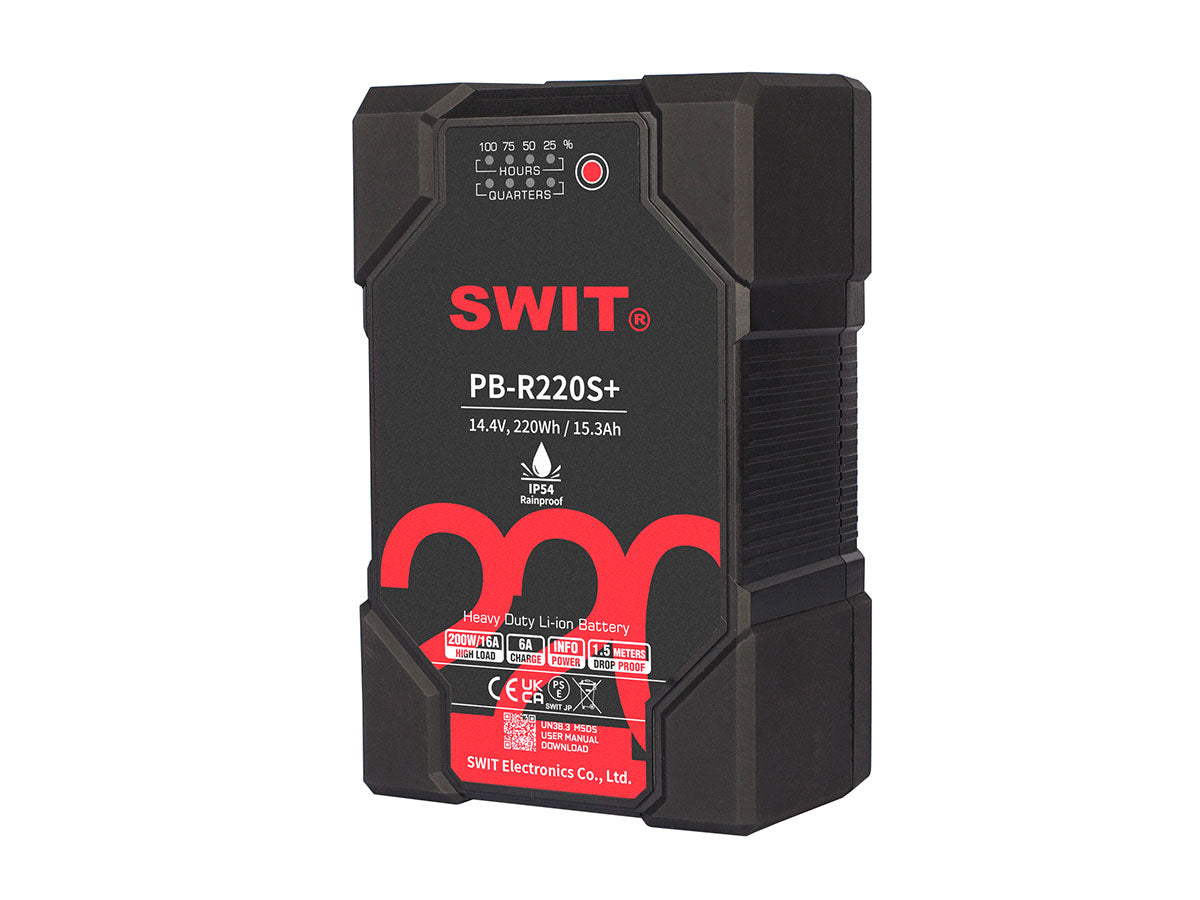

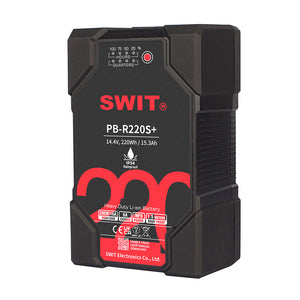

SWIT PB-R220S+ 220Wh Heavy Duty IP54 Battery Pack - V-Mount
SWIT PB-R220S+ 220Wh Heavy Duty IP54 Battery Pack - V-Mount
SKU:
SWI-PB-R220S+
Regular price
£422.00 GBP ex VAT
£506.40 GBP inc VAT
£506.40 GBP inc VAT
Regular price
ex VAT
Sale price
£422.00 GBP ex VAT
£506.40 GBP inc VAT
Unit price
per
£506.40 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
Heavy Duty Battery - High load & IP54 waterproof
PB-R220S+ is a 220Wh V-mount battery, for Cine and ENG cameras, with dual housing heavy duty sealed structure, IP54 rainproof, 1.5m drop-off proof. The battery supports high load, fast charging and digital power info display, for field applications.
IP54 Waterproof - 1.5 meters drop-off proof
PB-R220S+ has dual housing sealed structure to support IP54 waterproof in rain, snow and other inclement weather. The dual housing with rubber cover is also strong enough to survive from 1.5 meters any angles drop-off.
220Wh / 15.3Ah Capacity
Consists of 24pcs high class 18650 battery cells, and reaches 220Wh / 15.3Ah high capacity.
Can run approx 9 hours for normal ENG cameras, and approx 2.5 hours for ARRI ALEXA.
Can run approx 9 hours for normal ENG cameras, and approx 2.5 hours for ARRI ALEXA.
High Load for Cine Cameras - 200W / 16A constant load
PB-R220S+ provides at least 200W/16A high load even at 1% power, to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.
100W/6A Fast Charging - Using SWIT 6A fast charger
PB-R220S+ supports 6A fast charging by SWIT PC-P461S or S-3812S fast charger, to save more than 50% charging time. The 220Wh PB-R220S+ battery can be charged from 0 to 80% after 2.3 hours, and fully charged within 3.5 hours.
Digital Power Info - 8-LED + SONY&RED viewfinder info
PB-R220S+ has the innovative 8-LED power indicators. When free or charging, the LEDs will indicate current capacity percentage, and when battery is discharging, the LEDs will display the remaining running time at the current discharging power, accurate to 15 minutes. Meanwhile, the battery pack adopts intelligent SMBUS that compatible with both SONY and RED camera info system, and can display remaining minutes on camera viewfinder.
D-tap Socket
A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipments together.
The Max output current of D-tap is 10A.
The Max output current of D-tap is 10A.
- IP54 water/dust proof
- Strong 1.5m drop off proof
- 14.4V, 220Wh capacity
- 200W, 16A constant high load
- 100W 6A fast charging
- 8-LED digital power indicators
- SONY/RED viewfinder power info display
- D-tap power output socket

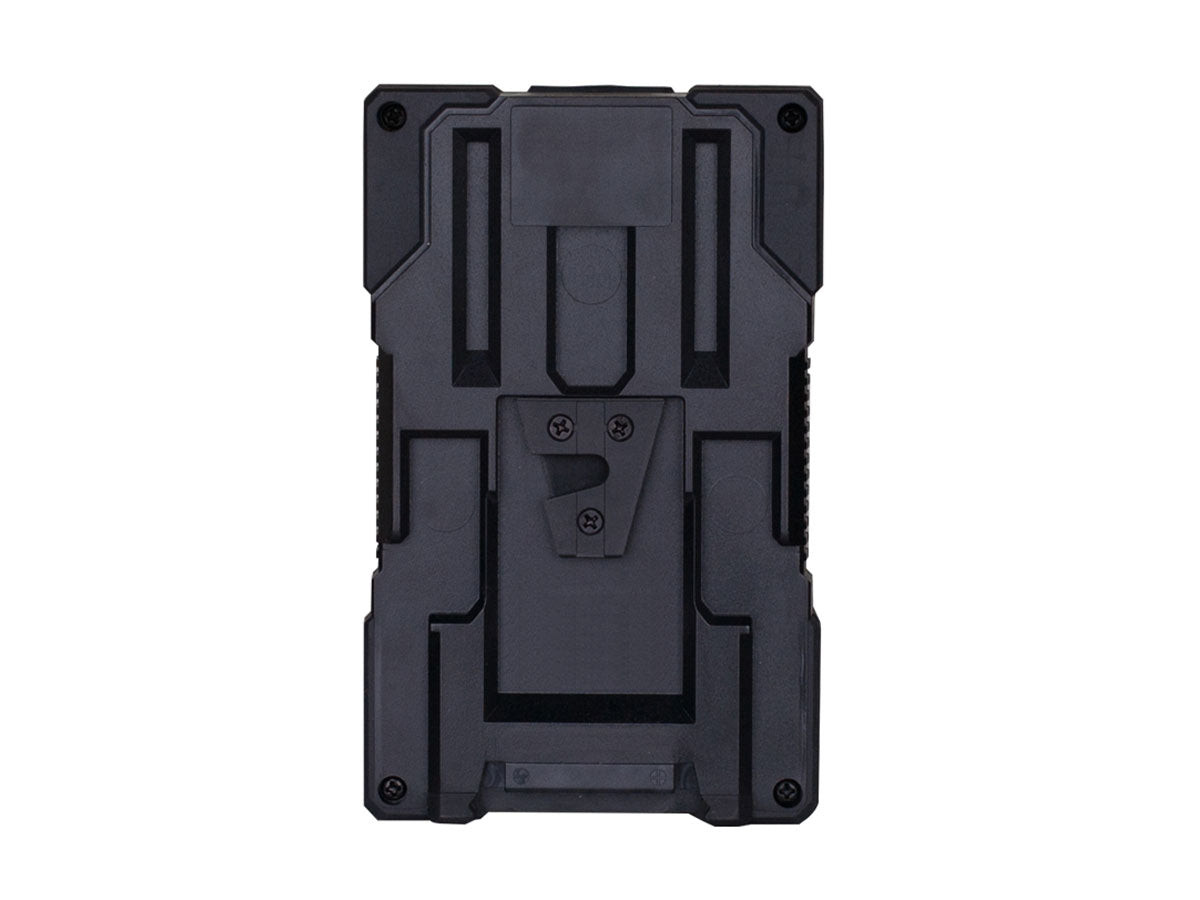

- V-mount connection
- Multiple circuit protections
| Nominal Voltage | 14.4V |
| Capacity | 220Wh/15.3Ah |
| Constant load | 200W / 16A |
| Max charging | 16.8V 6A 100W fast charging |
| IP class | IP54 |
| Mount Type | V-mount |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
| Net weight | Approx 1.51kg |
| Dimensions | 162×101×69mm |
