Heavy Duty Gold Mount Battery

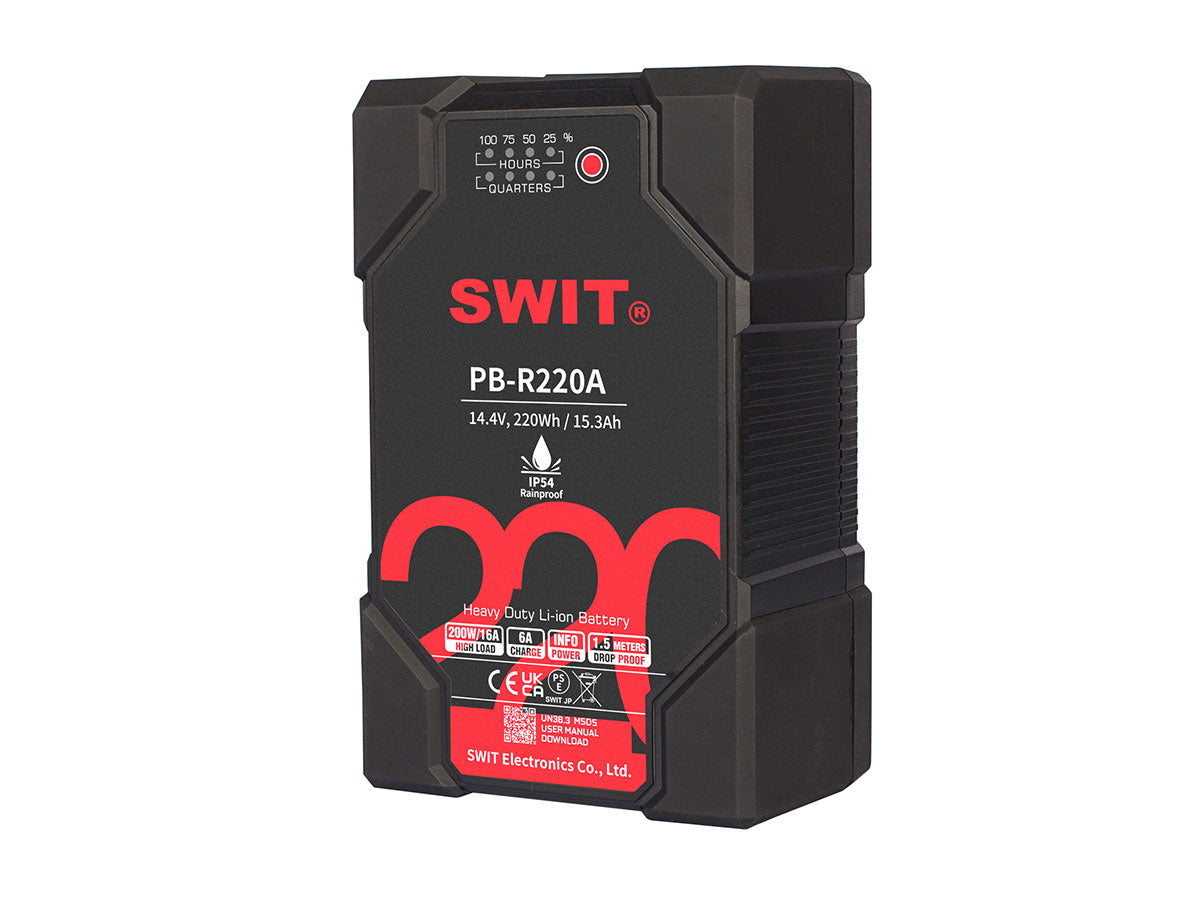

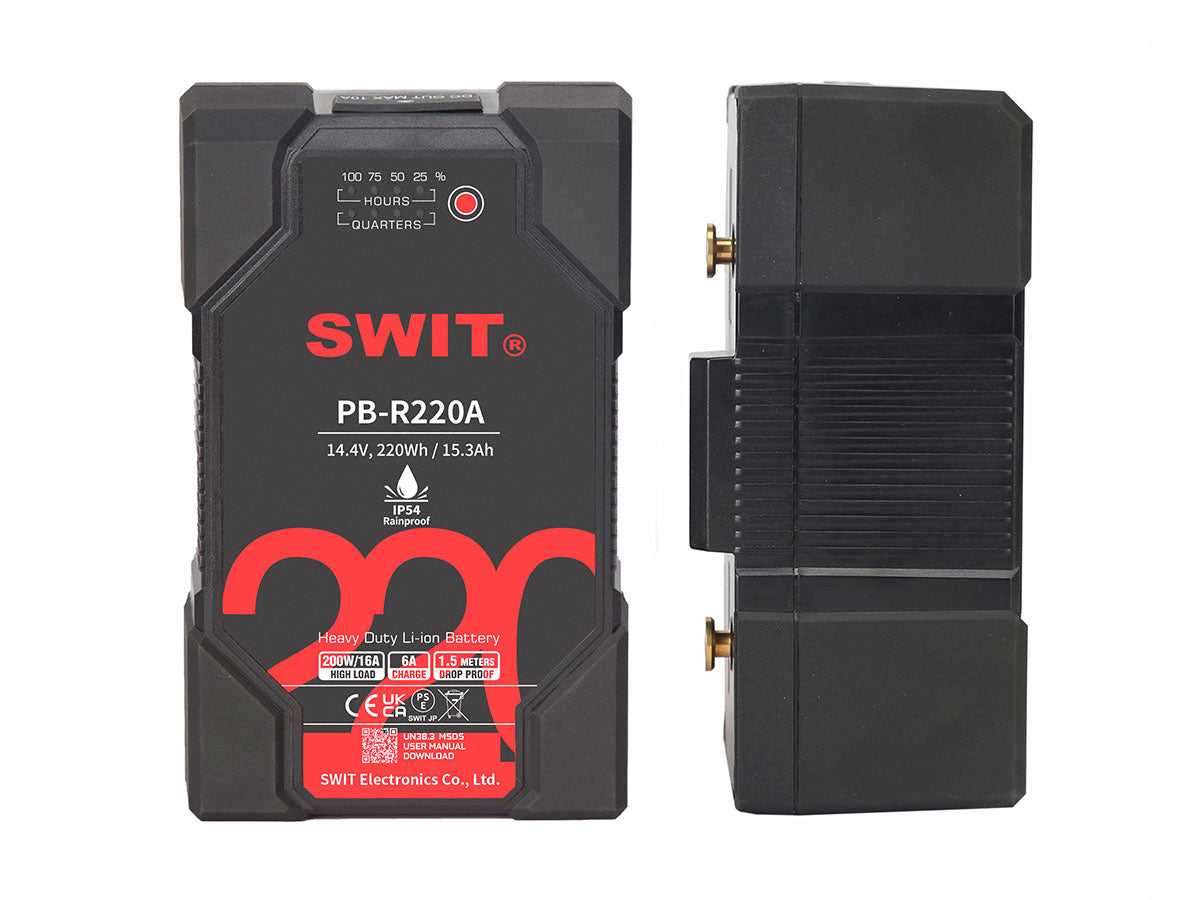

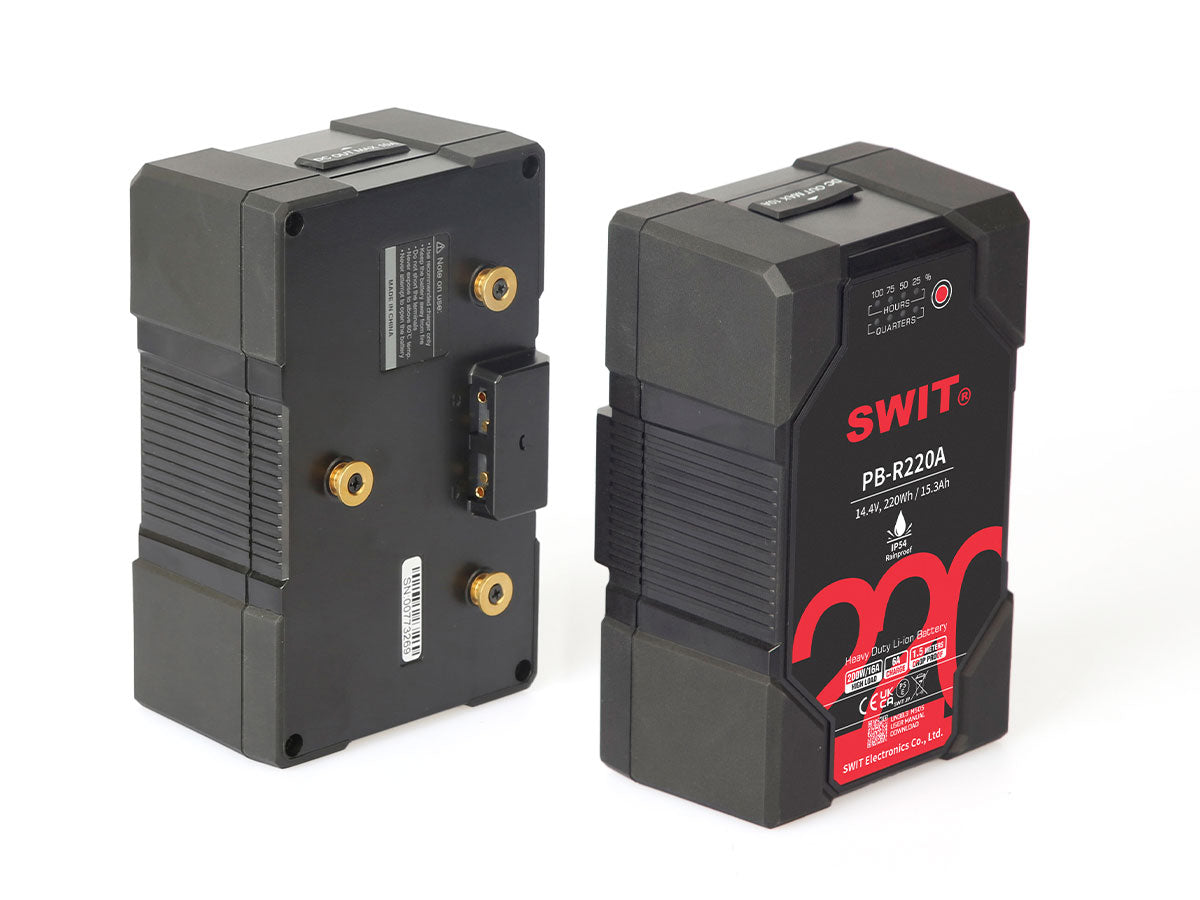

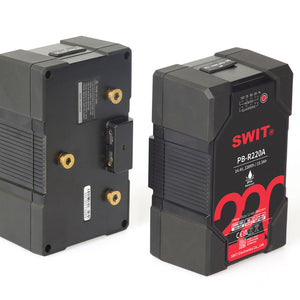

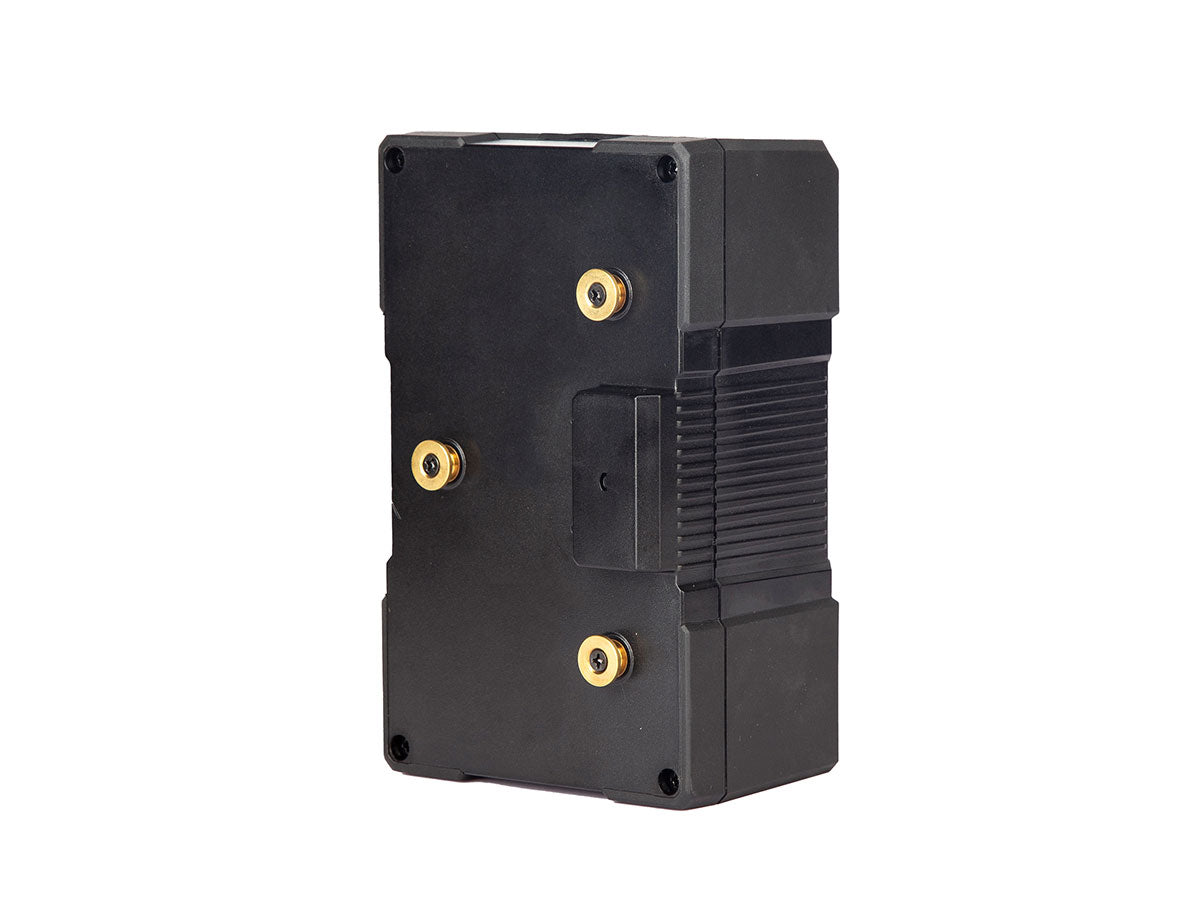

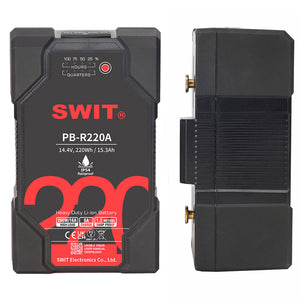

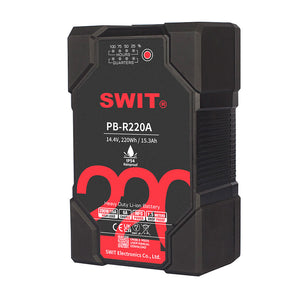

PB-R220A is a 220Wh Gold Mount battery, with dual housing heavy duty structure, 1.5m drop-off proof. Featured high load, fast charging and digital power info display for cameras, lights and field video production equipments.
1.5m Drop-off Proof - Dual housing + Robber cover
PB-R220A has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The structure makes the battery quite strong, anti-shock. The battery can survive from 1.5 meters any angles drop-off.
220Wh / 15.3Ah Capacity
Consists of 24pcs high class 18650 battery cells, and reaches 220Wh / 15.3Ah high capacity. Can run approx 7 hours for normal ENG cameras, and approx 2.5 hours for ARRI ALEXA.
High Load for Cine Cameras - At least 200W / 16A load
PB-R220A provides at least 200W/16A high load even at 1% capacity, to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.
6A Fast Charging - Using SWIT 6A fast charger
PB-R220A supports 6A fast charging by SWIT PC-P461A or S-3812A fast charger, to save more than 50% charging time. The 220Wh PB-R220A battery can be charged from 0 to 80% after 2.3 hours, and fully charged within 3.5 hours.
8-LED Remaining Time Read
PB-R220A has the innovative 8-LED power indicators. When free or charging, the LEDs will indicate current capacity percentage, and when battery is discharging, the LEDs will display the remaining running time at the current discharging power, accurate to 15 minutes.

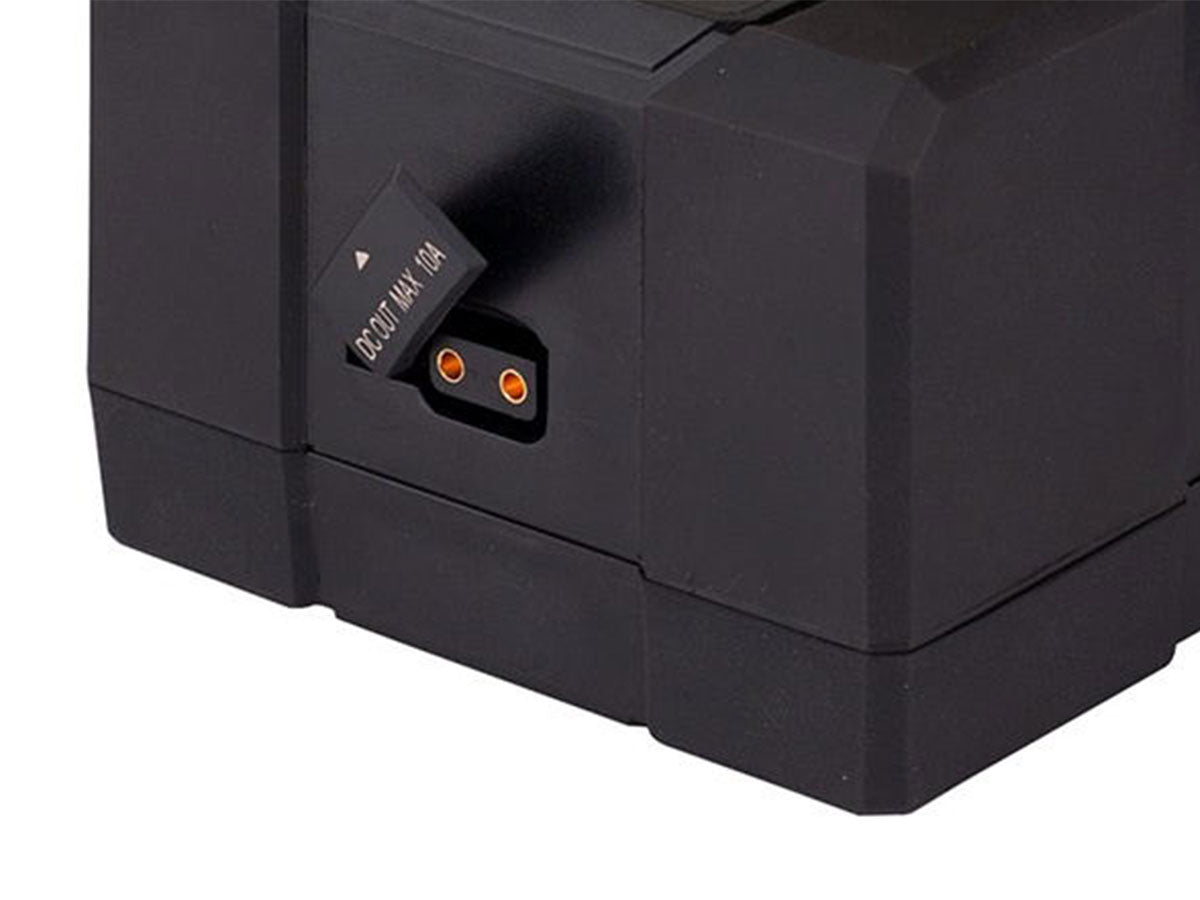

D-tap Socket
A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipments together. The Max output current of D-tap is 10A.
- Strong 1.5m drop off proof
- 14.4V, 220Wh capacity
- 200W, 16A constant high load
- 6A fast charging support
- 8-LED digital power indicators
- D-tap power output socket
- Gold Mount installation
- Multiple circuit protections
| Nominal Voltage: | 14.4V |
| Capacity: | 220Wh/15.3Ah |
| Constant Load: | 200W / 16A |
| Max Charging Current: | 6A fast charging |
| Mount Type: | Gold Mount |
| Charging Temperature: | 0-40°C |
| Discharging Temperature: | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
| Net Weight: | Approx 1.51kg |
| Dimensions: | 162×101×75mm |
