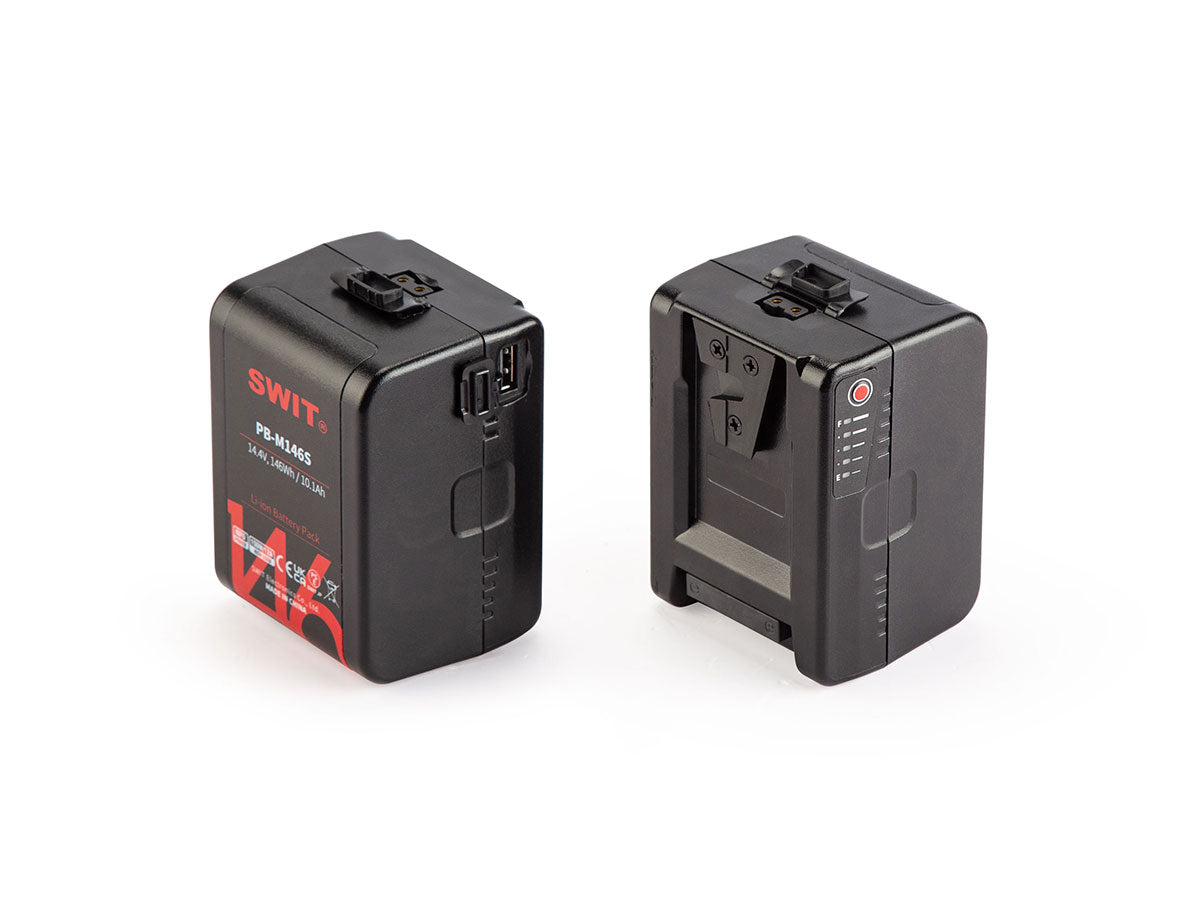

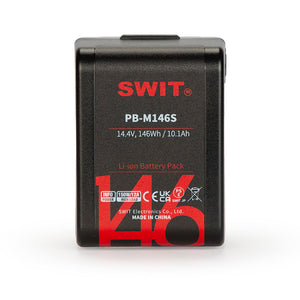

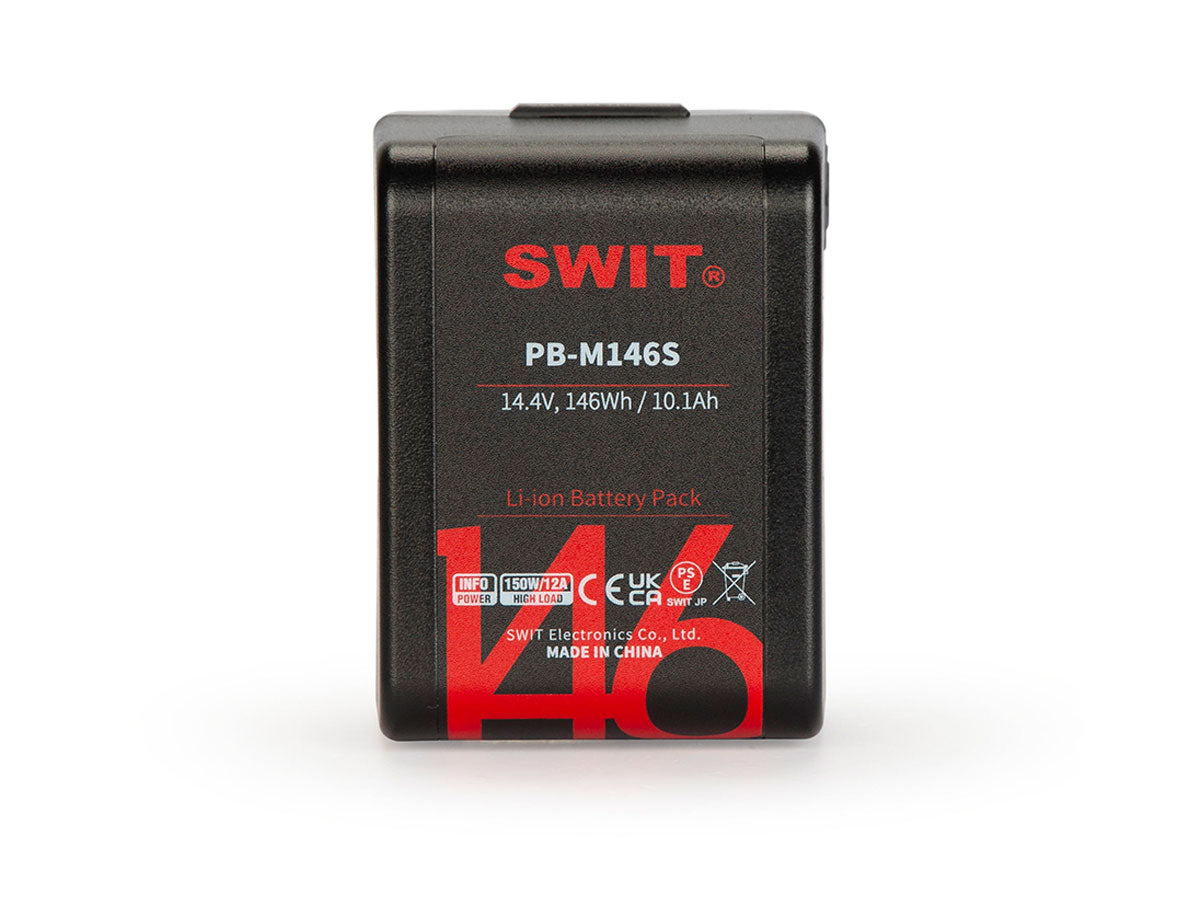

Pocket V-mount battery
As a new member of PB-M series Pocket V-mount batteries, the PB-M146S provides 146Wh larger capacity to extend run time, and still tiny size for convenient carrying.

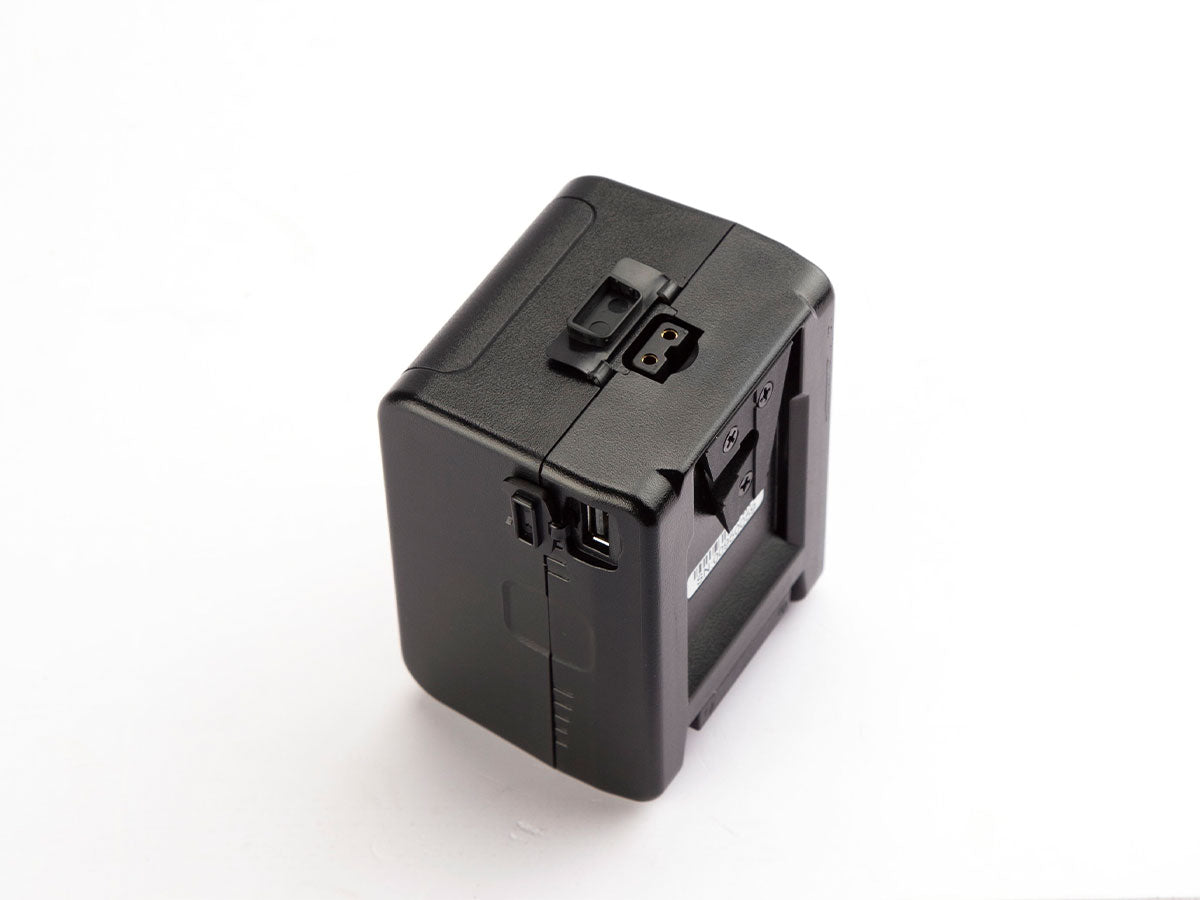

146Wh, D-tap and USB

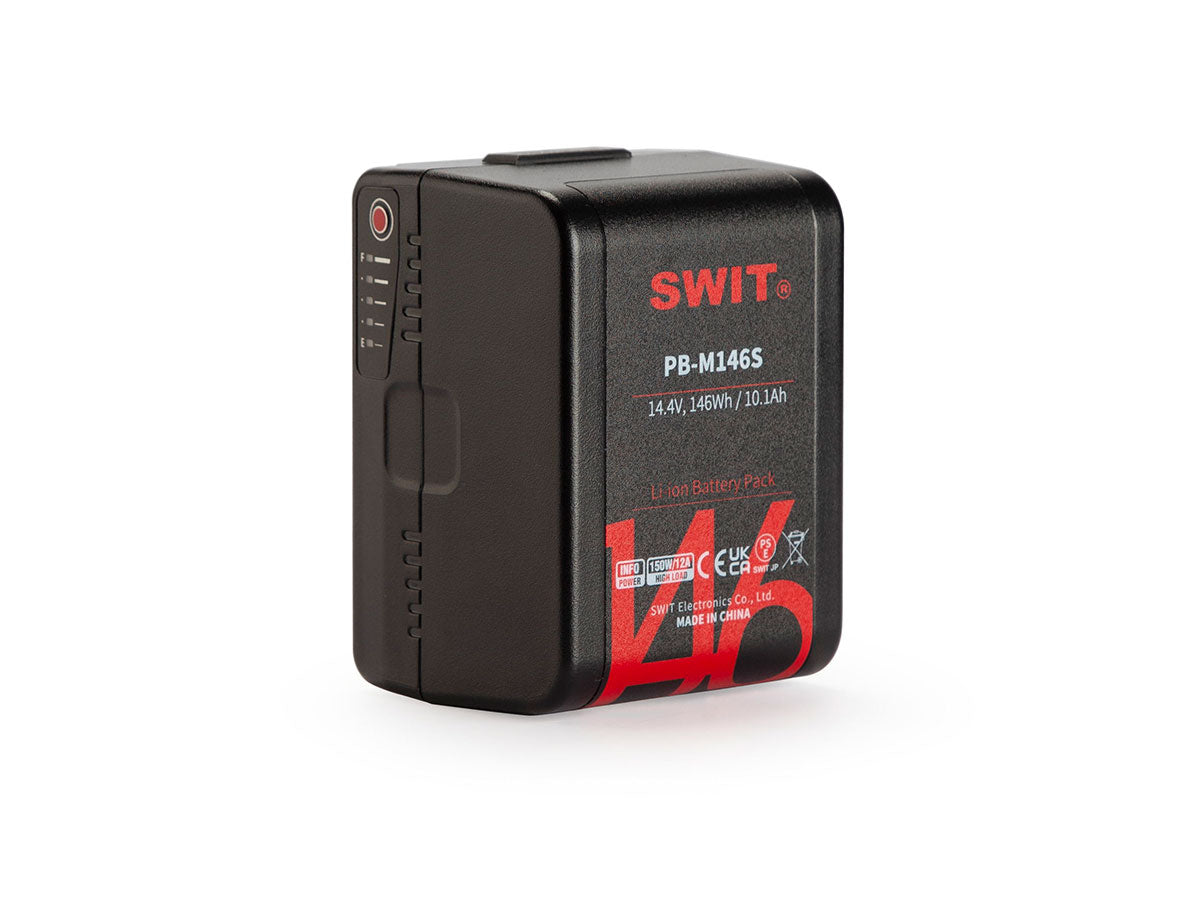

PB-M146S has 14.4V nominal voltage, 146Wh large capacity, and 5-step LED power indicator, built-in D-tap DC output & charging input, and USB-A 5V/2A power out. The constant load is 150W, 12A.

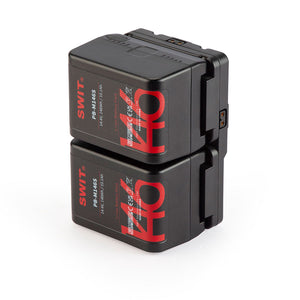

Hot-Swap Adaptor

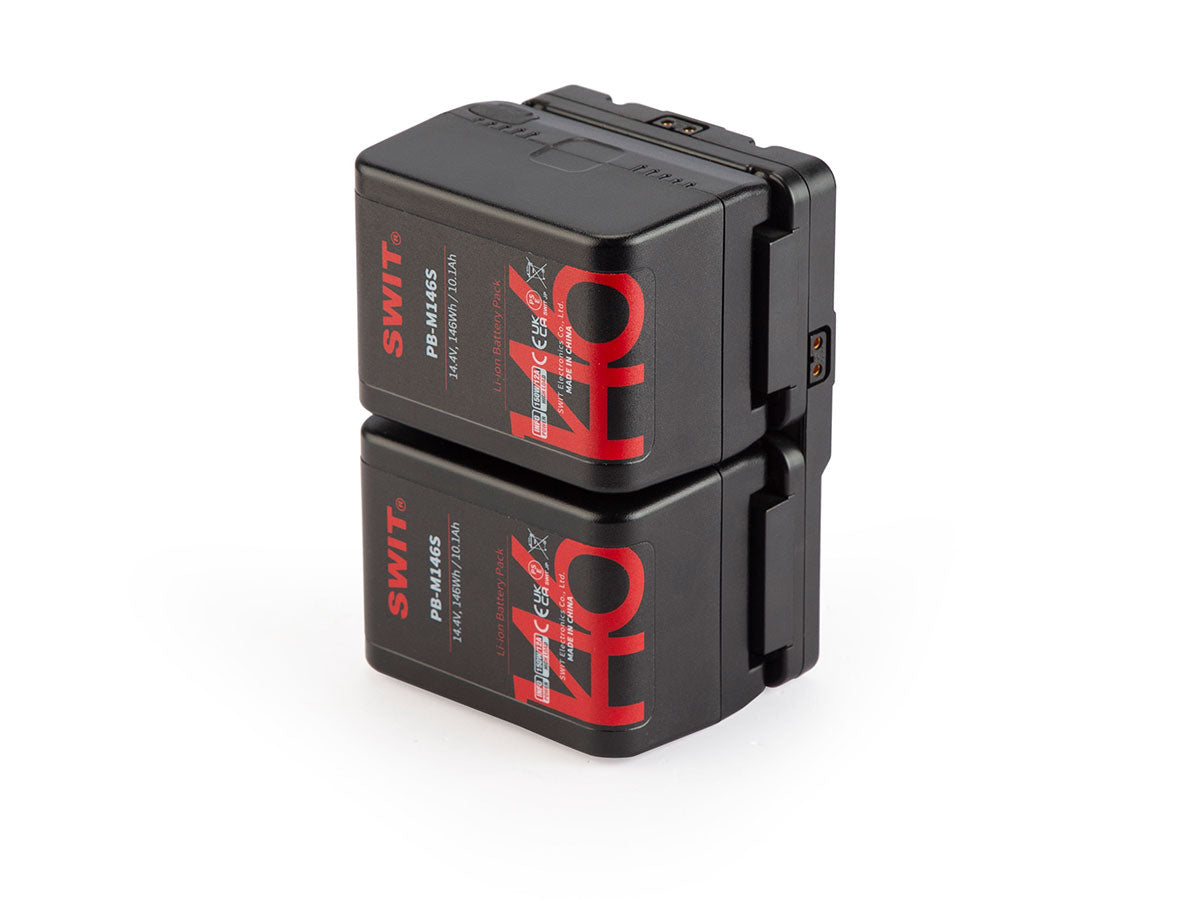

You can use 2x PB-M146S hot-swapable on cameras, by the Hot-swap Adaptor KA-M20S, to get one-by-one hot swap uninterrupted power, and equivalent to a standard size V-mount battery.
50W/3A Fast Charging
PB-M146S can be charged by all standard V-mount chargers and D-tap chargers.
The following chargers are recommended:
The following chargers are recommended:

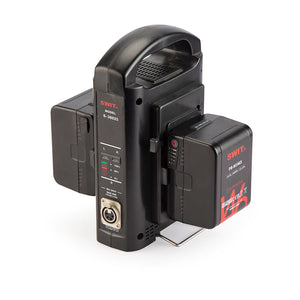

- S-3822S, Portable 2-ch Simultaneous Charger
- Charge 2x PB-M146S: Approx. 3hrs 45min

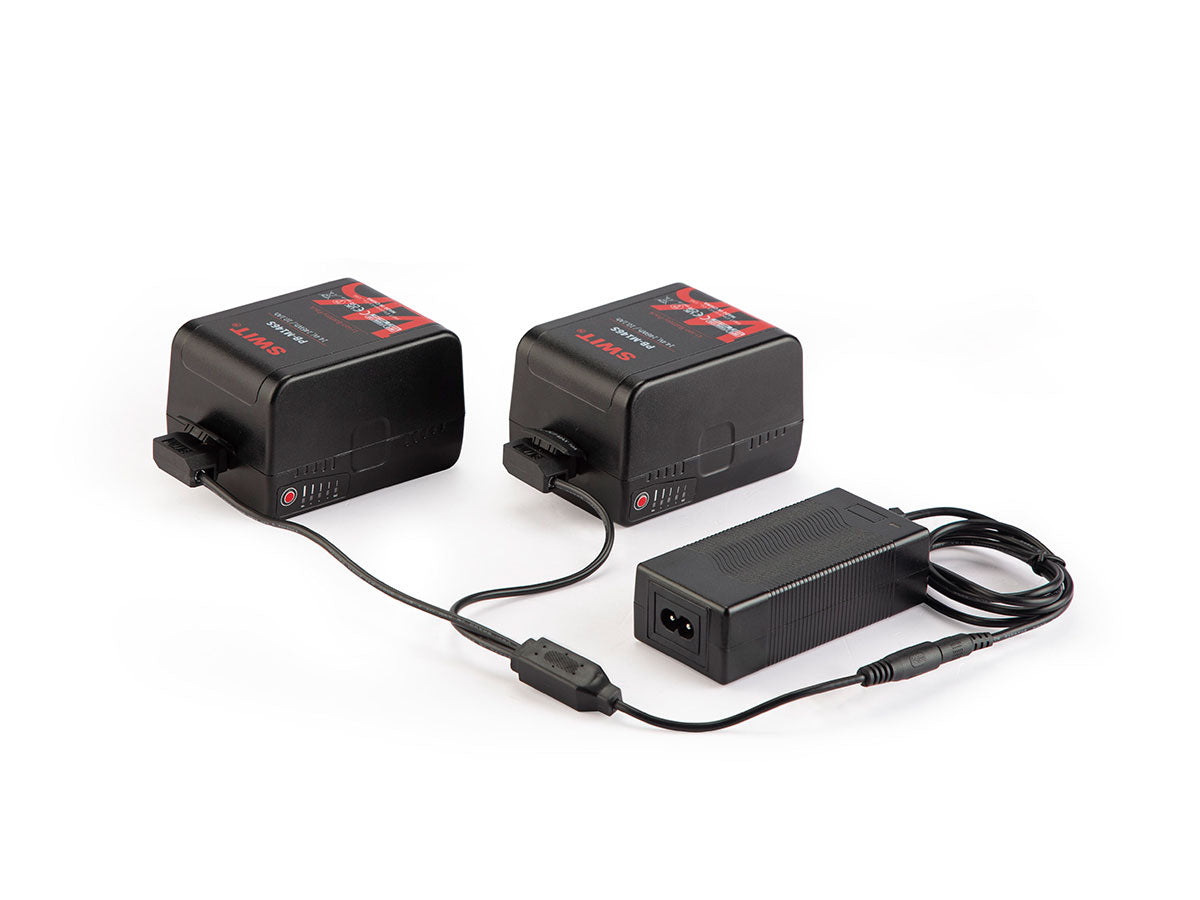

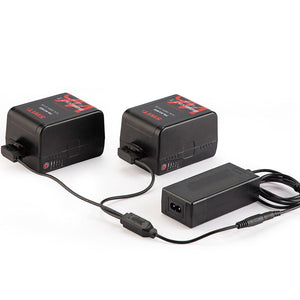

- PC-U130B2, Ultra-Portable Dual D-tap head charger
- Charge 1x PB-M146S: Approx. 3hrs 45min
- Charge 2x PB-M146S: Approx. 6 hours
Family Models
The PB-M pocket V-mount series have 45Wh, 98Wh and 146Wh, with the same output sockets and the same bottom size but different thickness.
Wire-Free Internal Tech
PB-M146S has innovative “Wire-Free” internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

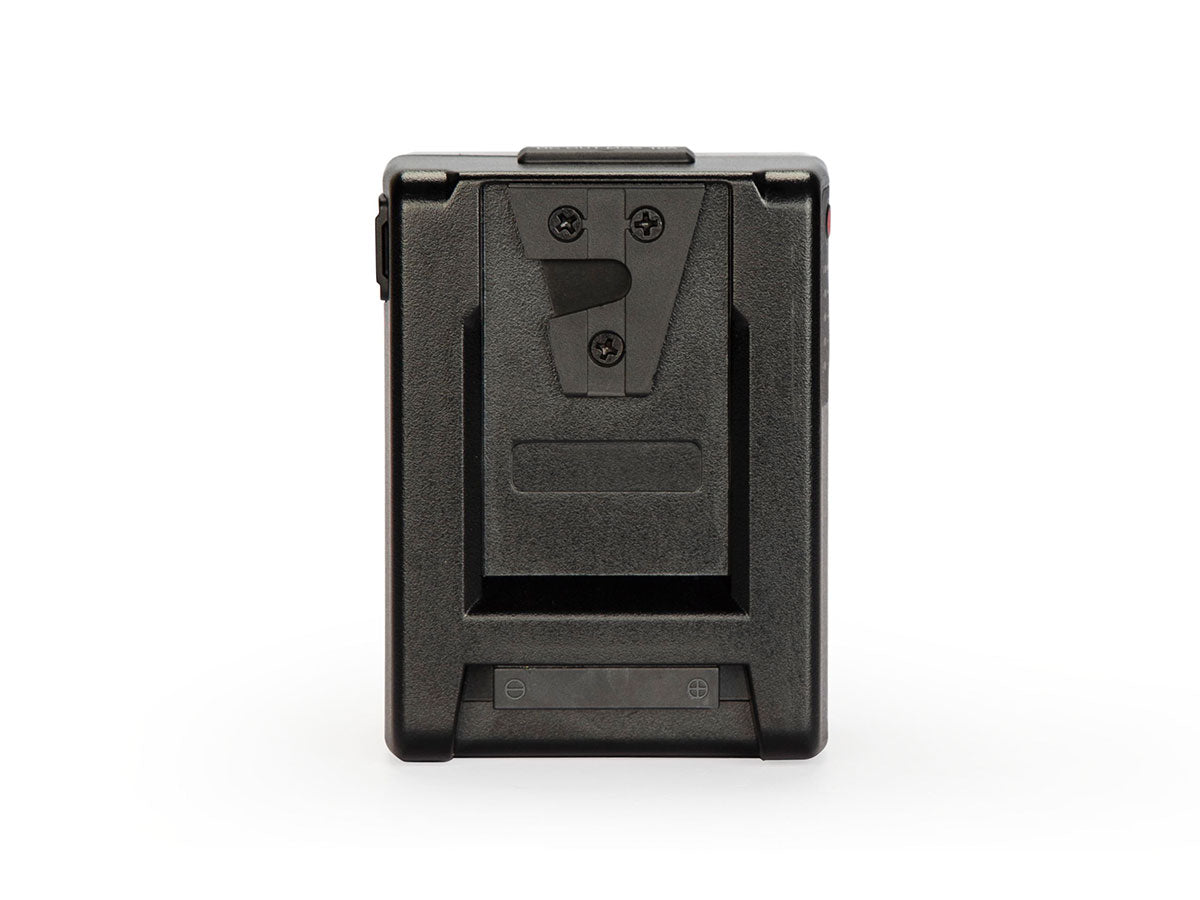

| Battery plate | V-mount |
| Nominal voltage | 14.4V |
| Capacity | 146Wh, 10.1Ah |
| Power output | In total: 150W |
| Electrodes: 150W,12A | |
| USB:10W, 5V/2A | |
| D-tap: 100W / 10A | |
| Charging input | 16.8V 3A (Max) |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°ï¼‰ |
| Dimension | 100×74×63.7mm |
| Net weight | 0.72kg |
