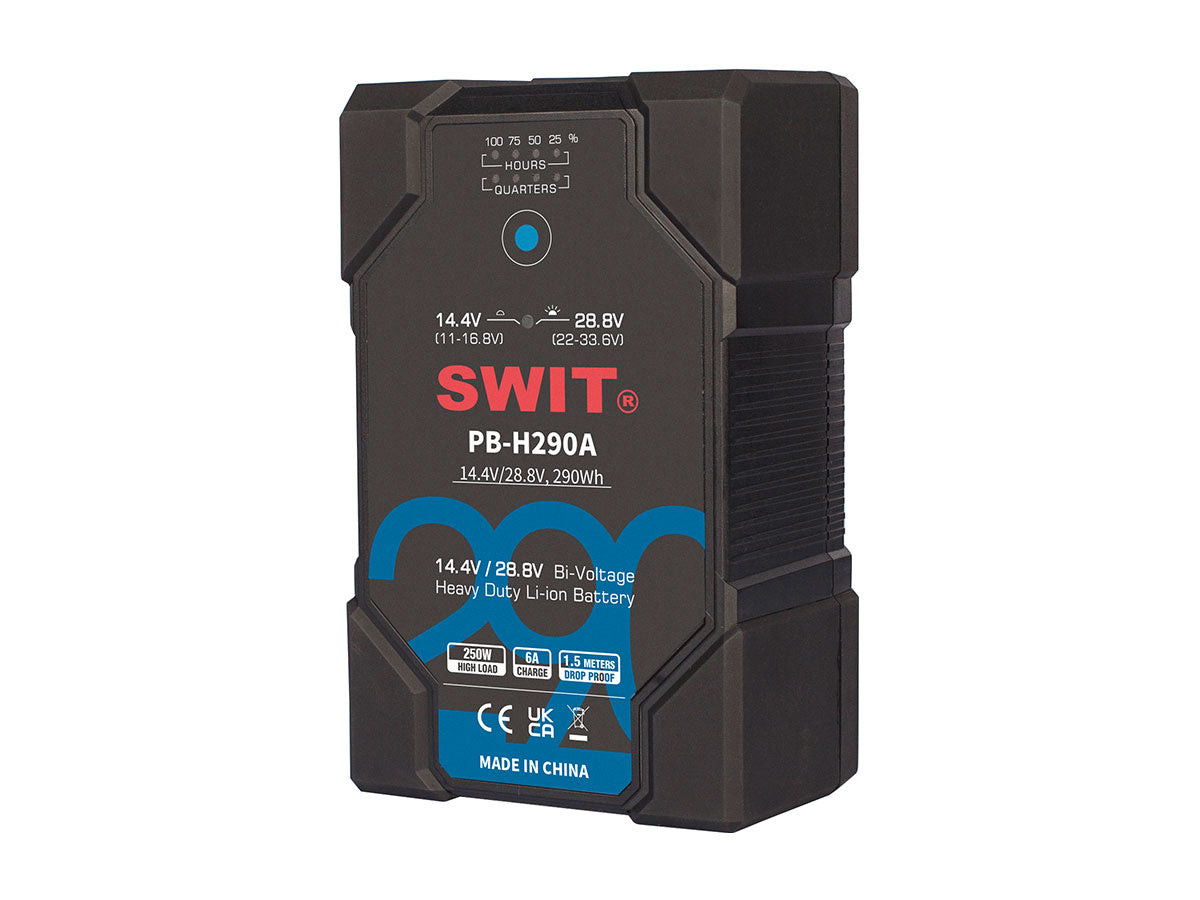

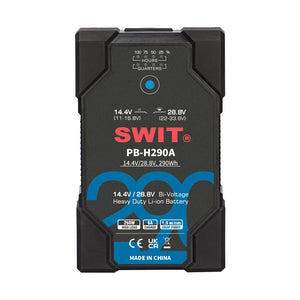

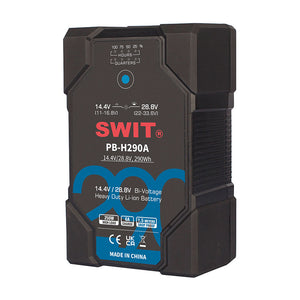

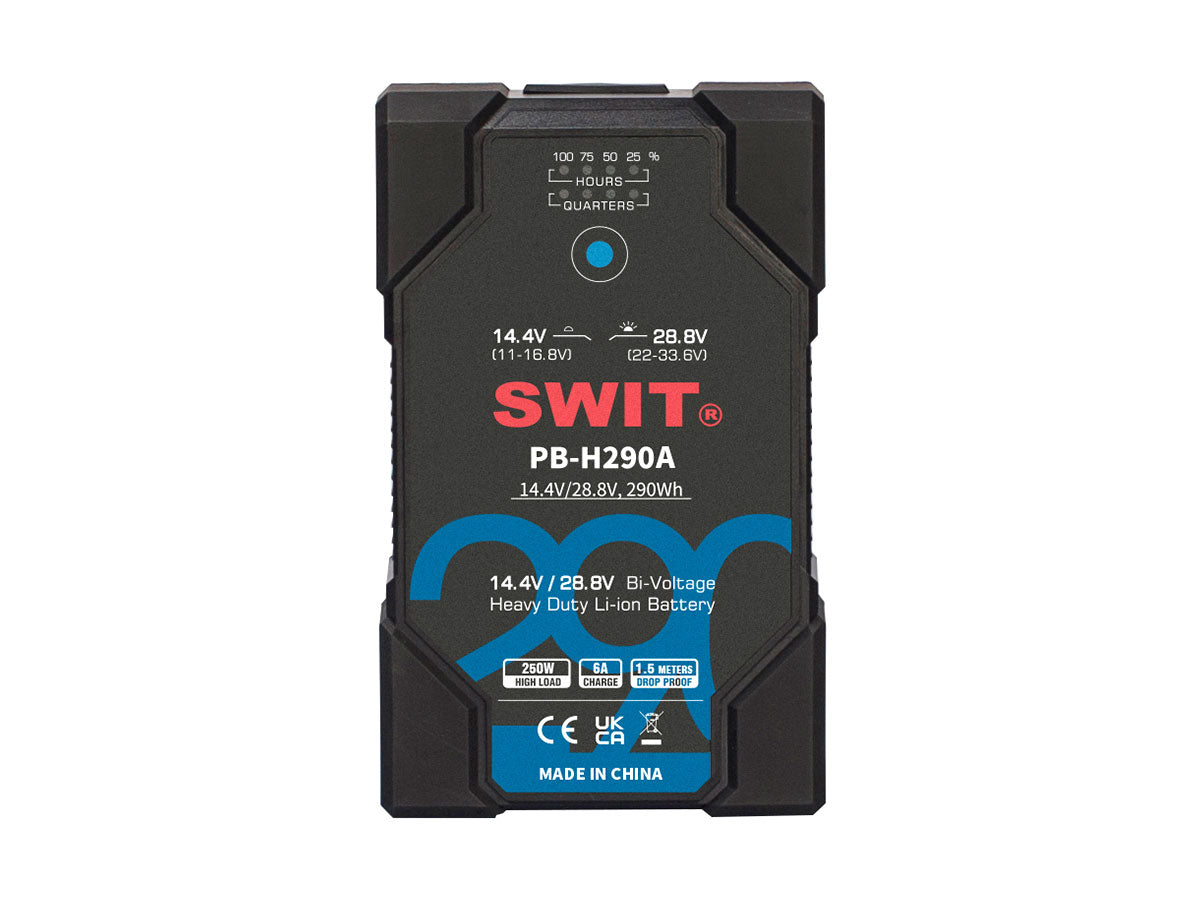

SWIT PB-H290A 290Wh High Load Bi-voltage Battery - Gold Mount
SWIT PB-H290A 290Wh High Load Bi-voltage Battery - Gold Mount
SKU:
SWI-PB-H290A
Regular price
£615.00 GBP ex VAT
£738.00 GBP inc VAT
£738.00 GBP inc VAT
Regular price
ex VAT
Sale price
£615.00 GBP ex VAT
£738.00 GBP inc VAT
Unit price
per
£738.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
14.4V/28.8V Bi-Voltage - Auto detect and switching
Many high power film devices are designed 22-33.6V high power input, to reduce current. If a standard Gold mount battery output high voltage directly, it will damage normal 14.4V voltage devices.
SWIT innovative “Bi-voltage” battery adopts standard Gold mount, and output 11-16.8V normal voltage or 22-33.6V high voltage by automatic recognition and switching, and compatible for all normal voltage chargers, safe and reliable.
SWIT innovative “Bi-voltage” battery adopts standard Gold mount, and output 11-16.8V normal voltage or 22-33.6V high voltage by automatic recognition and switching, and compatible for all normal voltage chargers, safe and reliable.
Active 22-33.6V output - By SWIT TD-R210A adaptor
PB-H290A will detect SWIT dedicated Gold mount plate and output 22-33.6V high voltage.
With TD-R210A Dual Batteries Light Stand Adaptor, PB-H290A will output 22-33.6V, and 2x PB-H290A can output Max 48V/500W, for Skypanel S60/S120 and Orbiter 100% output.
With TD-R210A Dual Batteries Light Stand Adaptor, PB-H290A will output 22-33.6V, and 2x PB-H290A can output Max 48V/500W, for Skypanel S60/S120 and Orbiter 100% output.
290Wh Capacity - 250W High Load
PB-H290A consists of 24pcs high class 18650 battery cells, and reaches 260Wh high capacity, Max constant load is 250W.
To drive high power cine camera and lights, and the high load battery will have longer life time than normal battery if always under full load power.
To drive high power cine camera and lights, and the high load battery will have longer life time than normal battery if always under full load power.
6A Fast Charging - Using SWIT fast charger
PB-H290A supports 6A fast charging by SWIT S-3812A or PC-P461A fast charger, to save up to 60% charging time, can be charged from 0 to 80% after 2 hours 30 minutes, and fully charged within 3 hours 50 minutes.
D-tap Socket
A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipment together:
- Under 14.4V (11-16.8V) output mode, D-tap output 11-16.8V and Max load 120W/10A;
- Under 28.8V (22-33.6V) output mode, D-tap output con- stant 16V and Max load 50W/3A;

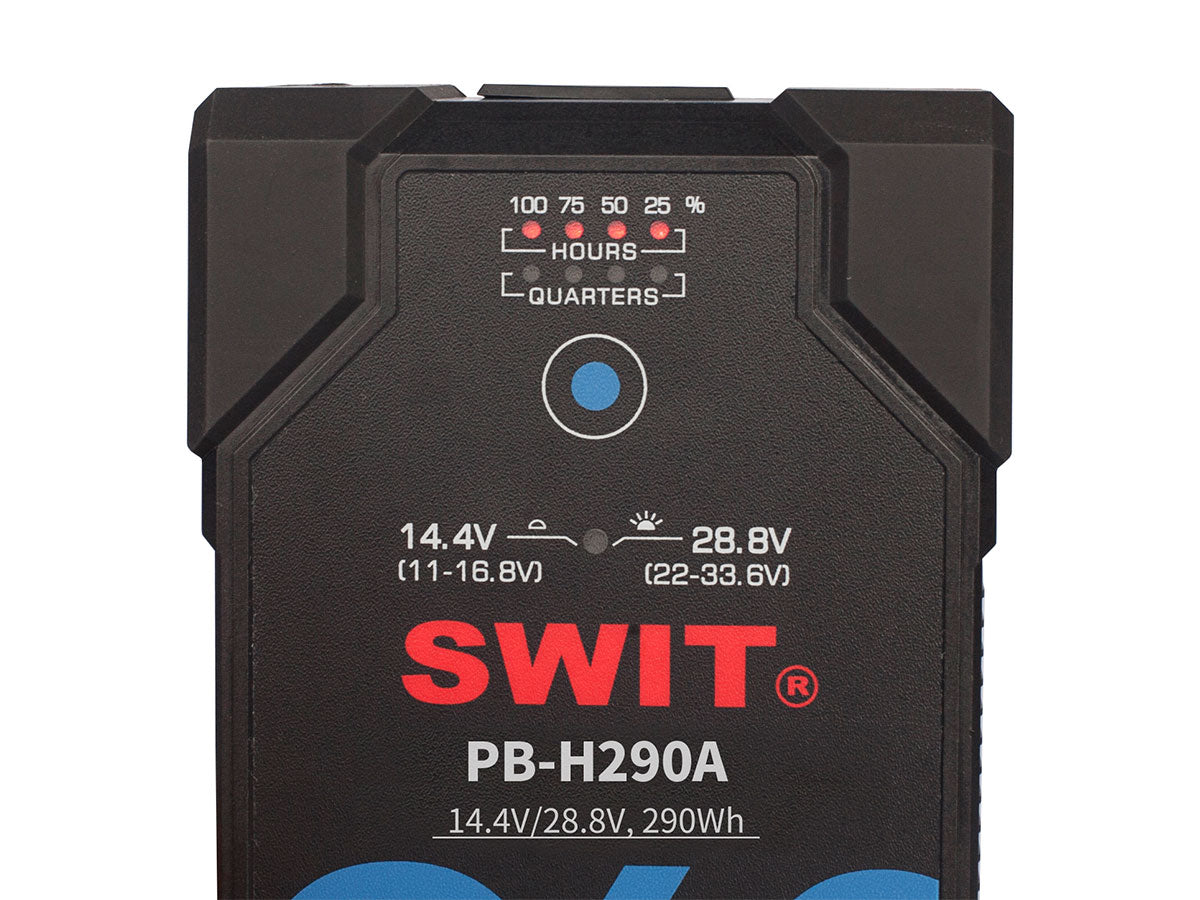

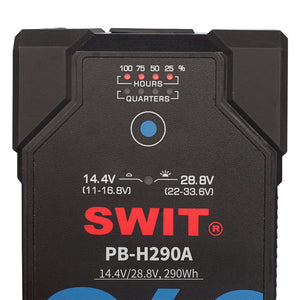

Digital Power Indicator - 8-LED remaining time read
- When battery is discharging - Press "Power Check" button, Upper 4 LEDs display remaining working hours, and Lower 4 LEDs display remaining working minutes, under current output power. The LED will flash when remaining time is less than 15 minutes to remind changing battery.
- When battery is charging - Upper 4 LEDs flashing constantly, indicates the real-time capacity percentage 25%, 50%, 75% and 100%.
- When battery is free - Press "Power Check" button, Upper 4 LEDs light up, to indicate the remaining capacity percentage 25%, 50%, 75% and 100%.
1.5m Drop-off Proof - Dual housing + Rubber cover
PB-H290A has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The new structure makes the battery quite strong, anti-shock. The battery can survive from 1.5 meters any angles drop-off.
- 14.4V/28.8V Bi-voltage auto switch
- Power normal 11-16.8V equipment
- Power high 22-33.6V equipment
- Charge by normal 16.8V chargers
- 290Wh capacity, 250W constant load
- 16V D-tap output socket
- 6A fast charging support
- 8-LED remaining time indicators

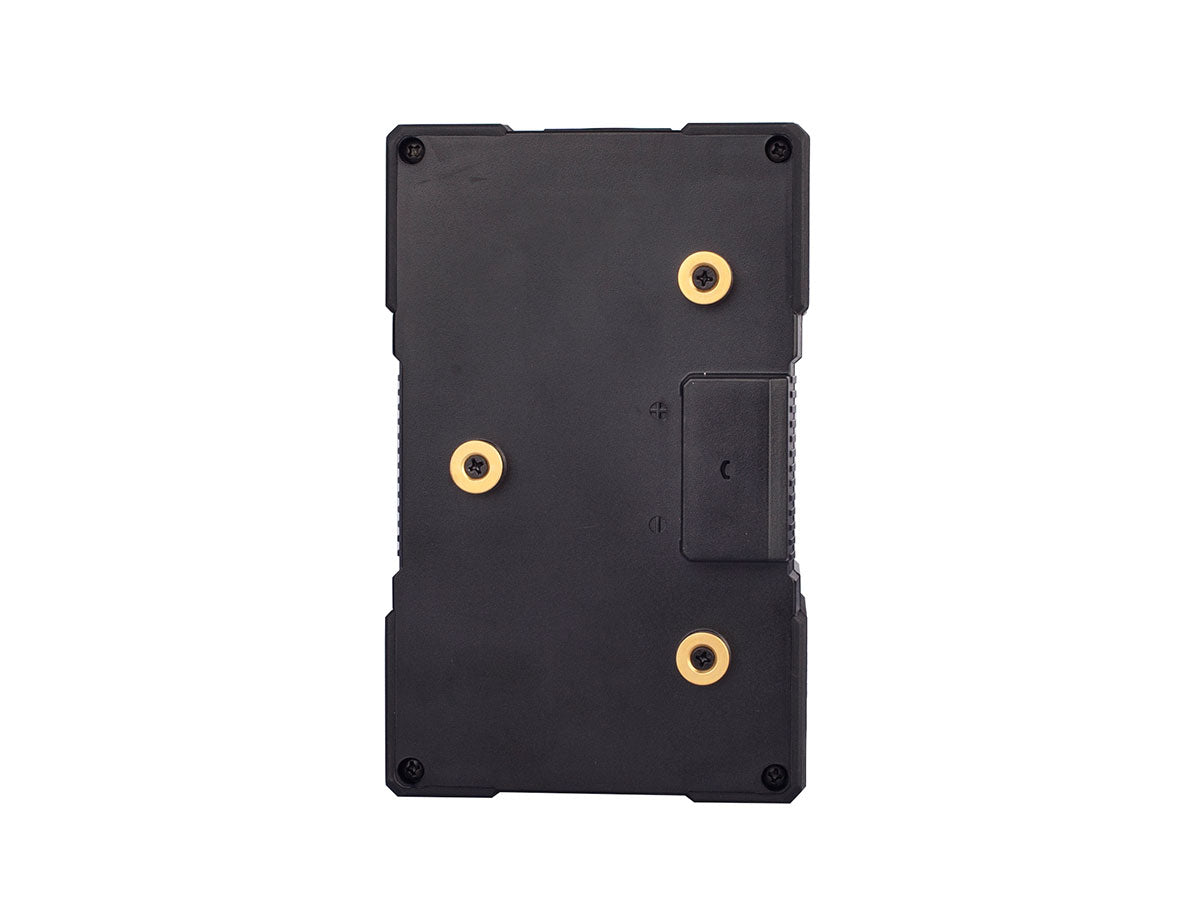

- Normal Gold mount connection
- 1.5m drop-off proof
- Multiple circuit protections
| Nominal Voltage | 14.4V or 28.8V auto switching |
| Capacity | 290Wh |
| Max output power (14.4V) | Total: 250W |
| Pins: 250W / 20A | |
| D-tap: 120W / 10A | |
| Max output power (28.8V) | Total: 250W |
| Pins: 250W / 10A | |
| D-tap (16V): 50W / 3A | |
| Max charging current | 16.8V / 10A |
| Mount Type | Gold mount |
| Charging Temperature | 0 ~ 40°C |
| Discharging Temperature | -20°C ~ 50°C（Capacity and Max Load may decrease when operating below 0°ï¼‰ |
| Dimension | 162×101×75mm |
| Net weight | 1.5kg |
