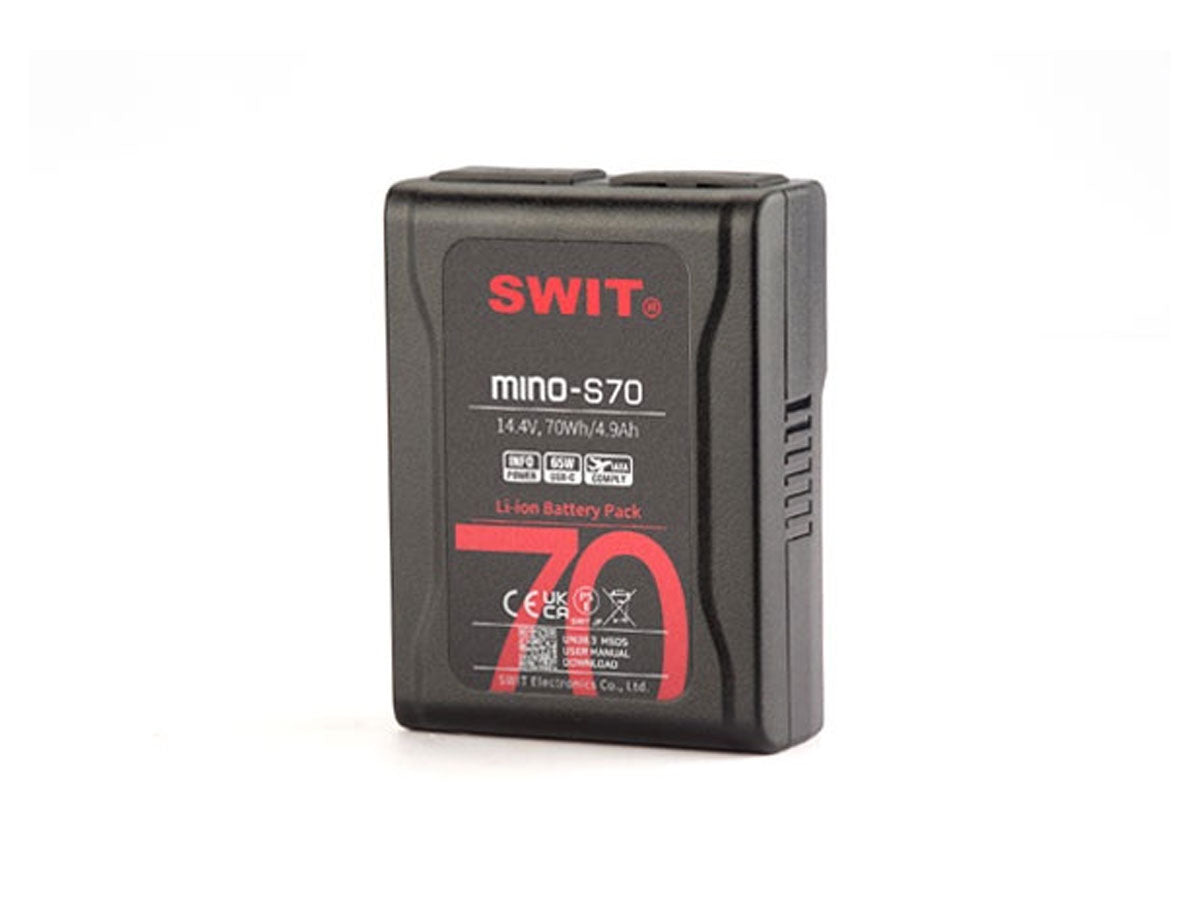

Swit Mino-S70 Pocket V-Mount Battery
Swit Mino-S70 Pocket V-Mount Battery
SKU:
SWI-MINO-S70
Regular price
£199.00 GBP ex VAT
£238.80 GBP inc VAT
£238.80 GBP inc VAT
Regular price
ex VAT
Sale price
£199.00 GBP ex VAT
£238.80 GBP inc VAT
Unit price
per
£238.80 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

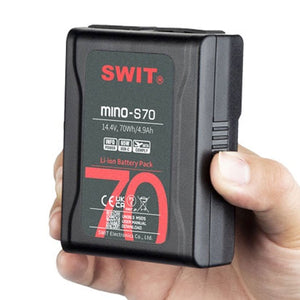

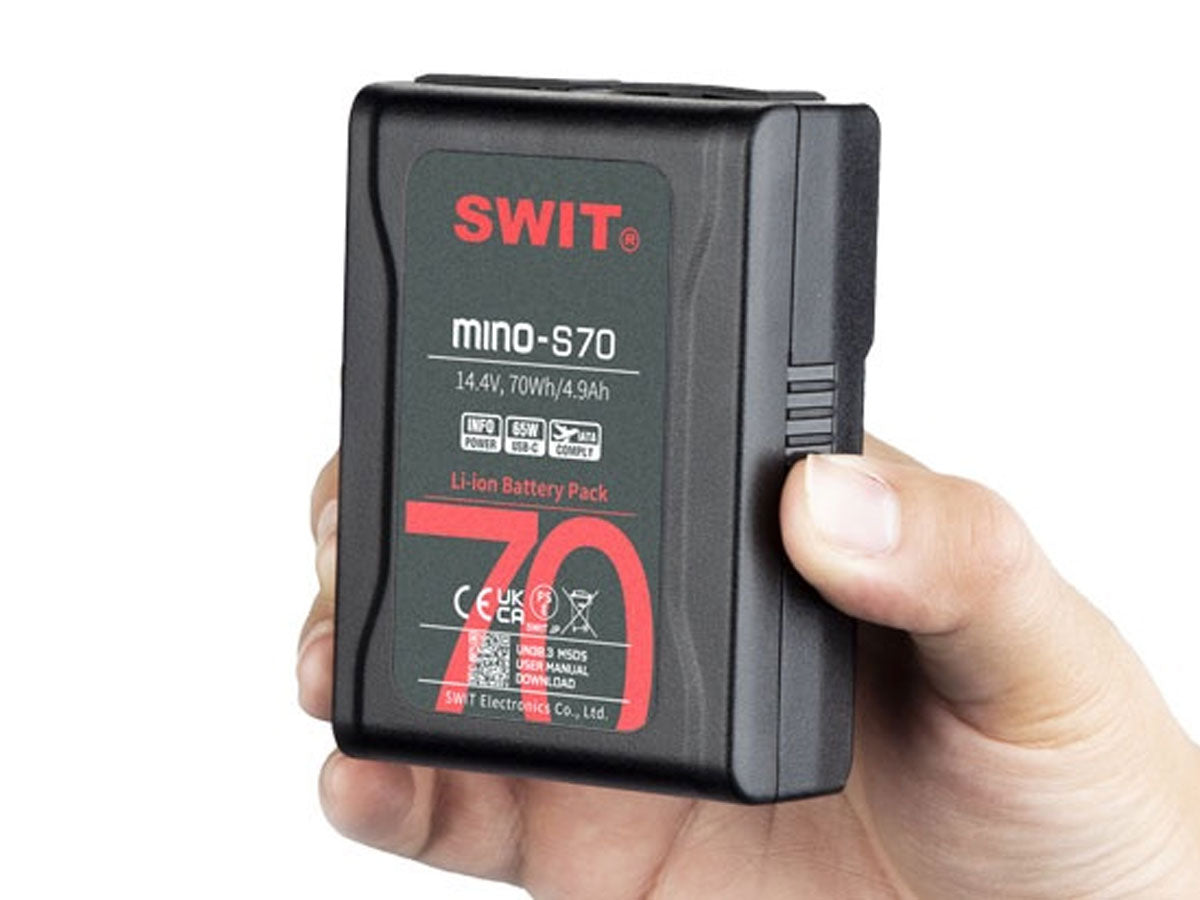

Tiny Size 70Wh V-mount
MINO-S70 is a pocket fit tiny size V-mount battery for handheld cameras, monitors and other camera gears. It powers RED V-raptor for at least 1 hour and offers minimum weight for stablizer installation.

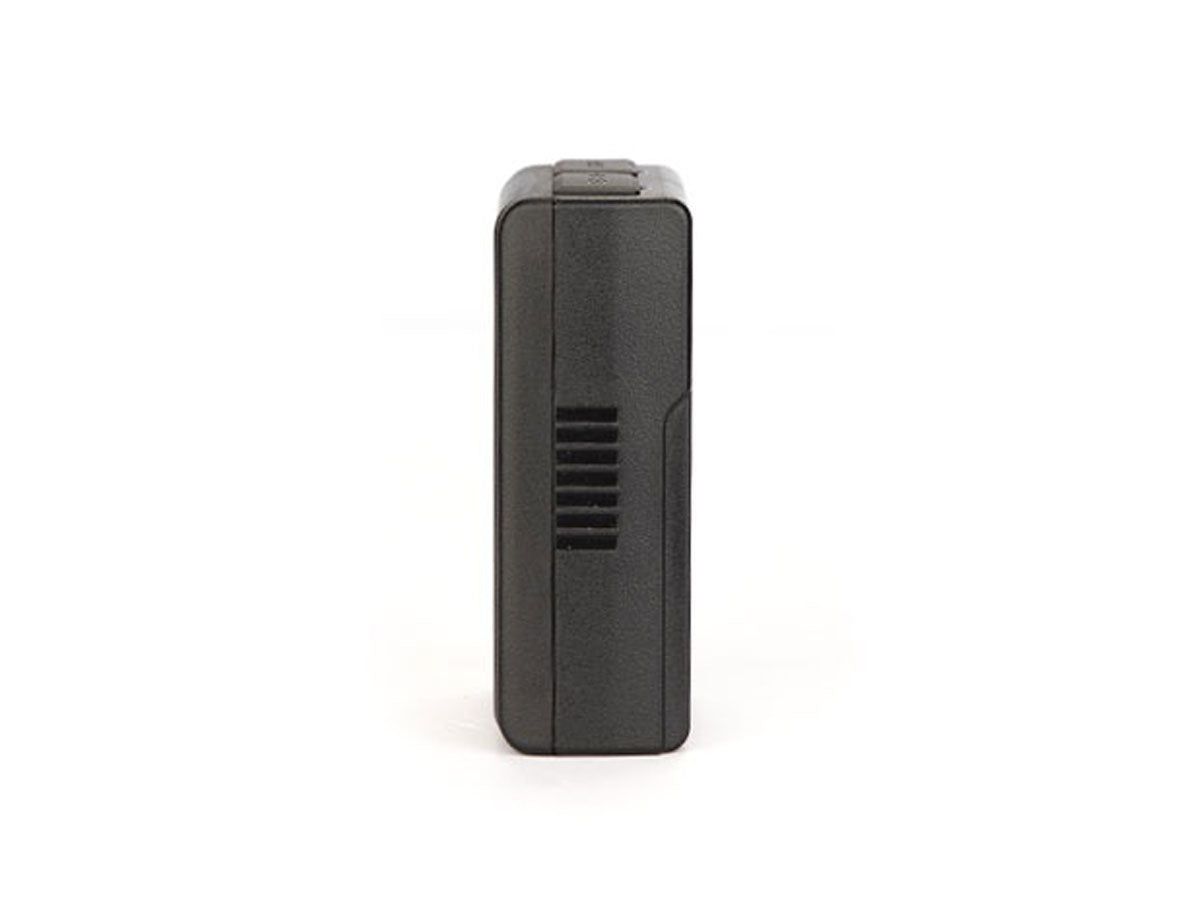

Thinner and Light Weight
The MINO-S70 is 37mm thickness, standard V-mount connector, and only 419g light weight for handheld camera gears.
70Wh, 100W/8A Load
MINO-S70 consists of 4 high capacity cells, with 70Wh/4.9Ah high capacity, and support at least 100W/8A constant high load output.

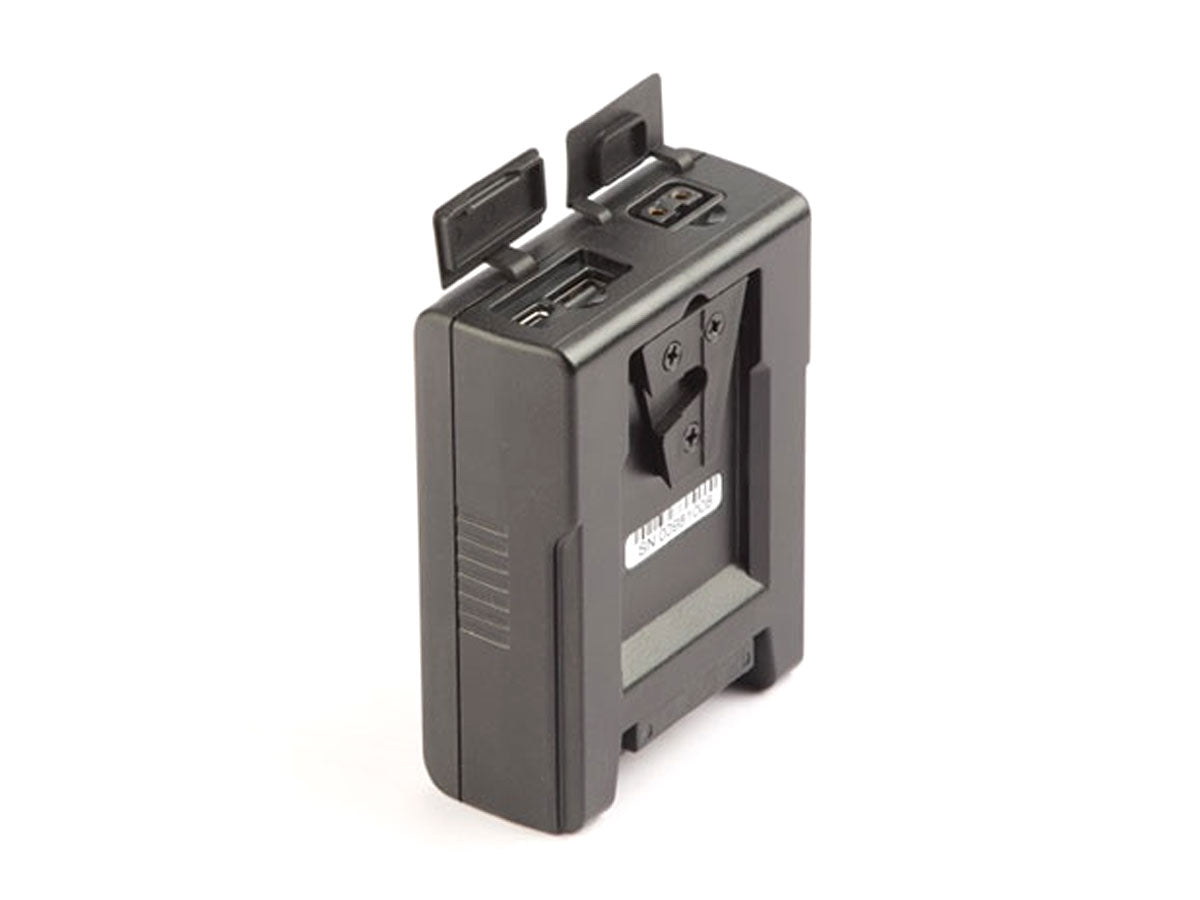

D-tap, USB-A and USB-C
The tiny size MINO-S70 didn't compromize on DC sockets:
- D-tap x1 - 100W/8A load (Support charging input)
- USB-A x1 - 5V/2A output
- USB-C x1 - 65W output and 35W charging input
USB-C 35W Charging Input
MINO-S70 battery can be charged by USB-C charger, supports PD 5V/9V/12V/15V/20V(Max) 1.75A, 35W charging input, which means you can fully charge the 70Wh battery within 2.5 hours.
USB-C 65W Power Output
You can power laptop via USB-C by MINO-S70 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols. (For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports).
.
Wire-Free Internal Tech
MINO-S70 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
- Tiny V-mount battery, Pocket fit
- Support RED V-Raptor install
- 70Wh/4.9Ah high capacity
- 100W/8A constant power load
- 1x D-tap output & charging input
- 1x USB-A 5V/2A output
- 1x USB-C 35W input & 65W output
- 4-step LED power indicator
- Power info for both SONY & RED
- Wire-Free internal technic
- Multiple circuit protections
| Battery plate | V-mount |
| Nominal voltage | 14.4V |
| Capacity | 70Wh, 4.9Ah |
| Power IN&OUT | Electrodes: 100W 8A out, 16.8V 3A in |
| D-tap: 100W 8A out, 16.8V 3A in | |
| USB-A: 10W, 5V/2A out | |
| USB-C: Max 65W out, 5V/9V/12V/15V/20V(Max) 3.25A BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP Max 35W in, 5V/9V/12V/15V/20V(Max) 1.75A | |
| Dimension | 105×79.6×37mm (Fit RED Raptor) |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
| Net weight | 419g |
- 1x Swit 70Wh Pocket V-Mount Battery Pack
