Swit MATRIX-S8 8x100W Wall Charger - V-Mount

Swit MATRIX-S8 8x100W Wall Charger - V-Mount

SKU: SWI-MATRIX-S8
£1,922.00 GBP ex VAT
£2,306.40 GBP inc VAT
ex VAT £1,922.00 GBP ex VAT
£2,306.40 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

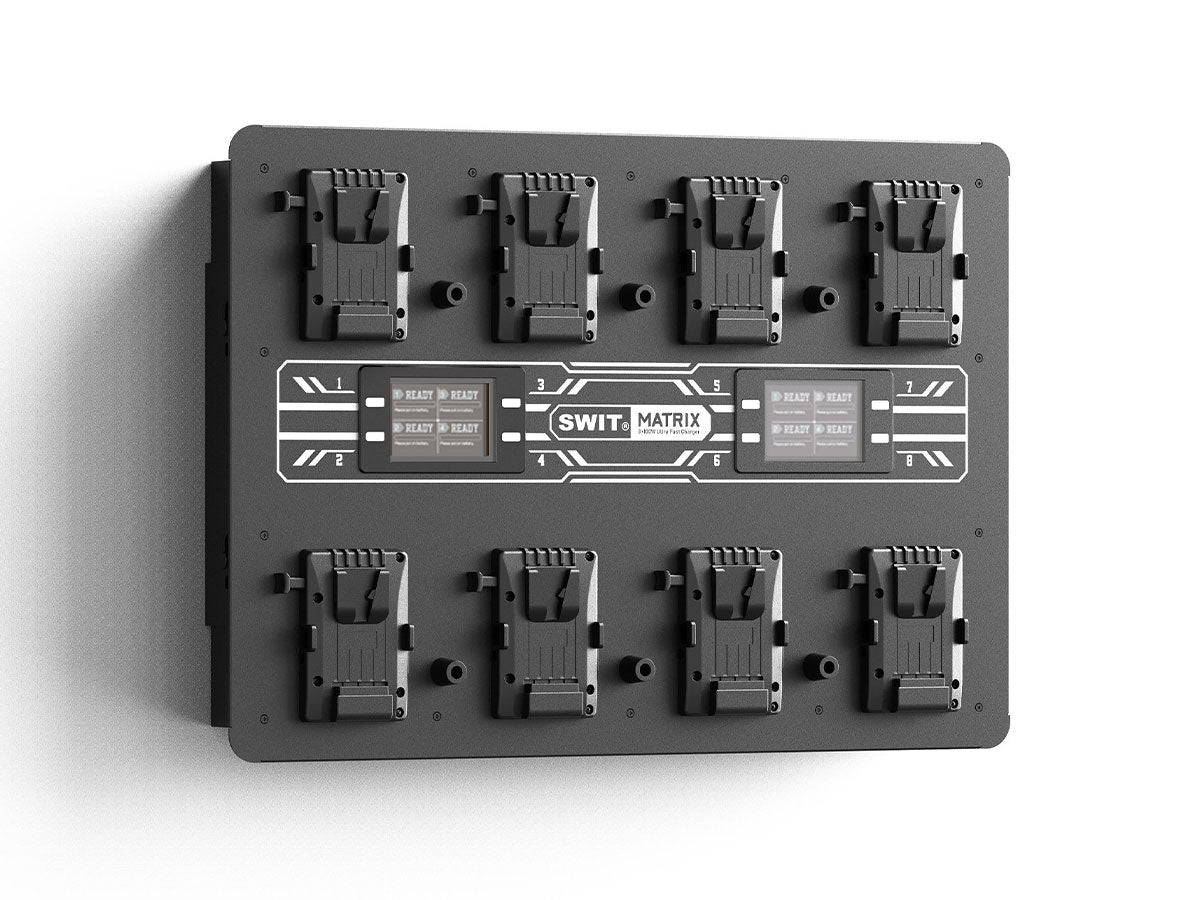

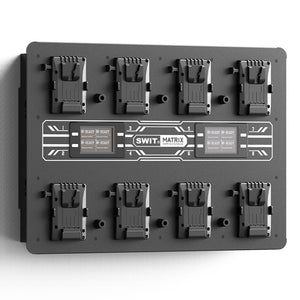

8x100W Ultra Fast Wall Charger
MATRIX-S8 is an 8-ch simultaneous V-mount wall charger with 100W ultra fast charging speed each channel, save up to 60% charging time comparing to normal chargers, supports both 14.4V and 28.8V batteries, for TV stations and rental houses installation.
Charging Time Comparison
Battery Capacity:
160Wh
210Wh
220Wh
290Wh
420Wh
33W Normal Charger:
6h
8h
8h 15m
10h 30m
15h
50W Fast Charger:
4h
5h 15m
5h 45m
7h 15m
10h 10m
MATRIX 100W Ultra Fast Charger:
2h 15m
3h
3h 20m
3h 50m
5h 20m

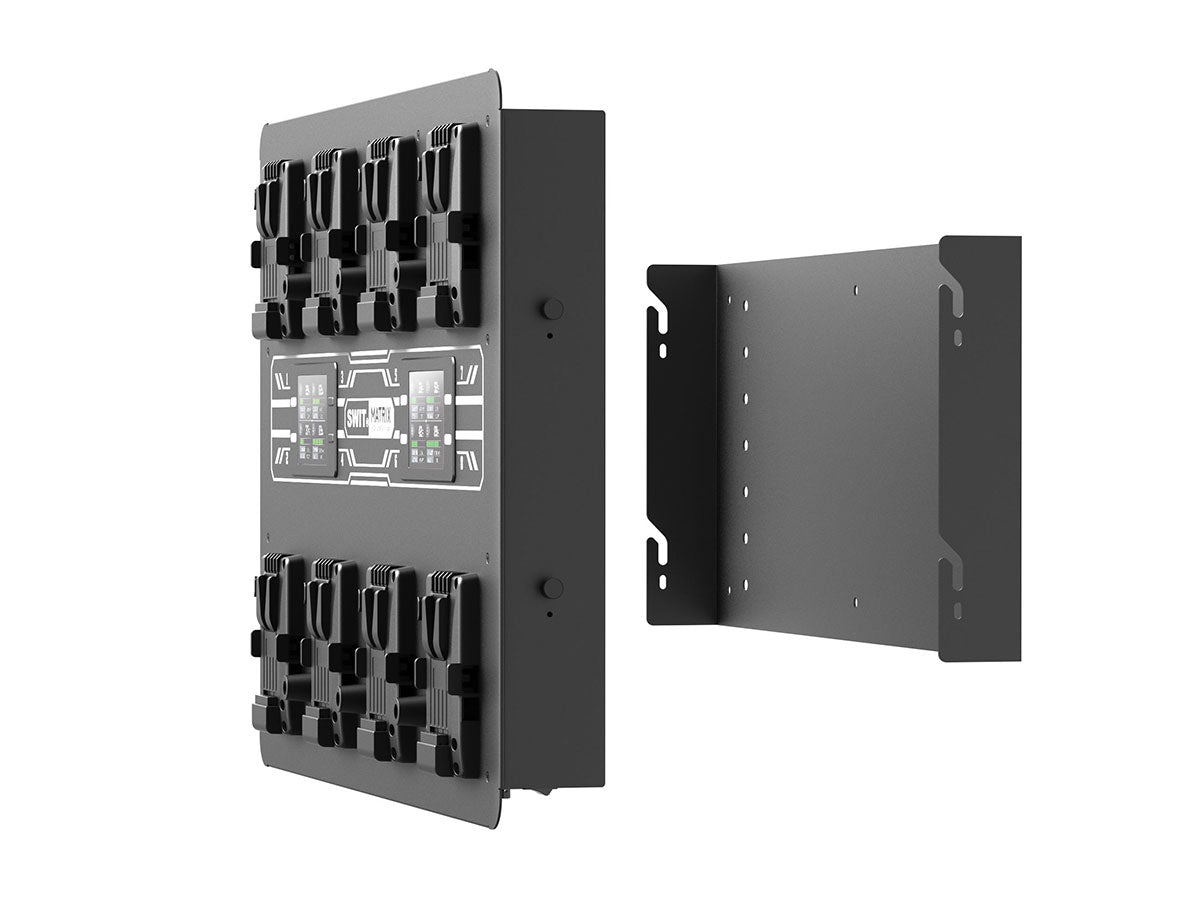

Flexible Wall Mounting Plate

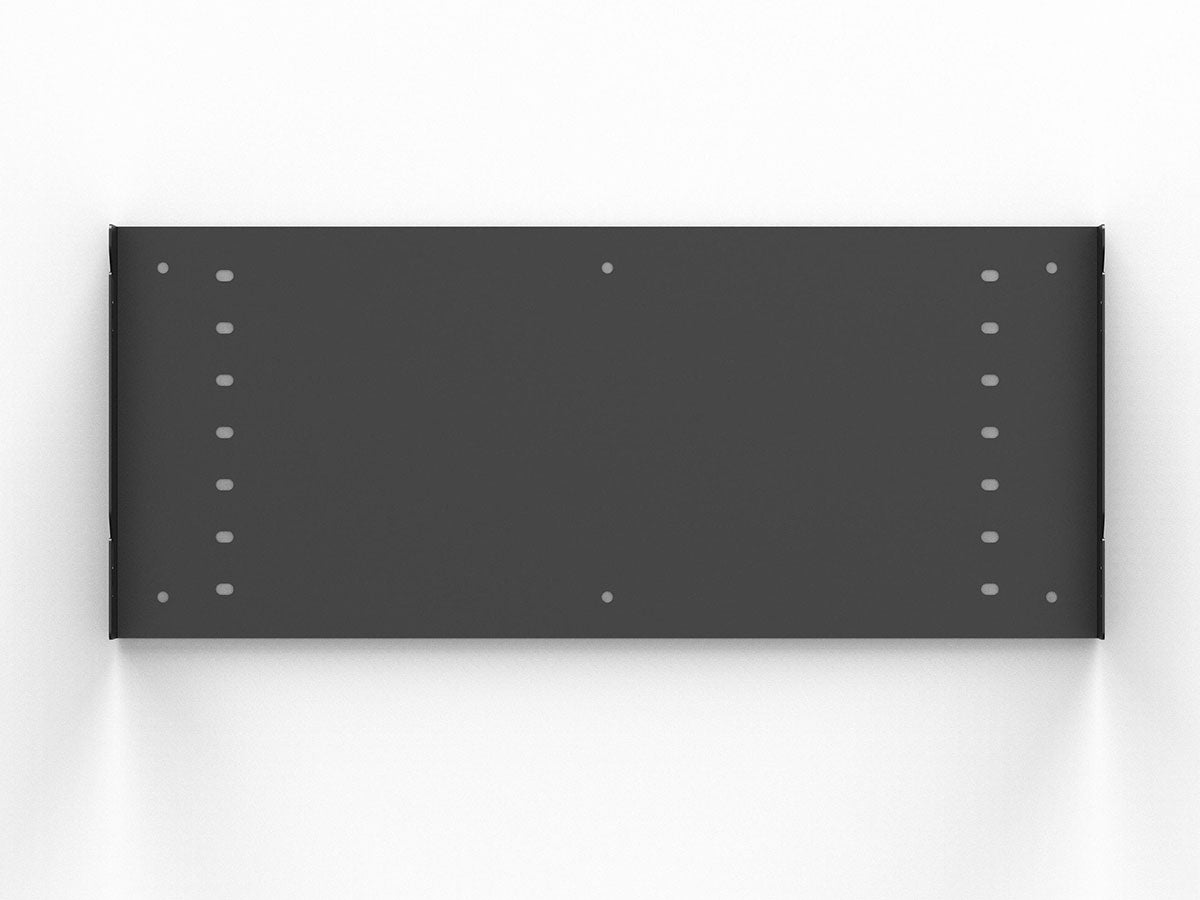

MATRIX-S8 provides with a wall mounting plate on the backside, to be screwed onto the wall, or mounting to standard 19-inch rack bracket. You can even install the mounting plate onto storage rack or DIT cart.
3.5-inch Color LCD and Indicators

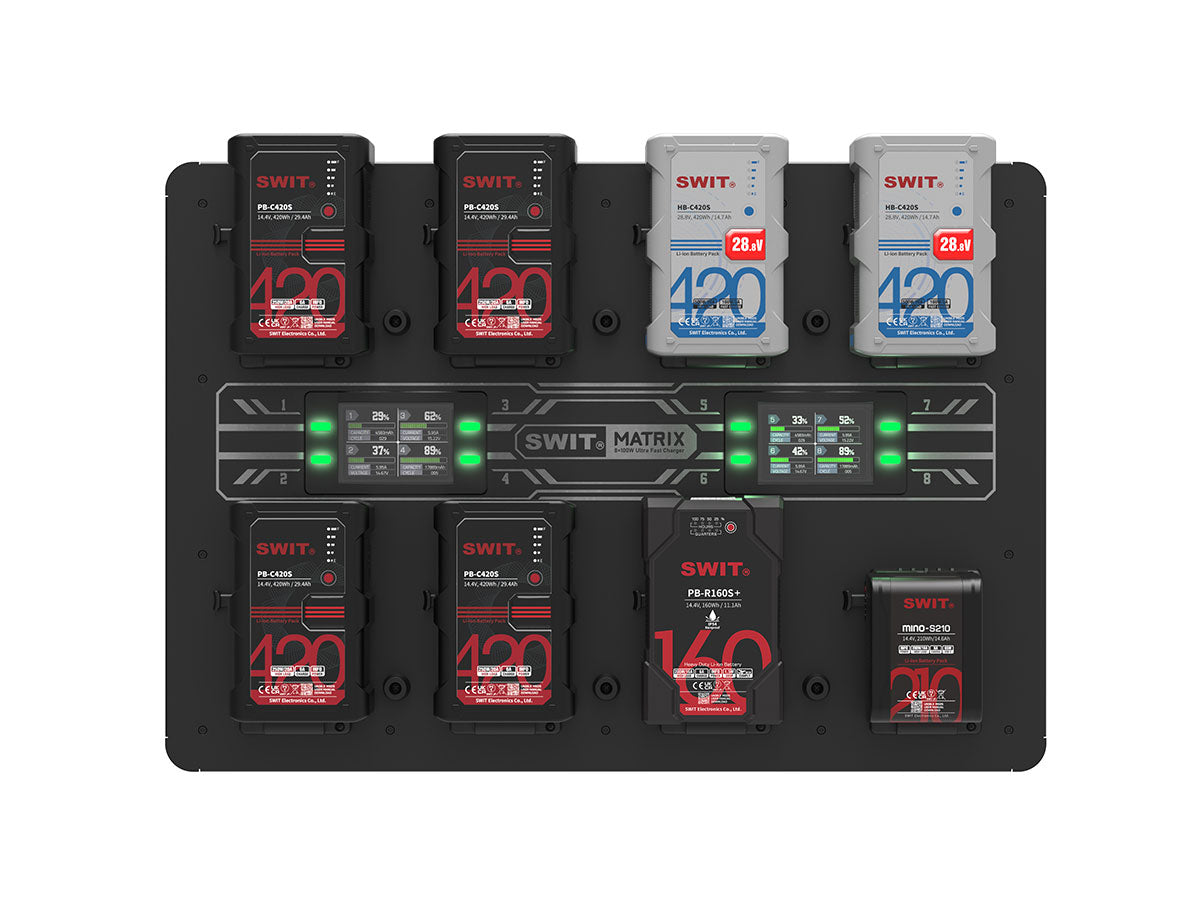

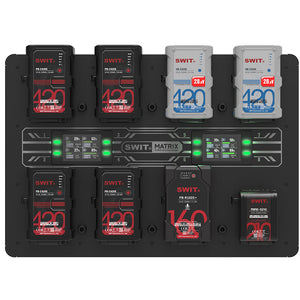

MATRIX-S8 provides 2x 3.5-inch color LCD to display charging progress, charging current, voltage, battery cycle times for each channel.You can also check the charging status by large charging indicators from a distance.
  • 8-ch simultaneous fast charging
  • Charge both 14.4V and 28.8V V-mount batteries
  • 100W/6A for SWIT 14.4V & ≥160Wh batteries
  • 100W/3A for SWIT 28.8V & ≥160Wh batteries
  • 50W/3A for other batteries
  • 2× 3.5-inch color LCD info display
  • Battery cycle times display
  • Large LED charging indicators
  • Wall mounting or 19-inch rack install
Power:
Max 900W
Input:
AC100V-240V 50/60Hz
Output:
DC 16.8V, 6A 100Wx8 (SWIT 14.4V & ≥160Wh batteries)
DC 33.6V, 3A 100W×8 (SWIT 28.8V & ≥160Wh batteries)
DC 16.8V, 3A 50W×8 (Other batteries)
Applicable Battery:
V-mount battery
Dimensions:
630×436×89mm
Weight:
Net 10.6kg
