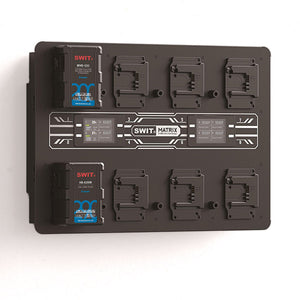

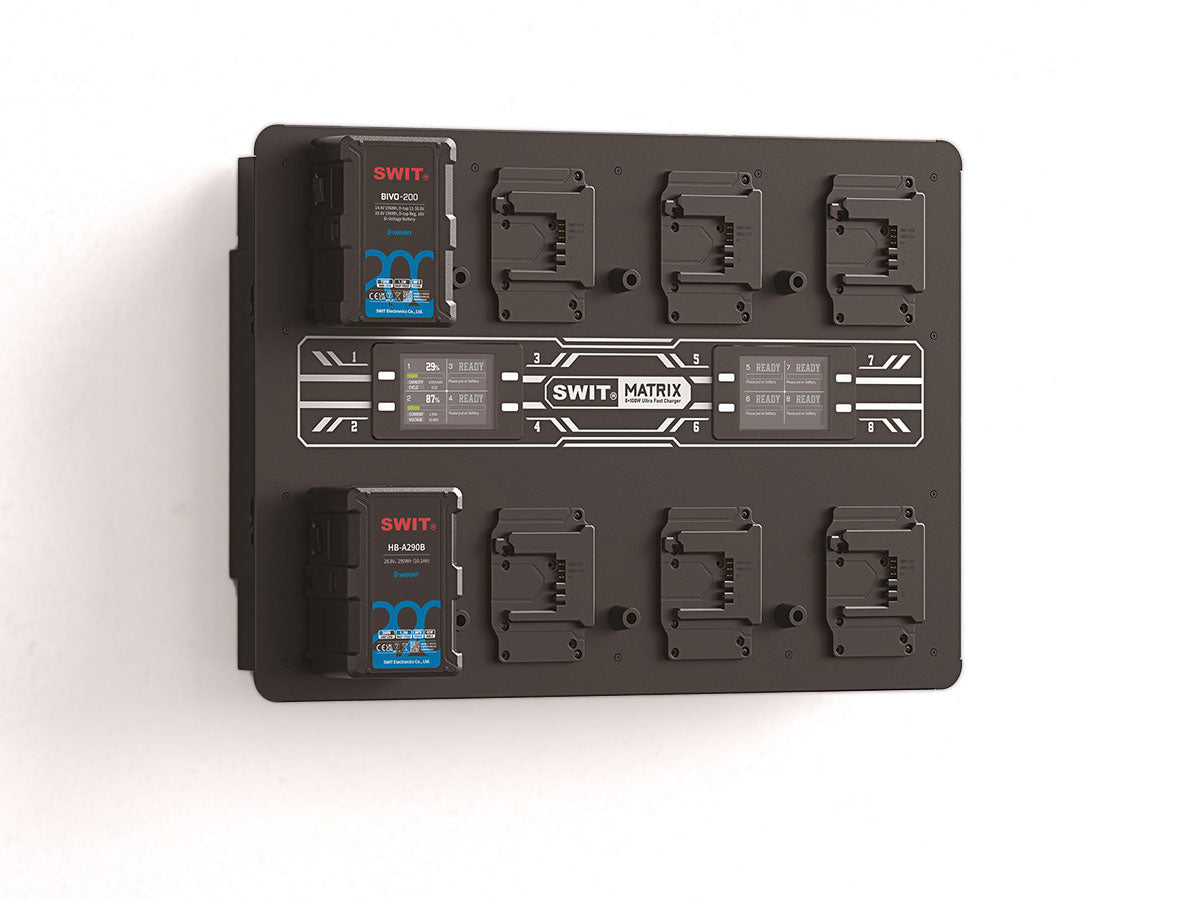

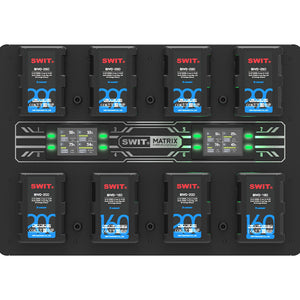

Swit MATRIX-B8 8x100W Wall Charger - B-Mount

Swit MATRIX-B8 8x100W Wall Charger - B-Mount

SKU: SWI-MATRIX-B8
£1,922.00 GBP ex VAT
£2,306.40 GBP inc VAT
ex VAT £1,922.00 GBP ex VAT
£2,306.40 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
8x100W Ultra Fast Wall Charger
MATRIX-B8 is an 8-ch simultaneous B-mount wall charger with 33.6V 100W ultra fast charging speed each channel, charging SWIT HB-A290B, BIVO series, and compatible with other B-mount batteries that support 33.6V charging voltage like CoreSWX.
Charging Time Chart
Battery Model:
BIVO-98
BIVO-160
BIVO-200
BIVO-290
HB-A290B
Capacity:
98Wh
160Wh
196Wh
290Wh
290Wh
Charging Speed:
33.6V 44W
33.6V 100W
33.6V 100W
33.6V 100W
33.6V 100W
Fully Charging Time:
2h 45m
2h 15m
2h 45m
3h 50m
3h 50m

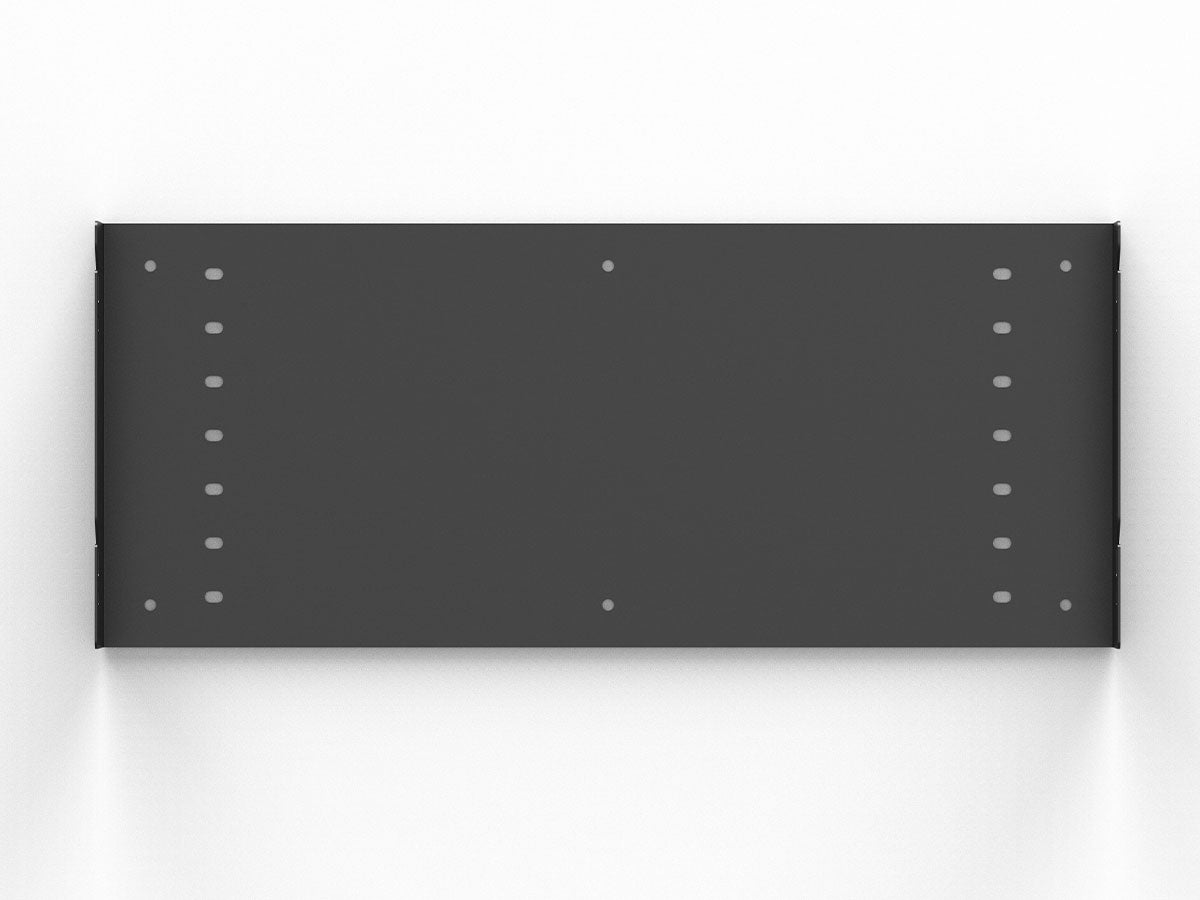

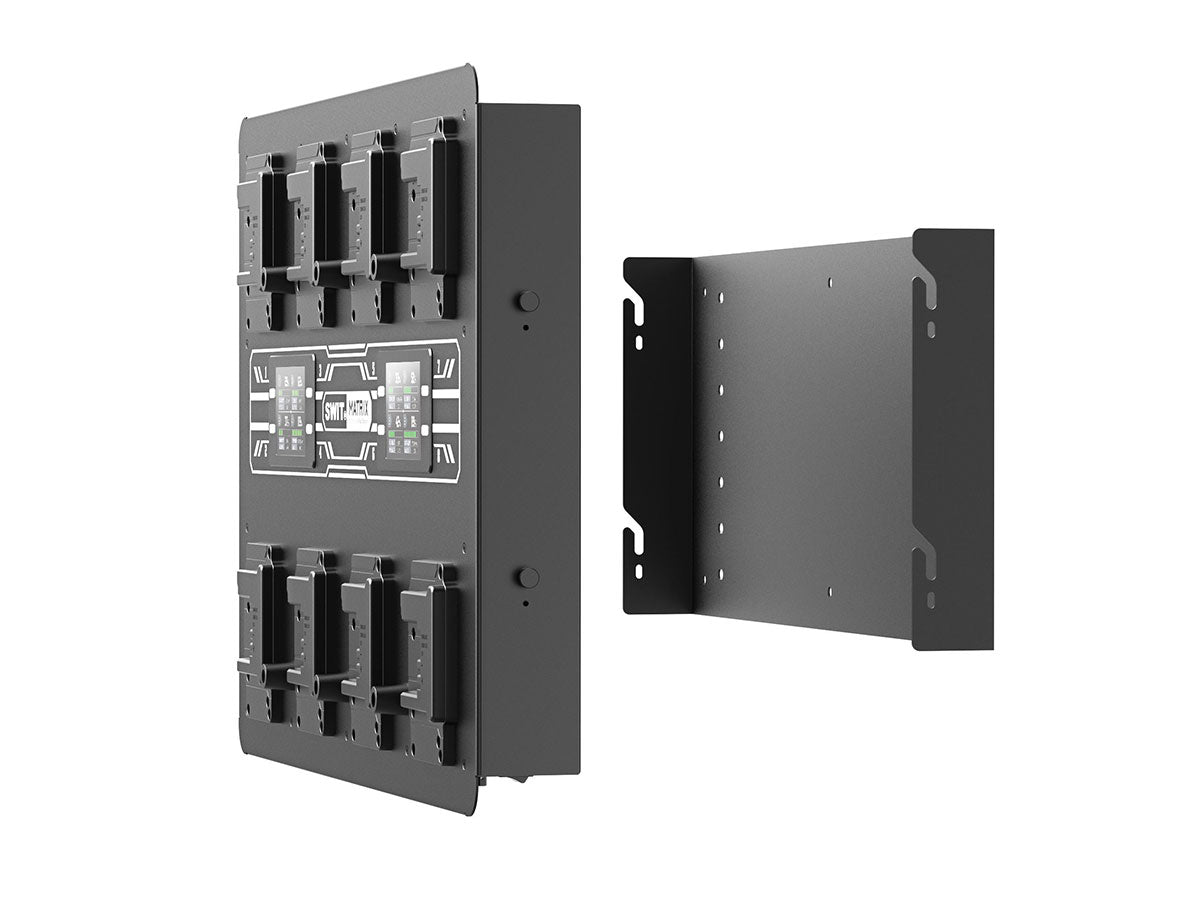

Flexible Wall Mounting Plate
MATRIX-B8 provides with a wall mounting plate on the backside, to be screwed onto the wall, or mounting to standard 19-inch rack bracket.
You can even install the mounting plate onto storage rack or DIT cart.

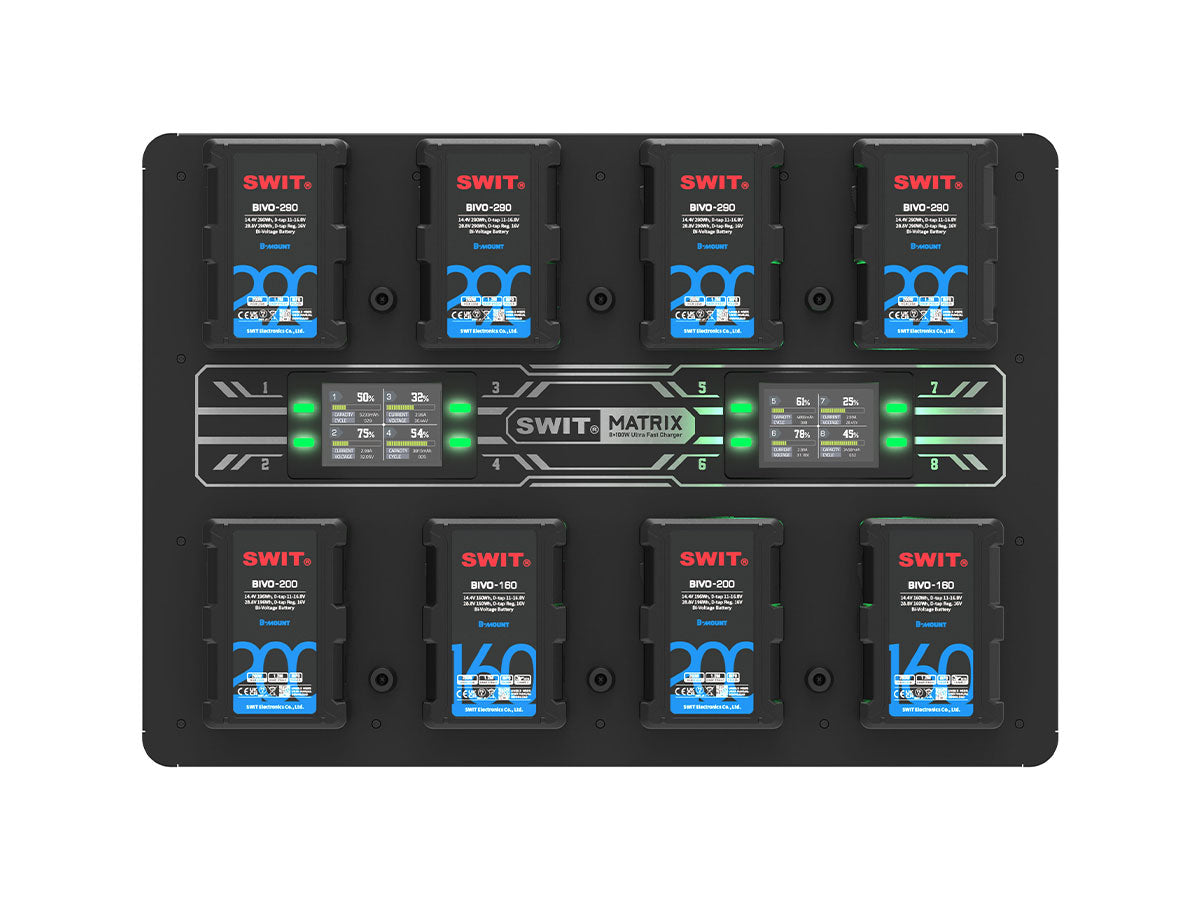

3.5-inch Color LCD and Indicators
MATRIX-B8 provides 2x 3.5-inch color LCD to display charging progress, charging current, voltage, battery cycle times for each channel.You can also check the charging status by large charging indicators from a distance.
  • 8-ch simultaneous B-mount fast charging
  • DC33.6V, 3A, 100W for ≥160Wh batteries
  • DC33.6V, 1.3A, 44W for <160Wh batteries
  • 2× 3.5-inch color LCD info display
  • Battery cycle times display
  • Large LED charging indicators
  • Wall mounting or 19-inch rack install
Power:
Max 900W
Input:
AC100V-240V 50/60Hz
Output:
DC 33.6V, 3A 100Wx8 (≥160Wh B-mount batteries)
DC 33.6V, 1.3A 44W×8 (<160Wh B-mount batteries)
Applicable Battery:
B-mount battery
Dimensions:
630×436×89mm
Net Weight:
Net 10.6kg
